DOOSAN DX300LC-3 EXCAVATOR 170301-00091A 170301-00091B K1056874 SWING MOTOR ROTARY GROUP

DOOSAN DX300LC-3 EXCAVATOR 170301-00091A 170301-00091B K1056874 SWING MOTOR ROTARY GROUP

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
170301-00091A 170301-00091B K1056874
DX300LC-3

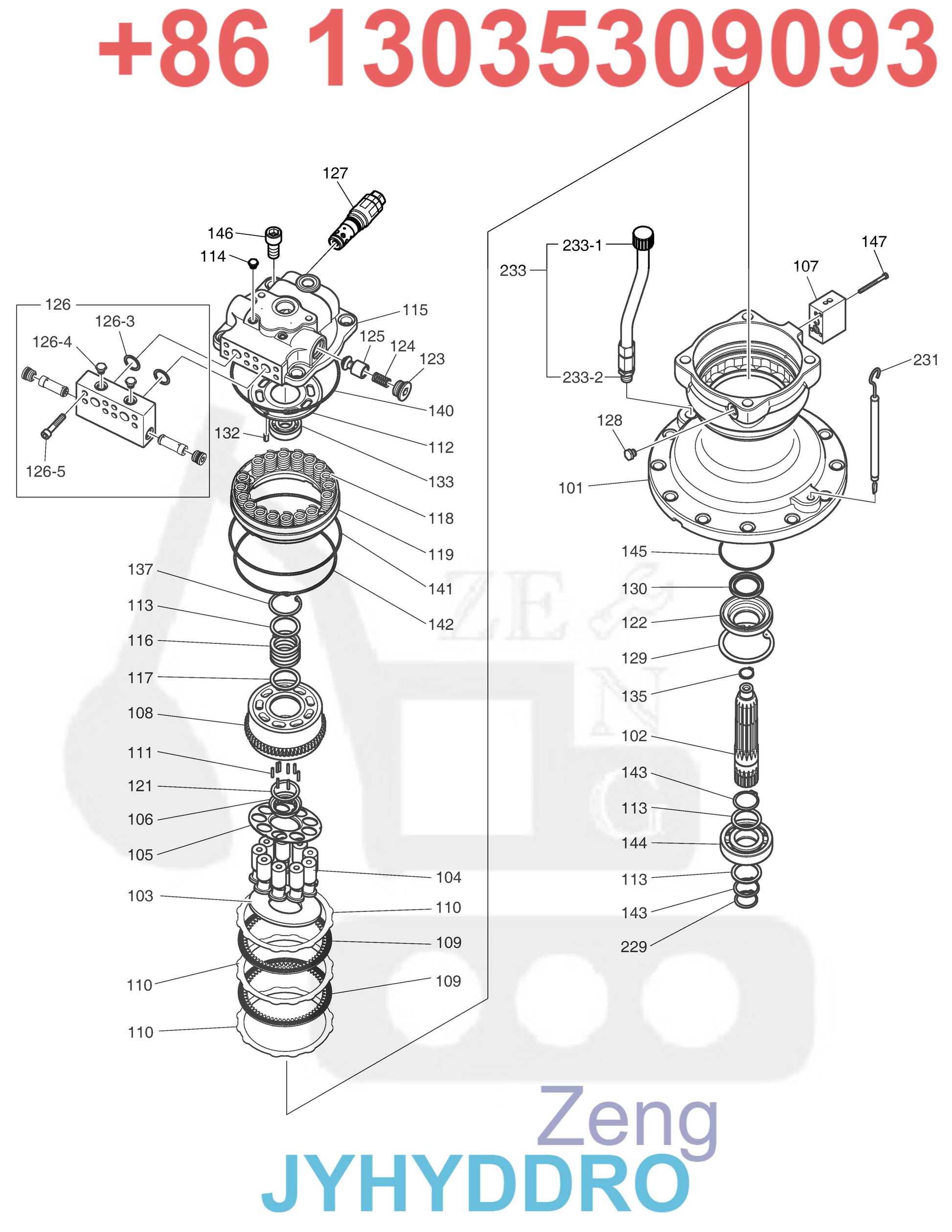

Pos. Part No Qty Parts name Comments
*. K9002875 [1]   SEAL KIT;SWING MOTOR
-. 170303-00064 [1]
101 *NA00342 [1]   CASING
102 405-00013 [1]   SHAFT;DRIVE
103 412-00011 [1]   PLATE;SHOE
104 409-00009 [1]   PISTON ASS'Y
105 223-00024 [1]   RETAINER
106 131002-00290 [1]
107 410102-00023 [1]
108 410-00005 [1]   CYLINDER BLOCK
109 412-00013 [2]   PLATE,FRICTION
110 352-00014 [3]   PLATE,SEPARATION
111 454-00007 [12]   ROD;PUSH
112 412-00019 [1]   PLATE;VALVE
113 114-00240 [3]   SPACER
114 430221-00070 [2]   PLUG
115 423-00053 [1]   CASING;VALVE
116 129-00060 [1]   SPRING;CYLINDER
117 114-00242 [1]   SPACER
118 129-00062 [20]   SPRING;BRAKE
119 452-00020 [1]   PISTON;BRAKE
121 114-00241 [1]   SPACER
122 113360A [1]   COVER;FRONT
123 430221-00449 [2]
124 129-00061 [2]   SPRING
125 424-00049 [2]   PLUNGER
126 410116-00375 [1]
126-3. S8010300 [2]   O-RING
126-4. 430221-00070 [2]   PLUG
126-5. S2212766 [2]   BOLT;SOCKET M10X1.5X55
127 K9009870 [2]   VALVE;RELIEF
128 430221-00070 [1]   PLUG
129 S6511000 [1]   RING;LOCK
130 401106-00181 [1]
132 S5741162 [2]   PIN;SPRING
133 109-00110 [1]   BEARING;ROLLER
135 S6500250 [1]   RING;RETAINING
137 S6510580 [1]   RING;LOCK
140 2180-1217D156 [1]   O-RING
141 180-00221 [1]   O-RING
142 180-00220 [1]   O-RING
143 S6500450 [2]   RING;SNAP
144 109-00099 [1]   BEARING;ROLLER
145 S8011001 [1]   . O-RING
146 S2227561 [4]   BOLT;SOCKET
147 S0506053 [2]   BOLT M6x1.0x70
229 S6500400 [1]   RING,RETAINING
231 800108-00094 [1]
233 420210-00632 [1]
233-1. 110910-00378 [1]
233-2. 2181-1920D4 [1]   ADAPTER PT1/2-PFO1/2

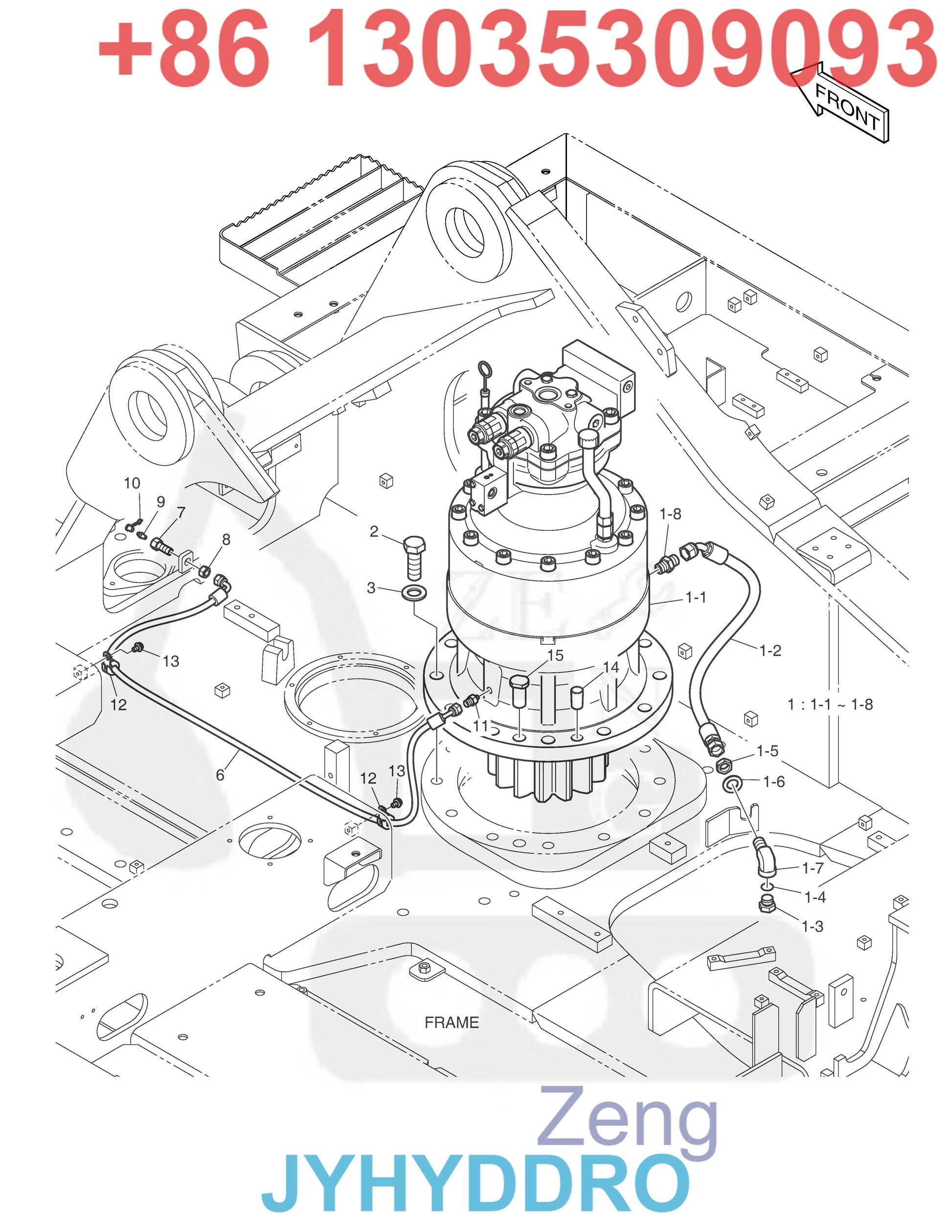

Parts on group DX300LC-3:
Pos. Part No Qty Parts name Comments
-. K1056874 [-]
1 170301-00091B [1]
1 170301-00091A [1]   170301-00091B
1-1. 170301-00092A [1]
1-2. DS2054133 [1]   HOSE
1-3. 2181-1950D7 [1]   . PLUG
1-4. S8000181 [1]   O-RING
1-5. 121-00010D3 [1]   . NUT
1-6. S5011113 [1]   . WASHER
1-7. 181-00717 [1]   . ELBOW
1-8. 2181-1110D3 [1]   . ADAPTER
10 160-00020 [1]   CAP
11 2181-4112 [1]   ADAPTER
12 124-00208D2 [2]   CLAMP
13 K1001029 [2]   BOLT
14 198-00028 [2]   CAP
15 2123-1717B [2]   PIN;KNOCK
2 S0774766 [12]   BOLT M24X2.0X70
3 2114-1831A [12]   . WASHER
6 DS20551090 [1]   HOSE
7 181-00103 [1]   REDUCER
8 121-00006 [1]   NUT
9 S6710041 [1]   NIPPLE,GREASE
