DOOSAN 400914-00366 400914-00366A 400914-00366B *NA00911 HYDRAULIC PUMP ROTARY GROUP AND SPARE PARTS

DOOSAN 400914-00366 400914-00366A 400914-00366B *NA00911 HYDRAULIC PUMP ROTARY GROUP AND SPARE PARTS

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
400914-00366 400914-00366A 400914-00366B *NA00911
DX340LC DX340LC-3 / DX350LC-3 DX340LCA DX350LC DX380LC DX380LC-3 DX420LC DX420LC-3 DX420LCA DX480LC DX480LCA / DX500LCA DX490LC-3 DX520LC DX530LC-3 DX530LC-5B SOLAR 420LC-V SOLAR 470LC-V SOLAR 500LC-V

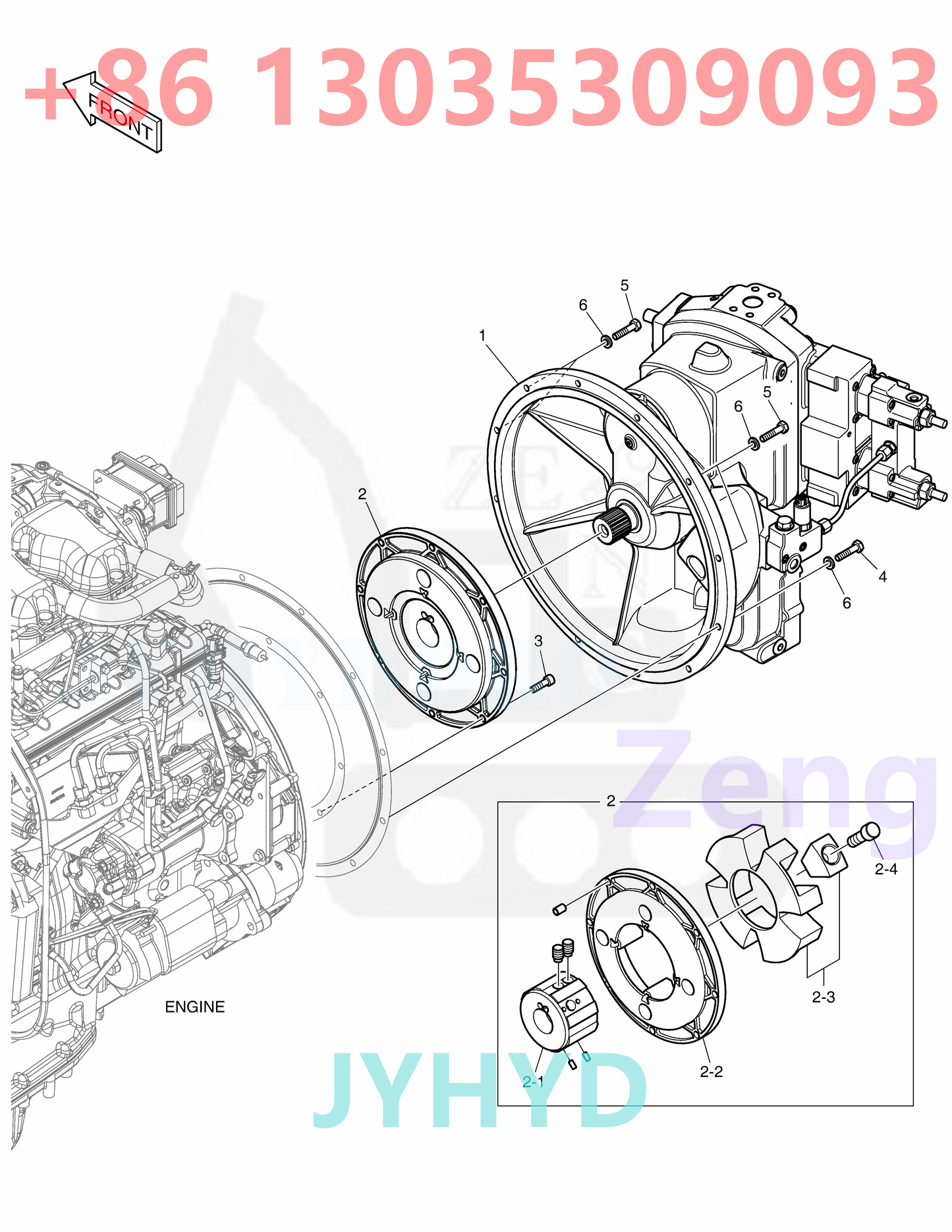

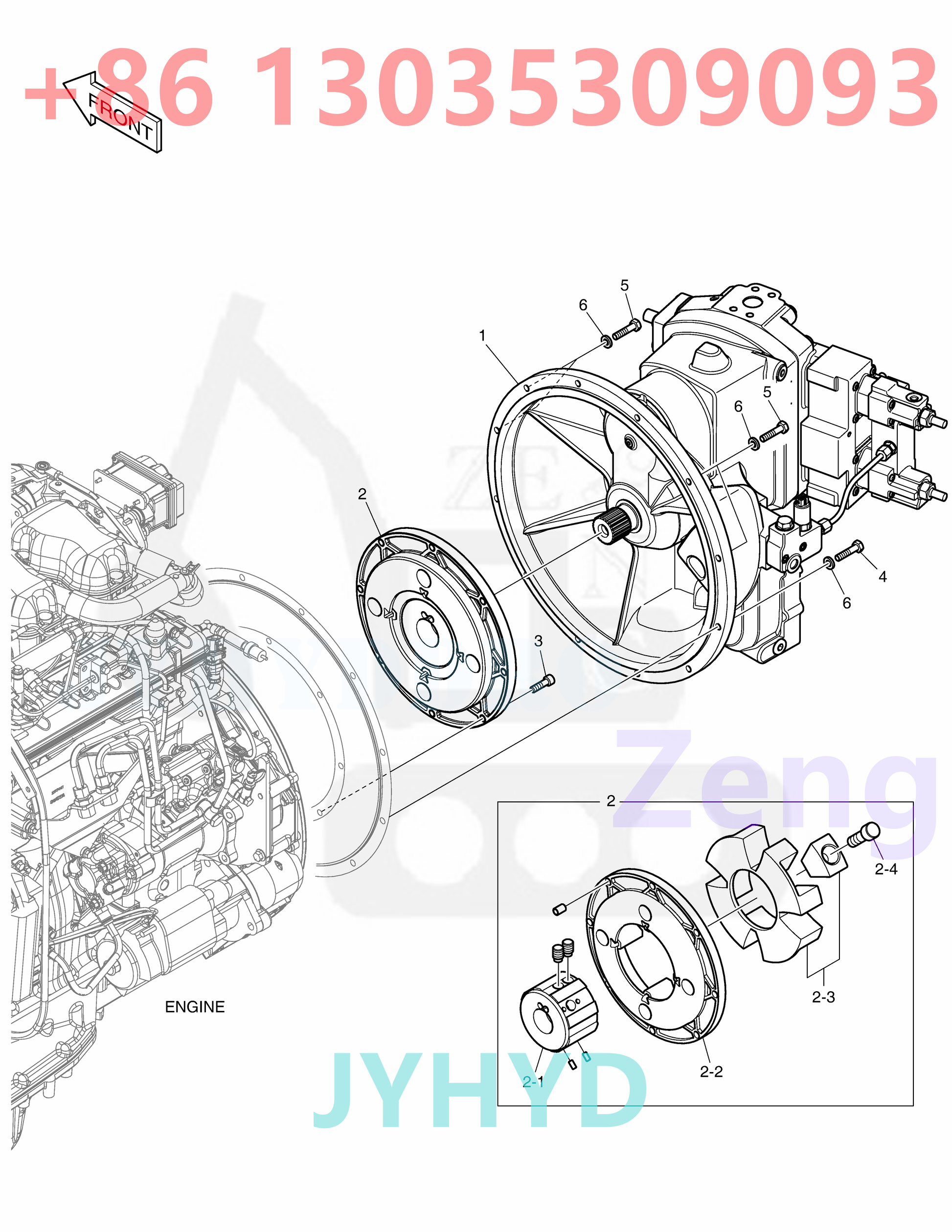

Pos. Part No Qty Parts name Comments
-. 400914-00356 [-]
1 400914-00366 [1]   400914-00366A
1 400914-00366A [1]   400914-00366B
1 400914-00366B [1]
2 130801-00027 [1]
2-1. *NA00546 [1]   HUB
2-2. 430215-00998 [1]
2-3. 130801-00053 [1]
2-4. S2227866 [4]   BOLT
3 S2212366 [8]   BOLT
4 S0558466 [8]   BOLT
5 S0558666 [4]   BOLT
6 120804-00070 [12]   WASHER

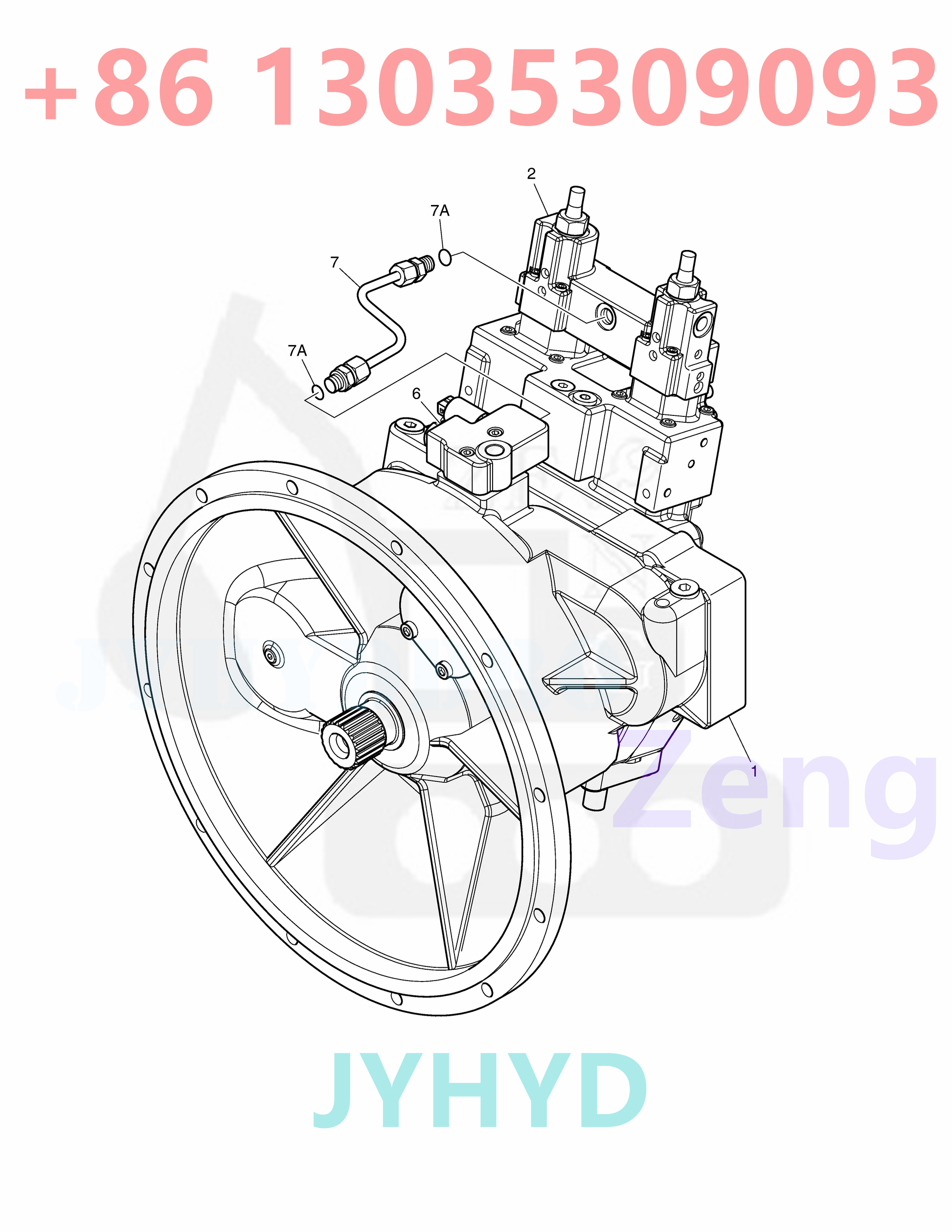

Parts on group DX530LC-5B:
Pos. Part No Qty Parts name Comments
-. 400914-00366 [1]   400914-00366A
-. 400914-00366A [1]   400914-00366B
-. 400914-00366B [1]
1 *NA00911 [1]   POMPE
2 300628-00394 [1]
6 410116-00396 [1]
7 K9001907 [1]   PIPE ASS'Y
7A. 2.180-00472 [2]   O-RING

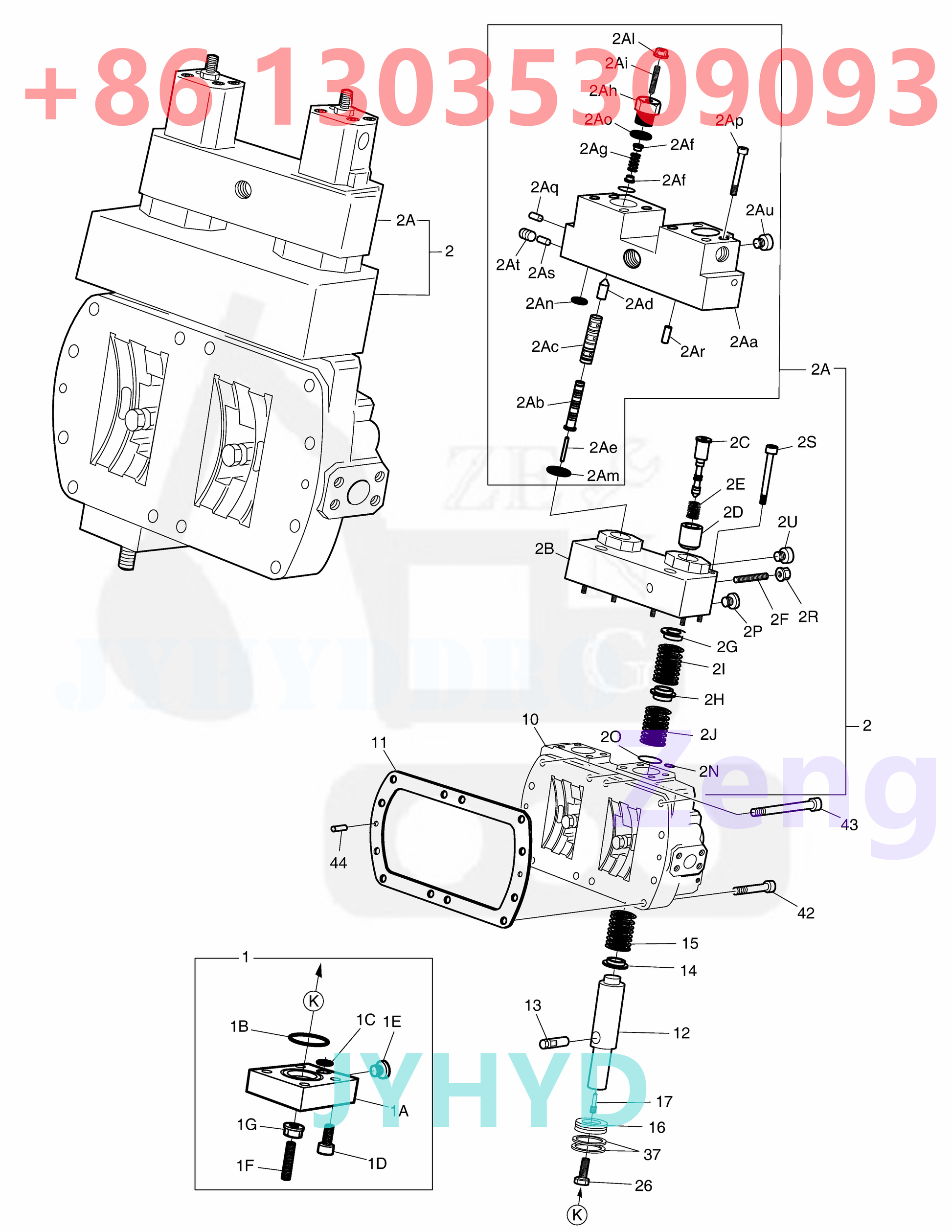

Parts on group DX530LC-5B:
Pos. Part No Qty Parts name Comments
-. 300628-00394 [-]
1 2.430-00228 [2]   COVER
10 *NA00534 [1]
11 2.180-00086 [1]   GASKET
12 2.409-00205 [2]   PISTON;POSITIONING
13 2.428-00065 [2]   TRUNNION;POSITIONING
14 K9002257 [2]   COLLAR;SPRING
15 2.131-00430 [2]   SPRING;PRESSURE
16 K9001926 [2]   PISTON
17 2.123-00248 [2]   PIN;THREADED
1A. 2.430-00229 [1]   COVER
1A. 110508-20728 [1]
1B. 2.180-01196 [1]   O-RING
1C. 2.180-01189 [1]   O-RING
1D. 2.120-00836 [4]   SCREW;SOCKET-HEAD
1E. 2.120-00615 [1]   SCREW;LOCKING
1F. 2.123-00291 [1]   PIN;THREADED
1F. 120501-03569 [1]
1G. 2.121-00263 [1]   NUT;SEAL LOCK
2 300628-00206 [1]
26 2.120-00801 [2]   SCREW;HEX
2A. 300628-00377 [1]
2Aa. *NA00534 [1]
2Ab. 2.409-00179 [2]   PISTON;CONTROL
2Ac. 2.408-00065 [2]   BUSH;CONTROL
2Ad. 2.409-00200 [2]   PISTON;POSITIONING
2Ae. 2.123-00065 [2]   PIN
2Af. 2.114-00039 [4]   COLLAR;SPRING
2Ag. 2.131-00415 [2]   SPRING;PRESSURE
2Ah. 2.120-00613 [2]   SCREW;LOCKING
2Ai. 2.123-00235 [2]   PIN;THREADED
2Al. 2.121-00202 [2]   NUT;SEAL LOCK
2Am. 2.180-01191 [2]   O-RING
2An. 2.180-00471 [2]   O-RING
2Ao. 2.180-01181 [2]   O-RING
2Ap. 2.120-00826 [6]   SCREW;SOCKET-HEAD
2Aq. 2.123-00288 [5]   PIN;DOUBLE BREAK-OFF
2Ar. 2.123-00131 [2]   PIN;CYLINDER
2As. 2.123-00300 [1]   PIN;DOUBLE BREAK-OFF
2At. 2.181-00262 [1]   PLUG
2Au. 2.120-00612 [1]   PLUG
2B. *NA00534 [1]
2C. 2.409-00180 [2]   PISTON;CONTROL
2D. 2.408-00083 [2]   BUSH;SPRING
2E. 2.131-00418 [2]   SPRING;PRESSURE
2F. 2.123-00249 [2]   PIN;THREADED
2G. 2.114-00067 [2]   COLLAR;SPRING
2H. 2.114-00068 [2]   COLLAR;SPRING
2I. 111601-00467 [2]
2J. 111601-00468 [2]
2N. 2.180-00471 [4]   O-RING
2O. 2180-1217D76 [2]   O-RING
2P. 2.120-00611 [2]   SCREW;LOCKING
2R. 2.121-00202 [2]   NUT;SEAL LOCK
2S. 2.120-00828 [6]   SCREW;SOCKET-HEAD
2U. 2.120-00616 [1]   SCREW;LOCKING
37 K9001927 [4]   RING;SQUARE
42 2.120-00837 [8]   SCREW;SOCKET M16X60
43 S2222461 [4]   SCREW;SOCKET M16X90
44 120501-01852 [2]

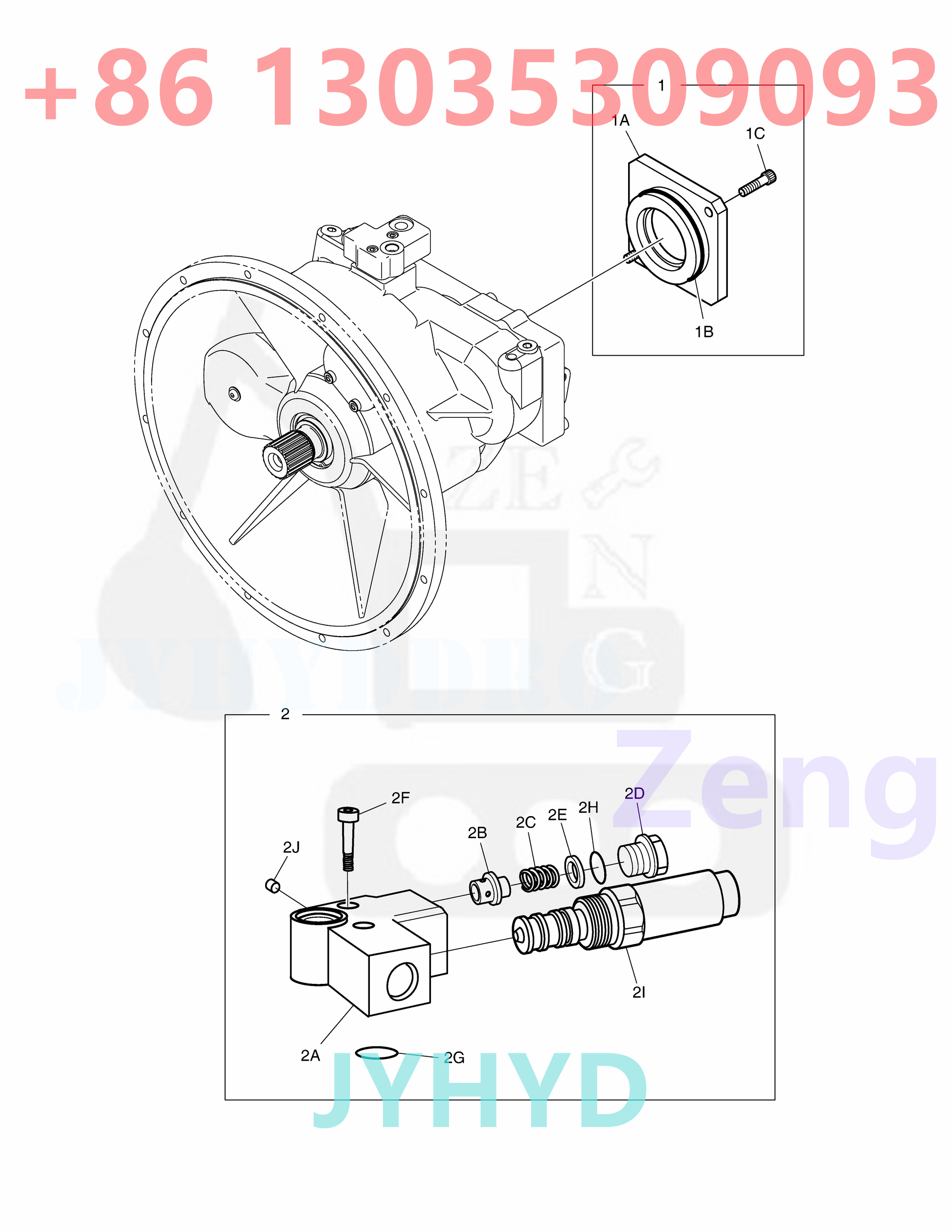

Parts on group DX530LC-5B:
Pos. Part No Qty Parts name Comments
1 2.430-00227 [1]   COVER ASS'Y
1A. 2.430-00230 [1]   COVER
1B. 2.180-01192 [1]   O-RING
1C. 2.120-00831 [1]   SCREW;SOCKET
2 410116-00396 [1]
2A. *NA00828 [1]
2B. 2.409-00216 [1]   PISTON;VALVE
2C. 2.131-00417 [1]   SPRING;PRESSURE
2D. 2.120-00617 [1]   SCREW;LOCKING
2E. 2.114-00877 [1]   WASHER
2F. S2209361 [2]   BOLT;SOCKET M8X1.25X35
2G. 2.180-01180 [2]   O-RING
2H. 2.180-01182 [1]   O-RING
2I. 410116-00395 [1]
2J. 2.123-00138 [1]   PIN;DOUBLE BREAK-OFF

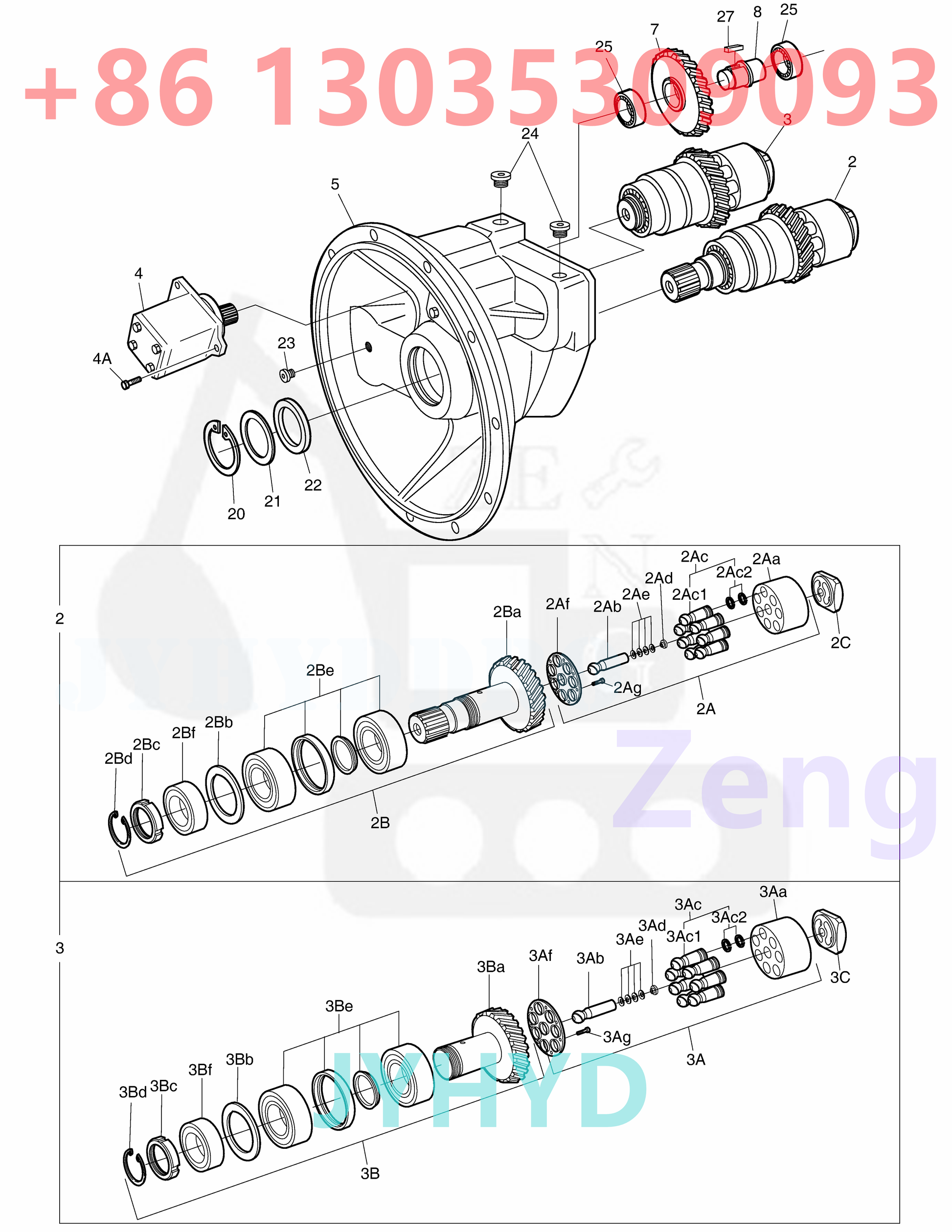

Parts on group DX530LC-5B:
Pos. Part No Qty Parts name Comments
2 210204-00082 [1]
2 210204-00105 [1]
2 210204-00102 [1]   210204-00105
20 S6510800 [1]   RING,RETAINING
21 401106-00226 [1]
22 2.114-00175 [1]   SHIM
23 2.120-00611 [1]   SCREW;LOCKING
24 2.120-00624 [3]   SCREW;LOCKING
25 140107-00830 [2]
25 2.109-00192 [2]   BEARING;PLAIN ROLLER
27 2.405-00154 [1]   SHAFT;KEY
2A. 210204-00084 [1]
2Aa. 400319-00550 [1]
2Aa. 400319-00585 [1]
2Ab. 120501-03302 [1]
2Ac. 400901-00081 [7]
2Ac1. *NA00796 [1]   PISTON
2Ac2. *NA00986 [2]
2Ad. 110917-00653 [1]
2Ae. 111601-00834 [4]
2Af. 250201-03386 [1]
2Ag. K9001916 [14]   SCREW;PAN HEAD
2B. 130712-01768 [1]
2Ba. 130712-01767 [1]
2Bb. 110947-00482 [1]
2Bc. 250201-03387 [1]
2Bd. K9001914 [1]   RING;RETAINING
2Be. 140107-00625 [1]
2Bf. 2.109-00248 [1]   BEARING;TAPERED-ROLLER
2Bf. 140107-00834 [1]
2C. 250201-05141 [1]
2C. 250201-03388 [1]
2C. 250201-05111 [1]   250201-05141
3 210204-00106 [1]
3 210204-00103 [1]   210204-00106
3 210204-00083 [1]
3A. 210204-00084 [1]
3Aa. 400319-00585 [1]
3Aa. 400319-00550 [1]
3Ab. 120501-03302 [1]
3Ac. 400901-00081 [7]
3Ac1. *NA00796 [1]   PISTON
3Ac2. *NA00986 [2]
3Ad. 110917-00653 [1]
3Ae. 111601-00834 [4]
3Af. 250201-03386 [1]
3Ag. K9001916 [14]   SCREW;PAN HEAD
3B. 130712-01769 [1]
3Ba. 130712-01770 [1]
3Bb. 110947-00482 [1]
3Bc. 250201-03387 [1]
3Bd. K9001914 [1]   RING;RETAINING
3Be. 140107-00625 [1]
3Bf. 140107-00834 [1]
3Bf. 2.109-00248 [1]   BEARING;TAPERED-ROLLER
3C. 250201-05112 [1]   250201-05142
3C. 250201-05142 [1]
3C. 250201-03389 [1]
4 400910-00134 [1]
4A. 2.120-00829 [2]   BOLT;SOCKET M10X20
5 *NA00539 [1]
7 130418-00619 [1]
8 K9001920 [1]   SHAFT;STUB
