DOOSAN 170301-00208 170301-00001E SWING MOTOR ROTARY GROUP AND SPARE PARTS

DOOSAN 170301-00208 170301-00001E SWING MOTOR ROTARY GROUP AND SPARE PARTS

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
170301-00208 170301-00001E DX530LC-5B

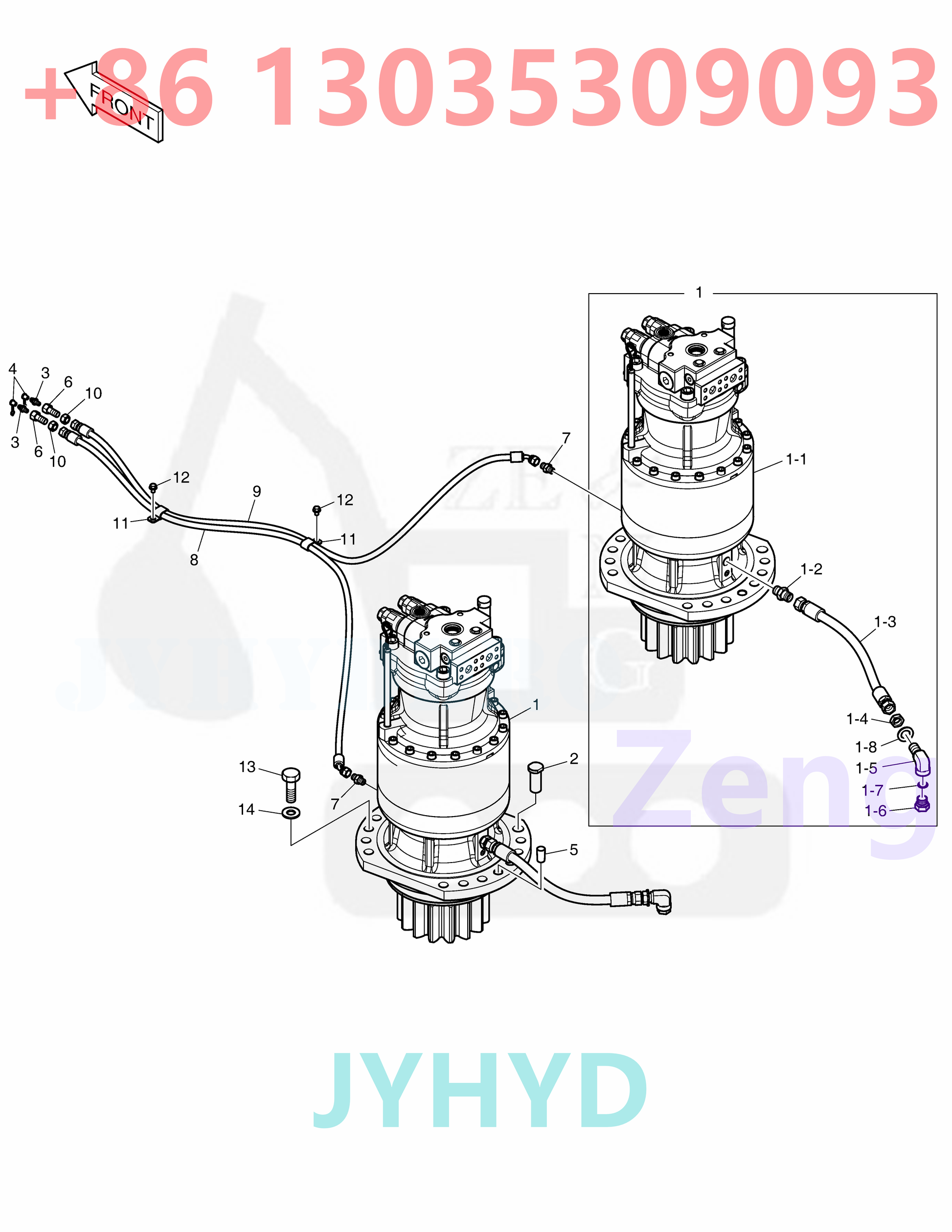

Pos. Part No Qty Parts name Comments
-. 170301-00208 [-]
1 170301-00001E [2]
1-1. 170301-00156B [1]
1-2. 2181-1110D3 [1]   . ADAPTER
1-3. 2184-1026D73 [1]   HOSE
1-4. 121-00010D3 [1]   . NUT
1-5. 181-00717 [1]   . ELBOW
1-6. DS2901008 [1]   . PLUG
1-7. S8000181 [1]   O-RING
1-8. S5011113 [1]   . WASHER
10 121-00006 [2]   NUT
11 124-00199D5 [2]   CLIP
12 K1001029 [2]   BOLT
13 S0570166 [26]   BOLT M20X2.5X65
14 2114-9012A [26]   WASHER
2 2123-1916A [2]   PIN;LOCK
3 S6710041 [2]   NIPPLE,GREASE
4 160-00020 [2]   CAP
5 160-00027 [4]   CAP
6 181-00103 [2]   REDUCER
7 2181-1110D1 [2]   ADAPTER
8 2184-1060D53 [1]   HOSE
9 2184-1060D52 [1]   HOSE PF1/4-1100L

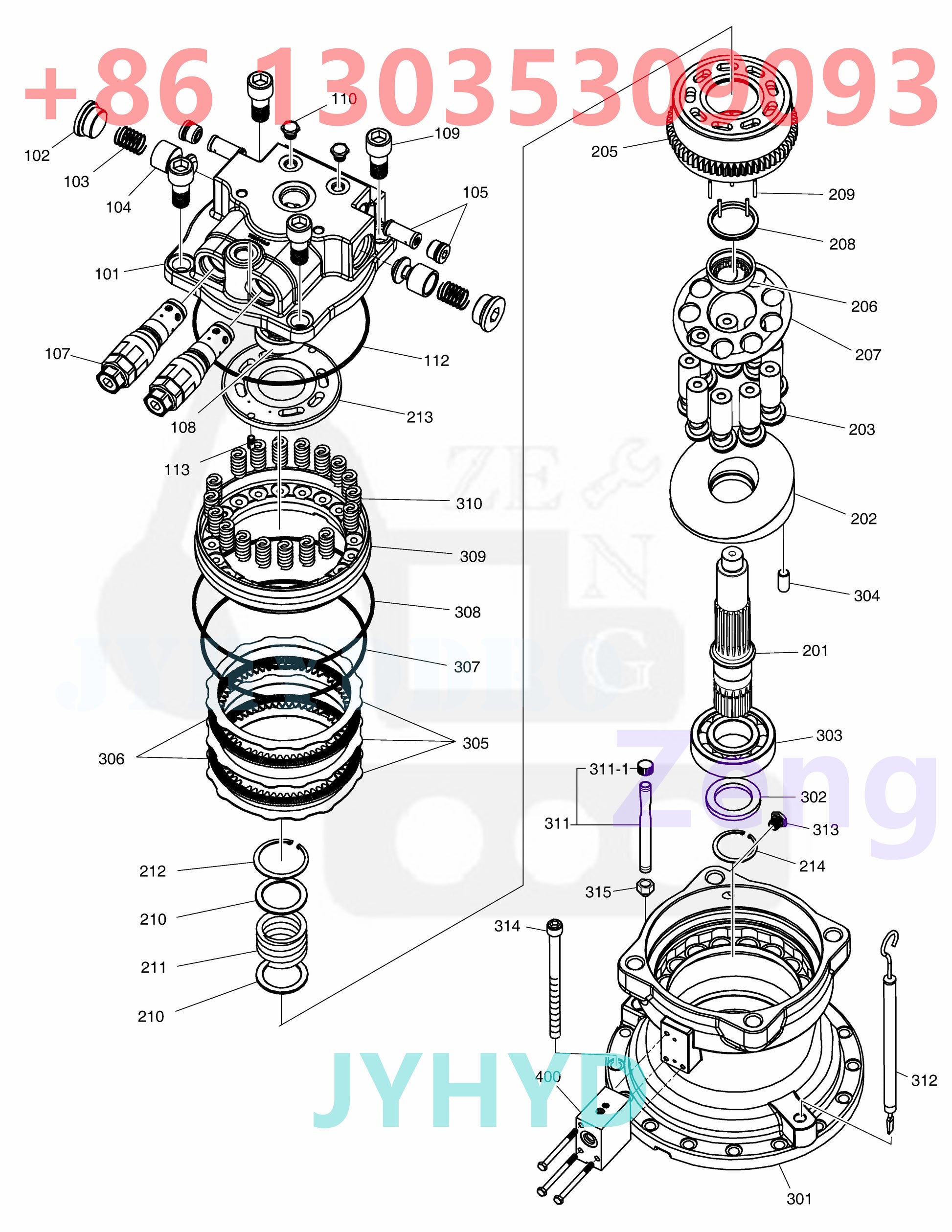

Pos. Part No Qty Parts name Comments
*. K9002875 [1]   SEAL KIT;SWING MOTOR
-. 170303-00040 [1]
101 K9001944 [1]   VALVE;CASING
102 430221-00204 [2]
103 K9001840 [2]   SPRING
104 K9001841 [2]   PLUNGER
105 410116-00410 [1]
107 410127-00095 [2]
108 S6005050 [1]   BEARING;BALL
109 S2227561 [4]   BOLT;SOCKET
110 430221-00070 [2]   PLUG
112 2180-1217D156 [1]   O-RING
113 S5741162 [2]   PIN;SPRING
201 K9001843 [1]   SHAFT;DRIVE
202 400901-00051 [1]
203 K9001845 [1]   PISTON & SHOE ASS'Y
205 150102-00418 [1]
206 1.148-00015 [1]   BALL;THRUST
207 110943-00057 [1]
208 1.114-00009 [1]   COLLAR
209 1.109-00134 [5]   ROLLER
210 1.114-00286 [2]   WASHER
211 1.131-00048 [1]   SPRING
212 S6510620 [1]   RING;SNAP
213 250201-01812 [1]
214 S6500450 [1]   RING;SNAP
301 K9001848B [1]
302 401106-00181 [1]
303 1.123-00053 [1]   PIN,PARALLEL
304 1.123-00053 [1]   PIN,PARALLEL
305 352-00014 [3]   PLATE,SEPARATION
306 412-00013 [2]   PLATE,FRICTION
307 180-00220 [1]   O-RING
308 180-00221 [1]   O-RING
309 452-00020 [1]   PISTON;BRAKE
310 129-00062 [18]   SPRING;BRAKE
311 420210-01001 [1]
311-1. 110910-00378 [1]
312 800108-00093 [1]
313 430221-00070 [1]   PLUG
314 120107-00097 [16]
315 2181-1913D24 [1]   REDUCER
400 410102-00027 [1]
