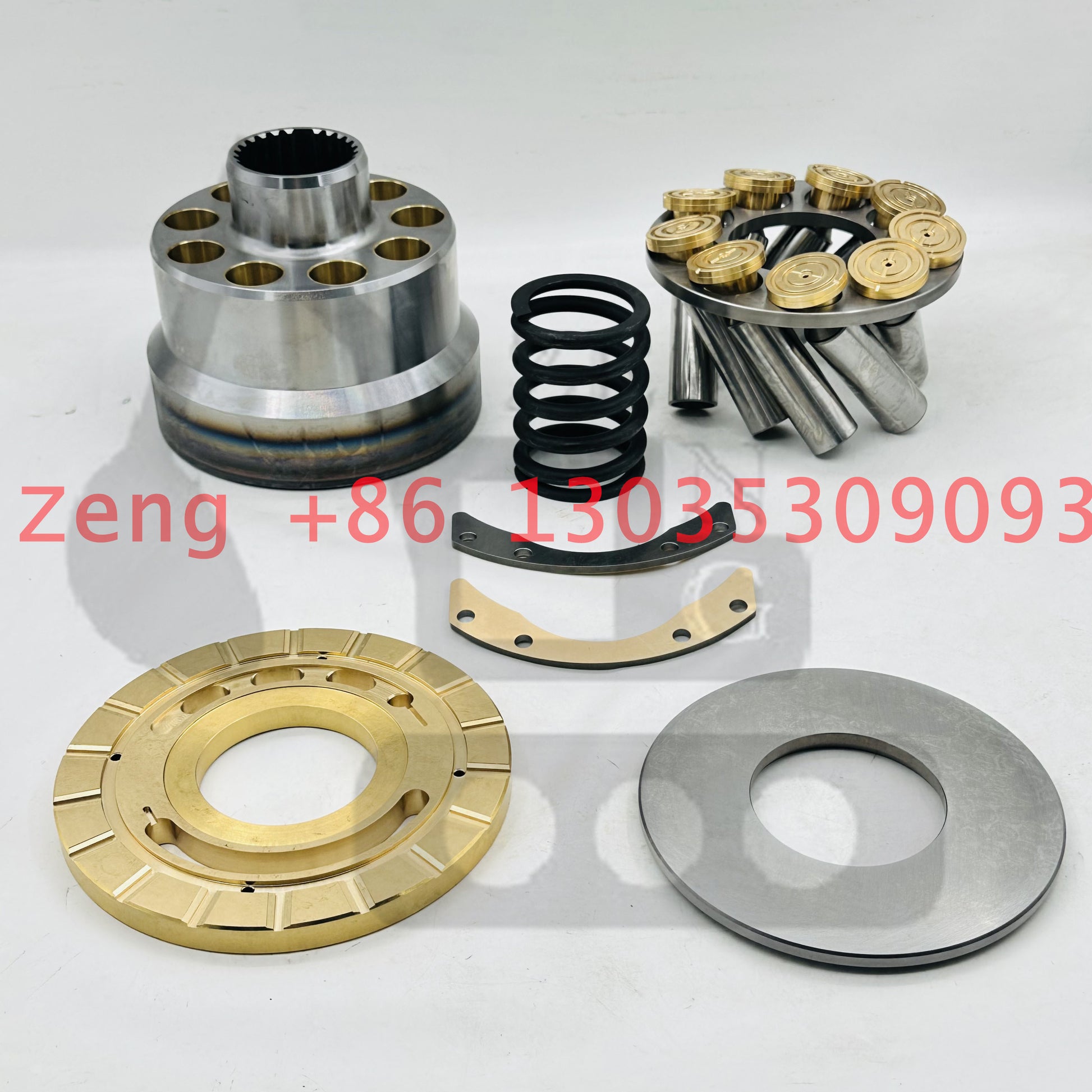

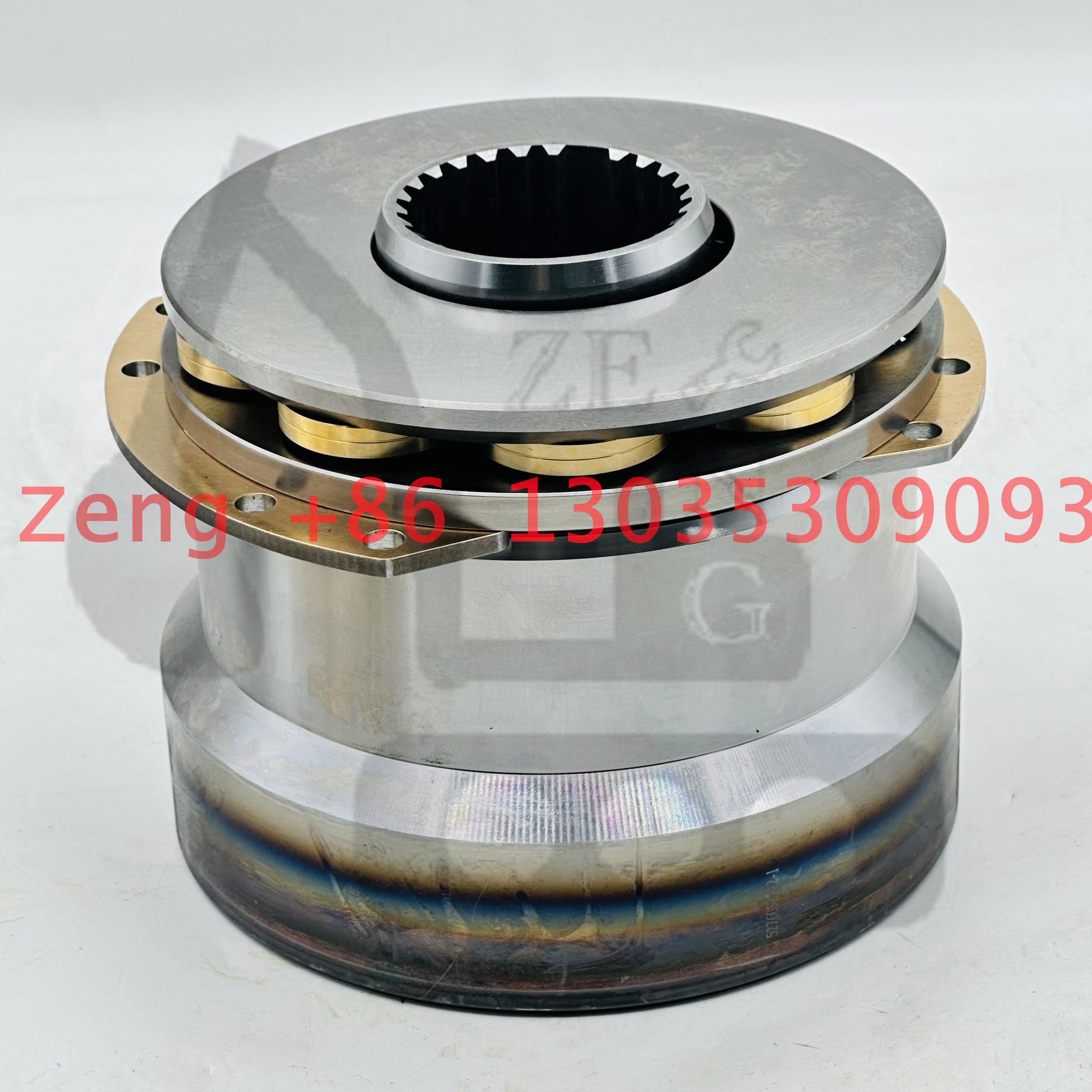

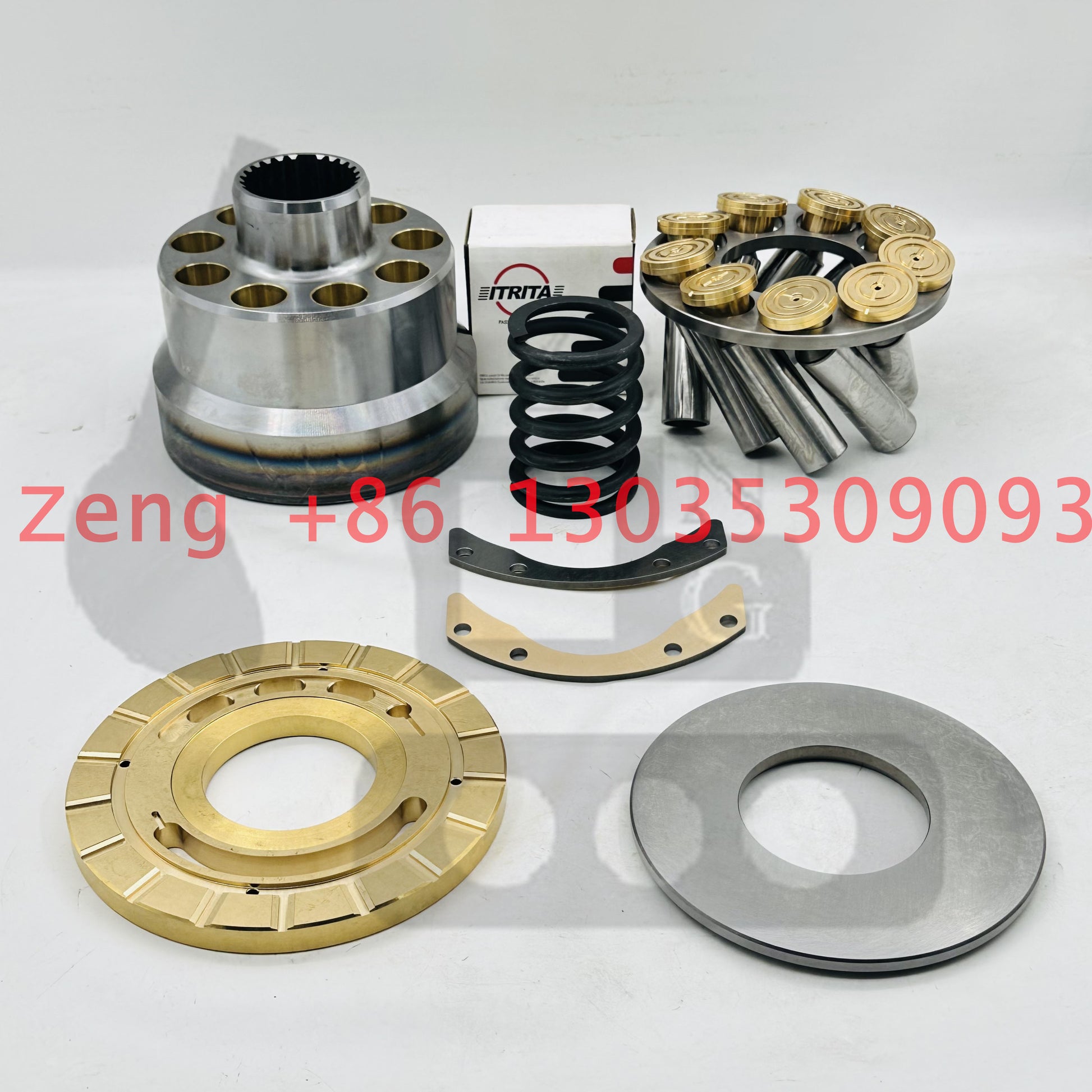

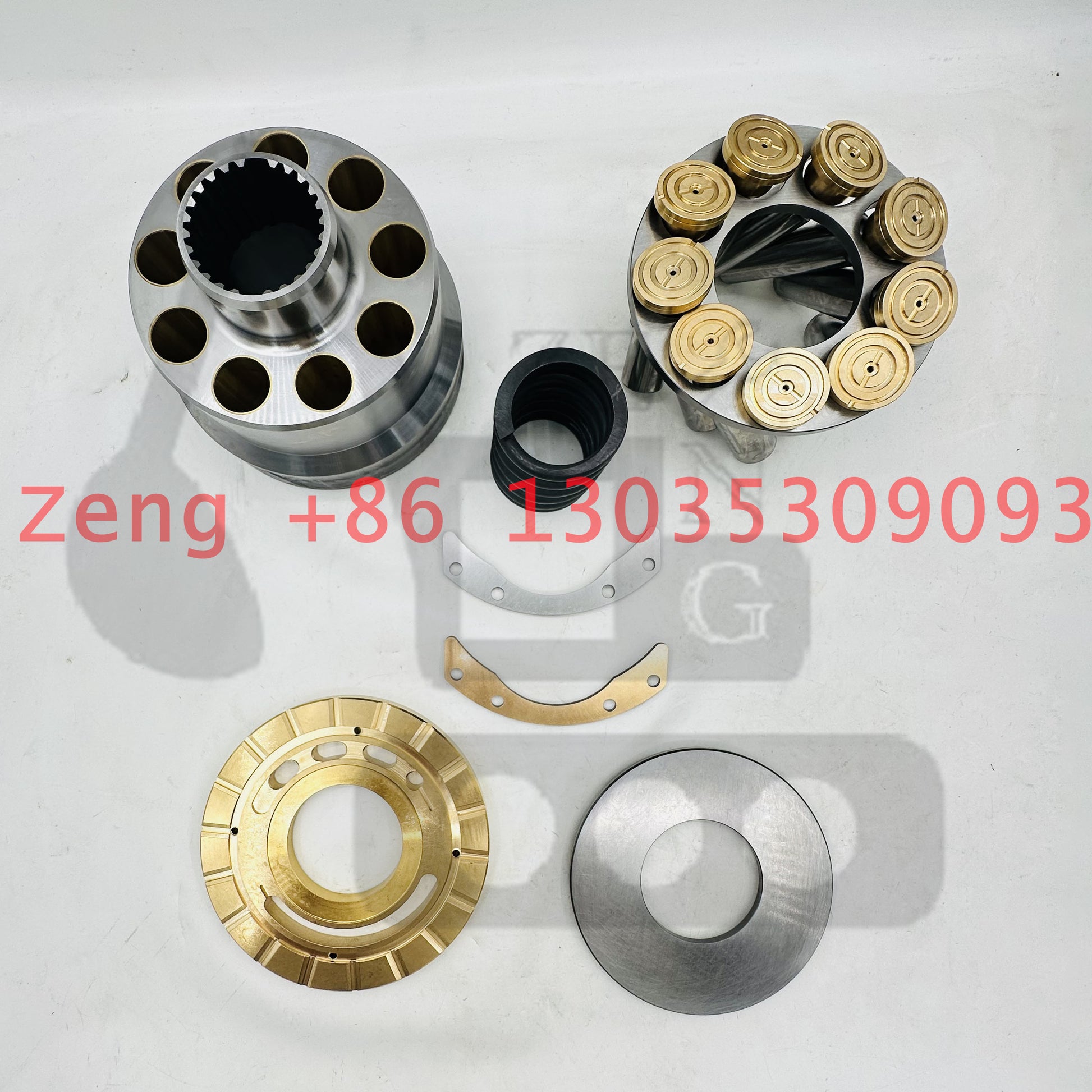

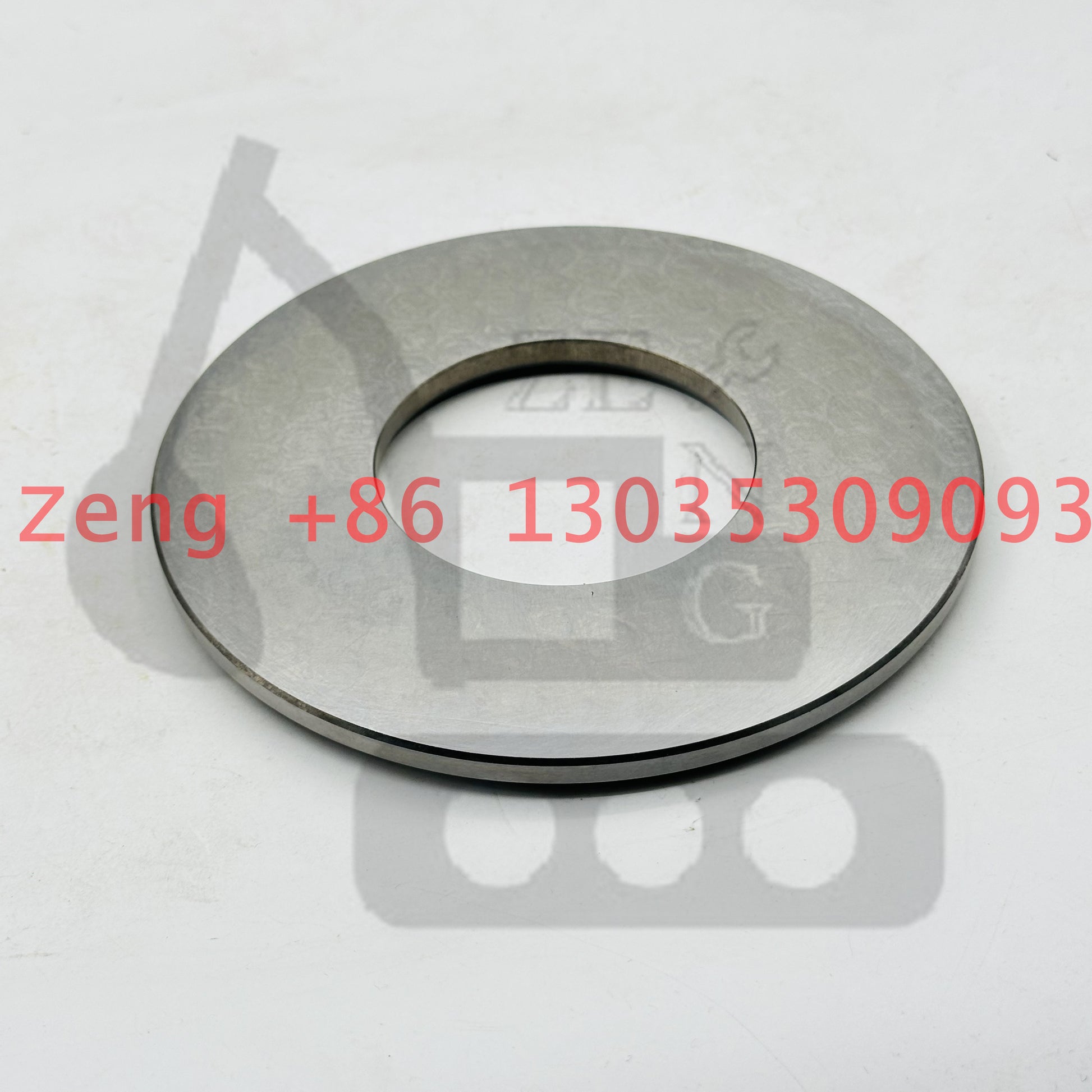

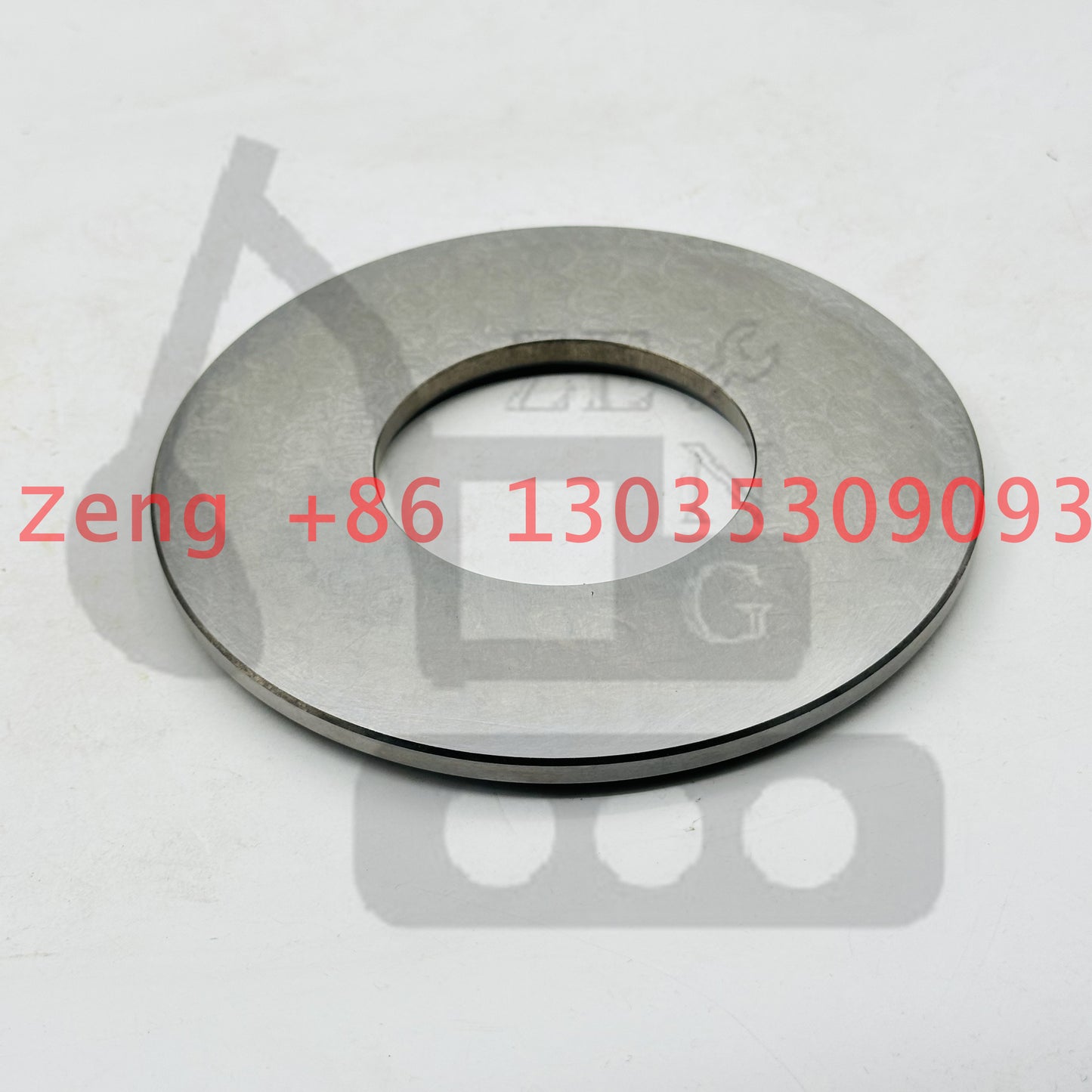

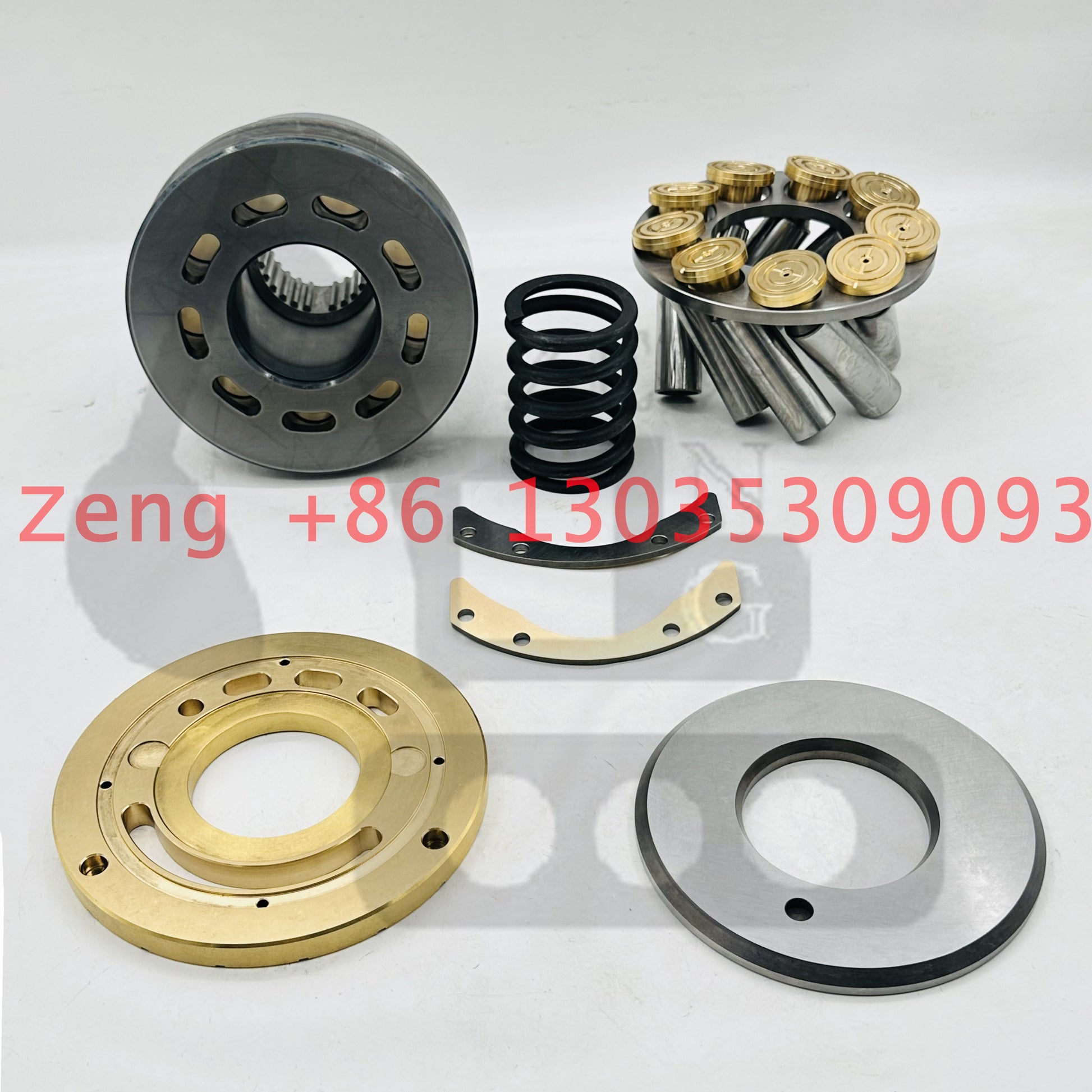

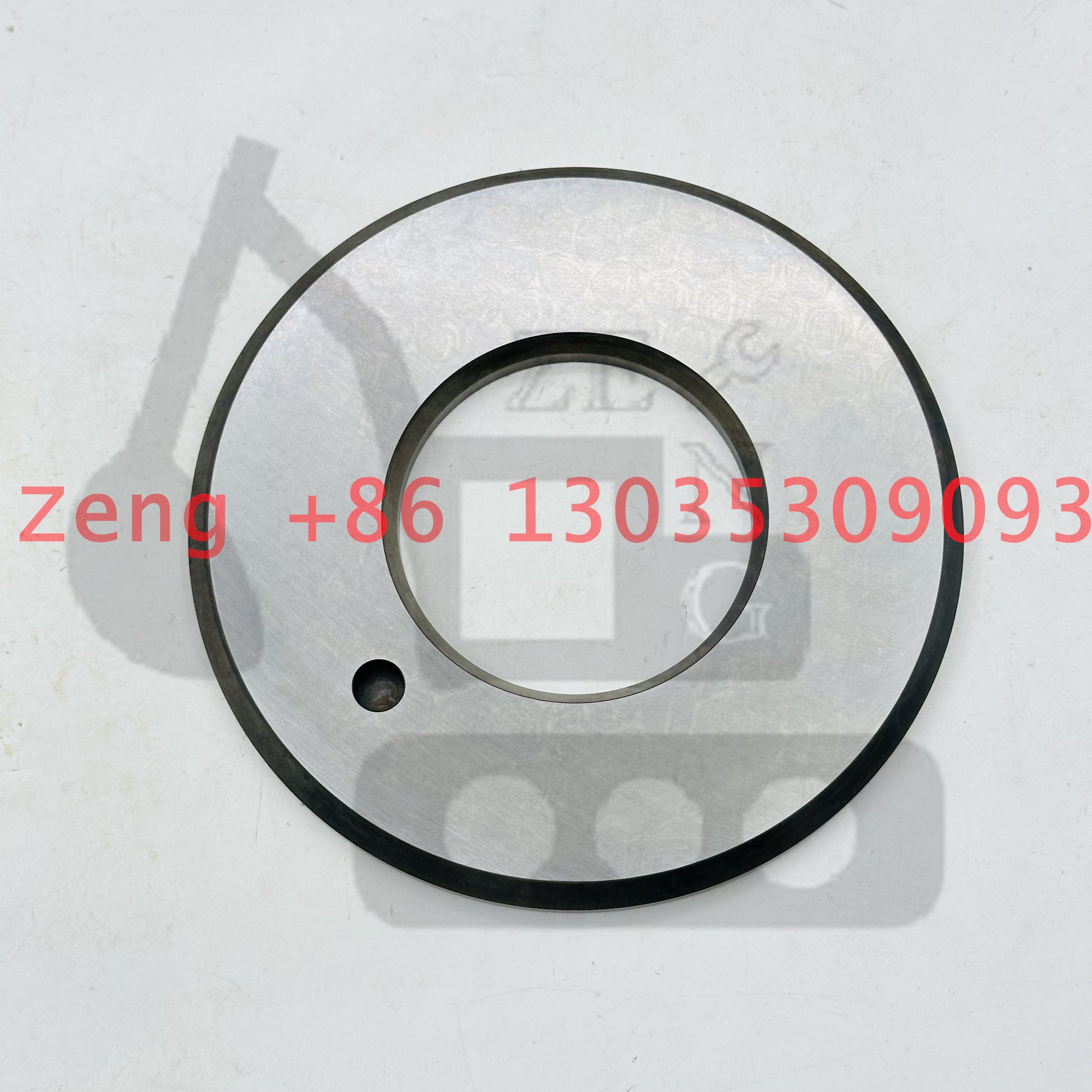

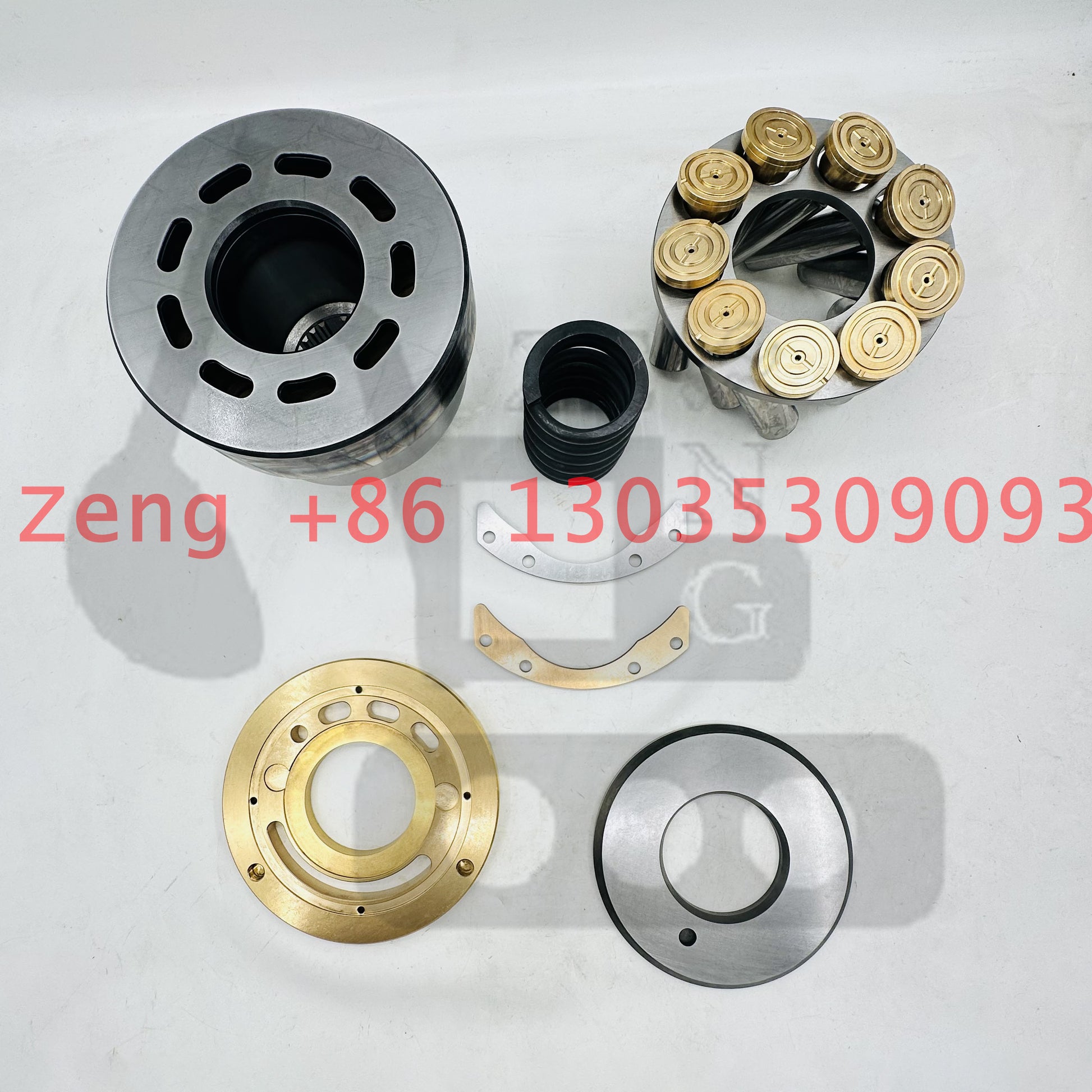

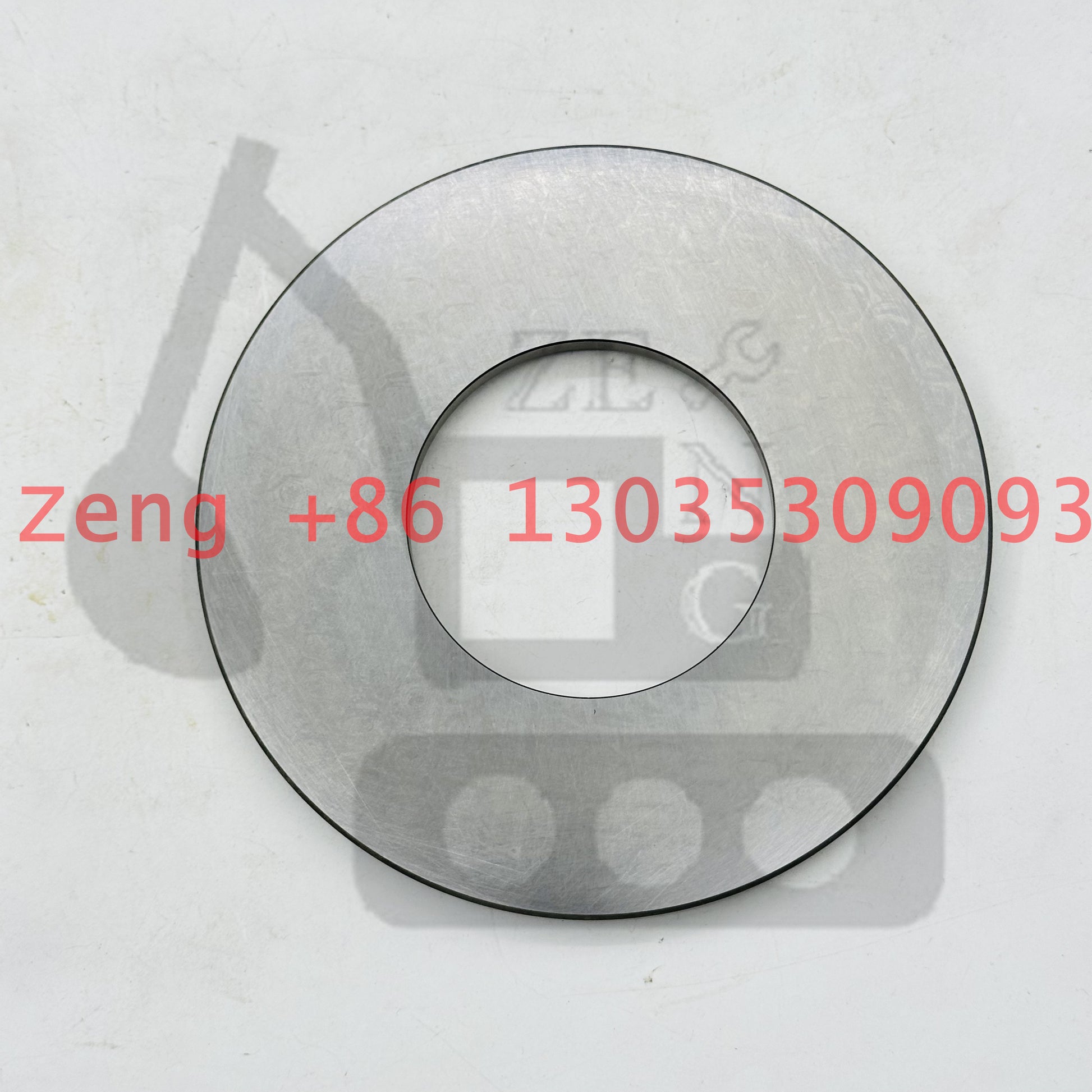

CATERPILLAR MOTOR GRADER 8J-6855 piston pump shoe plate thrust plate

CATERPILLAR MOTOR GRADER 8J-6855 piston pump shoe plate thrust plate

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
PUMP GP-PISTON
8J-6855 PISTON PUMP GROUP
Part of Piston and Gear Pump
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 Y [1] HEAD
  (Separate Illustration)
2 7H-7209 [4] BOLT
3 3B-4507 [10] LOCKWASHER
4 2P-9703 [1] PLATE (warning)
5 4B-4158 [4] SCREW
6 5B-5821 [5] DOWEL
7 8J-0499 [1] GASKET
8 1H-8397 [1] RING
9 8J-0483 [1] SPRING
10 9S-8009 [2] PLUG
4K-1388 [2] SEAL
11 8J-0489 [1] PLATE
12 8J-0488 [1] PLATE
13 7K-8877 [3] CONE
14 7K-8876 [3] CUP
15 8J-2068 [6] SHIM (.002 in. thick)
8J-2069 [4] SHIM (.005 in. thick)
16 8J-2067 [2] BEARING
17 2A-0762 [10] BOLT
8J-0493 [10] LOCK
18 8J-0482 [2] SPACER
19 8J-0484 [1] RING
20 9J-2484 [1] PLATE
21 8J-0423 [1] CONE
22 5J-9100 [6] SHIM
23 8J-5479 [1] IMPELLER
24 5B-5059 [6] BOLT
Y   SEPARATE ILLUSTRATION
PUMP GP-PISTON
8J6855 PISTON PUMP GROUP--Part 2--Type 1
Part of Piston and Gear Pump shown on Page 156
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments

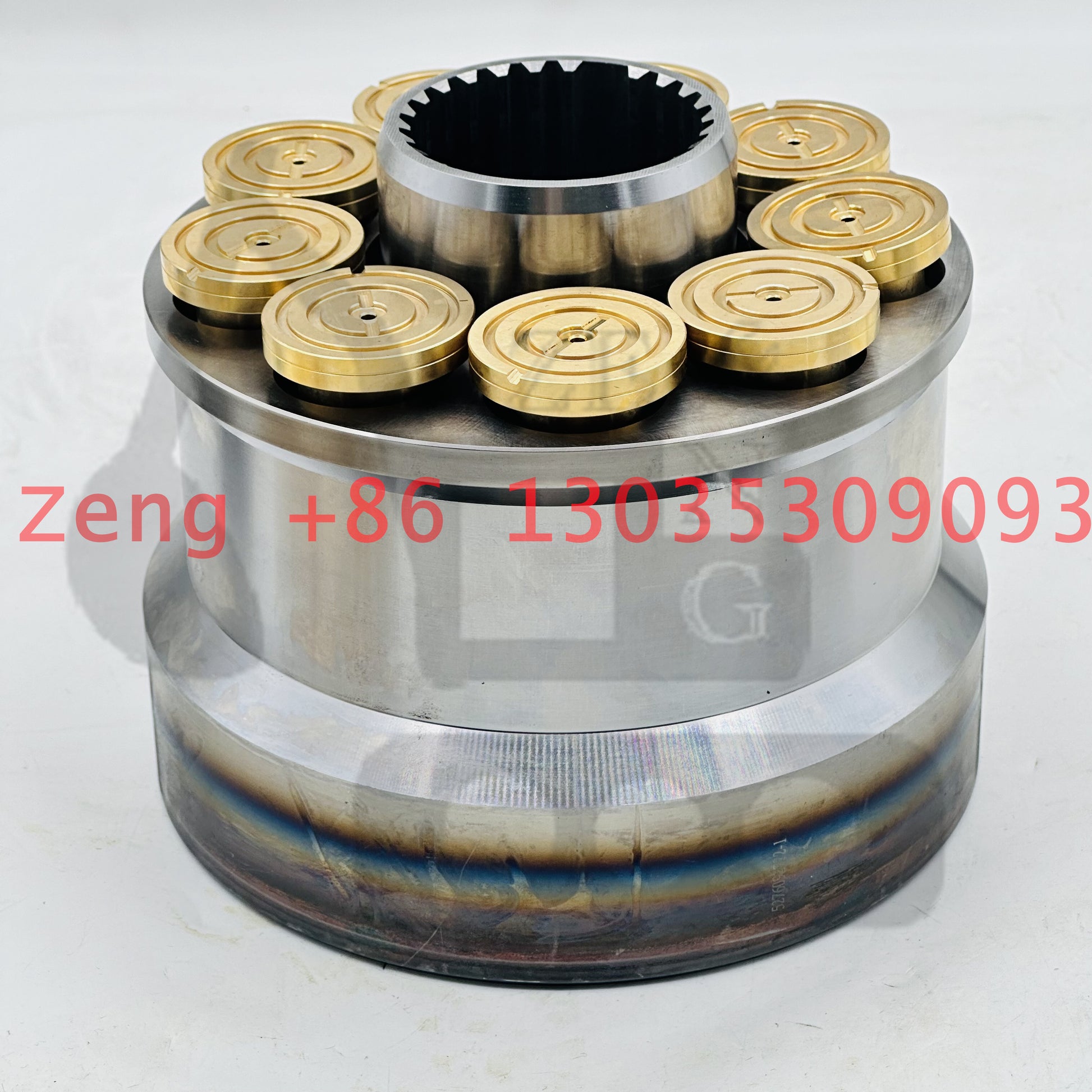

1 8J-0538 [1] BARREL ASSEM.
2 1B-8705 [1] KEY
3 3B-2037 [1] NUT
3B-2036 [1] LOCKWASHER
4 8J-1912 [9] PISTON ASSEM.
5 9S-8005 [2] PLUG
3K-0360 [2] SEAL
6 8J-0501 [2] COVER
7 0S-1594 [14] BOLT
3B-4506 [14] LOCKWASHER
8 8J-0503 [4] SHIM (.002 in. thick)
8J-0504 [4] SHIM (.005 in. thick)
9 5P-0402 [1] SEAL
10 8J-5592 [1] SHAFT
11 4D-1736 [1] RING
12 8J-2264 [1] BODY
13 8J-1920 [1] SWASHPLATE
14 2H-3931 [2] SEAL
15 8J-2285 [1] LINK
16 6F-4855 [2] SEAL
17 8J-1898 [8] SHIM (.010 in. thick)
8J-1899 [6] WASHER (.044 in. thick)
18 8J-1810 [1] BOLT
19 8J-4377 [1] BOLT
20 8J-2281 [2] INSERT
21 8J-2282 [2] RETAINER
22 8J-2283 [2] RING
23 8J-2284 [1] LINK
