MOTOR & MTG GP-SWING
521-5677 MOTOR & MTG GP-SWING
S/N KEF1-209
PART OF 506-3776 DRIVE GP-SWING |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
6V-8201 M |
[4] |
BOLT-SOCKET HEAD (M16X2X45-MM) |
|
| 2 |
352-7064 |
[3] |
CAP |
|
| 3 |
451-2175 |
[4] |
WASHER-HARD (17.5X30X3.5-MM THK) |
|
| 4 |
516-0467 Y |
[1] |
MOTOR GP-PISTON |
|
| 5 |
095-1687 |
[1] |
SEAL-O-RING |
|
| 6 |
6V-5204 |
[1] |
RING-RETAINING |
|
|
M |
|
METRIC PART |
|
Y |
|
SEPARATE ILLUSTRATION |

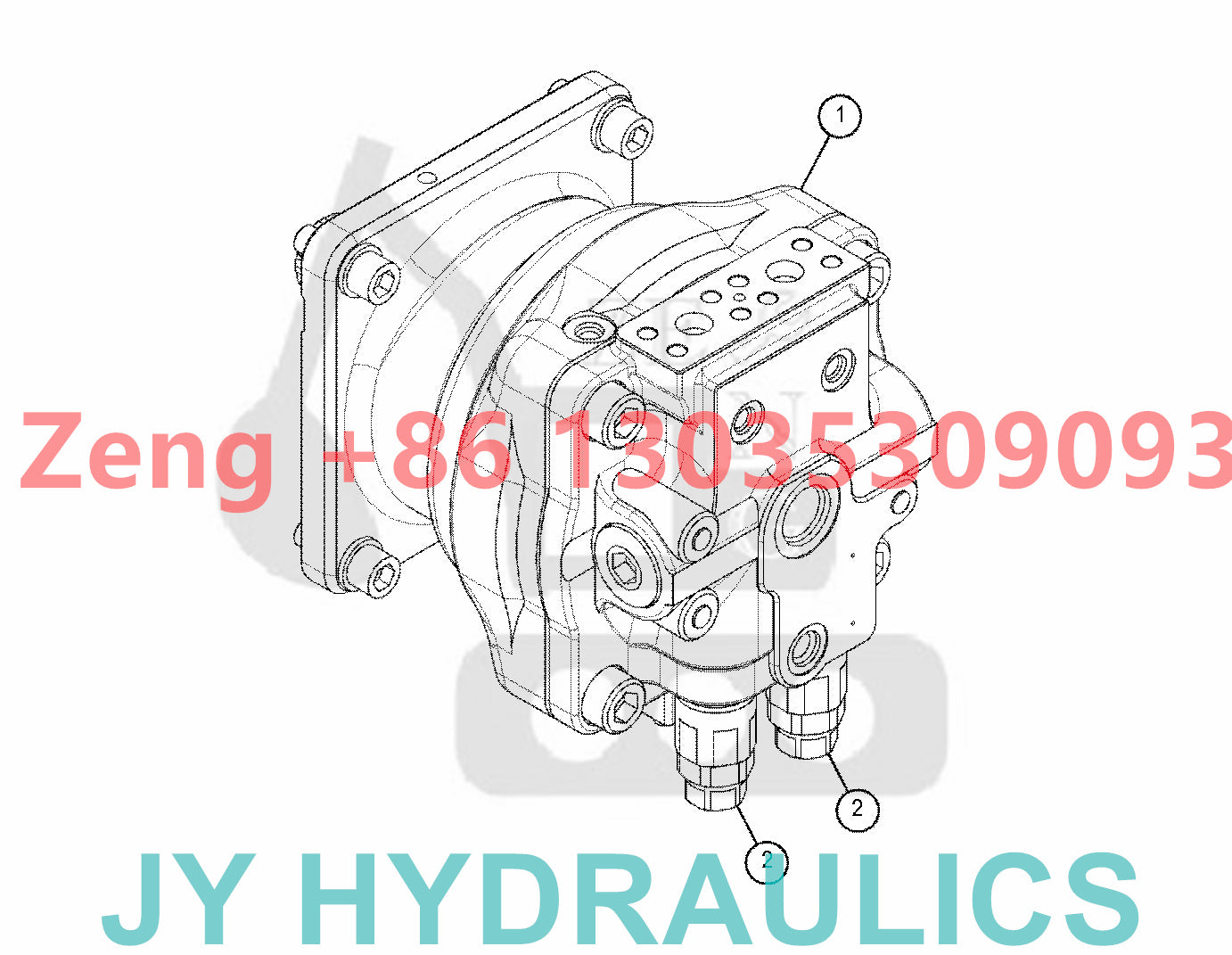

MOTOR GP-PISTON
516-0467 CAT345GC MOTOR GP-PISTON
S/N KEF1-UP
PART OF 557-5907 DRIVE GP-SWING, 521-5677 MOTOR & MTG GP-SWING |
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
566-7882 |
[1] |
MOTOR GP-PISTON |
|
| 2 |
566-7884 |
[2] |
VALVE GP-RELIEF |
|
|
Y |
|
SEPARATE ILLUSTRATION |
MOTOR GP-PISTON
566-7882 CAT345GC MOTOR GP-PISTON
S/N KEF1-UP
PART OF 516-0467 MOTOR GP-PISTON |
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
158-8976 |
[1] |
RETAINER |
|
| 2 |
295-9432 |
[1] |
BEARING AS |
|
| 3 |
095-1716 |
[1] |
SEAL-O-RING |
|
| 4 |
247-8719 |
[2] |
SPACER (50X64X3-MM THK) |
|
| 5 |
8T-4241 |
[2] |
RING-RETAINING |
|
| 6 |
158-8967 |
[1] |
BUSHING |
|
| 7 |
158-8970 |
[1] |
SPACER (47X58X1.5-MM THK) |
|
| 8 |
158-8969 |
[12] |
PIN |
|
| 9 |
242-6922 |
[1] |
PLATE |
|
| 10 |
158-8973 |
[1] |
PLATE |
|
| 11 |
295-9689 |
[1] |
PISTON AS |
|
| 12 |
295-9433 |
[1] |
BARREL |
|
| 13 |
158-8981 |
[3] |
PLATE-FRICTION |
|
| 14 |
158-8982 |
[4] |
PLATE-SEPARATOR |
|
| 15 |
7Y-4277 |
[1] |
SEAL-O-RING |
|
| 16 |
8F-5900 |
[1] |
SEAL-O-RING |
|
| 17 |
185-0325 |
[1] |
PISTON-BRAKE |
|
| 18 |
158-8978 |
[1] |
SEAL-O-RING |
|
| 19 |
158-8971 |
[1] |
SPACER (47X61X3-MM THK) |
|
| 20 |
566-7885 |
[1] |
HEAD GP-MOTOR |
|
| 21 |
110-5525 |
[2] |
PLUG |
|
| 22 |
3J-1907 |
[2] |
SEAL-O-RING |
|
| 23 |
8T-9598 |
[1] |
RING-RETAINING |
|
| 24 |
4I-5850 |
[1] |
RING |
|
| 25 |
7Y-4269 |
[1] |
BEARING AS-ROLLER |
|
| 26 |
158-8965 |
[1] |
SPACER (50X61X3-MM THK) |
|
| 27 |
234-4543 |
[1] |
PLATE |
|
| 28 |
123-2139 |
[20] |
SPRING |
|
| 29 |
095-1573 |
[2] |
SEAL-O-RING |
|
| 30 |
566-7883 |
[1] |
PLATE |
|
| 31 |
8T-8442 M |
[3] |
BOLT-SOCKET HEAD (M6X1X30-MM) |
|
| 32 |
8T-6759 |
[1] |
PLUG-PIPE |
|
| 33 |
158-8968 |
[1] |
SPRING |
|
| 34 |
234-4542 |
[1] |
BODY |
|
| 35 |
095-0946 |
[1] |
RING-RETAINING |
|
| 36 |
158-8979 |
[1] |
SEAL-OIL |
|
| 37 |
158-8964 |
[1] |
SHAFT |
|
| 38 |
170-9996 |
[2] |
PLUG |
|
| 39 |
161-7611 M |
[4] |
BOLT-SOCKET HEAD (M22X2.5X45-MM) |
|
| 40 |
095-1600 |
[2] |
SEAL-O-RING |
|
| 41 |
170-9986 |
[2] |
SPRING |
|
| 42 |
170-9985 |
[2] |
VALVE-PISTON |
|
|
M |
|
METRIC PART |
