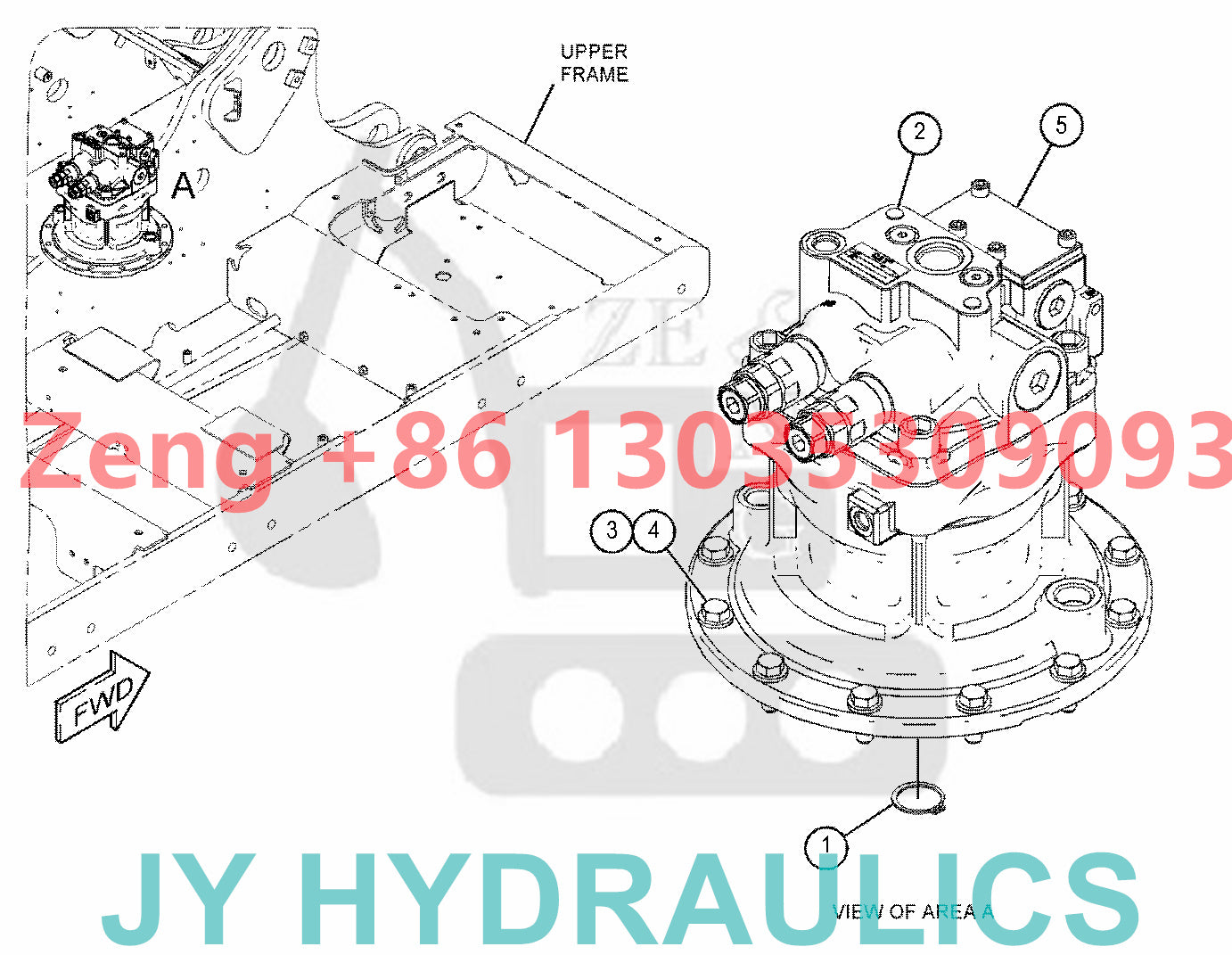

MOTOR & MTG GP-SWING
489-3486 CAT320 CAT320GC CAT323 MOTOR & MTG GP-SWING
S/N BR91-UP
PART OF 488-3075 DRIVE GP-SWING |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
6V-5200 |
[1] |
RING-RETAINING |
|
| 2 |
352-7064 |
[2] |
CAP |
|
| 3 |
451-2182 |
[12] |
WASHER-HARD (13.5X25.5X3-MM THK) |
|
| 4 |
453-3446 M |
[12] |
BOLT (M12X1.75X35-MM) |
|
| 5 |
489-3487 |
[1] |
MOTOR GP-SWING |
|
|
M |
|
METRIC PART |
|
Y |
|
SEPARATE ILLUSTRATION |

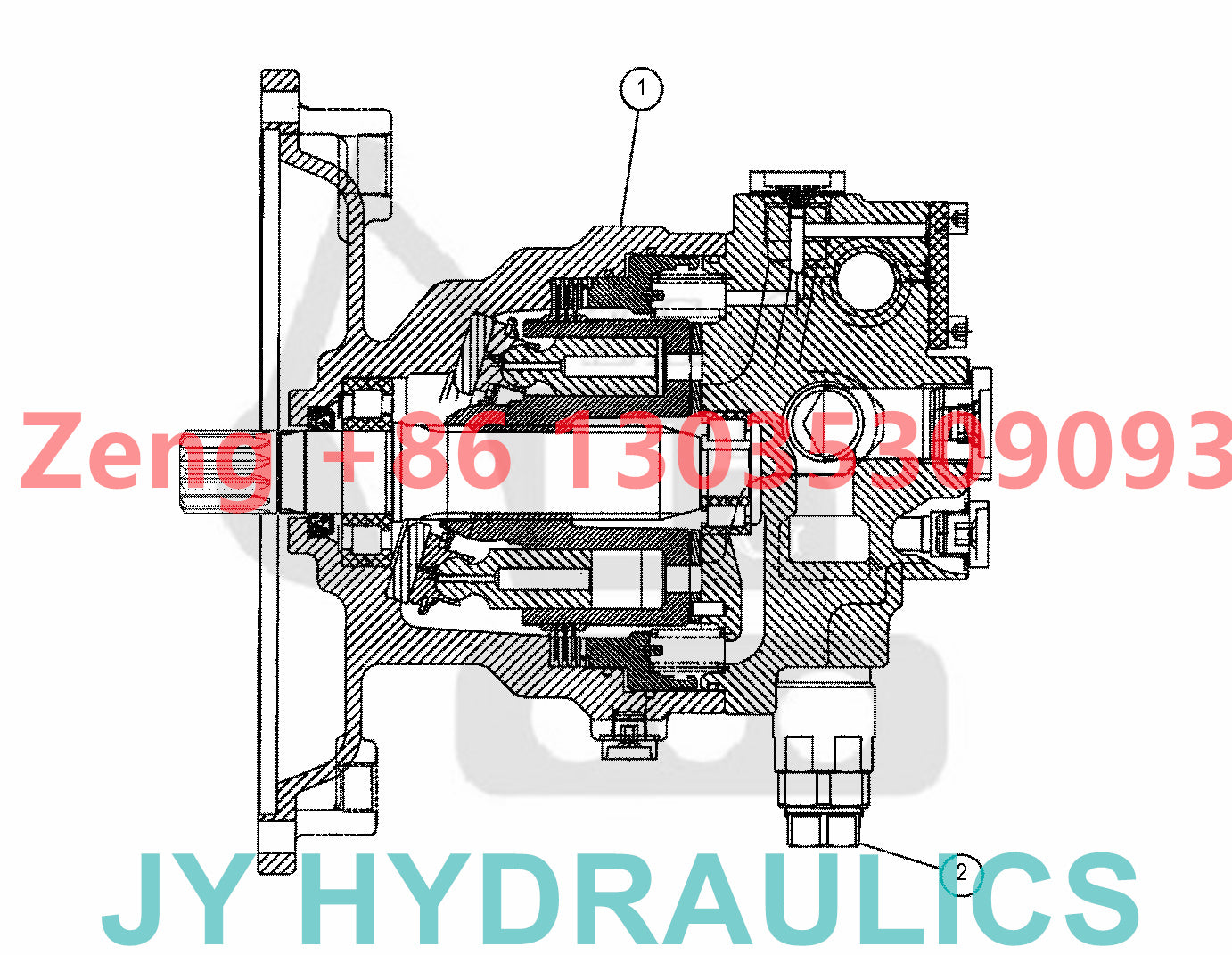

MOTOR GP-SWING
489-3487 MOTOR GP-SWING
S/N BR91-UP
PART OF 489-3486 MOTOR & MTG GP-SWING |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
515-6105 |
[1] |
MOTOR GP-SWING |
|
| 2 |
173-3452 |
[2] |
VALVE GP-RELIEF (DIRECT OPERATED) |
|
|
Y |
|
SEPARATE ILLUSTRATION |

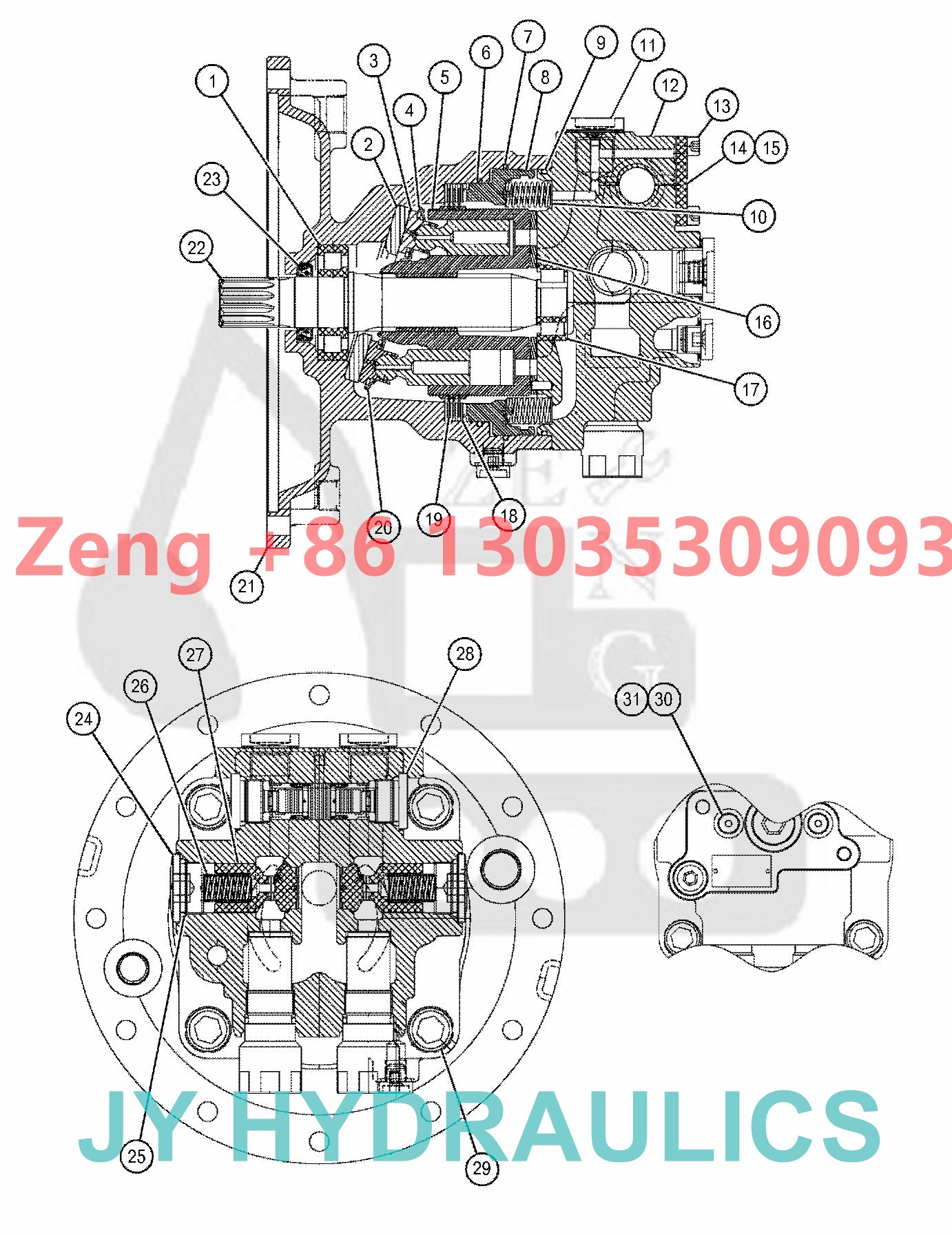

MOTOR GP-SWING
515-6105 MOTOR GP-SWING
S/N BR91-UP
PART OF 489-3487 MOTOR GP-SWING
|
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
122-5318 |
[1] |
BEARING |
|
| 2 |
173-3444 |
[1] |
PLATE |
|
| 3 |
334-9981 |
[1] |
PISTON AS-PUMP |
|
| 4 |
173-3443 |
[1] |
PLATE |
|
| 5 |
173-3441 |
[1] |
BARREL |
|
| 6 |
5I-8426 |
[1] |
SEAL-O-RING |
|
| 7 |
5I-8417 |
[1] |
SEAL-O-RING |
|
| 8 |
177-2584 |
[1] |
PISTON-BRAKE |
|
| 9 |
5I-8623 |
[1] |
SEAL-O-RING |
|
| 10 |
126-2055 |
[20] |
SPRING |
|
| 11 |
371-7201 |
[1] |
PLUG |
|
| 12 |
515-6103 |
[1] |
HEAD GP-MOTOR |
|
| 13 |
8T-1158 M |
[4] |
BOLT-SOCKET HEAD (M8X1.25X20-MM) |
|
| 14 |
493-3209 |
[1] |
COVER |
|
| 15 |
095-1578 |
[3] |
SEAL-O-RING |
|
| 16 |
173-3445 |
[1] |
PLATE-VALVE |
|
| 17 |
5I-8625 |
[1] |
BEARING |
|
| 18 |
173-3451 |
[4] |
PLATE-SEPARATOR |
|
| 19 |
173-3450 |
[3] |
PLATE-FRICTION |
|
| 20 |
173-3442 |
[1] |
SPRING |
|
| 21 |
465-5181 |
[1] |
BODY |
|
| 22 |
173-3440 |
[1] |
SHAFT |
|
| 23 |
173-3447 |
[1] |
SEAL-OIL |
|
| 24 |
170-9996 |
[2] |
PLUG |
|
| 25 |
095-1600 |
[2] |
SEAL-O-RING |
|
| 26 |
170-9986 |
[2] |
SPRING |
|
| 27 |
170-9985 |
[2] |
VALVE-PISTON |
|
| 28 |
515-6104 |
[1] |
VALVE AS-RELIEF |
|
| 29 |
7Y-5221 M |
[4] |
BOLT-SOCKET HEAD (M20X2.5X45-MM) |
|
| 30 |
446-7230 |
[2] |
PLUG |
|
| 31 |
3J-1907 |
[2] |
SEAL-O-RING |
|
|
M |
|
METRIC PART |
