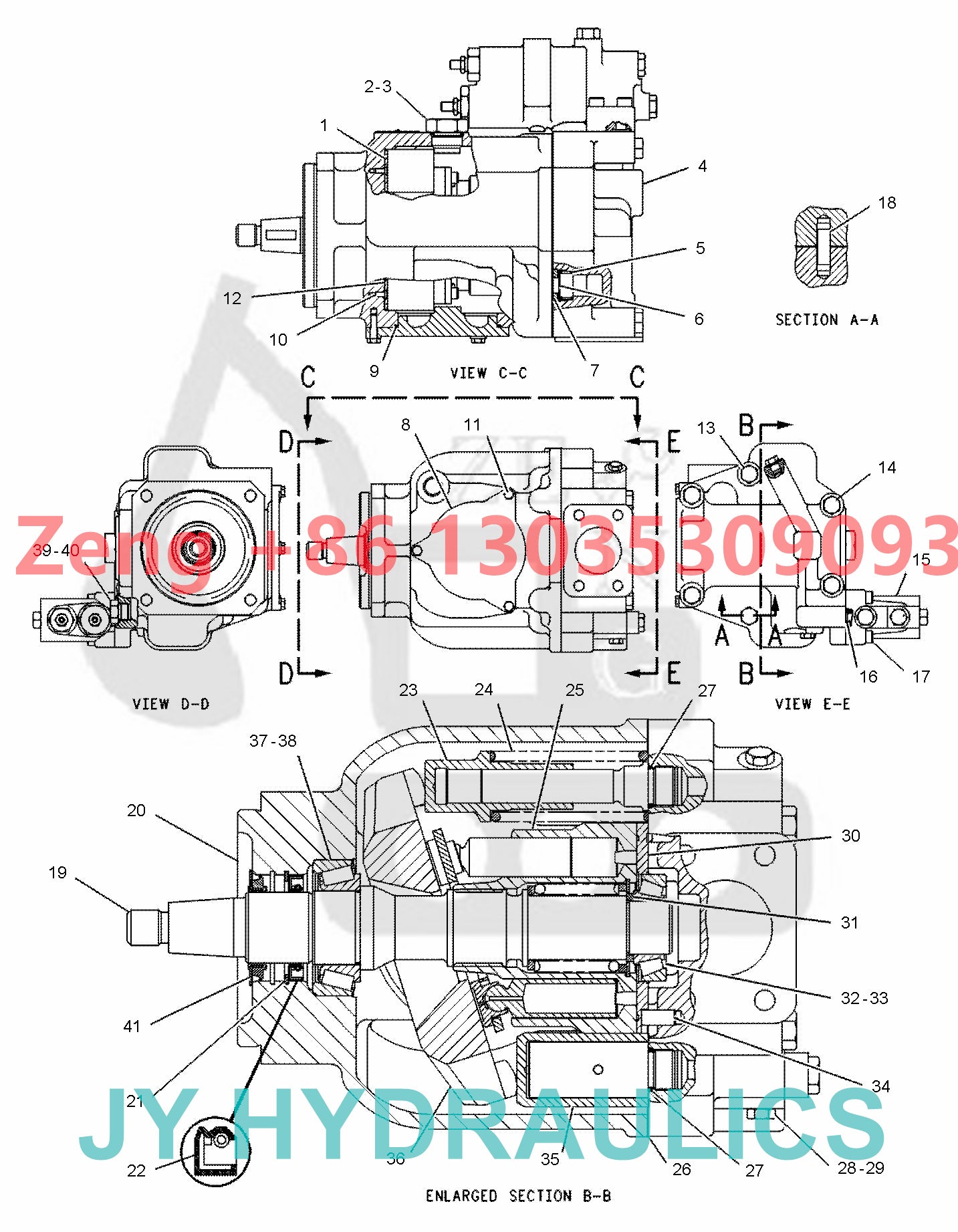

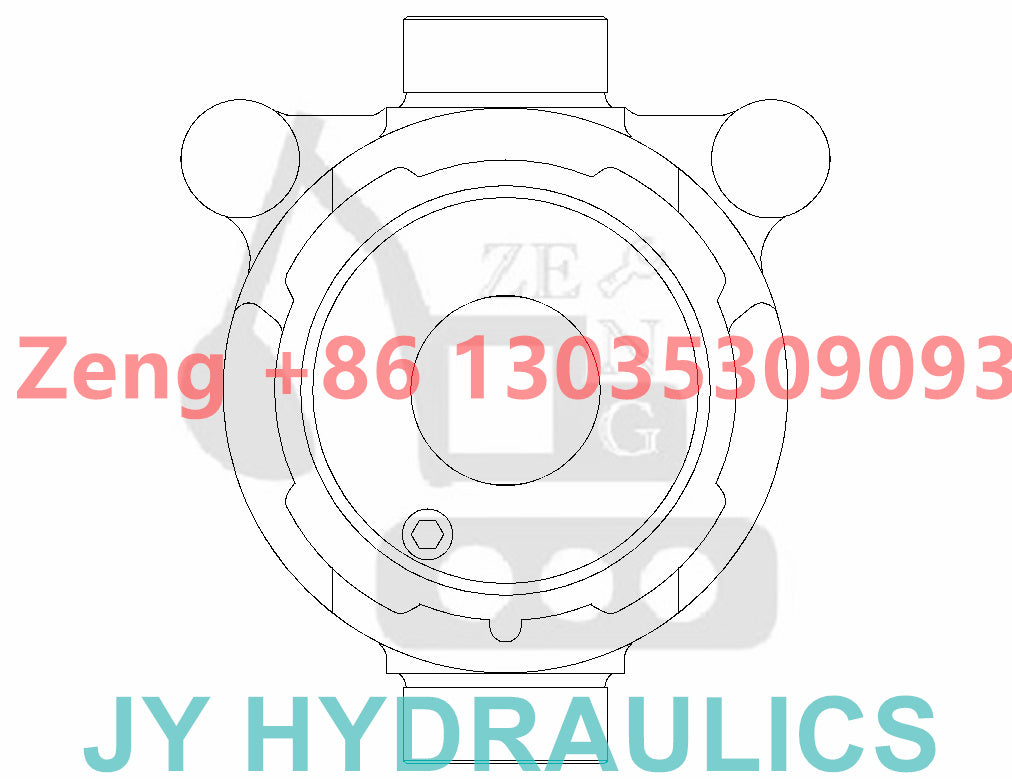

PUMP GP-PISTON
6E-3137
MOTOR GRADER CAT120H CAT120HES CAT CAT120HNA CAT120K CAT120K2 CAT12H CAT12HES CAT12H NA CAT12K CAT135H CAT135HNA CAT140H CAT140HES CAT140HNA CAT140K CAT140K2 CAT160H CAT160HES CAT160HNA CAT160K
PUMP GP-PISTON
S/N 5HM1-UP
PART OF 115-3078 LINES GP-PUMP
AN ATTACHMENT |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
6E-4224 |
[1] |
PLUG-SWASHPLATE |
|
| 2 |
033-6036 |
[1] |
SEAL-O-RING |
|
| 3 |
100-3402 |
[1] |
BEARING-SWASH |
|
| 4 |
100-3405 |
[1] |
BEARING-SWASH |
|
| 5 |
6V-8837 M |
[3] |
BOLT (M6X1X16-MM) |
|
| 6 |
4F-4097 |
[1] |
SEAL-O-RING |
|
| 7 |
3E-4302 M |
[2] |
SCREW-FLAT HEAD (M4X0.7X10-MM) |
|
| 8 |
100-3404 |
[1] |
COVER-TRUNNION |
|
| 9 |
9T-1636 |
[1] |
SEAT |
|
| 10 |
9T-1710 |
[1] |
POPPET |
|
| 11 |
9T-1699 |
[1] |
SPRING |
|
| 12 |
100-3403 |
[1] |
HEAD-PUMP |
|
| 13 |
6E-1436 B |
[1] |
SHIM PACK (INCLUDES 17-SHIMS) |
|
| 14 |
6Y-4280 |
[1] |
CONE-BEARING |
|
| 15 |
7T-9755 |
[1] |
CUP-BEARING |
|
| 16 |
9T-7775 |
[1] |
PLATE-VALVE |
|
| 17 |
3E-7417 |
[2] |
PLUG |
|
| 18 |
8T-7876 |
[2] |
SEAL-O-RING |
|
| 19 |
7L-9061 |
[2] |
SEAL-O-RING |
|
| 20 |
100-3413 |
[1] |
GASKET |
|
| 21 |
100-3412 |
[1] |
ROTATING GP-PUMP (STEERING) |
|
| 22 |
100-3409 |
[1] |
SPRING-BIAS |
|
| 23 |
100-3408 |
[1] |
KIT-BIAS PISTON |
|
|
|
|
(INCLUDES SPRING, ROD, PISTON, SEAL) |
| 24 |
002-1212 |
[1] |
CUP-BEARING |
|
| 25 |
2F-8509 |
[1] |
CONE-BEARING |
|
| 26 |
100-3401 |
[1] |
SHAFT-PUMP |
|
| 27 |
100-3407 |
[1] |
HOUSING-PUMP |
|
| 28 |
006-8663 |
[1] |
RING |
|
| 29 |
8T-4750 |
[1] |
SEAL-LIP TYPE |
|
| 30 |
100-3416 |
[1] |
SWASHPLATE GP |
|
| 31 |
100-3415 |
[1] |
KIT-CONTROL PISTON |
|
|
|
|
(INCLUDES SPRING, ROD, PISTON, SEAL) |
| 32 |
9T-1652 |
[1] |
PIN |
|
| 33 |
6V-8336 M |
[1] |
BOLT (M12X1.75X70-MM) |
|
| 34 |
6V-7673 M |
[4] |
BOLT (M12X1.75X50-MM) |
|
| 35 |
8T-0372 M |
[1] |
BOLT (M12X1.75X90-MM) |
|
| 36 |
6V-8337 M |
[4] |
BOLT-SOCKET HEAD (M8X1.25X35-MM) |
|
| 37 |
104-3122 Y |
[1] |
VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR) |
|
| 38 |
9S-4190 |
[1] |
PLUG-O-RING (7/8-14-THD) |
|
| 39 |
033-6027 |
[1] |
SEAL-O-RING |
|
| 40 |
095-0888 |
[2] |
PIN-SPRING |
|
| 41 |
8T-5039 |
[3] |
SEAL-O-RING |
|
| 42 |
104-3124 |
[1] |
SHIELD |
|
|
B |
|
USE AS REQUIRED |
|
M |
|
METRIC PART |
|
Y |
|
SEPARATE ILLUSTRATION |

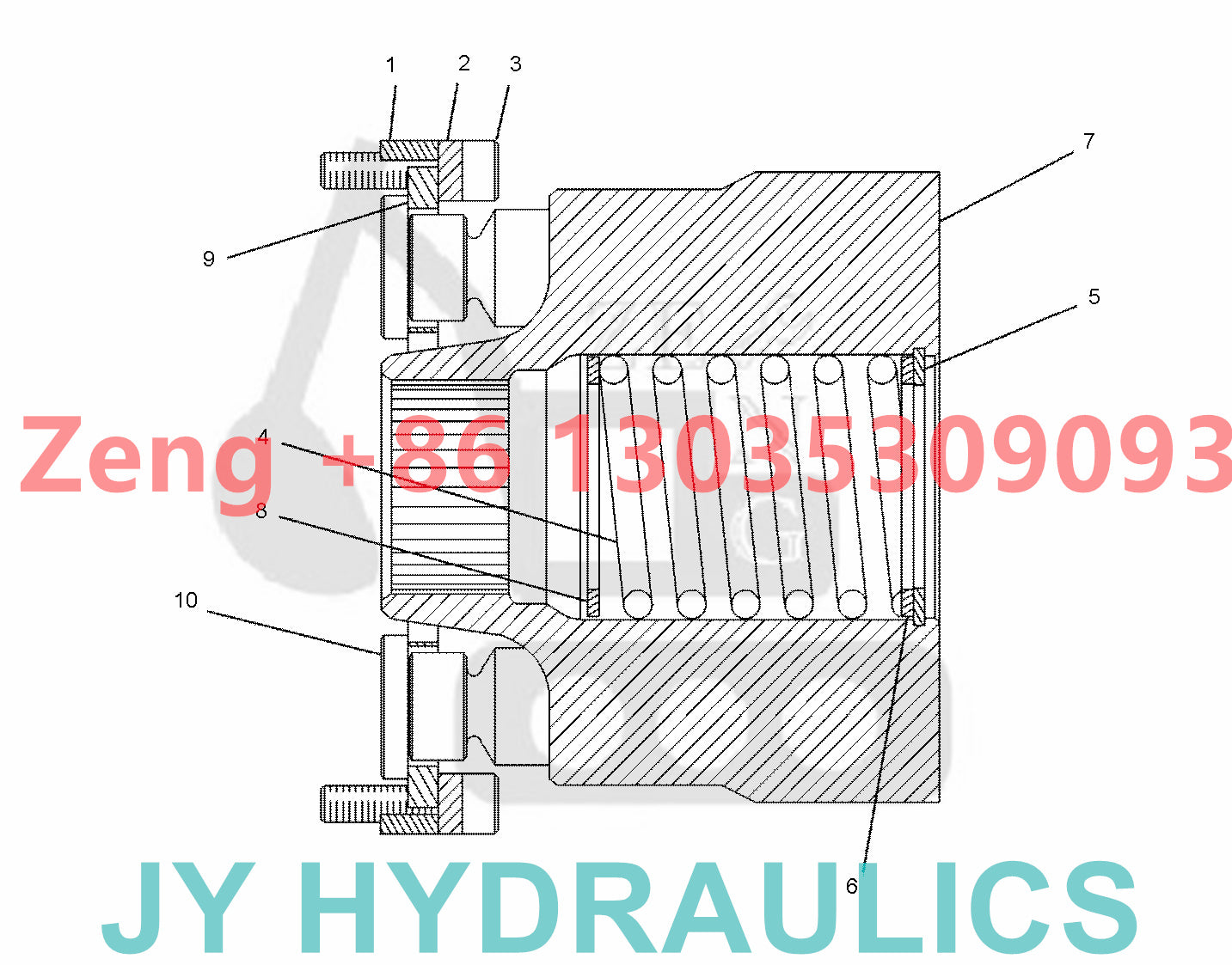

ROTATING GP-PUMP
100-3412
LANDFILL COMPACTOR 826G 826GII 826H
MOTOR GRADER 120H 120HES 120HNA 120K 120K2 120M 12H 12HES 12HNA 12K 12M 135H 135HNA 140H 140HES 140HNA 140K 140K2 140M 143H 160H 160HES 160HNA 160K 160M 163H 163H NA 24H
SOIL COMPACTOR 825G 825GII 825H
TRACK-TYPE TRACTOR D6R
WHEEL DOZER 824G 824GII 824H
WHEEL LOADER 966G 966GII 966H 966K 972G 972GII 972H 972K 980G 980GII 980H 980K 980KHLG
ROTATING GP-PUMP
S/N 2ZK1-UP
PART OF 6E-3137 PUMP GP-PISTON |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
9T-7774 |
[1] |
BARREL |
|
| 2 |
3J-8500 |
[1] |
RING-RETAINING |
|
| 3 |
9T-7769 |
[1] |
GUIDE-OUTER |
|
| 4 |
6V-5192 M |
[4] |
BOLT-SOCKET HEAD (M8X1.25X30-MM) |
|
| 5 |
100-3410 |
[2] |
PLATE |
|
| 6 |
100-3411 |
[2] |
PLATE-SPACER |
|
| 7 |
9T-7765 |
[9] |
PISTON |
|
| 8 |
9T-7767 |
[1] |
PLATE-RETRACTION |
|
| 9 |
9T-7773 |
[1] |
GUIDE-INNER |
|
| 10 |
9T-7771 |
[1] |
SPRING |
|
|
M |
|
METRIC PART |
|
|
|
|
|

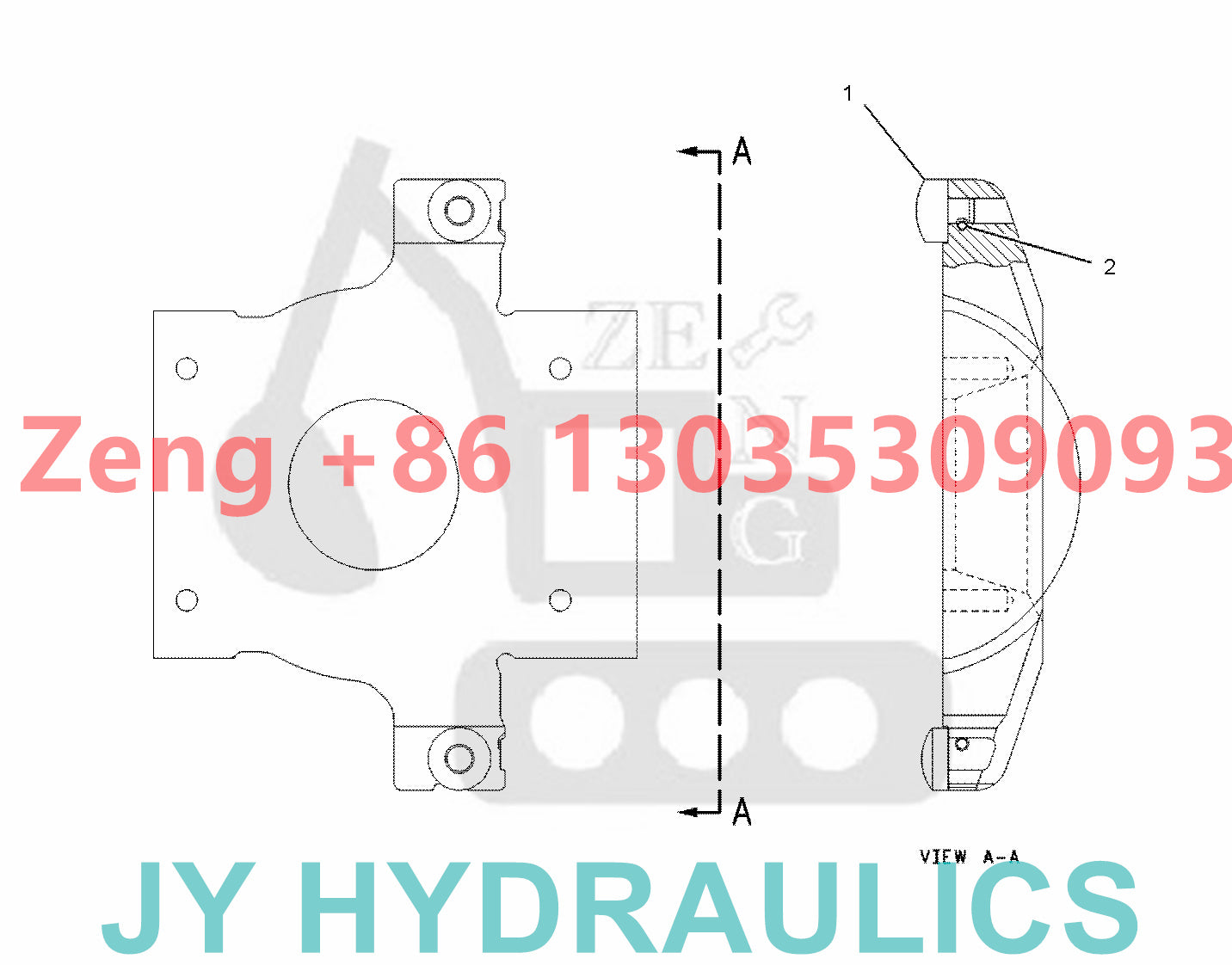

SWASHPLATE GP 100-3416 SWASHPLATE GP
S/N 2ZK1-UP
PART OF 6E-3137 PUMP GP-PISTON
FIELD REPLACEMENT ORDER @@@@@169-3290@@@@@ |
SWASHPLATE GP 169-3290 SWASHPLATE GP
S/N 2ZK1-UP
FIELD REPLACEMENT FOR @@@@@100-3416@@@@@ |
