CATERPILLAR 096-4355 085-4530 1R-8671 1R-9902 HYDRAULIC PUMP ROTARY GROUP

CATERPILLAR 096-4355 085-4530 1R-8671 1R-9902 HYDRAULIC PUMP ROTARY GROUP

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
096-4355 085-4530
1R-8671 1R-9902
E200B
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments

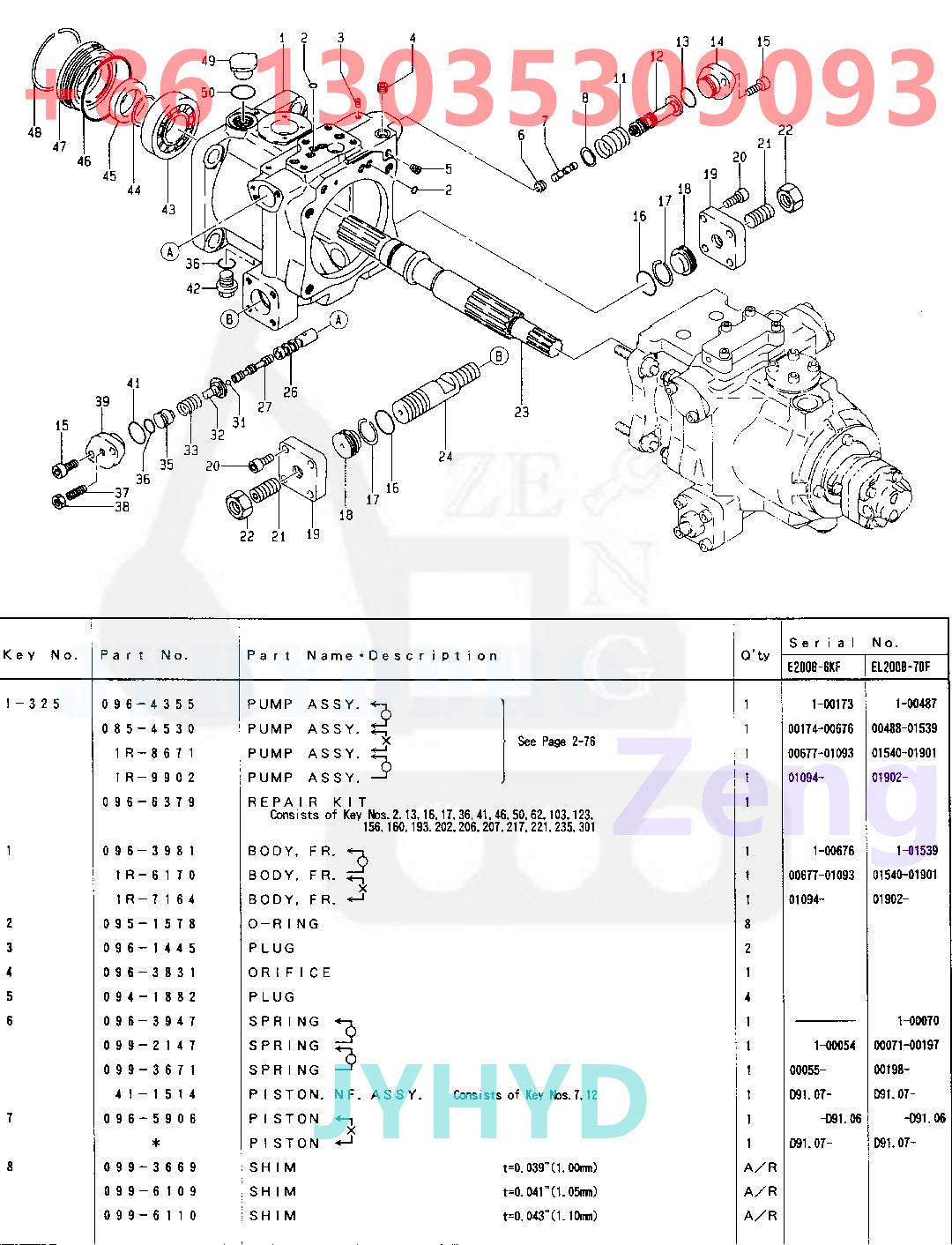

1-325. 096-4355 [1] PUMP ASSY.
085-4530 [1] PUMP ASSY.
1R-8671 [1] PUMP ASSY.
1R-9902 [1] PUMP ASSY.
096-6379 [1] REPAIR KIT
1 096-3981 [1] BODY, FR.
1R-6170 [1] BODY, FR.
1R-7164 [1] BODY, FR.
2 095-1578 [8] O-RING
3 096-1445 [2] PLUG
4 096-3831 [1] ORIFICE
5 094-1882 [4] PLUG
6 096-3947 [1] SPRING
099-2147 [1] SPRING
099-3671 [1] SPRING
4I-1514 [1] PISTON. NF. ASSY.
7 096-5906 [1] PISTON
8 099-3669 B SHIM
099-6109 B SHIM
099-6110 B SHIM
B   USE AS REQUIRED
N   NOT SUPPLIED INDIVIDUALLY
Parts for your E200B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
8 099-6111 B SHIM
099-6112 B SHIM
099-6113 B SHIM
099-6115 B SHIM
099-6117 B SHIM
099-6118 B SHIM
099-6119 B SHIM
099-6120 B SHIM
099-6121 B SHIM
099-6122 B SHIM
099-6123 B SHIM
099-6124 B SHIM
099-6125 B SHIM
099-6126 B SHIM
099-6127 B SHIM
099-6128 B SHIM
099-3670 B SHIM
11 096-4363 [1] SPRING
12 096-5905 [1] PISTON
13 095-1657 [1] O-RING
B   USE AS REQUIRED
N   NOT SUPPLIED INDIVIDUALLY
Parts for your E200B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
14 096-4015 [1] COVER
15 8T-1159 [4] BOLT
16 095-1600 [2] O-RING
17 096-4925 [2] RING
18 096-4012 [2] STOPPER
19 096-4010 [2] COVER
20 8T-0273 [8] BOLT
21 096-4011 [2] SCREW
22 096-4878 [2] NUT
23 096-3986 [1] SHAFT, FR.
4I-9467 [1] SHAFT, FR.
24 096-4009 [1] PISTON
26-27. 096-4014 [1] SPOOL SLEEVE ASSY.
31 096-4843 [1] STEEL BALL
32 096-4013 [1] GUIDE
085-4525 [1] GUIDE
33 096-4362 [1] SPRING
35 096-4021 [1] RETAINER
36 8T-0211 [2] O-RING
N   NOT SUPPLIED INDIVIDUALLY
Parts for your E200B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
37 096-2966 [1] SCREW
38 096-4874 [1] NUT
39 096-4020 [1] COVER
41 095-1658 [1] O-RING
42 094-1815 [1] PLUG
43 096-4002 [1] BEARING
44 095-7424 [1] RING
45 096-3998 [1] SEAL
46 096-3944 [1] O-RING
47 096-3984 [1] CASE
48 096-3983 [1] RING
49 093-1323 [1] PLUG
50 095-1526 [1] O-RING
Parts for your E200B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments

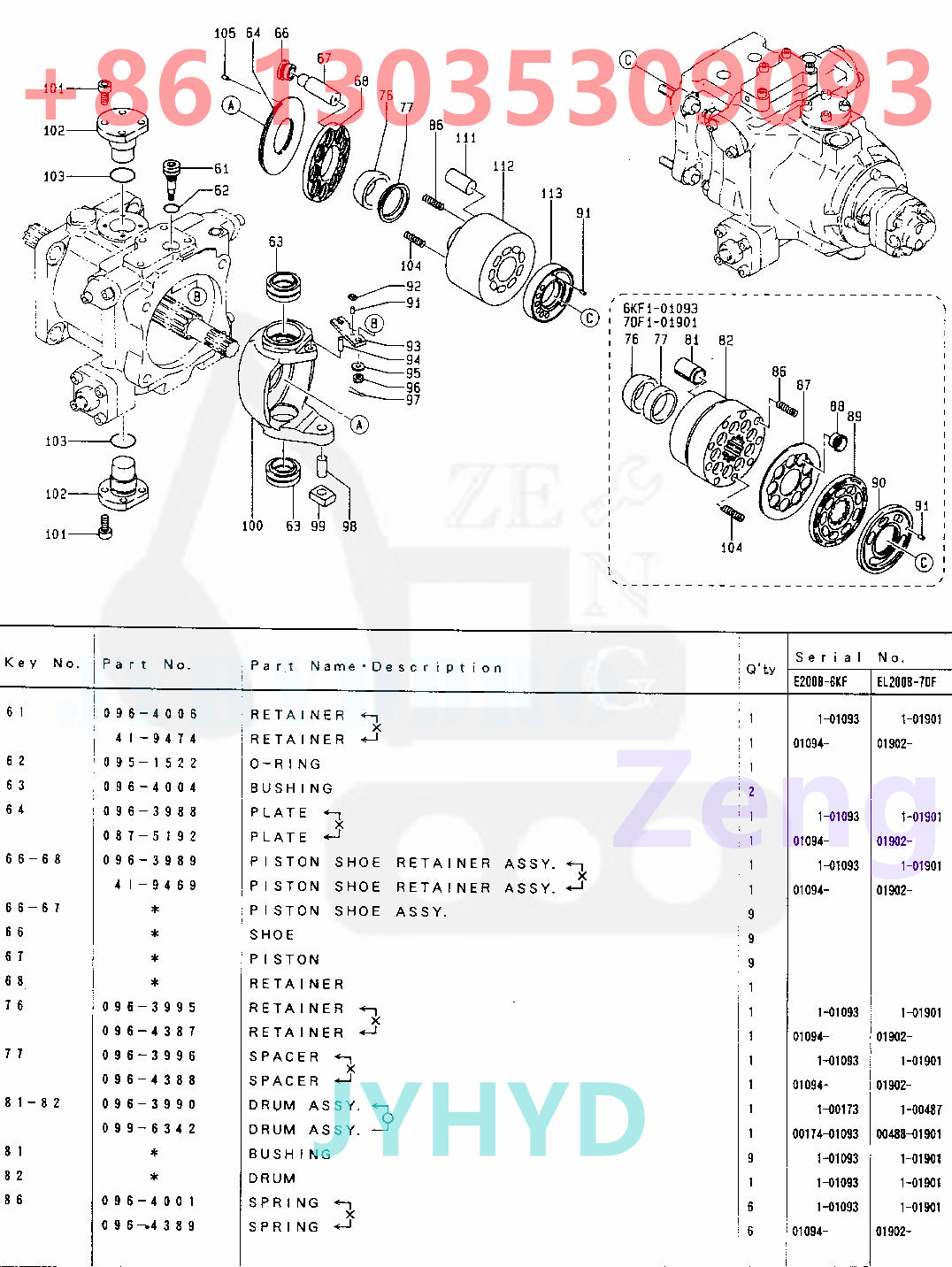

61 096-4006 [1] RETAINER
4I-9474 [1] RETAINER
62 095-1522 [1] O-RING
63 096-4004 [2] BUSHING
64 096-3988 [1] PLATE
087-5192 [1] PLATE
66-68. 096-3989 [1] PISTON SHOE RETAINER ASSY.
4I-9469 [1] PISTON SHOE RETAINER ASSY.
76 096-3995 [1] RETAINER
096-4387 [1] RETAINER
77 096-3996 [1] SPACER
096-4388 [1] SPACER
81-82. 096-3990 [1] DRUM ASSY.
099-6342 [1] DRUM ASSY.
86 096-4001 [6] SPRING
096-4389 [6] SPRING
N   NOT SUPPLIED INDIVIDUALLY
Parts for your E200B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
87 096-3991 [1] RETAINER
88 096-3997 [9] SEAL
89 096-3992 [1] PLATE
90 096-3993 [1] PLATE, FR.
91 094-1875 [2] ROLLER
92 094-1881 [1] PLATE
93 096-4018 [1] LINK, FR.
94 096-4016 [1] ROLLER
4I-9476 [1] ROLLER
95 096-4007 [1] SPACER
4I-9475 [1] SPACER
96 096-3943 [1] NUT
97 095-0844 [1] PIN
98 096-4017 [1] PIN, DOWEL
99 096-4008 [1] BLOCK
100 096-3987 [1] HANGER
1R-9734 [1] HANGER
101 8T-1159 [8] BOLT
102-103. 122-2917 [2] SHAFT ASSY.
102 096-4000 [2] SHAFT
4I-9470 [2] SHAFT
122-2915 [2] SHAFT
103 095-1659 [2] O-RING
6V-7660 [2] O-RING
6V-7657 [2] O-RING
Parts for your E200B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
104 096-4001 [3] SPRING
096-4389 [3] SPRING
105 094-1875 [1] ROLLER
111-113. 4I-9472 [1] BARREL PLATE ASSY., FR.
N   NOT SUPPLIED INDIVIDUALLY
Parts for your E200B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments

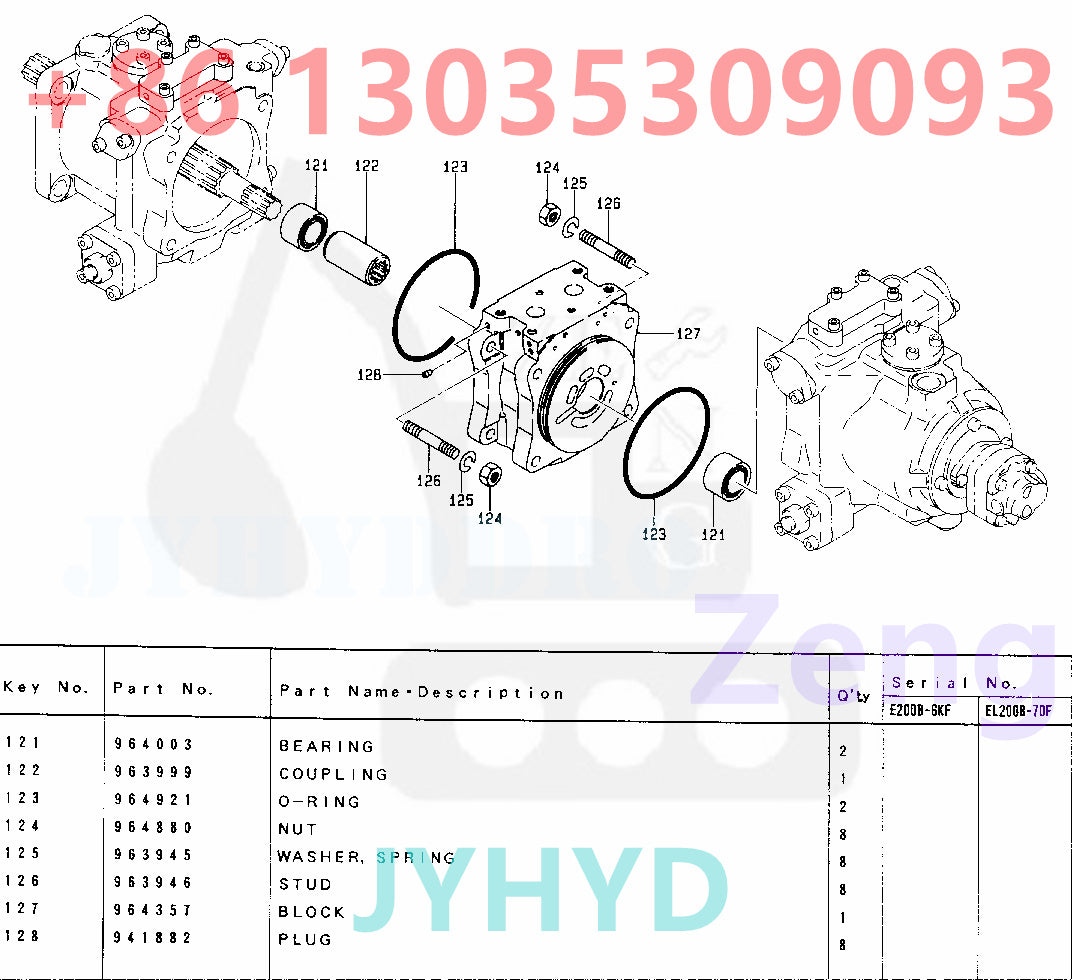

121 096-4003 [2] BEARING
122 096-3999 [1] COUPLING
123 096-4921 [2] O-RING
124 096-4880 [8] NUT
125 096-3945 [8] WASHER, SPRING
126 096-3946 [8] STUD
127 096-4357 [1] BLOCK
128 094-1882 [8] PLUG
Parts for your E200B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments

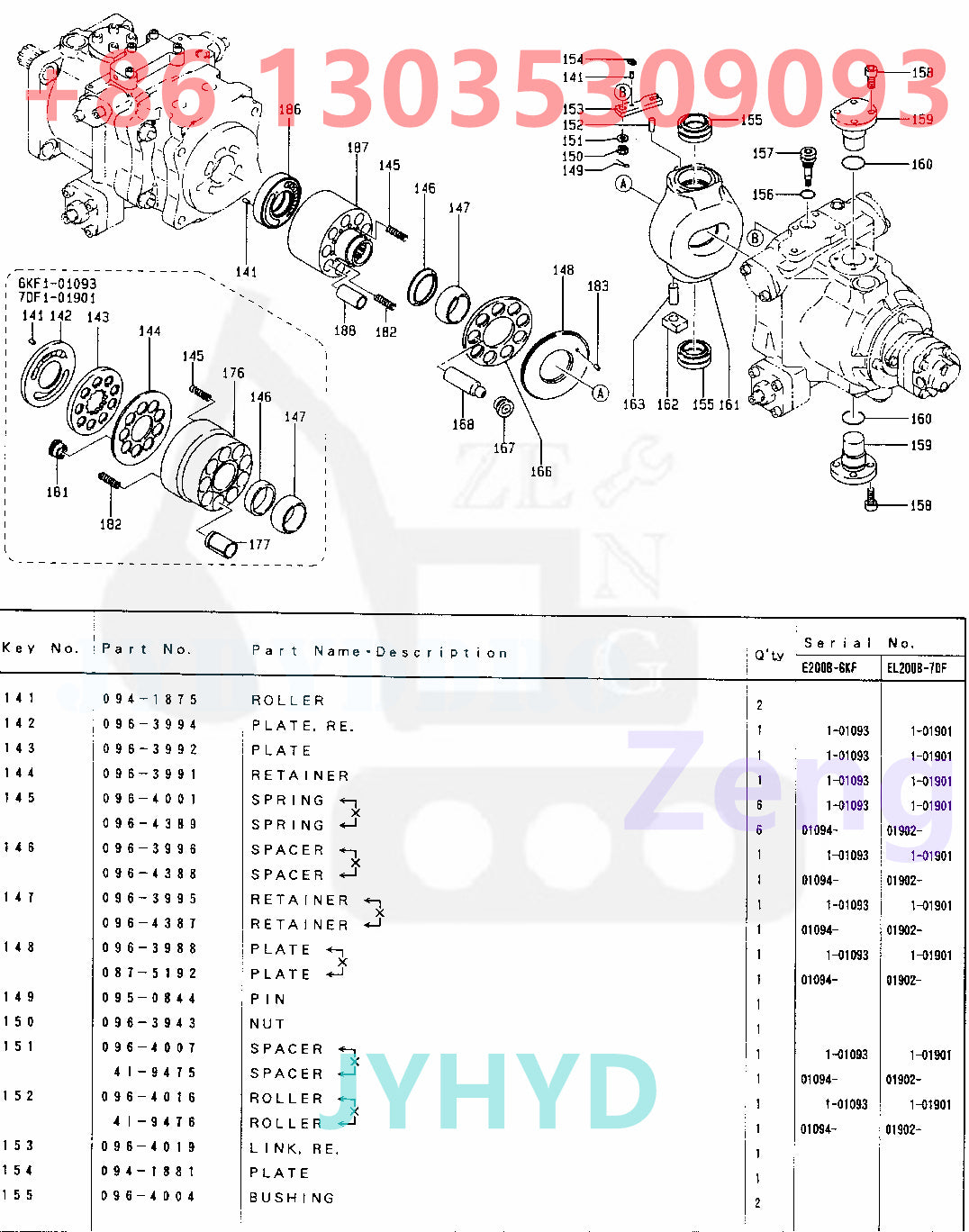

141 094-1875 [2] ROLLER
142 096-3994 [1] PLATE, RE.
143 096-3992 [1] PLATE
144 096-3991 [1] RETAINER
145 096-4001 [6] SPRING
096-4389 [6] SPRING
146 096-3996 [1] SPACER
096-4388 [1] SPACER
147 096-3995 [1] RETAINER
096-4387 [1] RETAINER
148 096-3988 [1] PLATE
087-5192 [1] PLATE
149 095-0844 [1] PIN
150 096-3943 [1] NUT
151 096-4007 [1] SPACER
4I-9475 [1] SPACER
152 096-4016 [1] ROLLER
4I-9476 [1] ROLLER
153 096-4019 [1] LINK, RE.
154 094-1881 [1] PLATE
155 096-4004 [2] BUSHING
Parts for your E200B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
156 095-1522 [1] O-RING
157 096-4006 [1] RETAINER
4I-9474 [1] RETAINER
158 8T-1159 [8] BOLT
159-160. 122-2917 [2] SHAFT ASSY.
159-160. 096-4000 [2] SHAFT
4I-9470 [2] SHAFT
122-2915 [2] SHAFT
160 095-1659 [2] O-RING
6V-7660 [2] O-RING
6V-7657 [2] O-RING
161 096-3987 [1] HANGER
1R-9734 [1] HANGER
162 096-4008 [1] BLOCK
163 096-4017 [1] PIN, DOWEL
166-168. 096-3989 [1] PISTON SHOE RETAINER ASSY.
4I-9469 [1] PISTON SHOE RETAINER ASSY.
176-177. 096-3990 [1] DRUM ASSY.
099-6342 [1] DRUM ASSY.
N   NOT SUPPLIED INDIVIDUALLY
