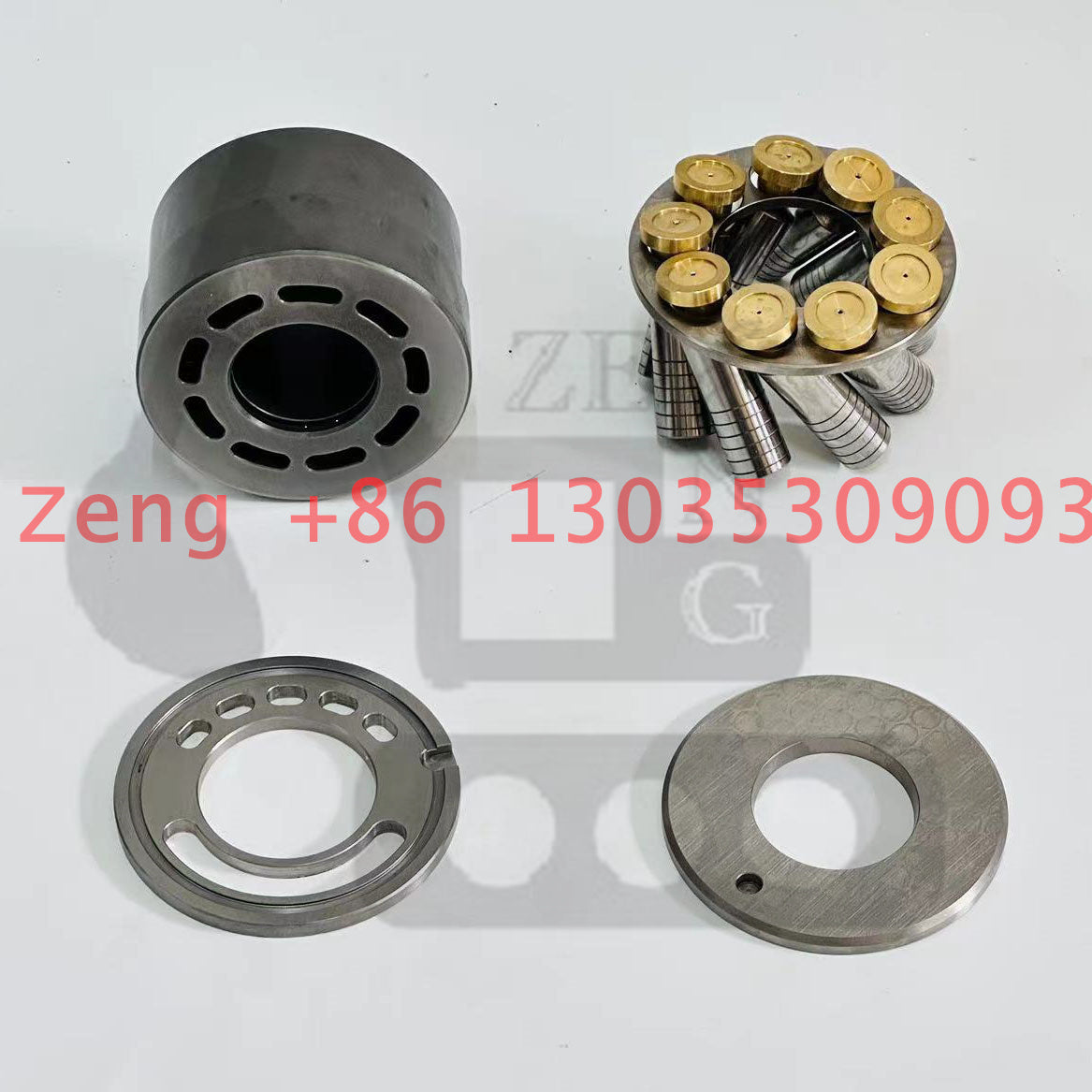

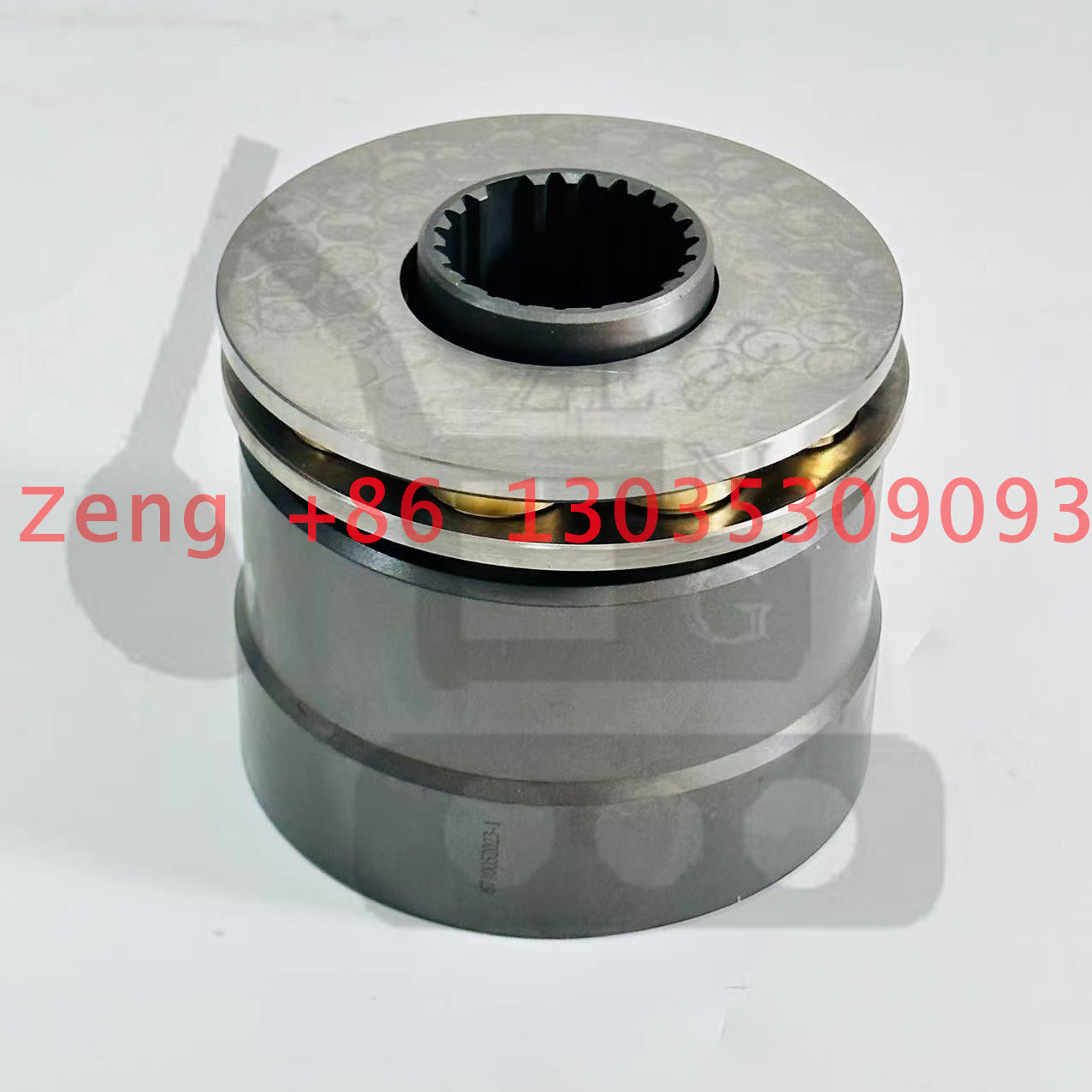

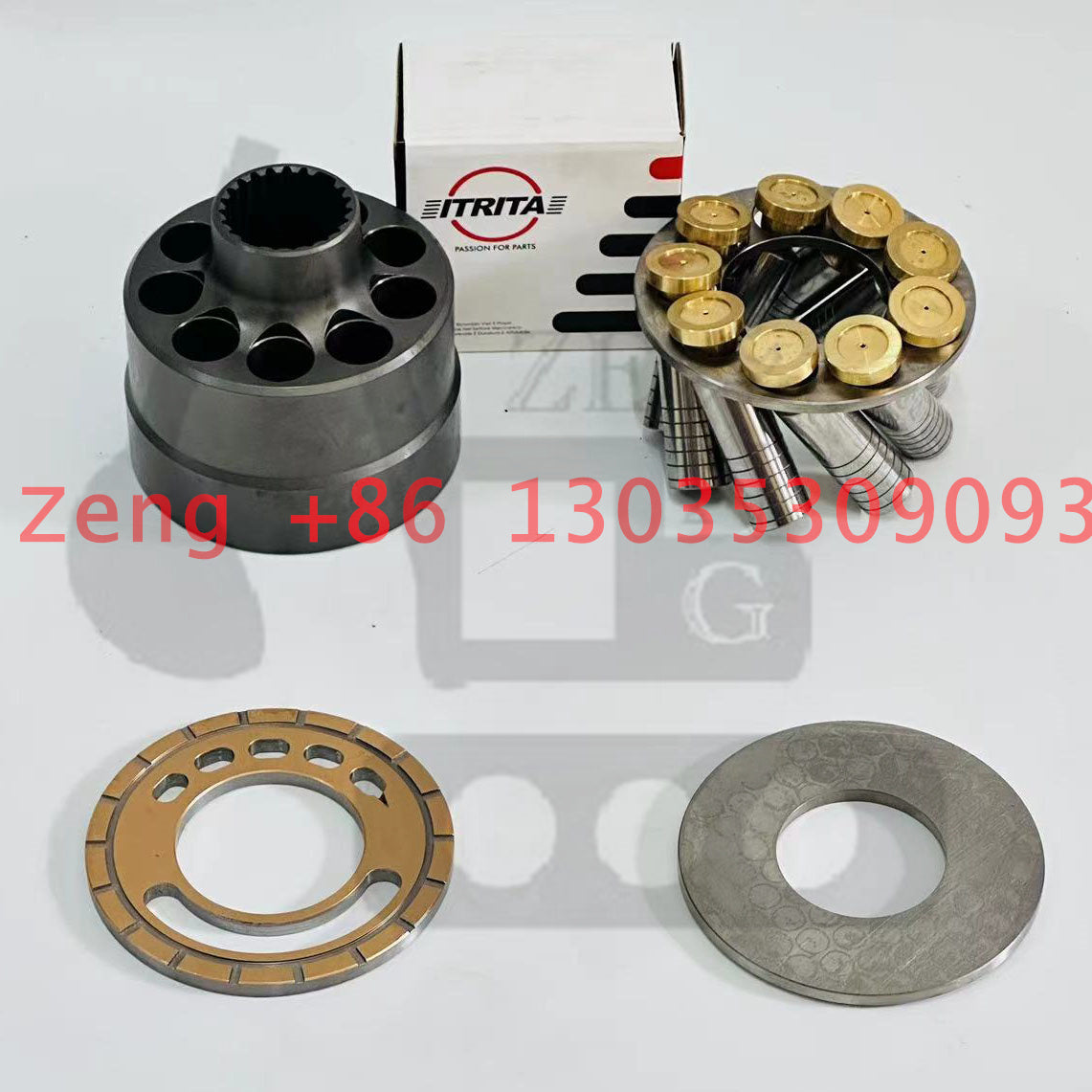

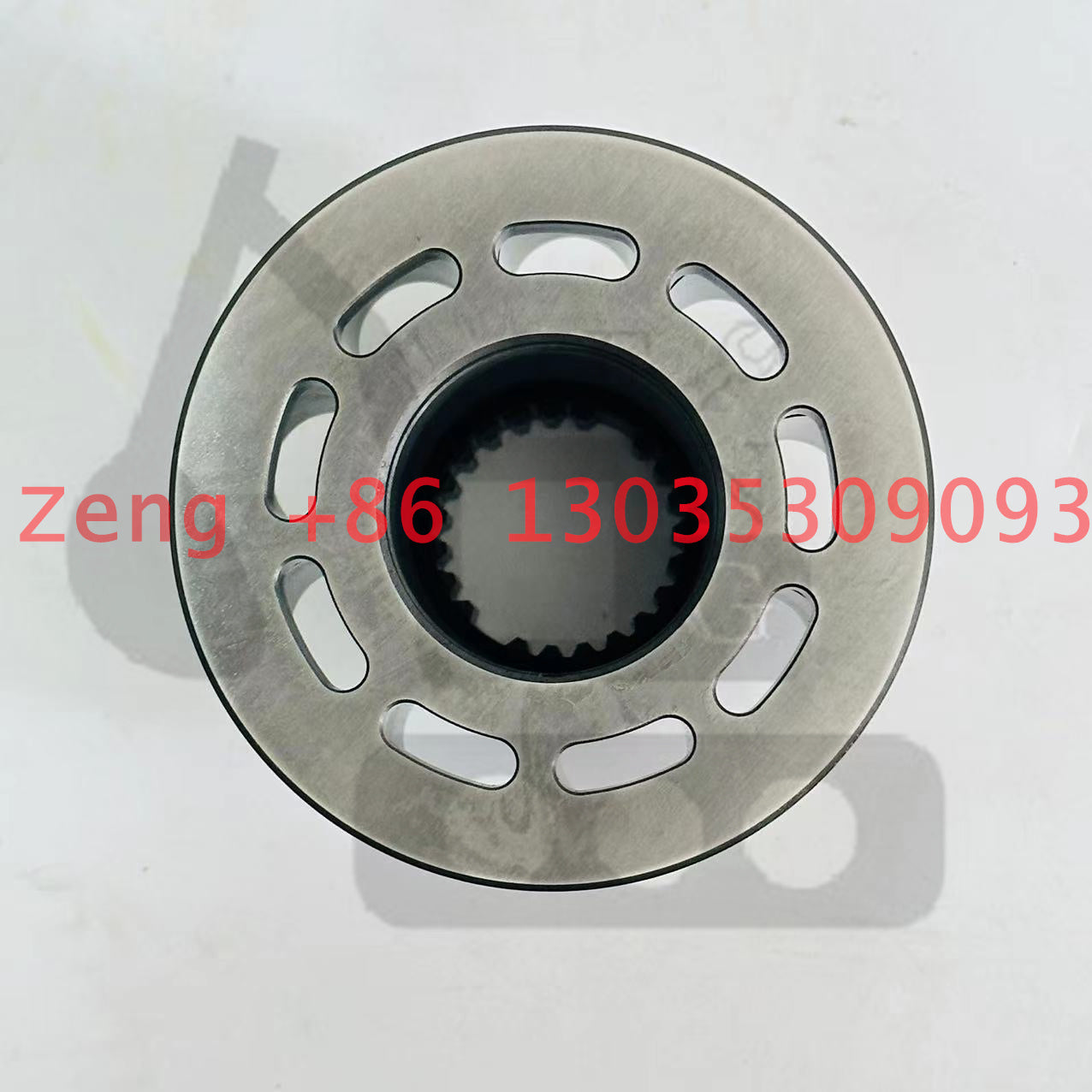

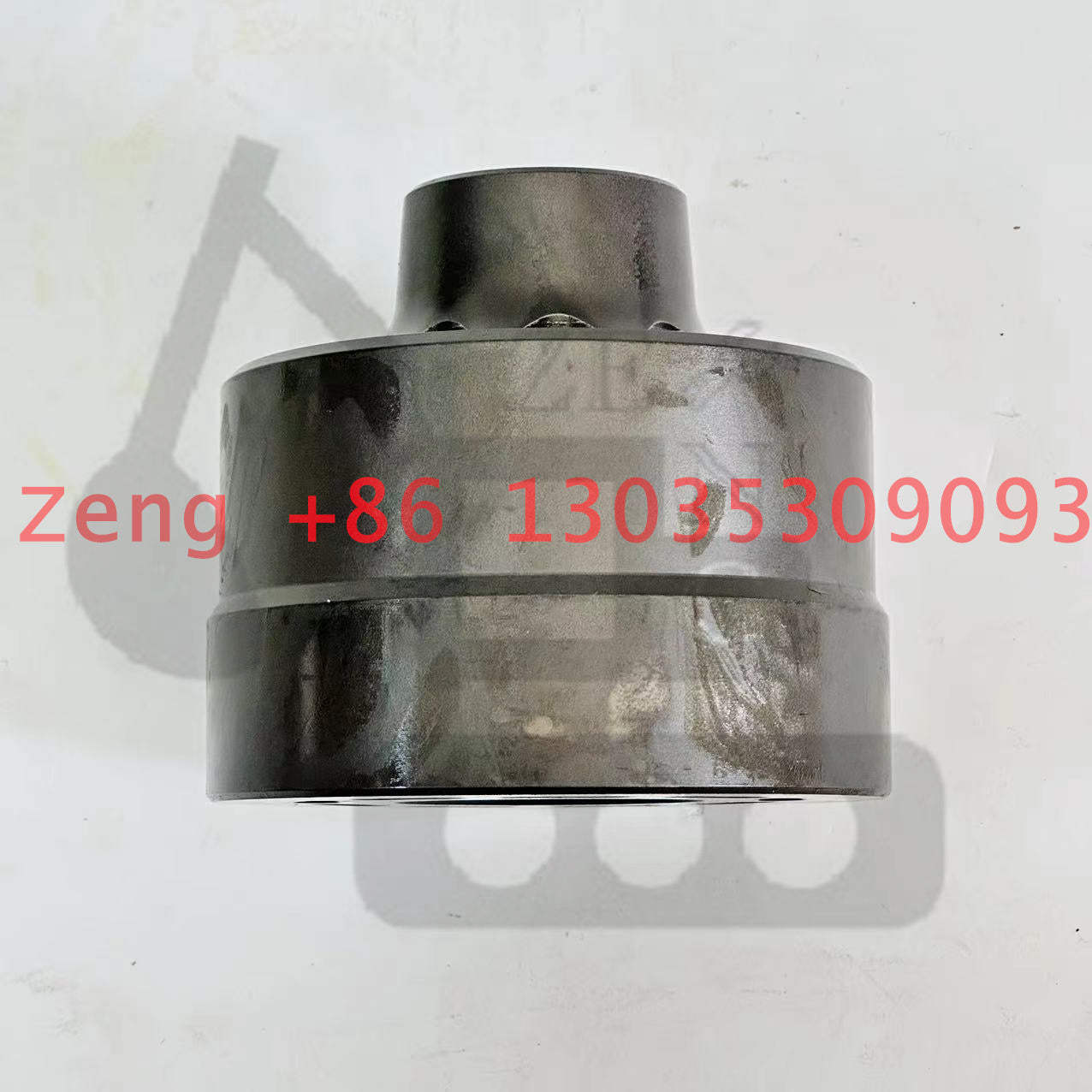

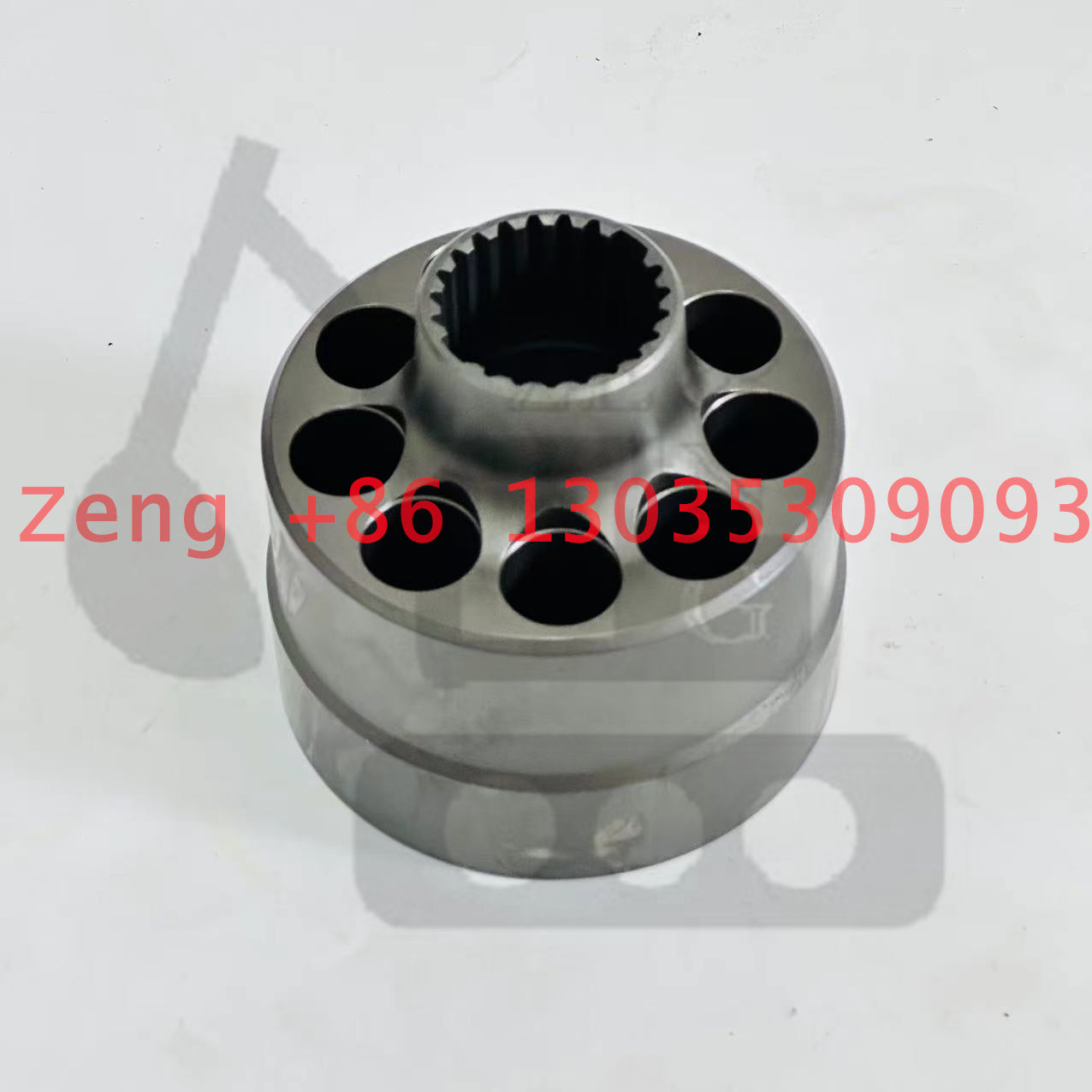

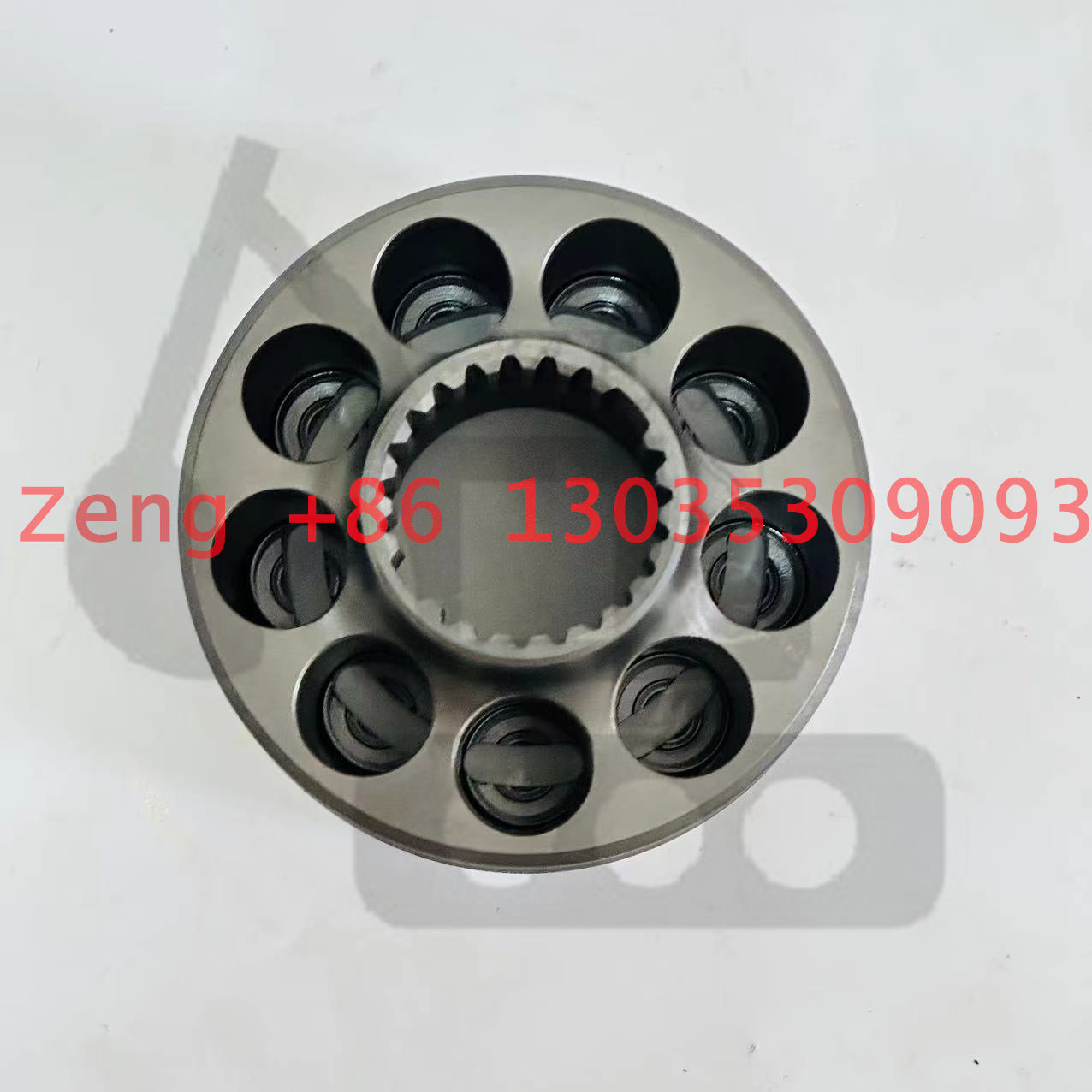

CATERPILLAR 9T4833 9T1700 9T3877 hydraulic pump cylinder block rotor barrel
CATERPILLAR 9T4833 9T1700 9T3877 hydraulic pump cylinder block rotor barrel
定價
$2,000.00 USD
定價
售價
$2,000.00 USD
單價
/
每
結帳時計算運費。
No reviews
無法載入取貨服務供應情況
9T4833 9T1700 9T3877 backhoe loader CAT426 CAT436 CAT438 ROTARY GROUP 9T-3017 backhoe loader CAT416 CAT426 CAT436 CAT438 track skidder D5HTSK II track-type tractor D5H |
||||
CATERPILLAR SIS | ||||
Pos. | Part No | Qty | Parts name | Comments |
1 | 9T-3877 CY | [1] | VALVE GP-PRESS & FLOW CMPNSTR | |
2 | 9S-4185 C | [1] | PLUG-O-RING (3/4 X 16 THD) | |
3 | 3J-7354 | [2] | SEAL-O-RING (8.92MM ID) | |
4 | 8T-0372 M | [1] | BOLT (M12X1.75X90MM) | |
5 | 9S-8002 C | [2] | PLUG-O-RING | |
6 | 3K-0360 C | [1] | SEAL-O-RING (16.36MM ID) | |
7 | 9T-7032 | [1] | HEAD-LH | |
8 | 9T-1699 | [1] | SPRING | |
9 | 9T-1710 | [1] | POPPET | |
10 | 9T-1636 | [1] | SEAT | |
11 | 1T-0550 C | [2] | PIN-SPRING | |
12 | 9T-1652 | [1] | PIN | |
13 | 6V-5684 CM | [6] | BOLT (M12X1.75X45MM) | |
14 | 5A-3604 M | [4] | BOLT-SOCKET HEAD | |
15 | 9W-2109 | [1] | CONE | |
16 | 9W-2110 | [1] | CUP | |
17 | 9T-3038 B | [1] | KIT-SHAFT SHIM | |
18 | 9T-3030 | [1] | PLATE | |
19 | 9T-3017 | [1] | ROTATING GP-PUMP | |
9T-3026 | [1] | BARREL | ||
20 | 002-3455 | [1] | RING-RETAINING | |
21 | 9T-3021 | [1] | GUIDE | |
22 | 9T-3023 | [1] | SPRING | |
23 | 9T-3025 | [1] | GUIDE | |
24 | 9T-3024 | [1] | SPACER | |
25 | 9T-3019 | [1] | PLATE | |
26 | 9T-3020 | [1] | PLATE | |
27 | 9T-3018 | [9] | PISTON AS | |
28 | 9T-1709 | [1] | KEY | |
29 | 9T-3039 | [1] | SHAFT | |
30 | 1M-8736 | [1] | CUP-ROLLER BEARING | |
31 | 1M-8735 | [1] | CONE-ROLLER BEARING | |
32 | 1A-2036 | [1] | DOWEL | |
33 | 9T-3027 | [1] | SWASHPLATE | |
34 | 9T-3033 | [2] | STOP | |
35 | 6V-8336 CM | [1] | BOLT (M12X1.75X70MM) | |
36 | 9T-3016 | [1] | KIT-PISTON CONTROL | |
37 | 2M-9780 | [2] | SEAL-O-RING (19.18MM ID) | |
38 | 9T-3014 | [1] | KIT-BIAS PISTON | |
39 | 9T-3015 | [1] | SPRING | |
40 | 8T-5039 C | [3] | SEAL-O-RING | |
41 | 9T-3035 | [1] | GASKET | |
42 | 9T-3037 | [1] | HOUSING | |
43 | 6V-5217 M | [8] | BOLT (M8X1.25X20MM) | |
44 | 9T-1712 | [2] | COVER | |
45 | 5P-3863 | [2] | SEAL-O-RING | |
46 | 9T-3036 | [2] | SPACER | |
47 | 9S-3582 | [2] | CONE-ROLLER BEARING | |
48 | 9S-3581 | [2] | CUP-ROLLER BEARING | |
49 | 9T-2216 B | [1] | KIT-PINTLE SHIM | |
50 | 8T-6785 | [1] | SEAL | |
51 | 008-3214 | [1] | RING-RETAINING | |
B | USE AS REQUIRED | |||
C | CHANGE FROM PREVIOUS TYPE | |||
M | METRIC PART | |||
Y | SEPARATE ILLUSTRATION | |||
PUMP GP-PISTON 9T4833 PUMP GP-PISTON SLIPPER*R TYPE 2 9T3877-PAGE 244.01 |
||||
CATERPILLAR SIS | ||||
Pos. | Part No | Qty | Parts name | Comments |
1 | 9T-3877 CY | [1] | VALVE GP-PRESS & FLOW CMPNSTR | |
2 | 9S-4185 C | [1] | PLUG-O-RING (3/4 X 16 THD) | |
3 | 3J-7354 | [2] | SEAL-O-RING (8.92MM ID) | |
4 | 8T-0372 M | [1] | BOLT (M12X1.75X90MM) | |
5 | 9S-8002 C | [2] | PLUG-O-RING | |
6 | 3K-0360 C | [1] | SEAL-O-RING (16.36MM ID) | |
7 | 9T-7032 | [1] | HEAD-LH | |
8 | 9T-1699 | [1] | SPRING | |
9 | 9T-1710 | [1] | POPPET | |
10 | 9T-1636 | [1] | SEAT | |
11 | 1T-0550 C | [2] | PIN-SPRING | |
12 | 9T-1652 | [1] | PIN | |
13 | 6V-5684 CM | [6] | BOLT (M12X1.75X45MM) | |
14 | 5A-3604 M | [4] | BOLT-SOCKET HEAD | |
15 | 9W-2109 | [1] | CONE | |
16 | 9W-2110 | [1] | CUP | |
17 | 9T-3038 B | [1] | KIT-SHAFT SHIM | |
18 | 9T-3030 | [1] | PLATE | |
19 | 9T-3017 | [1] | ROTATING GP-PUMP | |
9T-3026 | [1] | BARREL | ||
20 | 002-3455 | [1] | RING-RETAINING | |
21 | 9T-3021 | [1] | GUIDE | |
22 | 9T-3023 | [1] | SPRING | |
23 | 9T-3025 | [1] | GUIDE | |
24 | 9T-3024 | [1] | SPACER | |
25 | 9T-3019 | [1] | PLATE | |
26 | 9T-3020 | [1] | PLATE | |
27 | 9T-3018 | [9] | PISTON AS | |
28 | 9T-1709 | [1] | KEY | |
29 | 9T-3039 | [1] | SHAFT | |
30 | 1M-8736 | [1] | CUP-ROLLER BEARING | |
31 | 1M-8735 | [1] | CONE-ROLLER BEARING | |
32 | 1A-2036 | [1] | DOWEL | |
33 | 9T-3027 | [1] | SWASHPLATE | |
34 | 9T-3033 | [2] | STOP | |
35 | 6V-8336 CM | [1] | BOLT (M12X1.75X70MM) | |
36 | 9T-3016 | [1] | KIT-PISTON CONTROL | |
37 | 2M-9780 | [2] | SEAL-O-RING (19.18MM ID) | |
38 | 9T-3014 | [1] | KIT-BIAS PISTON | |
39 | 9T-3015 | [1] | SPRING | |
40 | 8T-5039 C | [3] | SEAL-O-RING | |
41 | 9T-3035 | [1] | GASKET | |
42 | 9T-3037 | [1] | HOUSING | |
43 | 6V-5217 M | [8] | BOLT (M8X1.25X20MM) | |
44 | 9T-1712 | [2] | COVER | |
45 | 5P-3863 | [2] | SEAL-O-RING | |
46 | 9T-3036 | [2] | SPACER | |
47 | 9S-3582 | [2] | CONE-ROLLER BEARING | |
48 | 9S-3581 | [2] | CUP-ROLLER BEARING | |
49 | 9T-2216 B | [1] | KIT-PINTLE SHIM | |
50 | 8T-6785 | [1] | SEAL | |
51 | 008-3214 | [1] | RING-RETAINING | |
B | USE AS REQUIRED | |||
C | CHANGE FROM PREVIOUS TYPE | |||
M | METRIC PART | |||
Y | SEPARATE ILLUSTRATION |
