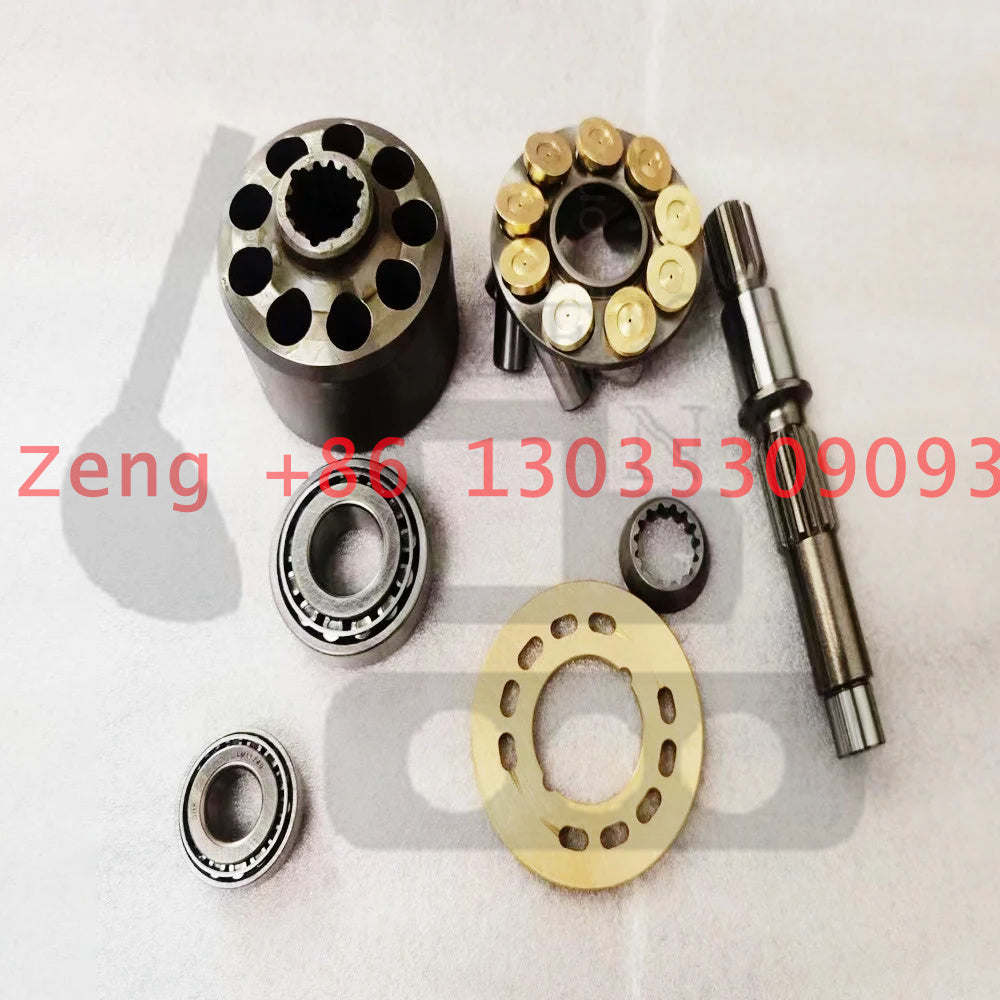

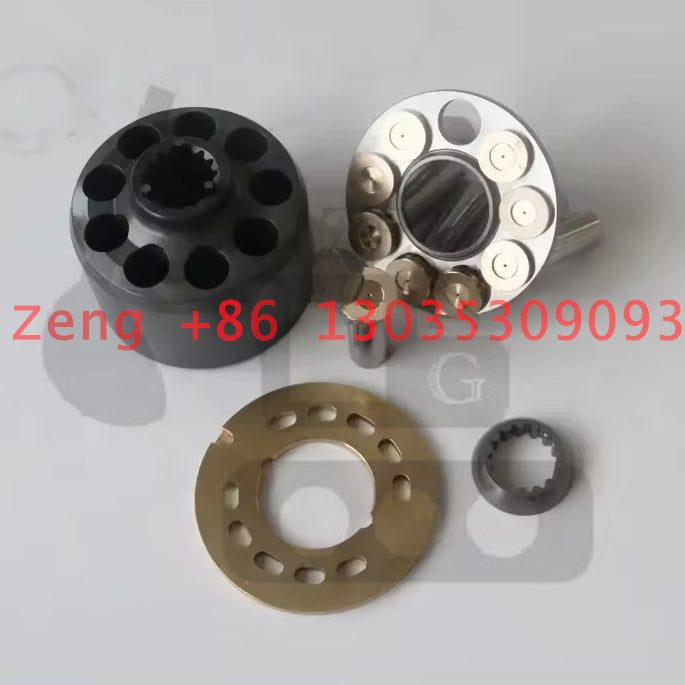

CAT330D fan motor cylinder block rotor barrel

CAT330D fan motor cylinder block rotor barrel

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
242-6776  290-8237 CAT330D CAT330DFM CAT330DL CAT330DLN CAT330DMH CAT336D CAT336DL
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 8T-9597 [1] RING-RETAINING
2 185-0303 [1] SEAL-OIL
3 271-6432 [1] BEARING AS-TAPERED ROLLER
4 155-9122 [1] SWASHPLATE
5 295-9552 [1] HOUSING
6 191-7582 [1] SHIM (2.5-MM THK)
7 191-7583 [1] BEARING AS-ROLLER
8 295-9556 [1] COVER
9 8T-0341 M [4] BOLT-SOCKET HEAD (M10X1.5X60-MM)
10 9X-8979 [1] DOWEL
11 231-4707 [1] SEAL-O-RING
12 233-2530 Y [1] ROTATING GP-MOTOR (HYDRAULIC FAN)
13 9S-8005 [1] PLUG (3/4-16-THD)
14 3K-0360 [1] SEAL-O-RING
15 9X-6419 [2] DOWEL
16 194-9473 [1] RING
17 295-9554 [1] SHAFT-DRIVE
M   METRIC PART
Y   SEPARATE ILLUSTRATION
CAT330D CAT330DFM CAT330DL CAT330DLN CAT330DMH CAT336D CAT336DL CAT336DL CAT336D2 CAT336D2L CAT340DL CAT340D2L
234-4638
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 259-5501 [9] PISTON AS (ROTATING)
2 233-4885 [1] BARREL
3 233-2535 [1] PLATE (VALVE)
4 266-7837 [1] PLATE
5 295-9540 [1] RETAINER-BALL
6 233-5125 [1] SPRING
7 194-9479 [3] PIN
8 194-9480 [1] RING-RETAINING
9 194-9481 [1] DISC-THRUST
