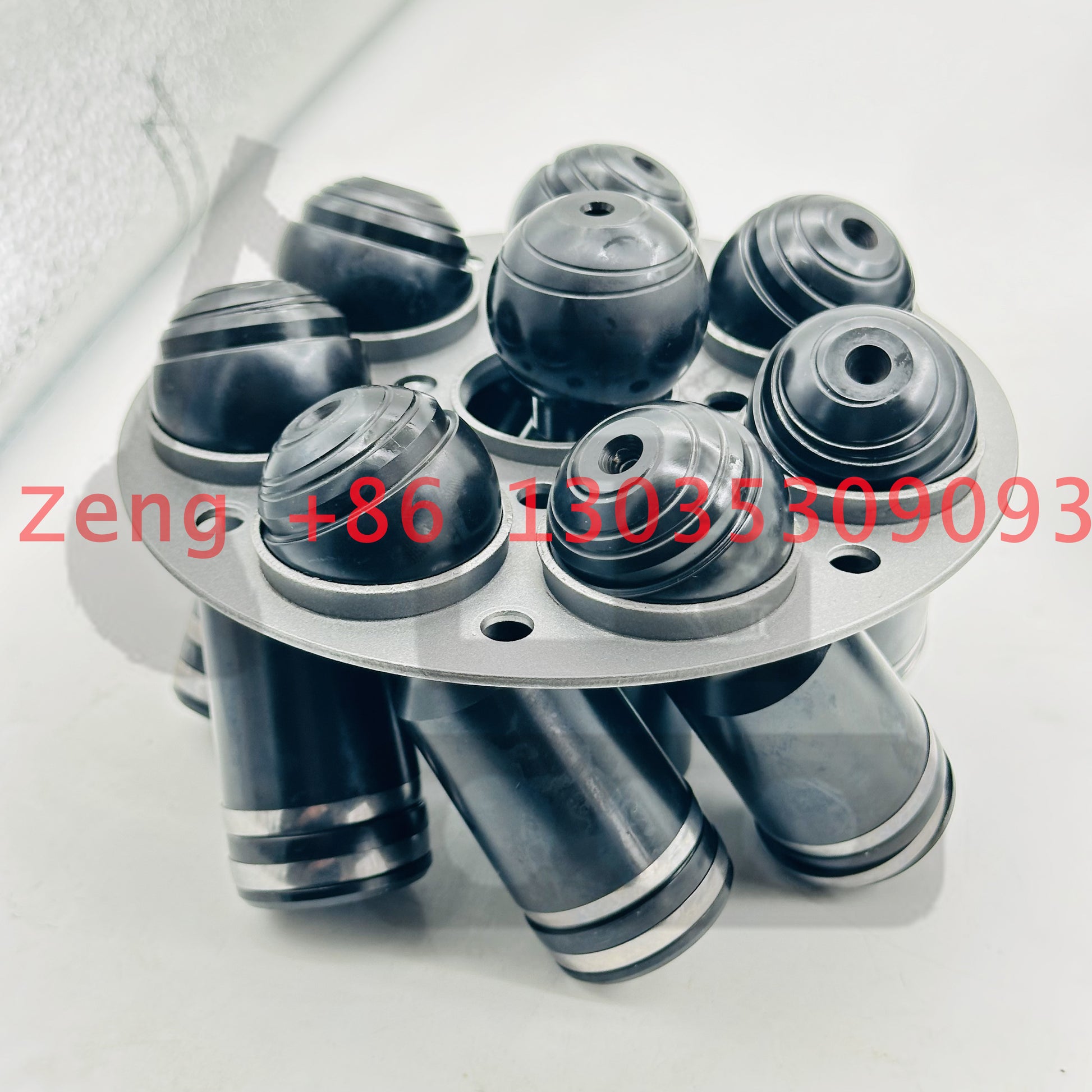

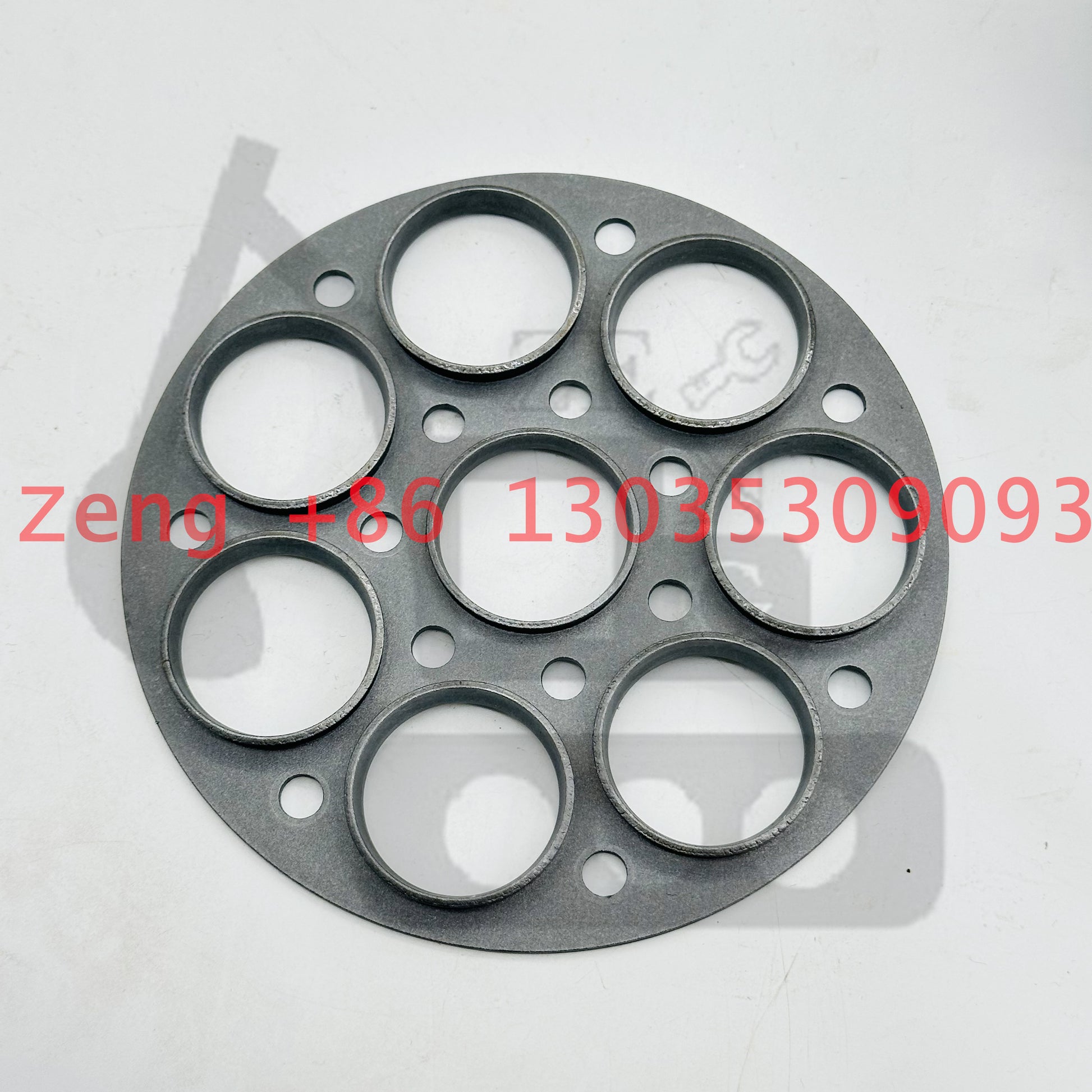

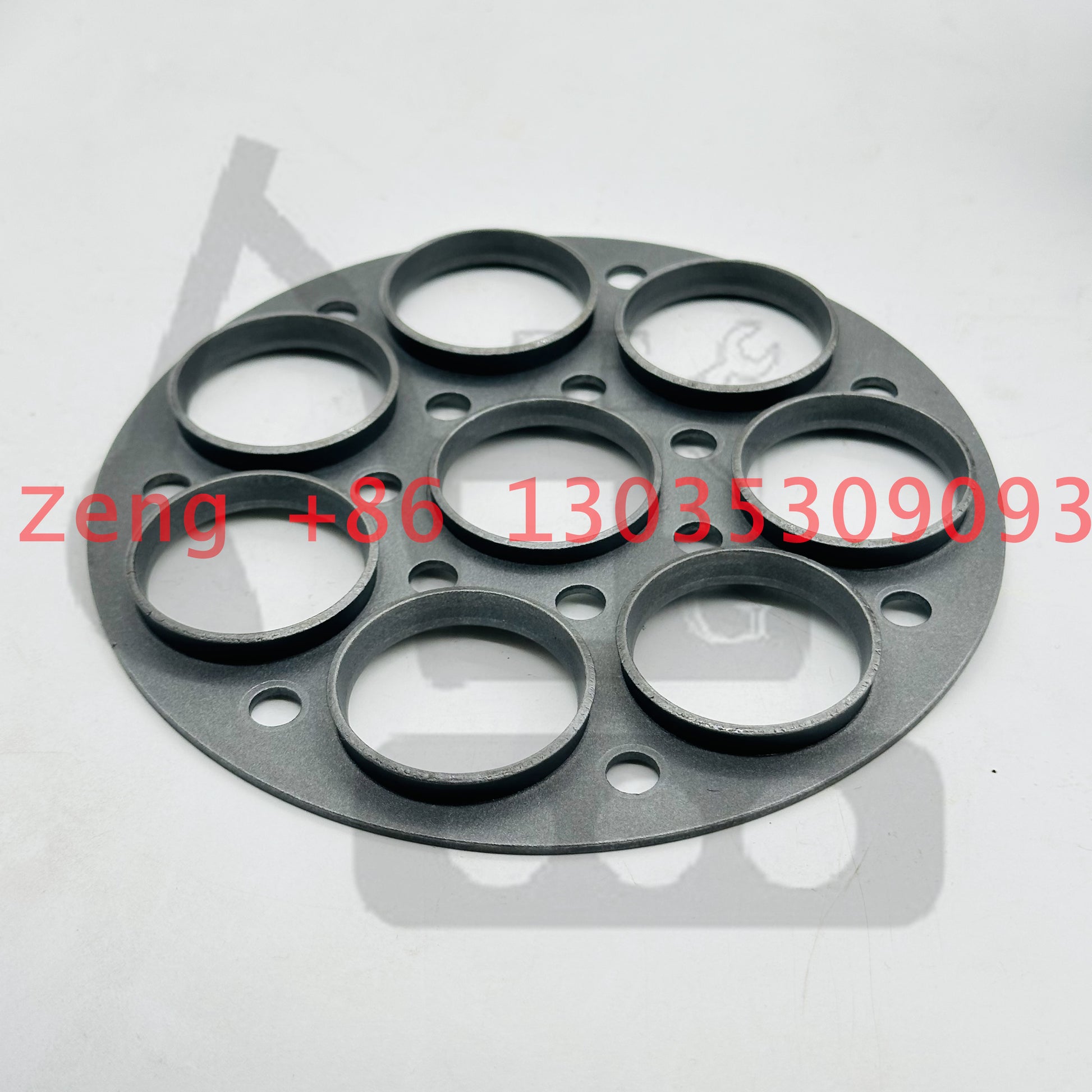

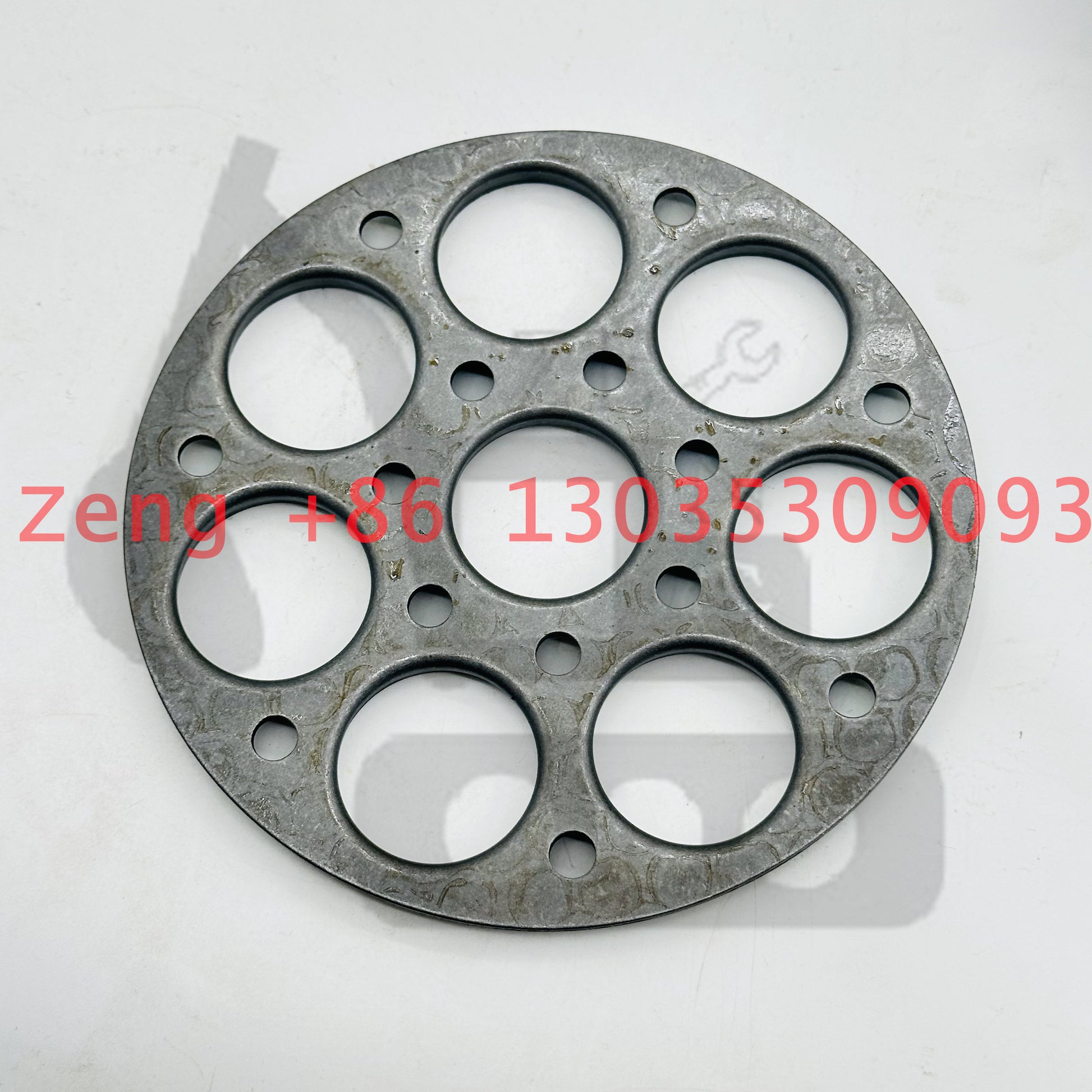

A8VO200 hydraulic pump set plate retainer plate

A8VO200 hydraulic pump set plate retainer plate

$200.00 USD
$200.00 USD
特價 售罄
結帳時計算運費。
A8VO200 CAT330C
 400914-00251 K1003280B
DX340LC DX350LC DX420LC DX480LC DX520LC
Pos. Part No Qty Parts name Comments
2 K9001908 [1]   ROTARY GROUP
2 210204-00029 [1]
20 2.115-00311 [1]   RING;RETAINING
21 2.115-00327 [1]   RING;SHAFT SEAL
21 401106-00202 [1]
22 2.114-00175 [1]   SHIM
23 2.120-00611 [1]   SCREW;LOCKING
24 2.120-00624 [3]   SCREW;LOCKING
25 2.109-00192 [2]   BEARING;PLAIN ROLLER
27 2.405-00154 [1]   SHAFT;KEY
28 2.180-01203 [1]   O-RING
2A. K9001909 [1]   ROTARY GROUP;SECTION
2Aa. 2.410-00138 [1]   CYLINDER
2Ab. K9001910 [1]   PIN;CENTER
2Ac. K9001911 [7]   PISTON & PISTON RINGS
2Ac1. *NA00796 [1]   PISTON
2Ac2. *NA00986 [2]
2Ad. K9001912 [1]   COLLAR;SPRING
2Ae. 2.453-00025 [4]   CUP SPRING
2Af. 2.412-00224 [1]   PLATE;RETAINING
2Ag. K9001916 [14]   SCREW;PAN HEAD
2B. K9001913 [1]   SHAFT;DRIVE
2C. 2.114-00167 [1]   SHIM
2C. 2.114-00168 [1]   SHIM
2C. 2.114-00169 [1]   SHIM
2D. 2.412-00131 [1]   CONTROL LENS;RIGHT-HAND   250201-01408
2D. 250201-01408 [1]
2E. 2.180-01026 [1]   PLATE;BACK-UP
2E. 2.180-01027 [1]   PLATE;BACK-UP
2E. 2.180-01028 [1]   PLATE;BACK-UP
2E. 2.180-01029 [1]   PLATE;BACK-UP
2E. 2.180-01030 [1]   PLATE;BACK-UP
2E. 2.180-01031 [1]   PLATE;BACK-UP
2E. 2.180-01032 [1]   PLATE;BACK-UP
2F. K9001914 [1]   RING;RETAINING
2G. 2.109-00264 [1]   BEARING;UNIT TAPERED-ROLLER
2H. 2.109-00248 [1]   BEARING;TAPERED-ROLLER
3 K9001915 [1]   ROTARY GROUP
3 210204-00030 [1]
3A. K9001909 [1]   ROTARY GROUP;SECTION
3Aa. 2.410-00138 [1]   CYLINDER
3Ab. K9001910 [1]   PIN;CENTER
3Ac. K9001911 [7]   PISTON & PISTON RINGS
3Ac1. *NA00796 [1]   PISTON
3Ac2. *NA00986 [2]
3Ad. K9001912 [1]   COLLAR;SPRING
3Ae. 2.453-00025 [4]   CUP SPRING
3Af. 2.412-00224 [1]   PLATE;RETAINING
3Ag. K9001916 [14]   SCREW;PAN HEAD
3B. K9001917 [1]   SHAFT;DRIVE
3C. 2.114-00170 [1]   SHIM
3C. 2.114-00171 [1]   SHIM
3C. 2.114-00172 [1]   SHIM
3C. 2.114-00173 [1]   SHIM
3C. 2.114-00174 [1]   SHIM
3D. 2.412-00128 [1]   CONTROL LENS;LEFT-HAND   250201-01409
3D. 250201-01409 [1]
3E. 2.180-01026 [1]   PLATE;BACK-UP
3E. 2.180-01033 [1]   PLATE;BACK-UP
3E. 2.180-01027 [1]   PLATE;BACK-UP
3E. 2.180-01028 [1]   PLATE;BACK-UP
3E. 2.180-01029 [1]   PLATE;BACK-UP
3E. 2.180-01030 [1]   PLATE;BACK-UP
3E. 2.180-01031 [1]   PLATE;BACK-UP
3E. 2.180-01032 [1]   PLATE;BACK-UP
3F. K9001914 [1]   RING;RETAINING
3G. 2.109-00265 [1]   BEARING;UNIT TAPERED-ROLLER
3H. 2.109-00248 [1]   BEARING;TAPERED-ROLLER
4 K9001918 [1]   PUMP;GEAR
4 400910-00134 [1]
4A. 2.120-00829 [2]   BOLT;SOCKET M10X20
5 *NA00539 [1]
7 K9001919 [1]   GEAR
8 K9001920 [1]   SHAFT;STUB
9 2.317-00047 [1]   STUD;CONNECT
Pos. Part No Qty Parts name Comments
1   2.430-00228   [2]   COVER Komatsu China
  ["desc: COUVERCLE"]
1A.   2.430-00229   [1]   . COVER Komatsu China
  ["desc: . COUVERCLE"]
1B.   2.180-01196   [1]   . O-RING Komatsu China
  ["desc: . JOINT TORIQUE"]
1C.   2.180-01189   [1]   . O-RING Komatsu China
  ["desc: . JOINT TORIQUE"]
1D.   2.120-00836   [4]   . SCREW;SOCKET-HEAD Komatsu China
  ["desc: . VIS"]
1E.   2.120-00615   [1]   . SCREW;LOCKING Komatsu China
  ["desc: . VIS"]
1F.   2.123-00291   [1]   . PIN;THREADED Komatsu China
  ["desc: . BROCHE"]
1G.   2.121-00263   [1]   . NUT;SEAL LOCK Komatsu China
  ["desc: . ECROU"]
2   K9001921   [1]   CONTROL MODULE Komatsu China
  ["desc: ENSEMBLE COMMANDE"]
2A.   K9001922   [1]   . CONTROL MODULE Komatsu China
  ["desc: . MODULE DE COMMANDE"]
2Aa.   -   [1]   .. HOUSING;CONTROL Komatsu China
  ["SC: D", "desc: .. LOGEMENT"]
2Ab.   2.409-00177   [2]   .. PISTON;CONTROL Komatsu China
  ["desc: .. PISTON"]
2Ac.   2.408-00063   [2]   .. BUSH;CONTROL Komatsu China
  ["desc: .. DOUILLE"]
2Ad.   2.409-00200   [2]   .. PISTON;POSITIONING Komatsu China
  ["desc: .. PISTON"]
2Ae.   2.123-00065   [2]   .. PIN Komatsu China
  ["desc: .. BROCHE"]
2Af.   2.114-00039   [4]   .. COLLAR;SPRING Komatsu China
  ["desc: .. CALE"]
2Ag.   2.131-00415   [2]   .. SPRING;PRESSURE Komatsu China
  ["desc: .. RESSORT"]
2Ah.   2.120-00613   [2]   .. SCREW;LOCKING Komatsu China
  ["desc: .. CHAPEAU"]
2Ai.   2.123-00235   [2]   .. PIN;THREADED Komatsu China
  ["desc: .. BROCHE"]
2Aj.   K9001923   [2]   .. PISTON;CONTROL Komatsu China
  ["desc: .. PISTON"]
2Ak.   K9001924   [2]   .. BUSH;CONTROL Komatsu China
  ["desc: .. DOUILLE"]
2Al.   2.121-00202   [2]   .. NUT;SEAL LOCK Komatsu China
  ["desc: .. ECROU"]
2Am.   2.180-01191   [2]   .. O-RING Komatsu China
  ["desc: .. JOINT TORIQUE"]
2An.   2.180-00471   [2]   .. O-RING Komatsu China
  ["desc: .. JOINT TORIQUE"]
2Ao.   2.180-01181   [2]   .. O-RING Komatsu China
  ["desc: .. JOINT TORIQUE"]
2Ap.   2.120-00826   [6]   .. SCREW;SOCKET-HEAD Komatsu China
  ["desc: .. VIS"]
2Aq.   2.123-00288   [5]   .. PIN;DOUBLE BREAK-OFF Komatsu China
  ["desc: .. BROCHE"]
2Ar.   2.123-00131   [2]   .. PIN;CYLINDER Komatsu China
  ["desc: .. BROCHE"]
2As.   2.123-00300   [1]   .. PIN;DOUBLE BREAK-OFF Komatsu China
  ["desc: .. BROCHE"]
2At.   2.181-00262   [1]   .. PLUG Komatsu China
  ["desc: .. BOUCHON"]
2Au.   2.120-00612   [1]   .. PLUG Komatsu China
  ["desc: .. BOUCHON"]
2C.   2.409-00180   [2]   . PISTON;CONTROL Komatsu China
  ["desc: . PISTON"]
2D.   2.408-00083   [2]   . BUSH;SPRING Komatsu China
  ["desc: . DOUILLE"]
2E.   2.131-00418   [2]   . SPRING;PRESSURE Komatsu China
  ["desc: . RESSORT"]
2F.   2.123-00249   [2]   . PIN;THREADED Komatsu China
  ["desc: . BROCHE"]
2G.   2.114-00067   [2]   . COLLAR;SPRING Komatsu China
  ["desc: . CALE"]
2H.   2.114-00068   [2]   . COLLAR;SPRING Komatsu China
  ["desc: . CALE"]
2I.   2.131-00428   [2]   . SPRING;PRESSURE Komatsu China
  ["desc: . RESSORT"]
2J.   2.131-00429   [2]   . SPRING;PRESSURE Komatsu China
  ["desc: . RESSORT"]
2O.   2.180-01197   [2]   . O-RING Komatsu China
  ["desc: . JOINT TORIQUE"]
2P.   2.120-00611   [2]   . SCREW;LOCKING Komatsu China
  ["desc: . VIS"]
2S.   2.120-00828   [6]   . SCREW;SOCKET-HEAD Komatsu China
  ["desc: . VIS"]
2U.   2.120-00616   [1]   . SCREW;LOCKING Komatsu China
  ["desc: . VIS"]
11   2.180-00086   [1]   GASKET Komatsu China
  ["desc: JOINT"]
12   2.409-00205   [2]   PISTON;POSITIONING Komatsu China
  ["desc: PISTON"]
13   2.428-00065   [2]   TRUNNION;POSITIONING Komatsu China
  ["desc: ANNEAU DE SOUTIEN"]
14   K9001925   [2]   COLLAR;SPRING Komatsu China
  ["desc: COLLIER"]
15   2.131-00430   [2]   SPRING;PRESSURE Komatsu China
  ["desc: RESSORT DE COMPRESSION"]
16   K9001926   [2]   PISTON Komatsu China
  ["desc: PISTON"]
17   2.123-00248   [2]   PIN;THREADED Komatsu China
  ["desc: GOUPILLE FILETEE"]
26   2.120-00801   [2]   SCREW;HEX Komatsu China
  ["desc: VIS"]
37   K9001927   [4]   RING;SQUARE Komatsu China
  ["desc: ANNEAU DE BLOCAGE"]
42   2.120-00837   [8]   SCREW;SOCKET M16X60 Komatsu China
  ["desc: VIS"]
43   S2222461   [4]   SCREW;SOCKET M16X90 Komatsu China
  ["desc: BOULON A 6 PANS CREUX"]
44   2.123-00134   [2]   PIN;CYLINDER Komatsu China
  ["desc: GOUPILLE CYLINDRIQUE"]
216-0038，216-0039, 242-6779, 250-2564，250-2565，
R ROTATING GROUP 216-0035
L ROTATING GROUP 216-0034
216-0028
CAT330C CAT330CFM CAT330CL CAT330CMH
193-2703，283-5973 283-5974 283-5977 283-5978 283-5979
216-0028
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 177-2503 [7] PISTON AS
  (EACH INCLUDES)
145-8460 [2] RING-SEAL
2 177-2502 [1] PIN
3 188-4097 [1] BARREL
4 247-8851 [1] KIT-SPACER (PUMP ROTATING GROUP)
5 177-2510 [4] SPRING
6 177-2511 [1] PLATE
7 216-0029 M [14] SCREW (M6X20-MM)
M   METRIC PART
L ROTATING GROUP 216-0034
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 216-0036 [1] SHAFT
2 177-2500 [1] BEARING
3 177-2487 B [1] SHIM (3.3-MM THK)
4 177-2488 B [1] SHIM (3.4-MM THK)
5 177-2489 B [1] SHIM (3.5-MM THK)
6 177-2499 [1] BEARING AS
7 216-0028 Y [1] ROTATING GP-PUMP
8 194-8261 [1] PLATE-VALVE
9 177-2491 B [1] PLATE (2.6-MM THK)
177-2492 B [1] PLATE (2.65-MM THK)
177-2493 B [1] PLATE (2.7-MM THK)
177-2494 B [1] PLATE (2.75-MM THK)
177-2495 B [1] PLATE (2.8-MM THK)
177-2496 B [1] PLATE (2.85-MM THK)
177-2497 B [1] PLATE (2.9-MM THK)
177-2498 B [1] PLATE (2.95-MM THK)
17 127-8987 [1] RING-RETAINING
B   USE AS REQUIRED
Y   SEPARATE ILLUSTRATION
R ROTATING GROUP 216-0035
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 177-2491 B [1] PLATE (2.6-MM THK)
2 177-2492 B [1] PLATE (2.65-MM THK)
3 177-2493 B [1] PLATE (2.7-MM THK)
4 177-2494 B [1] PLATE (2.75-MM THK)
5 177-2495 B [1] PLATE (2.8-MM THK)
6 177-2496 B [1] PLATE (2.85-MM THK)
7 177-2497 B [1] PLATE (2.9-MM THK)
8 177-2498 B [1] PLATE (2.95-MM THK)
9 216-0028 Y [1] ROTATING GP-PUMP
10 194-8263 [1] PLATE-VALVE
11 216-0037 [1] SHAFT
12 188-4103 [1] BEARING AS
13 177-2513 B [1] SHIM (6.2-MM THK)
14 177-2514 B [1] SHIM (6.3-MM THK)
15 177-2515 B [1] SHIM (6.4-MM THK)
16 177-2516 B [1] SHIM (6.5-MM THK)
17 177-2517 B [1] SHIM (6.6-MM THK)
18 177-2500 [1] BEARING
19 127-8987 [1] RING-RETAINING
B   USE AS REQUIRED
Y   SEPARATE ILLUSTRATION
283-5977
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 216-0036 [1] SHAFT
2 177-2500 [1] BEARING
3 177-2487 B [1] SHIM (3.3-MM THK)
4 177-2488 B [1] SHIM (3.4-MM THK)
5 177-2489 B [1] SHIM (3.5-MM THK)
6 177-2499 [1] BEARING AS
7 283-5979 Y [1] ROTATING GP-PUMP
8 194-8261 [1] PLATE-VALVE
9 177-2491 B [1] PLATE (2.6-MM THK)
177-2492 B [1] PLATE (2.65-MM THK)
177-2493 B [1] PLATE (2.7-MM THK)
177-2494 B [1] PLATE (2.75-MM THK)
177-2495 B [1] PLATE (2.8-MM THK)
177-2496 B [1] PLATE (2.85-MM THK)
177-2497 B [1] PLATE (2.9-MM THK)
177-2498 B [1] PLATE (2.95-MM THK)
17 127-8987 [1] RING-RETAINING
B   USE AS REQUIRED
Y   SEPARATE ILLUSTRATION
283-5978
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 177-2491 B [1] PLATE (2.6-MM THK)
2 177-2492 B [1] PLATE (2.65-MM THK)
3 177-2493 B [1] PLATE (2.7-MM THK)
4 177-2494 B [1] PLATE (2.75-MM THK)
5 177-2495 B [1] PLATE (2.8-MM THK)
6 177-2496 B [1] PLATE (2.85-MM THK)
7 177-2497 B [1] PLATE (2.9-MM THK)
8 177-2498 B [1] PLATE (2.95-MM THK)
9 283-5979 Y [1] ROTATING GP-PUMP
10 194-8263 [1] PLATE-VALVE
11 216-0037 [1] SHAFT
12 188-4103 [1] BEARING AS
13 177-2513 B [1] SHIM (6.2-MM THK)
14 177-2514 B [1] SHIM (6.3-MM THK)
15 177-2515 B [1] SHIM (6.4-MM THK)
16 177-2516 B [1] SHIM (6.5-MM THK)
17 177-2517 B [1] SHIM (6.6-MM THK)
18 177-2500 [1] BEARING
19 127-8987 [1] RING-RETAINING
B   USE AS REQUIRED
Y   SEPARATE ILLUSTRATION
283-5979
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 283-5980 [7] PISTON AS
  (EACH INCLUDES)
283-5981 [2] RING-SEAL
2 177-2502 [1] PIN
3 188-4097 [1] BARREL
4 247-8851 [1] KIT-SPACER (PUMP ROTATING GROUP)
5 177-2510 [4] SPRING
6 177-2511 [1] PLATE
7 216-0029 M [14] SCREW (M6X20-MM)
M   METRIC PART
