CASE LJ013420 TRAVEL MOTOR ROTARY GROUP

CASE LJ013420 TRAVEL MOTOR ROTARY GROUP

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
LJ013420
CX130 CX135SR

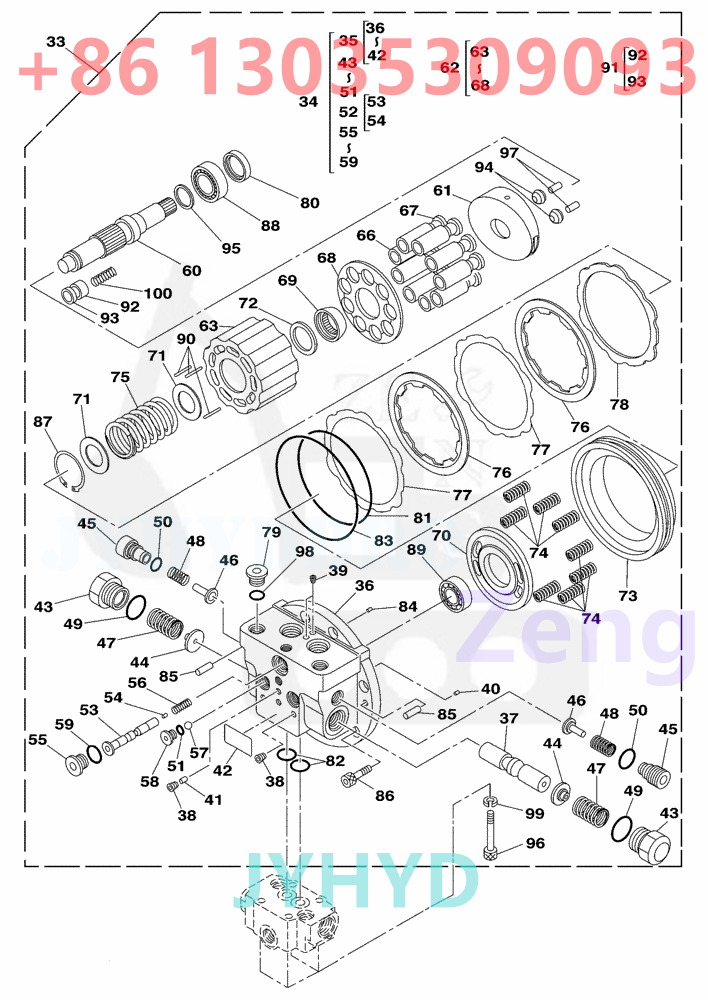

Pos. Part No Qty Parts name Comments
33 LJ013420 [1]   HYDRAULIC MOTOR
     Consists Of Ref. Numbers 34-100
34 165249A1 [1]   FLANGE
     Consists Of Ref. Numbers 35-59
35 165274A1 [1]   KIT
     Consists Of Ref. Numbers 36-42
36 NSS [1]   NOT SOLD SEPARAT      Plate
37 NSS [1]   NOT SOLD SEPARAT      Spool
38 LK00298 [3]   PLUG
39 LK00296 [8]   PLUG
40 166821A1 [1]   FILTER
41 LPM0055 [1]   ORIFICE
42 NSS   NOT SOLD SEPARAT      Plate
43 165235A1 [2]   PLUG
44 165248A1 [2]   RETAINER
45 165238A1 [2]   PLUG
46 165252A1 [2]   VALVE
47 165279A1 [2]   SPRING
48 165278A1 [2]   SPRING
49 154515A1 [2]   O-RING
50 154483A1 [2]   O-RING
51 154467A1 [2]   O-RING,10.8mm ID x 2.4mm Width
52 165264A1 [1]   SPOOL
     Consists Of Ref. Numbers 53, 54
53 NSS [1]   NOT SOLD SEPARAT      Spool
54 NSS [1]   NOT SOLD SEPARAT      End
55 165237A1 [1]   PLUG
56 165283A1 [1]   SPRING
57 LB00581 [1]   BALL
58 165236A1 [2]   PLUG
59 154487A1 [2]   O-RING
60 165234A1 [1]   SHAFT
61 165245A1 [1]   TRAY
62 LZ006950 [1]   REPAIR KIT
     Consists Of Ref. Numbers 63-68
63 NSS [1]   NOT SOLD SEPARAT      Block, Cylinder
66 NSS [9]   NOT SOLD SEPARAT      Piston
67 NSS [9]   NOT SOLD SEPARAT      Guide
68 LUM0205 [1]   RETAINER
69 165304A1 [1]   BALL BEARING
70 165307A1 [1]   LARGE PLATE      PLATE, LARGE
71 165289A1 [2]   WASHER
72 165291A1 [1]   WASHER
73 165263A1 [1]   PISTON
74 165280A1 [4]   SPRING
75 165282A1 [1]   SPRING
76 165296A1 [2]   LARGE PLATE      PLATE, LARGE
77 165295A1 [2]   LARGE PLATE      PLATE, LARGE
78 165305A1 [1]   PLATE
79 165237A1 [1]   PLUG
80 LE014490 [1]   OIL SEAL
81 165219A1 [1]   O-RING
82 154487A1 [2]   O-RING
83 165220A1 [1]   O-RING
84 335B040T010 [1]   COTTER PIN
85 335B100T025 [2]   COTTER PIN
86 861-10030 [8]   HEX SOC SCREW,M10 x 30mm, Cl 12.9
87 165221A1 [1]   RING, SNAP      RING SNAP
88 165285A1 [1]   BEARING, ROLLER, CYL,25mm ID x 52mm OD x 16mm W
89 165286A1 [1]   BEARING, BALL,17mm ID x 40mm OD x 12mm W
90 165288A1 [3]   BEARING, NEEDLE
91 165262A1 [1]   PISTON
     Consists Of Ref. Numbers 92-93
92 NSS [1]   NOT SOLD SEPARAT      Piston
93 NSS [1]   NOT SOLD SEPARAT      Guide
94 165287A1 [2]   BUSHING
95 LH00267   COLLAR
96 108R008Z065N [4]   BOLT
97 161820A1 [2]   COTTER PIN
98 154487A1 [1]   O-RING
99 156188A1 [4]   SPRING WASHER
Parts on group :

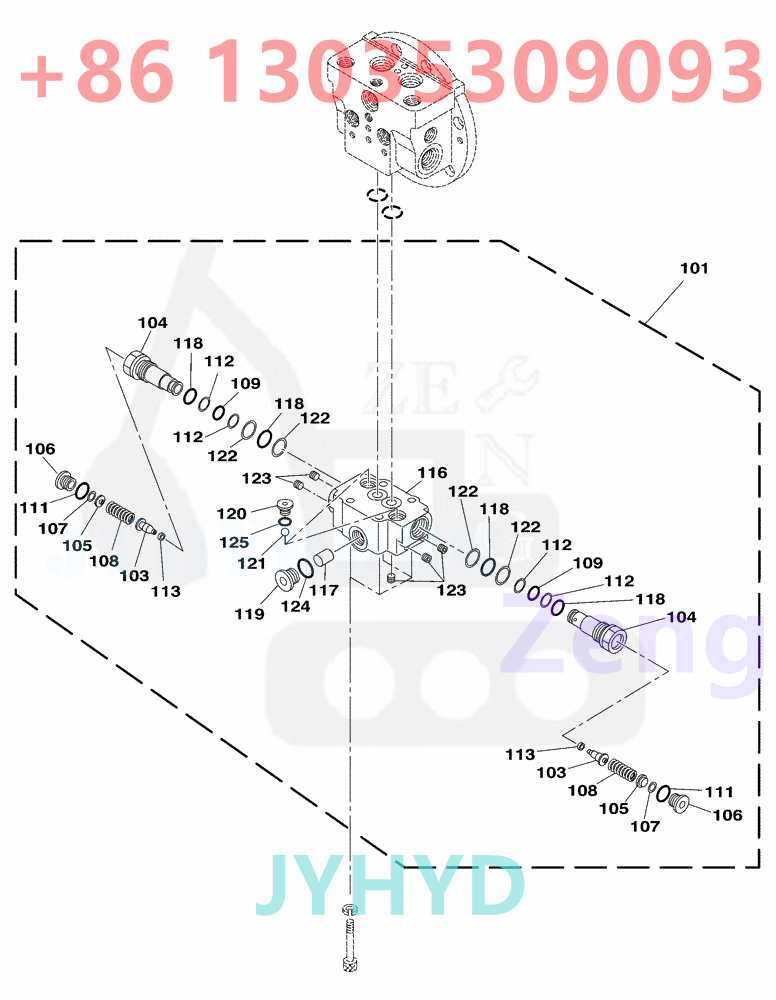

Pos. Part No Qty Parts name Comments
101 LJ00785 [1]   VALVE
     Consists Of Ref. Numbers 102-125
103 NSS [2]   NOT SOLD SEPARAT      Poppet, Valve
104 NSS [2]   NOT SOLD SEPARAT      Spool
105 NSS [2]   NOT SOLD SEPARAT      Retainer
106 NSS [2]   NOT SOLD SEPARAT      Plug
107 NSS [2]   NOT SOLD SEPARAT      Shim
108 NSS [2]   NOT SOLD SEPARAT      Spring
109 154475A1 [2]   O-RING
110 154491A1 [2]   O-RING
111 154483A1 [2]   O-RING
112 153961A1 [4]   BACK-UP RING
113 165218A1 [2]   SEAL
116 NSS [1]   NOT SOLD SEPARAT      Body
117 NSS [1]   NOT SOLD SEPARAT      Piston
118 154491A1 [2]   O-RING
119 165237A1 [1]   PLUG
120 165236A1 [2]   PLUG
121 LB00581 [2]   BALL
122 LK00319 [4]   PLUG
123 LK00296 [5]   PLUG
124 154487A1 [1]   O-RING
125 154467A1 [2]   O-RING,10.8mm ID x 2.4mm Width
