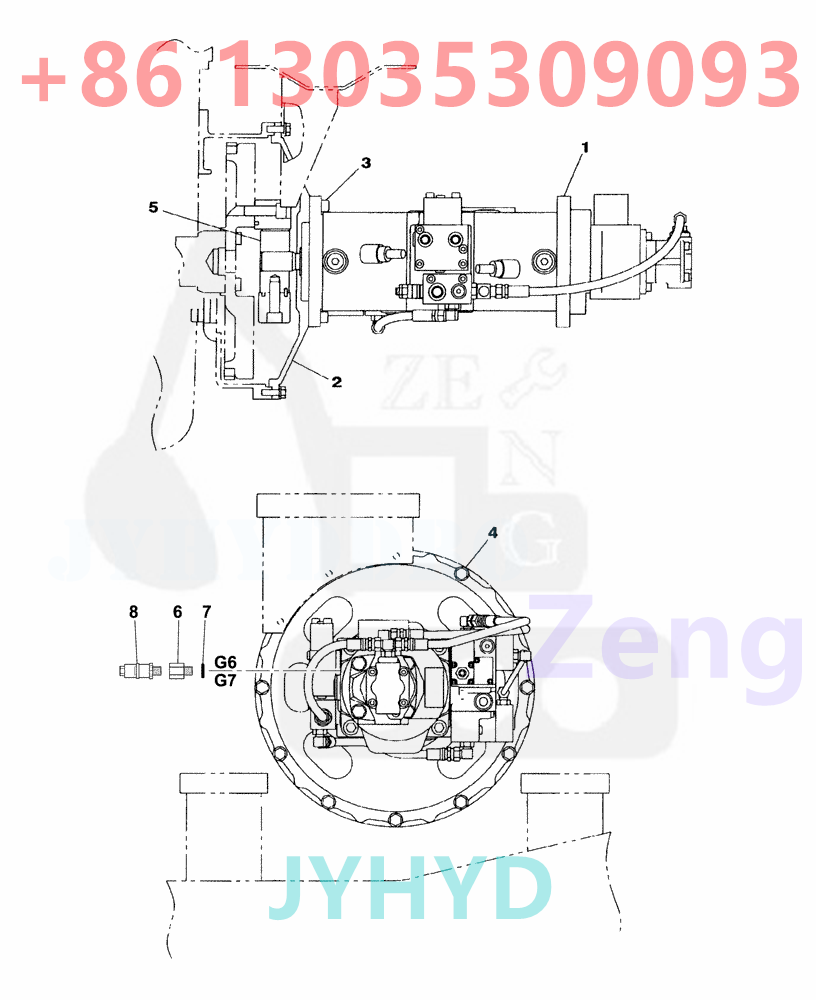

| KNJ2977 CX130 |
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
|

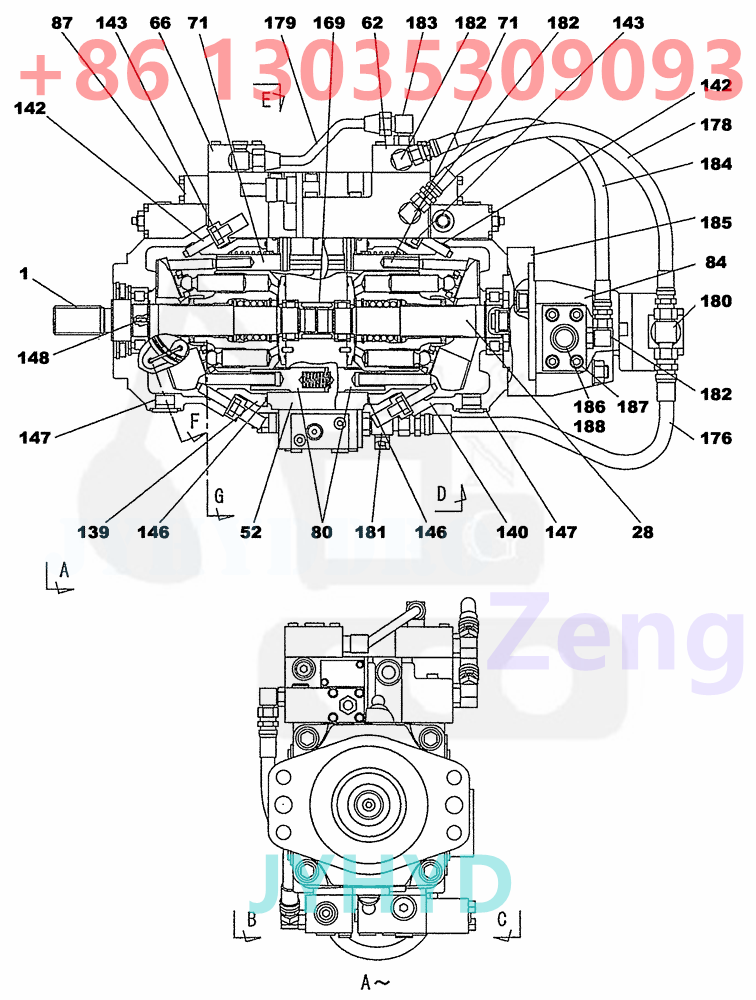

KNJ2977 |
[1] |
PUMP, HYDRAULIC |
|
|
|
|
|
Consists Of Ref. Numbers 1 To 107, 160 To 162, 164 To 205 |

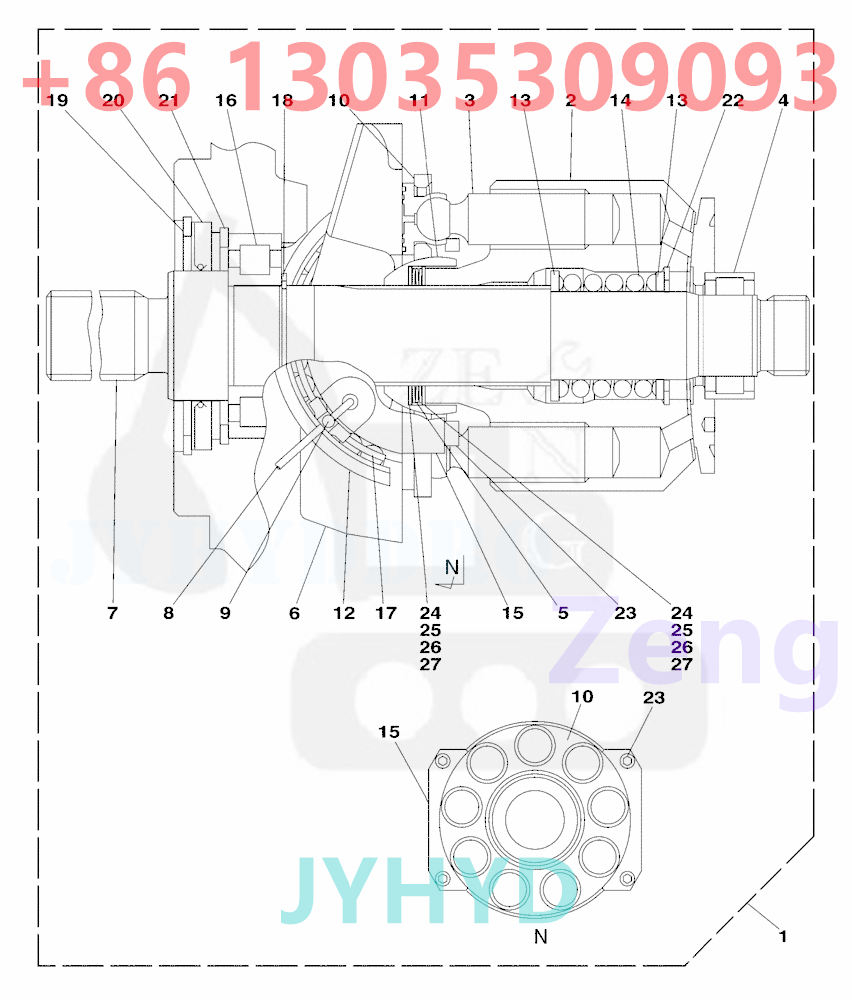

| 1 |
LU00182 |
[1] |
ROTOR |
|
|
|
|
|
See Page(s) 08-081B-00-01 |

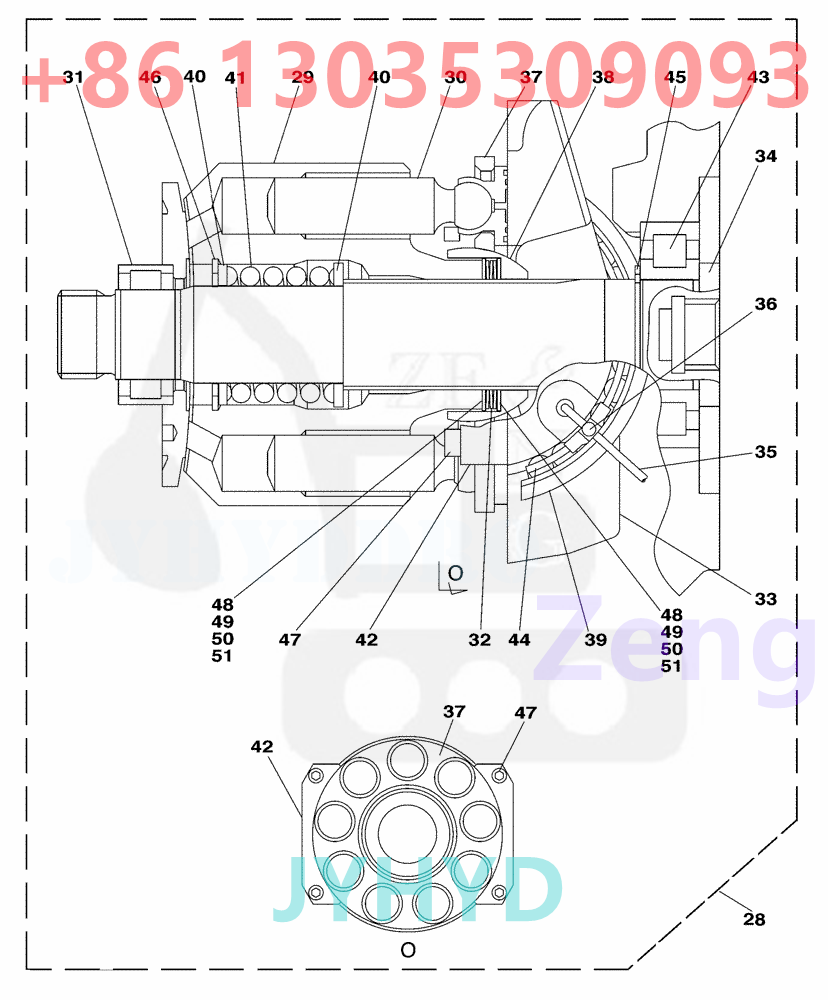

| 28 |
LU00183 |
[1] |
ROTOR |
|
|
|
|
|
See Page(s) 08-079B-00-01 |
| 52 |
LW00318 |
[1] |
COVER |
|
|
|
|
|
See Page(s) 08-077-00-01 |
| 62 |
LW00393 |
[1] |
COVER |
|
|
|
|
|
See Page(s) 08-071B-00-01 |
| 66 |
LW00319 |
[1] |
COVER |
|
|
|
|
|
See Page(s) 08-065B-00-01 |
| 71 |
LJ00761 |
[2] |
PILOT VALVE |
|
|
|
|
|
See Page(s) 08-071B-00-01 |
| 80 |
LJ00762 |
[2] |
PILOT VALVE |
|
|
|
|
|
See Page(s) 08-071B-00-01 |
| 84 |
LJ00766 |
[1] |
PUMP |
|
|
|
|
|
See Page(s) 08-071B-00-01 |
| 87 |
LJ01012 |
[2] |
REGULATOR |
|
|
|
|
|
See Page(s) 08-067B-00-01 |

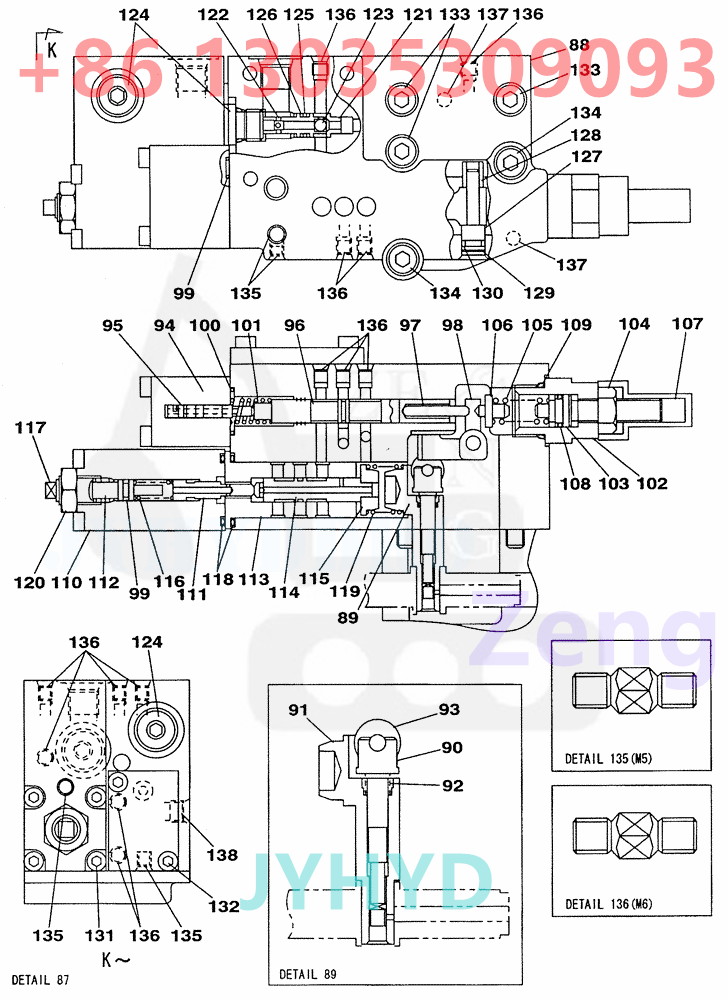

| 139 |
LT00100 |
[1] |
HOUSING |
|
| 140 |
LT00129 |
[1] |
HOUSING |
|
| 142 |
LA00715 |
[4] |
SCREW,Hex Skt |
|
| 143 |
829-1310 |
[4] |
NUT,M10, Cl 10 |
|
| 146 |
LBQ5164 |
[2] |
O-RING |
|
| 147 |
LK00118 |
[6] |
PLUG |
|
| 148 |
LA00716 |
[4] |
DOWEL |
|

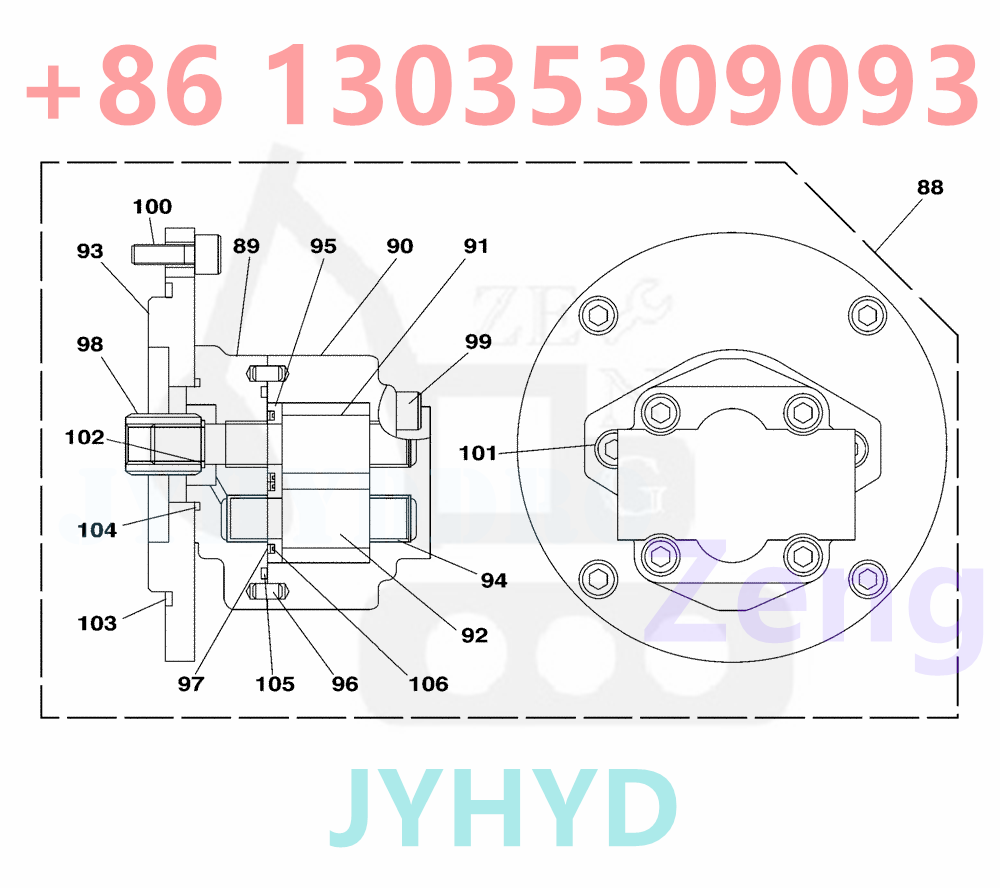

| 169 |
LB00559 |
[1] |
SPLINED COUPLING |
|
| 176 |
LK00411 |
[1] |
HOSE |
|
| 178 |
LK00413 |
[1] |
HOSE |
|
| 179 |
LR00595 |
[1] |
HYD TUBE |
|
| 180 |
LK00313 |
[1] |
TEE |
|
| 181 |
LK00314 |
[1] |
TEE |
|
| 182 |
LLP0106 |
[3] |
ELBOW |
|
| 183 |
LK00315 |
[2] |
ELBOW |
|
| 184 |
LK00412 |
[1] |
HOSE |
|
| 185 |
NSS |
[1] |
NOT SOLD SEPARAT |
Nameplate |
| 186 |
LH00396 |
[1] |
FLANGE |
|
| 187 |
861-10055 |
[4] |
HEX SOC SCREW,M10 x 55mm, Cl 12.9 |
M10 x 55 |
| 188 |
154529A1 |
[1] |
O-RING |
|

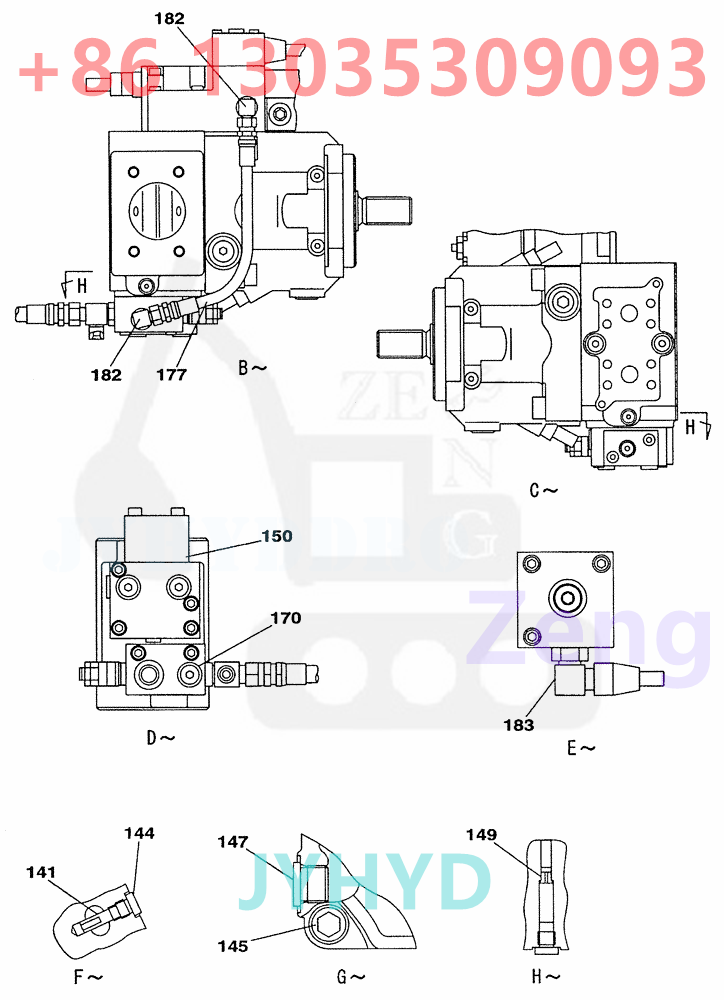

| Parts on group : |
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
|
KNJ2977 |
[1] |
PUMP, HYDRAULIC |
|
|
|
|
|
Consists Of Ref. Numbers 1 To 107, 160 To 162, 164 To 205 |
| 141 |
LA00714 |
[8] |
SPECIAL PIN |
|
| 144 |
LK00309 |
[8] |
PLUG |
|
| 145 |
863-16060 |
[8] |
HEX SOC SCREW,M16 x 60mm, Cl 12.9 |
|
| 147 |
LK00118 |
[6] |
PLUG |
|
| 149 |
164915A1 |
[2] |
ORIFICE |
|
| 150 |
LJ00765 |
[1] |
VALVE |
|
|
|
|
|
See Page(s) 08-065B-00-01 |
| 170 |
LJ00906 |
[1] |
VALVE, PRESSURE RELI |
EF |
|
|
|
|
See Page(s) 08-065B-00-01 |
| 177 |
LK00373 |
[2] |
HOSE |
|
| 182 |
LLP0106 |
[5] |
ELBOW |
|
| 183 |
LK00315 |
[2] |
ELBOW |
|
