| KNJ2742 CX130 |
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
|

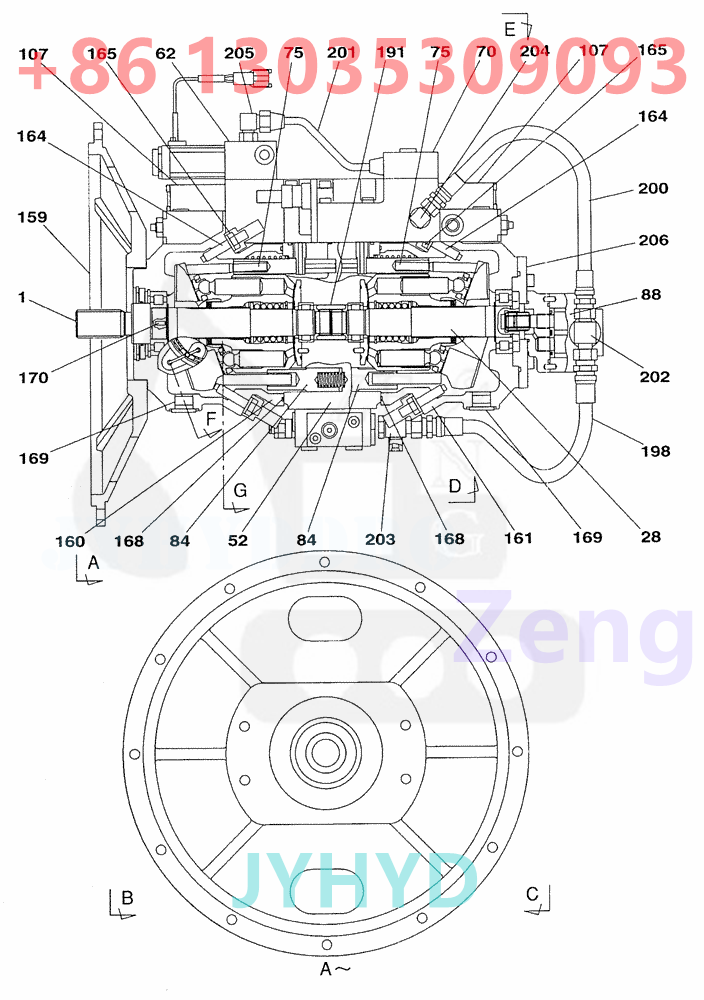

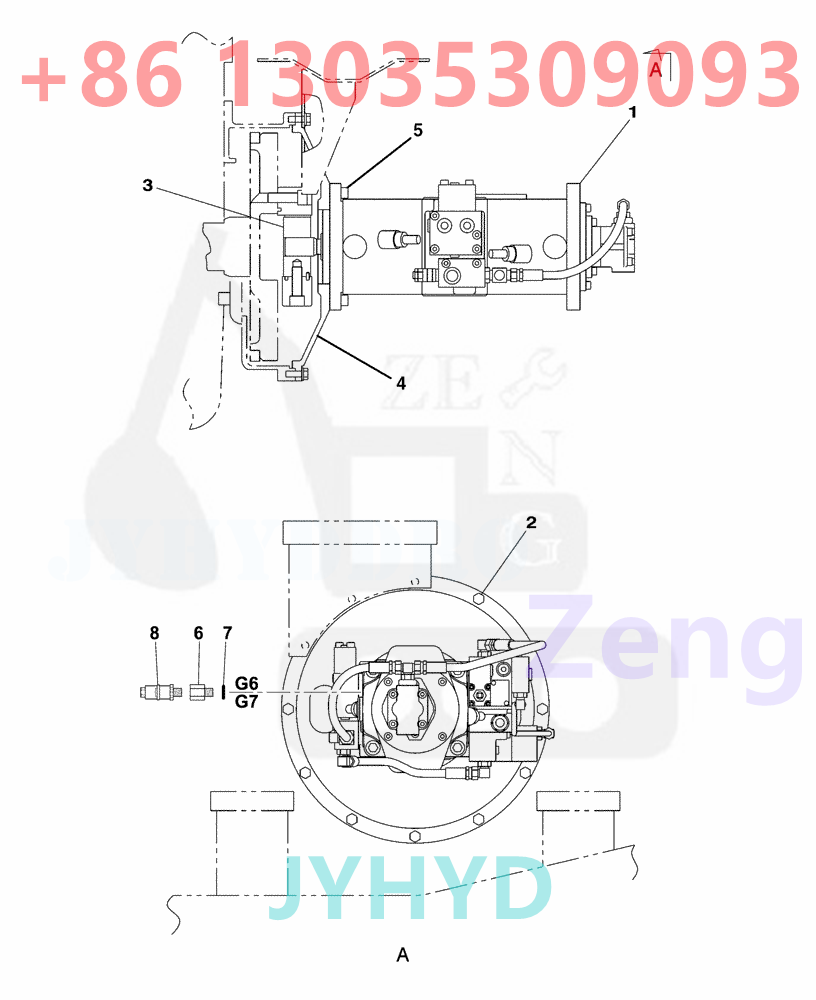

KNJ2742 |
[1] |
PUMP, HYDRAULIC |
|
|
|
|
|
Consists Of Ref. Numbers 1 To 107, 160 To 162, 164 To 205 |
| 1 |
LU00089 |
[1] |
ROTOR |
|
|
|
|
|
See Page(s) 08-081-00-01 |
| 28 |
LU00090 |
[1] |
ROTOR |
|
|
|
|
|
See Page(s) 08-079-00-01 |
| 52 |
LW00318 |
[1] |
COVER |
|
|
|
|
|
See Page(s) 08-077-00-01 |

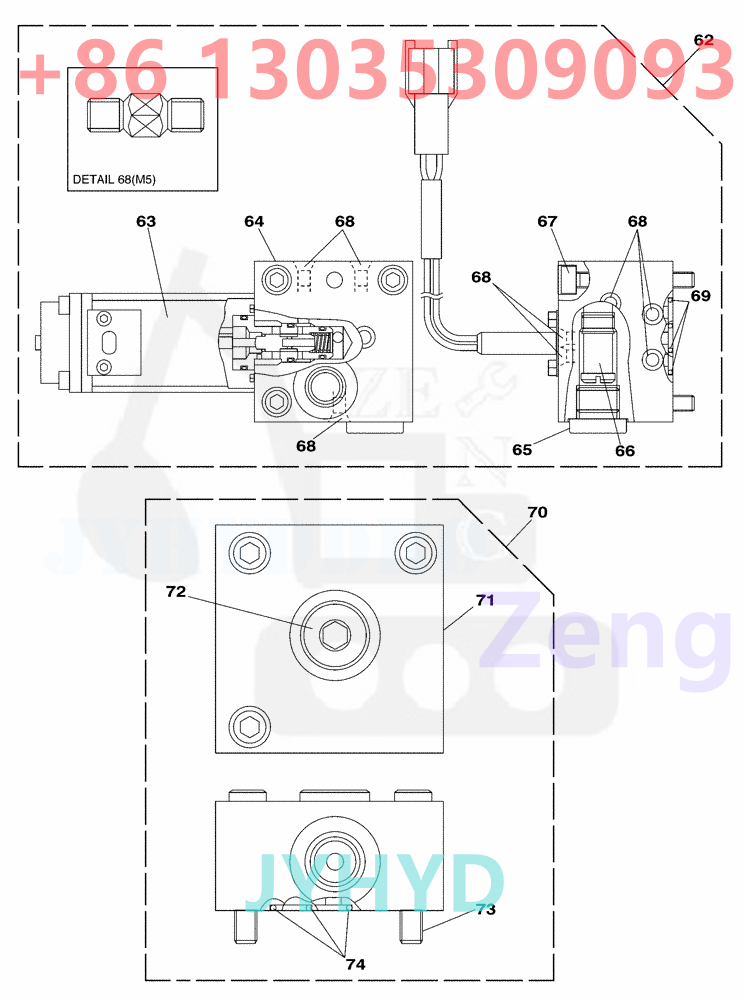

| 62 |
LS00134 |
[1] |
CONTROL BLOCK |
|
|
|
|
|
See Page(s) 08-075-00-01 |
| 70 |
LW00319 |
[1] |
COVER |
|
|
|
|
|
See Page(s) 08-075-00-01 |
| 75 |
LJ00761 |
[2] |
PILOT VALVE |
|
| 84 |
LJ00762 |
[2] |
PILOT VALVE |
|
|
|
|
|
See Page(s) 08-071-00-01 |
| 88 |
LJ00766 |
[1] |
PUMP |
|
|
|
|
|
See Page(s) 08-073-00-01 |

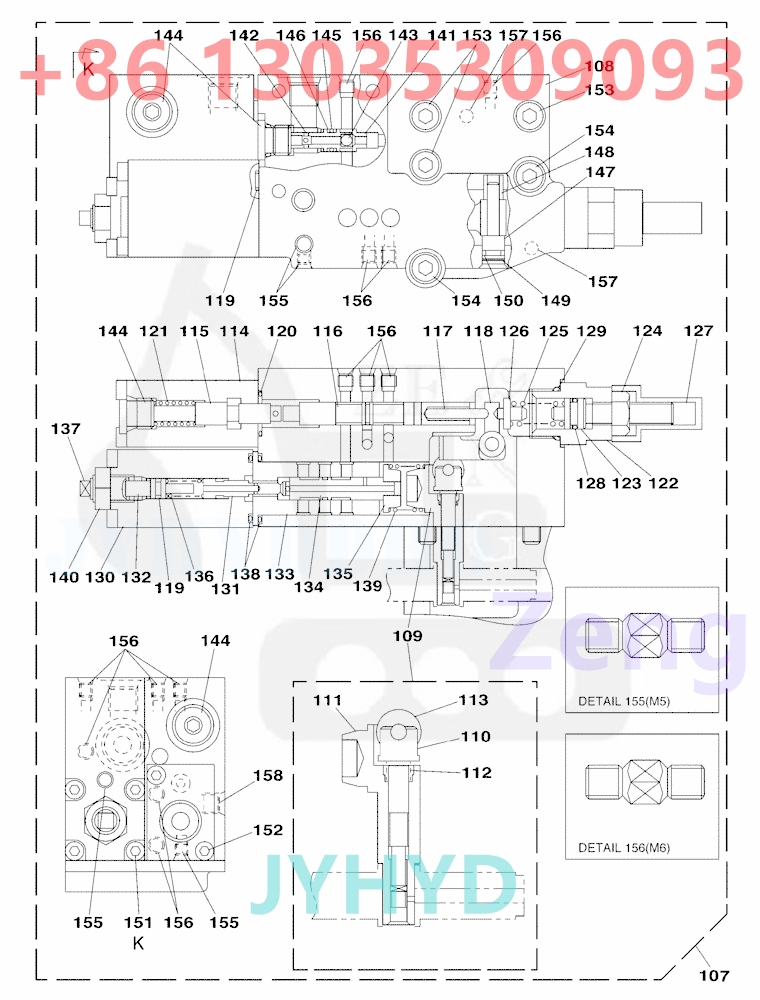

| 107 |
LJ00763 |
[2] |
REGULATOR |
|
|
|
|
|
See Page(s) 08-067-00-01 |
| 159 |
LH00257 |
[1] |
FLANGE |
|
|
|
|
|
See Page(s) 08-005-00-01 |
| 160 |
LT00100 |
[1] |
HOUSING |
|
| 161 |
LT00101 |
[1] |
HOUSING |
|
| 164 |
LA00715 |
[4] |
SCREW,Hex Skt |
|
| 165 |
162R010VN |
[4] |
NUT |
|
| 168 |
LBQ5164 |
[2] |
O-RING |
|
| 169 |
LK00118 |
[6] |
PLUG |
|
| 170 |
LA00716 |
[4] |
DOWEL |
|
| 191 |
LB00559 |
[1] |
SPLINED COUPLING |
|
| 198 |
LK00310 |
[1] |
PLUG |
|
| 200 |
LK00312 |
[1] |
HYDRAULIC HOSE |
|
| 201 |
LR00595 |
[1] |
HYD TUBE |
|
| 202 |
LK00313 |
[1] |
TEE |
|
| 203 |
LK00314 |
[1] |
TEE |
|
| 204 |
LLP0106 |
[3] |
ELBOW |
|
| 205 |
LK00315 |
[2] |
ELBOW |
|
| 206 |
NSS |
[1] |
NOT SOLD SEPARAT |
|
| Parts on group : |
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |

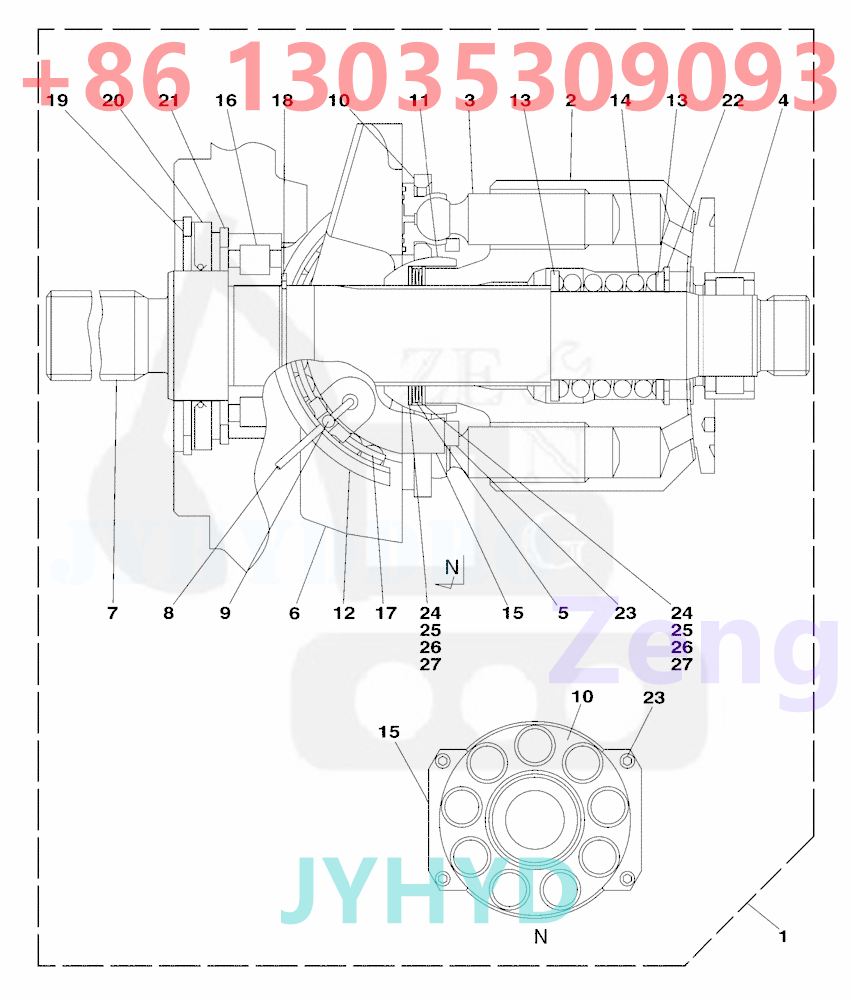

| 28 |
LU00090 |
[1] |
ROTOR |
Consists Of 29-51 |
|
|
|
|
Consists Of Ref. Numbers 29-51 |
| 29 |
LS00141 |
[1] |
CYLINDER BLOCK |
|
| 30 |
LJ00771 |
[9] |
PISTON |
|
| 31 |
LB00560 |
[1] |
SPLINED COUPLING |
|
| 32 |
LG00351 |
[1] |
SPRING |
|
| 33 |
LS00136 |
[1] |
HANGER |
|
| 34 |
LB00564 |
[1] |
SHAFT |
|
| 35 |
LA00717 |
[4] |
SPECIAL PIN |
|
| 36 |
LS00137 |
[4] |
GUIDE |
|
| 37 |
LH00258 |
[1] |
RETAINER |
|
| 38 |
LS00138 |
[1] |
GUIDE |
|
| 39 |
LS00139 |
[1] |
GUIDE |
|
| 40 |
LH00259 |
[2] |
SHIM |
|
| 41 |
LG00352 |
[1] |
COMPRESSION SPRING |
|
| 42 |
LR00596 |
[2] |
PLATE |
|
| 43 |
LB00562 |
[1] |
BEARING, ROLLER, CYL |
|
| 44 |
LB00563 |
[1] |
ROLLER BEARING |
|
| 45 |
800-1135 |
[1] |
SNAP RING,M35, Ext |
|
| 46 |
LA00719 |
[1] |
RING, SNAP |
RING SNAP |
| 47 |
LA00720 |
[4] |
BOLT,Hex Skt Hd |
|
| 48 |
LH00260 |
[X] |
SHIM |
|
| 49 |
LH00261 |
[X] |
SHIM |
|
| 50 |
LH00262 |
[X] |
SHIM |
|
| 51 |
LH00263 |
[X] |
SHIM |
|
| Parts on group : |
|
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
|
KNJ2742 |
[1] |
PUMP, HYDRAULIC |
|
|
|
|
|
Consists Of Ref. Numbers 1 To 107, 160 To 162, 164 To 205 |

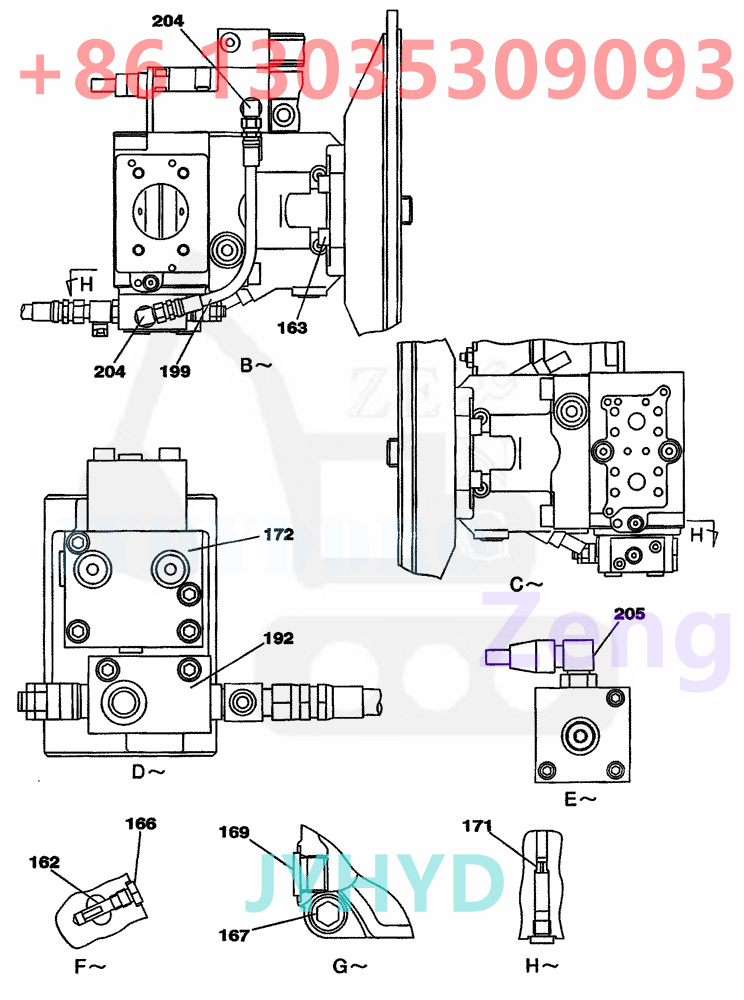

| 162 |
LA00714 |
[8] |
SPECIAL PIN |
|
| 163 |
863-12035 |
[4] |
HEX SOC SCREW,M12 x 35mm, Cl 12.9 |
|
|
|
|
|
See Page(s) 08-005-00-01 |
| 166 |
LK00309 |
[8] |
PLUG |
|
| 167 |
863-16060 |
[8] |
HEX SOC SCREW,M16 x 60mm, Cl 12.9 |
|
| 169 |
LK00118 |
[6] |
PLUG |
|
| 171 |
164915A1 |
[2] |
ORIFICE |
|
| 172 |
LJ00765 |
[1] |
VALVE |
|
|
|
|
|
See Page(s) 08-065-00-01 |
| 192 |
LJ00767 |
[1] |
VALVE, PRESSURE RELI |
EF |
|
|
|
|
See Page(s) 08-065-00-01 |
| 199 |
LK00311 |
[1] |
HYDRAULIC HOSE |
|
| 204 |
LLP0106 |
[2] |
ELBOW |
|
| 205 |
LK00315 |
[1] |
ELBOW |
|
