A8VO200 hydraulic pump parts

Name: A8VO200 hydraulic pump parts
Brand: +8613035309093
SKU: A8VO200
Price: 1000.0 USD
Availability: InStock

A8VO200 hydraulic pump parts

$1,000.00 USD

特價售罄

結帳時計算運費。

產品子類

數量

A8VO200 400914-00251 K1003280B
DX340LC DX350LC DX420LC DX480LC DX520LC

216-0038 CAT330C

Parts for your 330C L EXCAVATOR:

CATERPILLAR SIS
Pos.	Part No	Qty	Parts name	Comments
1	216-0035 Y	[1]	ROTATING GP-PUMP
2	9T-3928	[1]	PLUG AS
	187-8001	[1]	SEAL
3	216-0034 Y	[1]	ROTATING GP-PUMP
4	177-2482	[1]	SHIM (1-MM THK)
5	2W-1145	[1]	RING-RETAINING
6	124-9913	[1]	SEAL-SHAFT
7	216-0023 Y	[1]	PUMP GP-GEAR
8	204-2700	[1]	HOUSING
9	177-2481	[1]	SHAFT
10	216-0040	[1]	GEAR
11	177-2484	[1]	KEY-WOODRUFF
12	188-4094	[2]	BEARING
13	081-3801	[3]	PLUG AS
			(EACH INCLUDES)
	126-9092	[1]	SEAL
	Y		SEPARATE ILLUSTRATION

Pos.

Part No

Qty

Parts name

Comments

2

K9001908

[1]

ROTARY GROUP

2

210204-00029

[1]

20

2.115-00311

[1]

RING;RETAINING

21

2.115-00327

[1]

RING;SHAFT SEAL

21

401106-00202

[1]

22

2.114-00175

[1]

SHIM

23

2.120-00611

[1]

SCREW;LOCKING

24

2.120-00624

[3]

SCREW;LOCKING

25

2.109-00192

[2]

BEARING;PLAIN ROLLER

27

2.405-00154

[1]

SHAFT;KEY

28

2.180-01203

[1]

O-RING

2A.

K9001909

[1]

ROTARY GROUP;SECTION

2Aa.

2.410-00138

[1]

CYLINDER

2Ab.

K9001910

[1]

PIN;CENTER

2Ac.

K9001911

[7]

PISTON & PISTON RINGS

2Ac1.

*NA00796

[1]

PISTON

2Ac2.

*NA00986

[2]

2Ad.

K9001912

[1]

COLLAR;SPRING

2Ae.

2.453-00025

[4]

CUP SPRING

2Af.

2.412-00224

[1]

PLATE;RETAINING

2Ag.

K9001916

[14]

SCREW;PAN HEAD

2B.

K9001913

[1]

SHAFT;DRIVE

2C.

2.114-00167

[1]

SHIM

2C.

2.114-00168

[1]

SHIM

2C.

2.114-00169

[1]

SHIM

2D.

2.412-00131

[1]

CONTROL LENS;RIGHT-HAND

250201-01408

2D.

250201-01408

[1]

2E.

2.180-01026

[1]

PLATE;BACK-UP

2E.

2.180-01027

[1]

PLATE;BACK-UP

2E.

2.180-01028

[1]

PLATE;BACK-UP

2E.

2.180-01029

[1]

PLATE;BACK-UP

2E.

2.180-01030

[1]

PLATE;BACK-UP

2E.

2.180-01031

[1]

PLATE;BACK-UP

2E.

2.180-01032

[1]

PLATE;BACK-UP

2F.

K9001914

[1]

RING;RETAINING

2G.

2.109-00264

[1]

BEARING;UNIT TAPERED-ROLLER

2H.

2.109-00248

[1]

BEARING;TAPERED-ROLLER

3

K9001915

[1]

ROTARY GROUP

3

210204-00030

[1]

3A.

K9001909

[1]

ROTARY GROUP;SECTION

3Aa.

2.410-00138

[1]

CYLINDER

3Ab.

K9001910

[1]

PIN;CENTER

3Ac.

K9001911

[7]

PISTON & PISTON RINGS

3Ac1.

*NA00796

[1]

PISTON

3Ac2.

*NA00986

[2]

3Ad.

K9001912

[1]

COLLAR;SPRING

3Ae.

2.453-00025

[4]

CUP SPRING

3Af.

2.412-00224

[1]

PLATE;RETAINING

3Ag.

K9001916

[14]

SCREW;PAN HEAD

3B.

K9001917

[1]

SHAFT;DRIVE

3C.

2.114-00170

[1]

SHIM

3C.

2.114-00171

[1]

SHIM

3C.

2.114-00172

[1]

SHIM

3C.

2.114-00173

[1]

SHIM

3C.

2.114-00174

[1]

SHIM

3D.

2.412-00128

[1]

CONTROL LENS;LEFT-HAND

250201-01409

3D.

250201-01409

[1]

3E.

2.180-01026

[1]

PLATE;BACK-UP

3E.

2.180-01033

[1]

PLATE;BACK-UP

3E.

2.180-01027

[1]

PLATE;BACK-UP

3E.

2.180-01028

[1]

PLATE;BACK-UP

3E.

2.180-01029

[1]

PLATE;BACK-UP

3E.

2.180-01030

[1]

PLATE;BACK-UP

3E.

2.180-01031

[1]

PLATE;BACK-UP

3E.

2.180-01032

[1]

PLATE;BACK-UP

3F.

K9001914

[1]

RING;RETAINING

3G.

2.109-00265

[1]

BEARING;UNIT TAPERED-ROLLER

3H.

2.109-00248

[1]

BEARING;TAPERED-ROLLER

4

K9001918

[1]

PUMP;GEAR

4

400910-00134

[1]

4A.

2.120-00829

[2]

BOLT;SOCKET M10X20

5

*NA00539

[1]

7

K9001919

[1]

GEAR

8

K9001920

[1]

SHAFT;STUB

9

2.317-00047

[1]

STUD;CONNECT

Pos.

Part No

Qty

Parts name

Comments

1

2.430-00228

[2]

COVER Komatsu China

["desc: COUVERCLE"]

1A.

2.430-00229

[1]

. COVER Komatsu China

["desc: . COUVERCLE"]

1B.

2.180-01196

[1]

. O-RING Komatsu China

["desc: . JOINT TORIQUE"]

1C.

2.180-01189

[1]

. O-RING Komatsu China

["desc: . JOINT TORIQUE"]

1D.

2.120-00836

[4]

. SCREW;SOCKET-HEAD Komatsu China

["desc: . VIS"]

1E.

2.120-00615

[1]

. SCREW;LOCKING Komatsu China

["desc: . VIS"]

1F.

2.123-00291

[1]

. PIN;THREADED Komatsu China

["desc: . BROCHE"]

1G.

2.121-00263

[1]

. NUT;SEAL LOCK Komatsu China

["desc: . ECROU"]

2

K9001921

[1]

CONTROL MODULE Komatsu China

["desc: ENSEMBLE COMMANDE"]

2A.

K9001922

[1]

. CONTROL MODULE Komatsu China

["desc: . MODULE DE COMMANDE"]

2Aa.

-

[1]

.. HOUSING;CONTROL Komatsu China

["SC: D", "desc: .. LOGEMENT"]

2Ab.

2.409-00177

[2]

.. PISTON;CONTROL Komatsu China

["desc: .. PISTON"]

2Ac.

2.408-00063

[2]

.. BUSH;CONTROL Komatsu China

["desc: .. DOUILLE"]

2Ad.

2.409-00200

[2]

.. PISTON;POSITIONING Komatsu China

["desc: .. PISTON"]

2Ae.

2.123-00065

[2]

.. PIN Komatsu China

["desc: .. BROCHE"]

2Af.

2.114-00039

[4]

.. COLLAR;SPRING Komatsu China

["desc: .. CALE"]

2Ag.

2.131-00415

[2]

.. SPRING;PRESSURE Komatsu China

["desc: .. RESSORT"]

2Ah.

2.120-00613

[2]

.. SCREW;LOCKING Komatsu China

["desc: .. CHAPEAU"]

2Ai.

2.123-00235

[2]

.. PIN;THREADED Komatsu China

["desc: .. BROCHE"]

2Aj.

K9001923

[2]

.. PISTON;CONTROL Komatsu China

["desc: .. PISTON"]

2Ak.

K9001924

[2]

.. BUSH;CONTROL Komatsu China

["desc: .. DOUILLE"]

2Al.

2.121-00202

[2]

.. NUT;SEAL LOCK Komatsu China

["desc: .. ECROU"]

2Am.

2.180-01191

[2]

.. O-RING Komatsu China

["desc: .. JOINT TORIQUE"]

2An.

2.180-00471

[2]

.. O-RING Komatsu China

["desc: .. JOINT TORIQUE"]

2Ao.

2.180-01181

[2]

.. O-RING Komatsu China

["desc: .. JOINT TORIQUE"]

2Ap.

2.120-00826

[6]

.. SCREW;SOCKET-HEAD Komatsu China

["desc: .. VIS"]

2Aq.

2.123-00288

[5]

.. PIN;DOUBLE BREAK-OFF Komatsu China

["desc: .. BROCHE"]

2Ar.

2.123-00131

[2]

.. PIN;CYLINDER Komatsu China

["desc: .. BROCHE"]

2As.

2.123-00300

[1]

.. PIN;DOUBLE BREAK-OFF Komatsu China

["desc: .. BROCHE"]

2At.

2.181-00262

[1]

.. PLUG Komatsu China

["desc: .. BOUCHON"]

2Au.

2.120-00612

[1]

.. PLUG Komatsu China

["desc: .. BOUCHON"]

2C.

2.409-00180

[2]

. PISTON;CONTROL Komatsu China

["desc: . PISTON"]

2D.

2.408-00083

[2]

. BUSH;SPRING Komatsu China

["desc: . DOUILLE"]

2E.

2.131-00418

[2]

. SPRING;PRESSURE Komatsu China

["desc: . RESSORT"]

2F.

2.123-00249

[2]

. PIN;THREADED Komatsu China

["desc: . BROCHE"]

2G.

2.114-00067

[2]

. COLLAR;SPRING Komatsu China

["desc: . CALE"]

2H.

2.114-00068

[2]

. COLLAR;SPRING Komatsu China

["desc: . CALE"]

2I.

2.131-00428

[2]

. SPRING;PRESSURE Komatsu China

["desc: . RESSORT"]

2J.

2.131-00429

[2]

. SPRING;PRESSURE Komatsu China

["desc: . RESSORT"]

2O.

2.180-01197

[2]

. O-RING Komatsu China

["desc: . JOINT TORIQUE"]

2P.

2.120-00611

[2]

. SCREW;LOCKING Komatsu China

["desc: . VIS"]

2S.

2.120-00828

[6]

. SCREW;SOCKET-HEAD Komatsu China

["desc: . VIS"]

2U.

2.120-00616

[1]

. SCREW;LOCKING Komatsu China

["desc: . VIS"]

11

2.180-00086

[1]

GASKET Komatsu China

["desc: JOINT"]

12

2.409-00205

[2]

PISTON;POSITIONING Komatsu China

["desc: PISTON"]

13

2.428-00065

[2]

TRUNNION;POSITIONING Komatsu China

["desc: ANNEAU DE SOUTIEN"]

14

K9001925

[2]

COLLAR;SPRING Komatsu China

["desc: COLLIER"]

15

2.131-00430

[2]

SPRING;PRESSURE Komatsu China

["desc: RESSORT DE COMPRESSION"]

16

K9001926

[2]

PISTON Komatsu China

["desc: PISTON"]

17

2.123-00248

[2]

PIN;THREADED Komatsu China

["desc: GOUPILLE FILETEE"]

26

2.120-00801

[2]

SCREW;HEX Komatsu China

["desc: VIS"]

37

K9001927

[4]

RING;SQUARE Komatsu China

["desc: ANNEAU DE BLOCAGE"]

42

2.120-00837

[8]

SCREW;SOCKET M16X60 Komatsu China

["desc: VIS"]

43

S2222461

[4]

SCREW;SOCKET M16X90 Komatsu China

["desc: BOULON A 6 PANS CREUX"]

44

2.123-00134

[2]

PIN;CYLINDER Komatsu China

["desc: GOUPILLE CYLINDRIQUE"]

Model：A8VO200
Part number：
Application：R480 DX340 DH420-7 DH500-7
Brand：ITRITA
Material：Aluminum and Steel
Place of production：China
Delivey time：within 3 days
Payment：Western Union，T/T

216-0038，216-0039, 242-6779, 250-2564，250-2565， R ROTATING GROUP 216-0035 L ROTATING GROUP 216-0034 216-0028 CAT330C CAT330CFM CAT330CL CAT330CMH 193-2703，283-5973 283-5974 283-5977 283-5978 283-5979
216-0028

CATERPILLAR SIS
Pos.	Part No	Qty	Parts name	Comments
1	177-2503	[7]	PISTON AS
			(EACH INCLUDES)
	145-8460	[2]	RING-SEAL
2	177-2502	[1]	PIN
3	188-4097	[1]	BARREL
4	247-8851	[1]	KIT-SPACER (PUMP ROTATING GROUP)
5	177-2510	[4]	SPRING
6	177-2511	[1]	PLATE
7	216-0029 M	[14]	SCREW (M6X20-MM)
	M		METRIC PART
L ROTATING GROUP 216-0034

CATERPILLAR SIS
Pos.	Part No	Qty	Parts name	Comments
1	216-0036	[1]	SHAFT
2	177-2500	[1]	BEARING
3	177-2487 B	[1]	SHIM (3.3-MM THK)
4	177-2488 B	[1]	SHIM (3.4-MM THK)
5	177-2489 B	[1]	SHIM (3.5-MM THK)
6	177-2499	[1]	BEARING AS
7	216-0028 Y	[1]	ROTATING GP-PUMP
8	194-8261	[1]	PLATE-VALVE
9	177-2491 B	[1]	PLATE (2.6-MM THK)
	177-2492 B	[1]	PLATE (2.65-MM THK)
	177-2493 B	[1]	PLATE (2.7-MM THK)
	177-2494 B	[1]	PLATE (2.75-MM THK)
	177-2495 B	[1]	PLATE (2.8-MM THK)
	177-2496 B	[1]	PLATE (2.85-MM THK)
	177-2497 B	[1]	PLATE (2.9-MM THK)
	177-2498 B	[1]	PLATE (2.95-MM THK)
17	127-8987	[1]	RING-RETAINING
	B		USE AS REQUIRED
	Y		SEPARATE ILLUSTRATION


R ROTATING GROUP 216-0035

CATERPILLAR SIS
Pos.	Part No	Qty	Parts name	Comments
1	177-2491 B	[1]	PLATE (2.6-MM THK)
2	177-2492 B	[1]	PLATE (2.65-MM THK)
3	177-2493 B	[1]	PLATE (2.7-MM THK)
4	177-2494 B	[1]	PLATE (2.75-MM THK)
5	177-2495 B	[1]	PLATE (2.8-MM THK)
6	177-2496 B	[1]	PLATE (2.85-MM THK)
7	177-2497 B	[1]	PLATE (2.9-MM THK)
8	177-2498 B	[1]	PLATE (2.95-MM THK)
9	216-0028 Y	[1]	ROTATING GP-PUMP
10	194-8263	[1]	PLATE-VALVE
11	216-0037	[1]	SHAFT
12	188-4103	[1]	BEARING AS
13	177-2513 B	[1]	SHIM (6.2-MM THK)
14	177-2514 B	[1]	SHIM (6.3-MM THK)
15	177-2515 B	[1]	SHIM (6.4-MM THK)
16	177-2516 B	[1]	SHIM (6.5-MM THK)
17	177-2517 B	[1]	SHIM (6.6-MM THK)
18	177-2500	[1]	BEARING
19	127-8987	[1]	RING-RETAINING
	B		USE AS REQUIRED
	Y		SEPARATE ILLUSTRATION

283-5977

CATERPILLAR SIS
Pos.	Part No	Qty	Parts name	Comments
1	216-0036	[1]	SHAFT
2	177-2500	[1]	BEARING
3	177-2487 B	[1]	SHIM (3.3-MM THK)
4	177-2488 B	[1]	SHIM (3.4-MM THK)
5	177-2489 B	[1]	SHIM (3.5-MM THK)
6	177-2499	[1]	BEARING AS
7	283-5979 Y	[1]	ROTATING GP-PUMP
8	194-8261	[1]	PLATE-VALVE
9	177-2491 B	[1]	PLATE (2.6-MM THK)
	177-2492 B	[1]	PLATE (2.65-MM THK)
	177-2493 B	[1]	PLATE (2.7-MM THK)
	177-2494 B	[1]	PLATE (2.75-MM THK)
	177-2495 B	[1]	PLATE (2.8-MM THK)
	177-2496 B	[1]	PLATE (2.85-MM THK)
	177-2497 B	[1]	PLATE (2.9-MM THK)
	177-2498 B	[1]	PLATE (2.95-MM THK)
17	127-8987	[1]	RING-RETAINING
	B		USE AS REQUIRED
	Y		SEPARATE ILLUSTRATION

283-5978

CATERPILLAR SIS
Pos.	Part No	Qty	Parts name	Comments
1	177-2491 B	[1]	PLATE (2.6-MM THK)
2	177-2492 B	[1]	PLATE (2.65-MM THK)
3	177-2493 B	[1]	PLATE (2.7-MM THK)
4	177-2494 B	[1]	PLATE (2.75-MM THK)
5	177-2495 B	[1]	PLATE (2.8-MM THK)
6	177-2496 B	[1]	PLATE (2.85-MM THK)
7	177-2497 B	[1]	PLATE (2.9-MM THK)
8	177-2498 B	[1]	PLATE (2.95-MM THK)
9	283-5979 Y	[1]	ROTATING GP-PUMP
10	194-8263	[1]	PLATE-VALVE

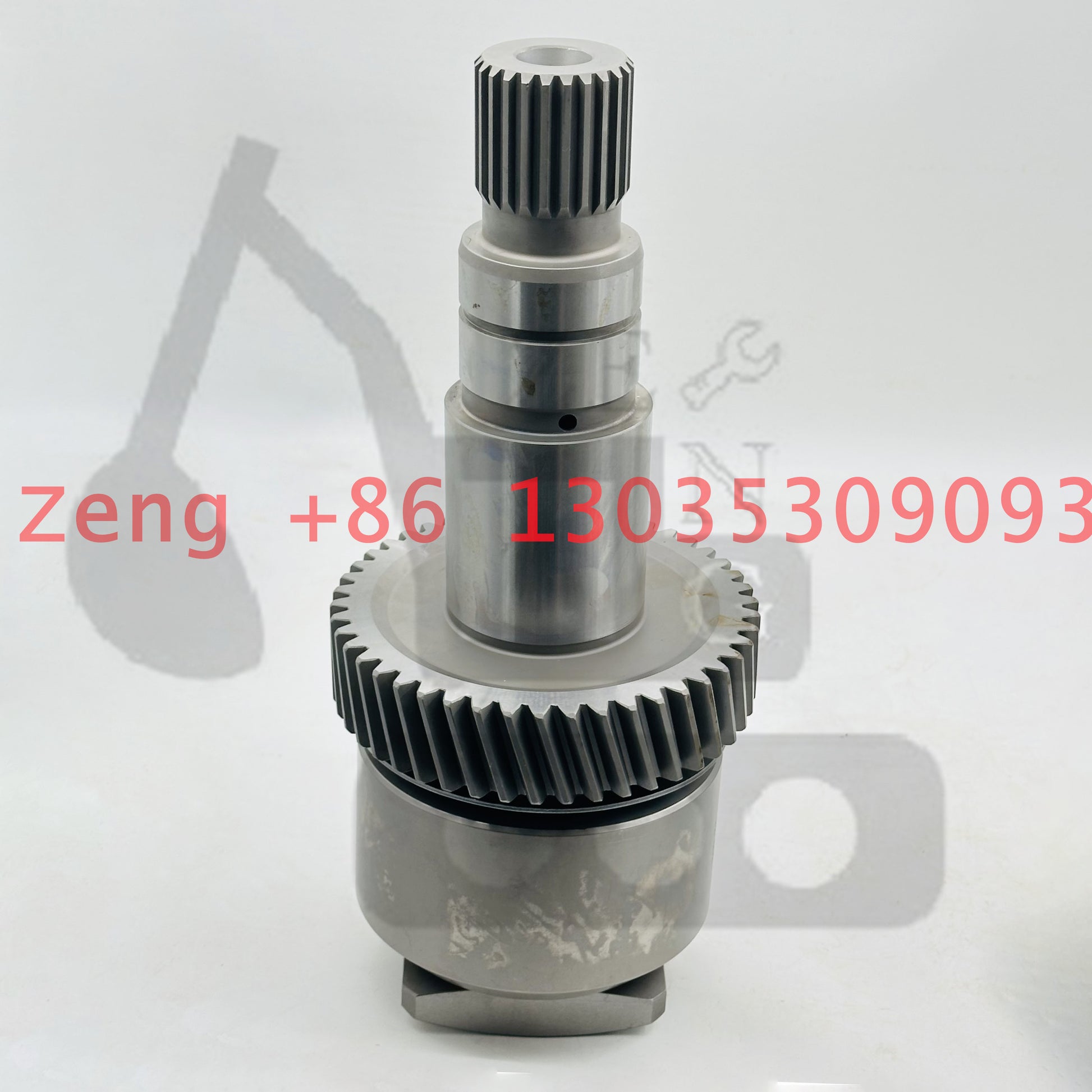

11	216-0037	[1]	SHAFT
12	188-4103	[1]	BEARING AS
13	177-2513 B	[1]	SHIM (6.2-MM THK)
14	177-2514 B	[1]	SHIM (6.3-MM THK)
15	177-2515 B	[1]	SHIM (6.4-MM THK)
16	177-2516 B	[1]	SHIM (6.5-MM THK)
17	177-2517 B	[1]	SHIM (6.6-MM THK)
18	177-2500	[1]	BEARING
19	127-8987	[1]	RING-RETAINING
	B		USE AS REQUIRED
	Y		SEPARATE ILLUSTRATION


283-5979

CATERPILLAR SIS
Pos.	Part No	Qty	Parts name	Comments

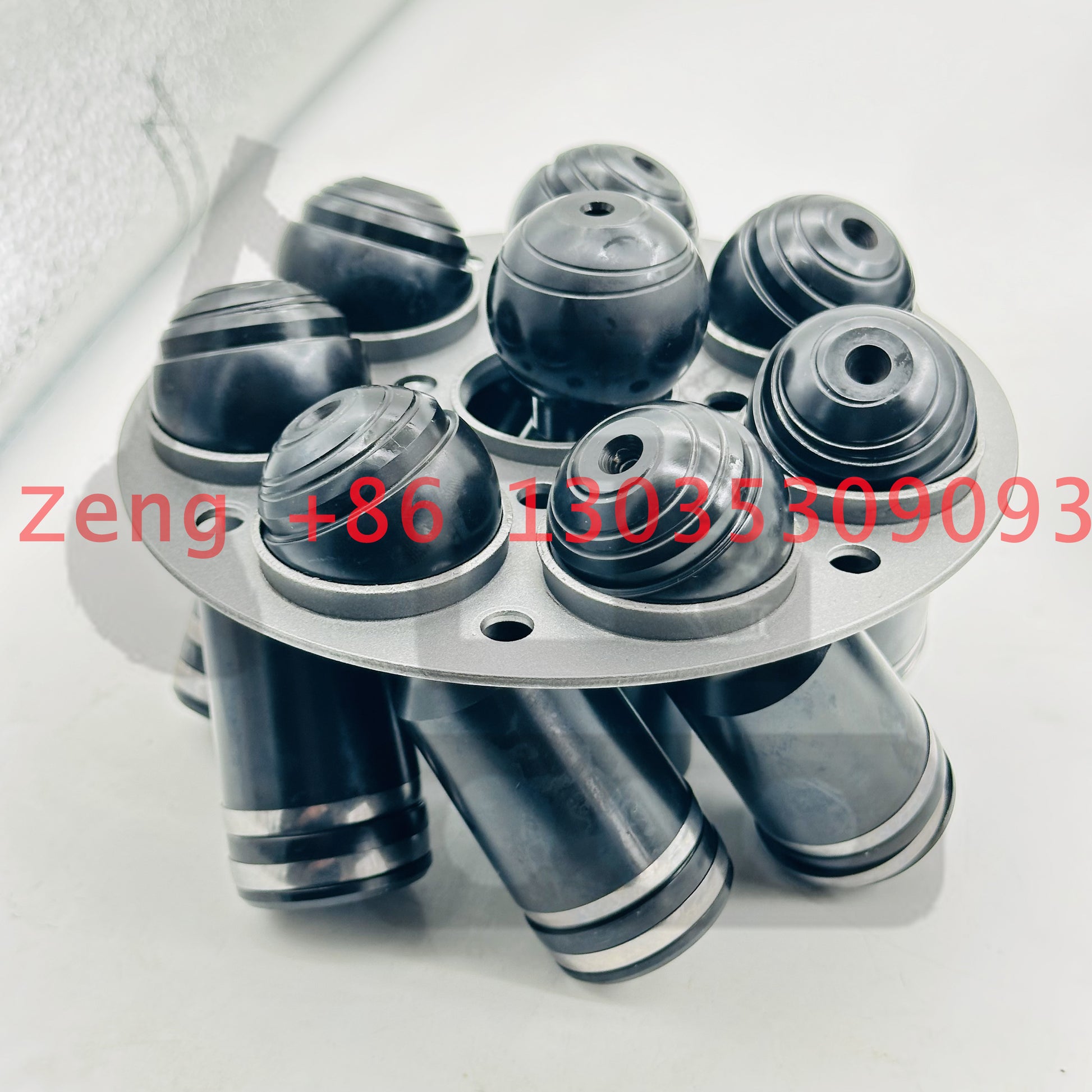

1	283-5980	[7]	PISTON AS
			(EACH INCLUDES)
	283-5981	[2]	RING-SEAL
2	177-2502	[1]	PIN

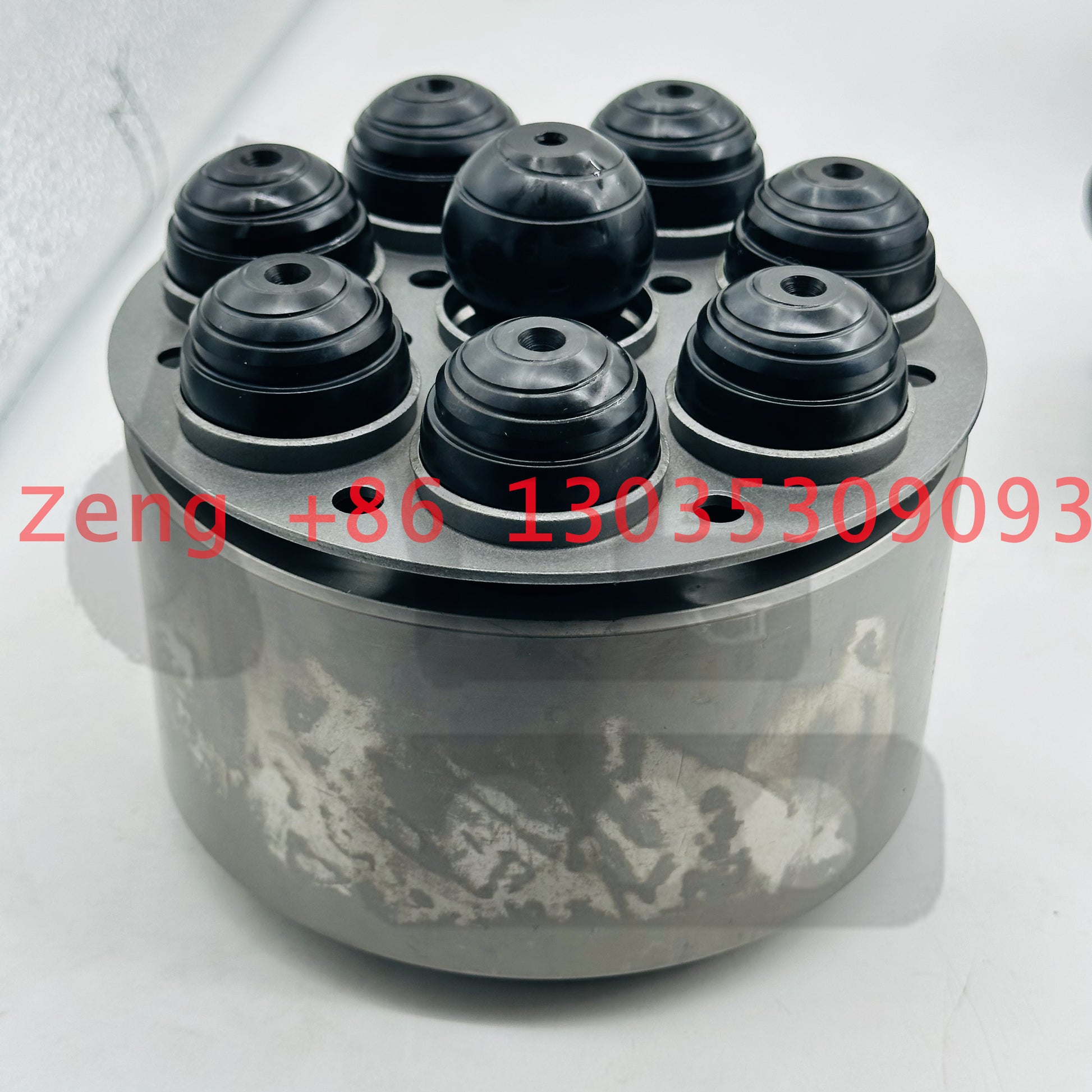

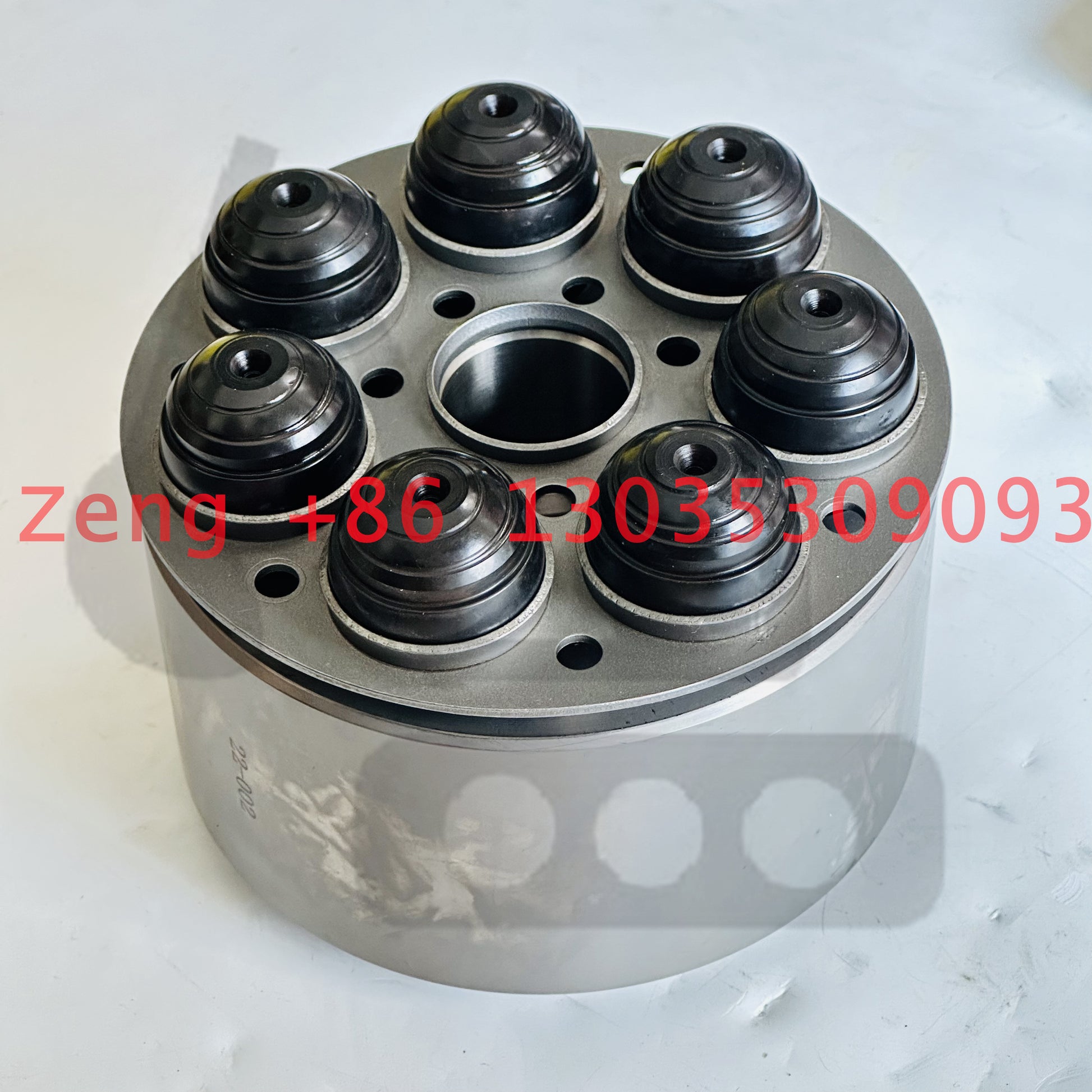

3	188-4097	[1]	BARREL
4	247-8851	[1]	KIT-SPACER (PUMP ROTATING GROUP)
5	177-2510	[4]	SPRING
6	177-2511	[1]	PLATE
7	216-0029 M	[14]	SCREW (M6X20-MM)
	M		METRIC PART
