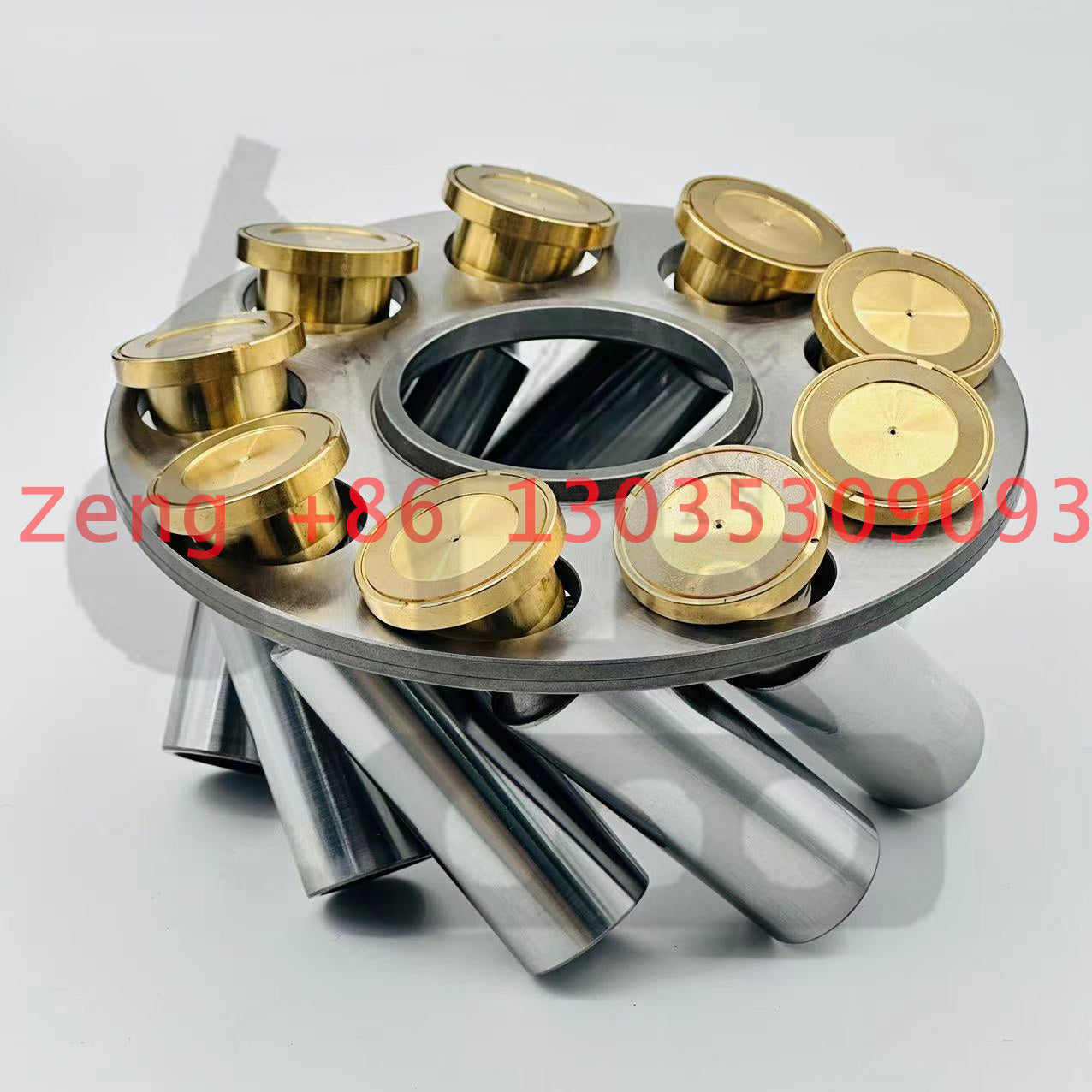

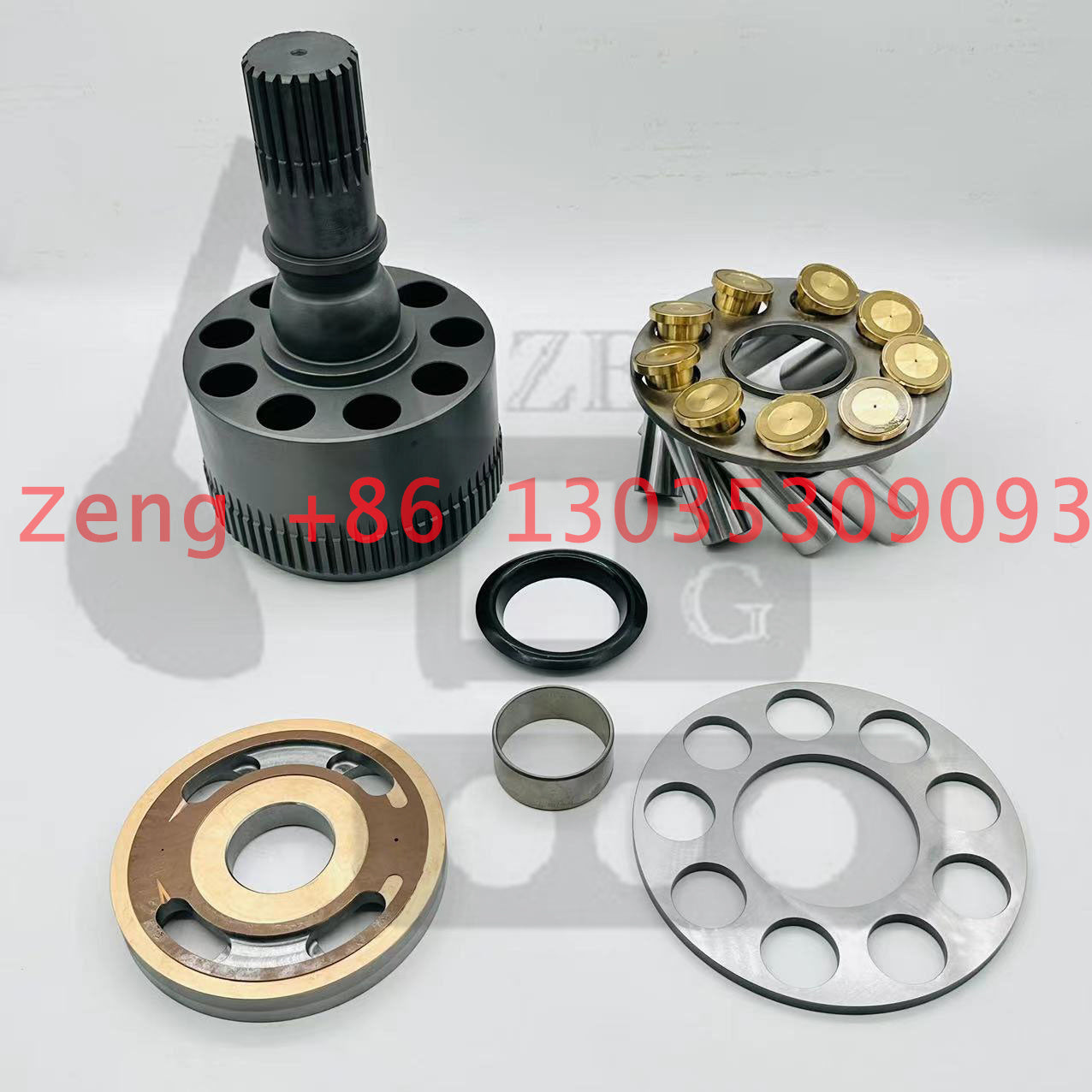

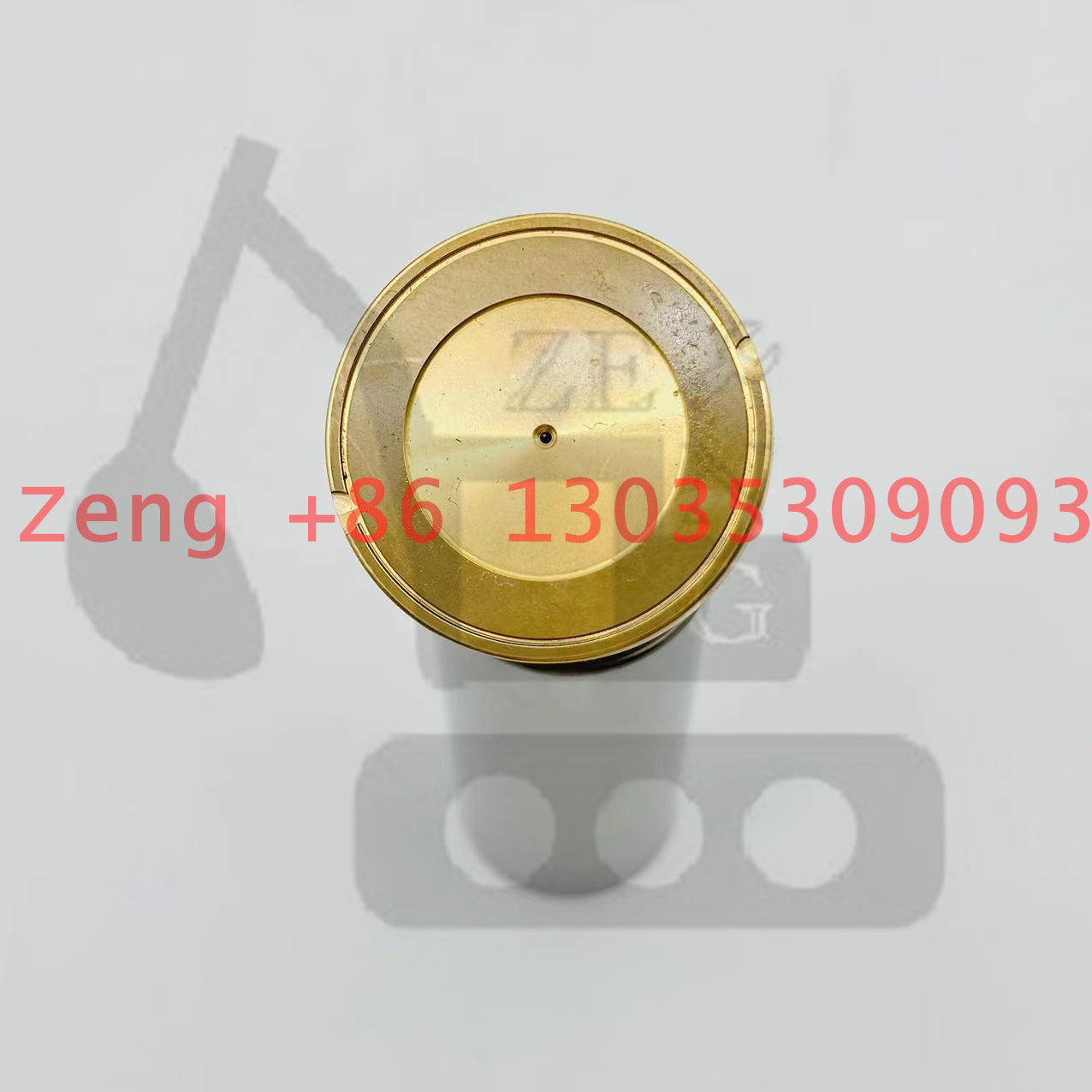

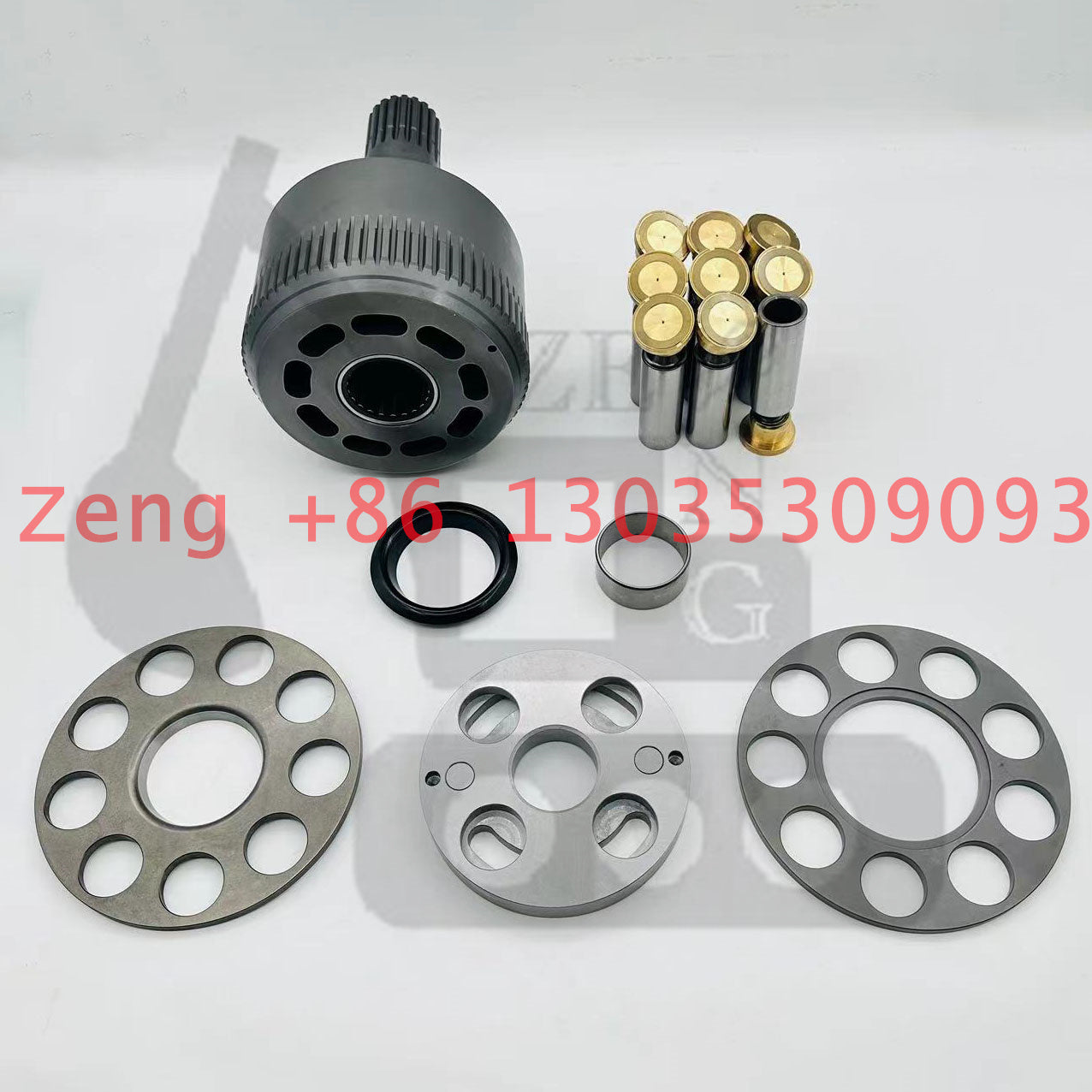

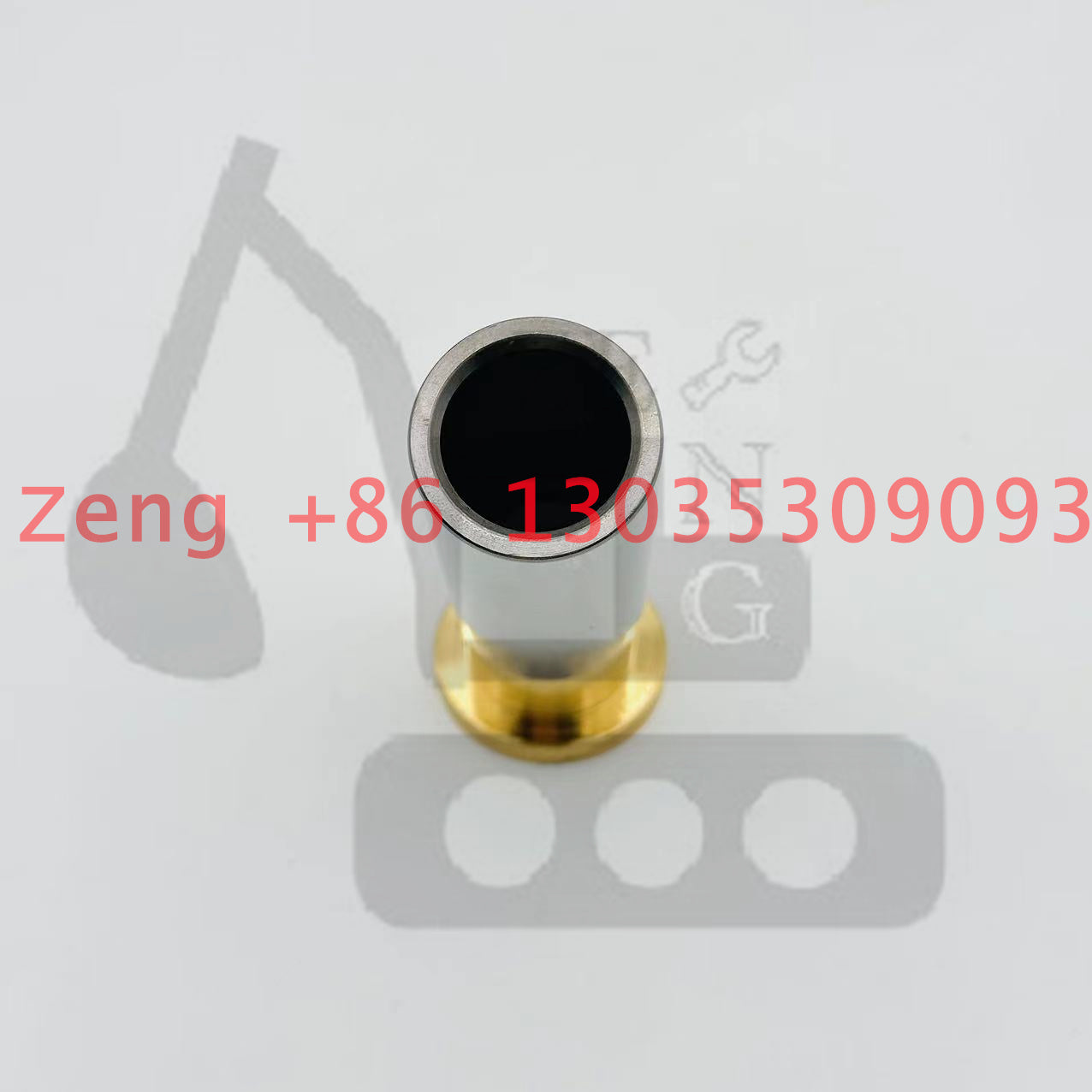

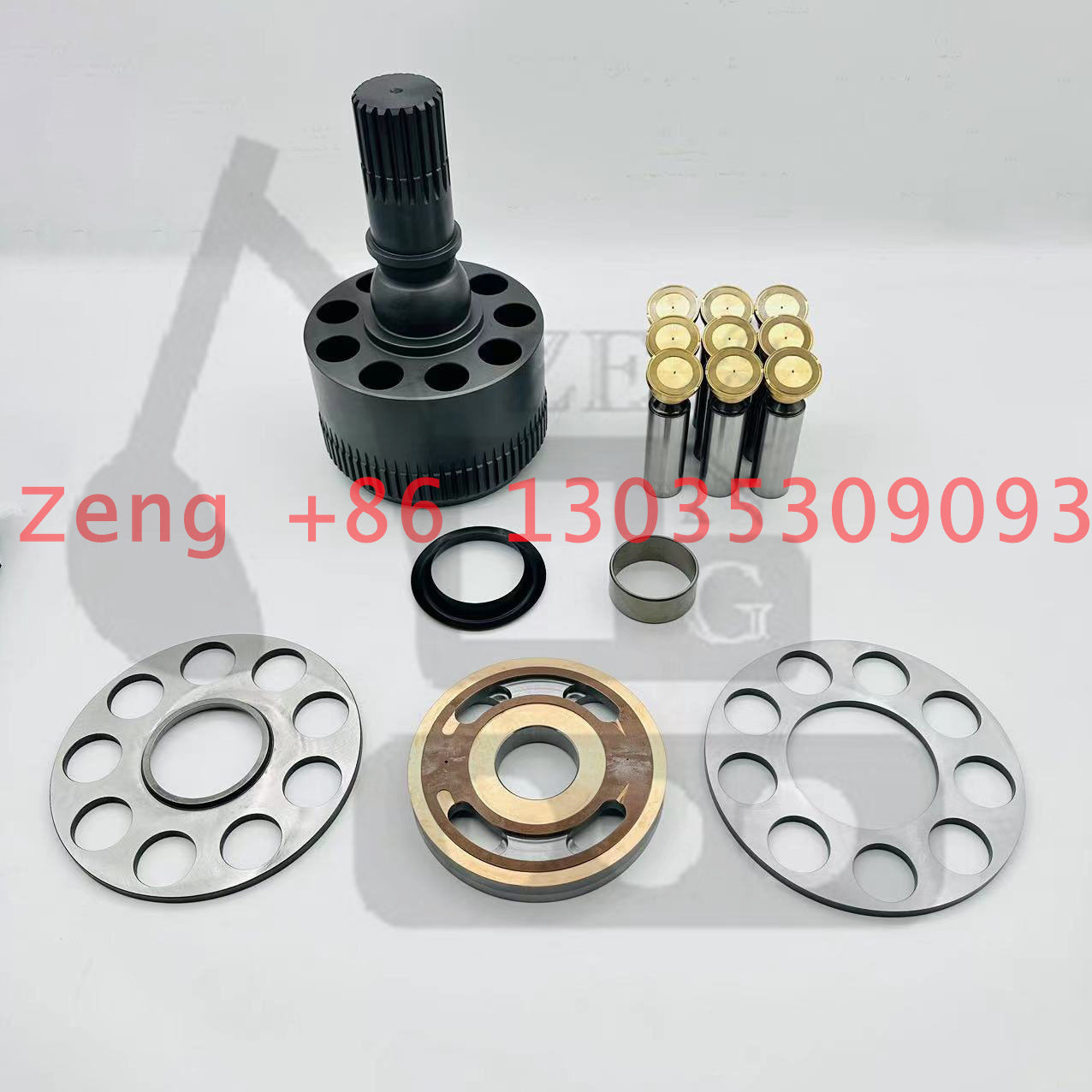

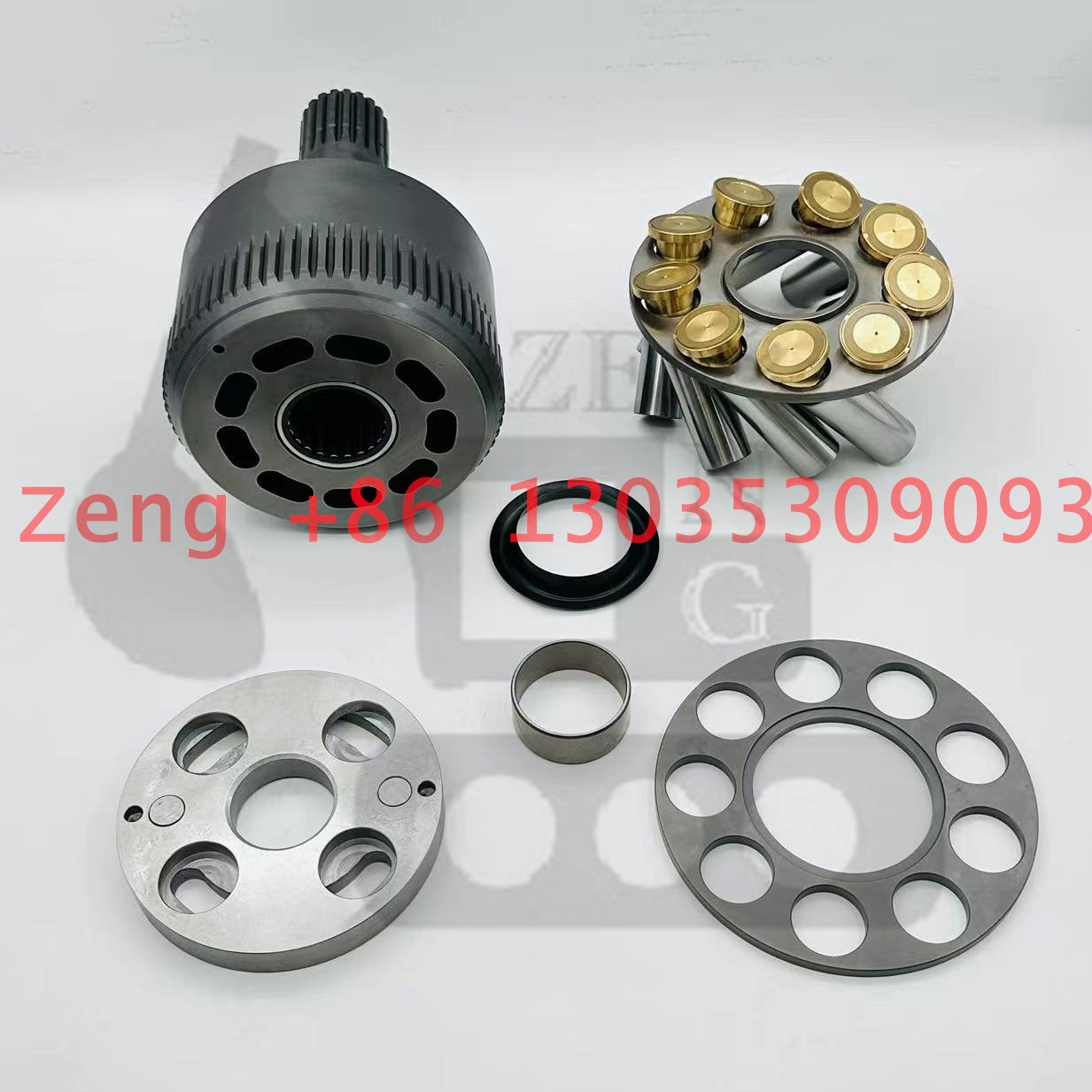

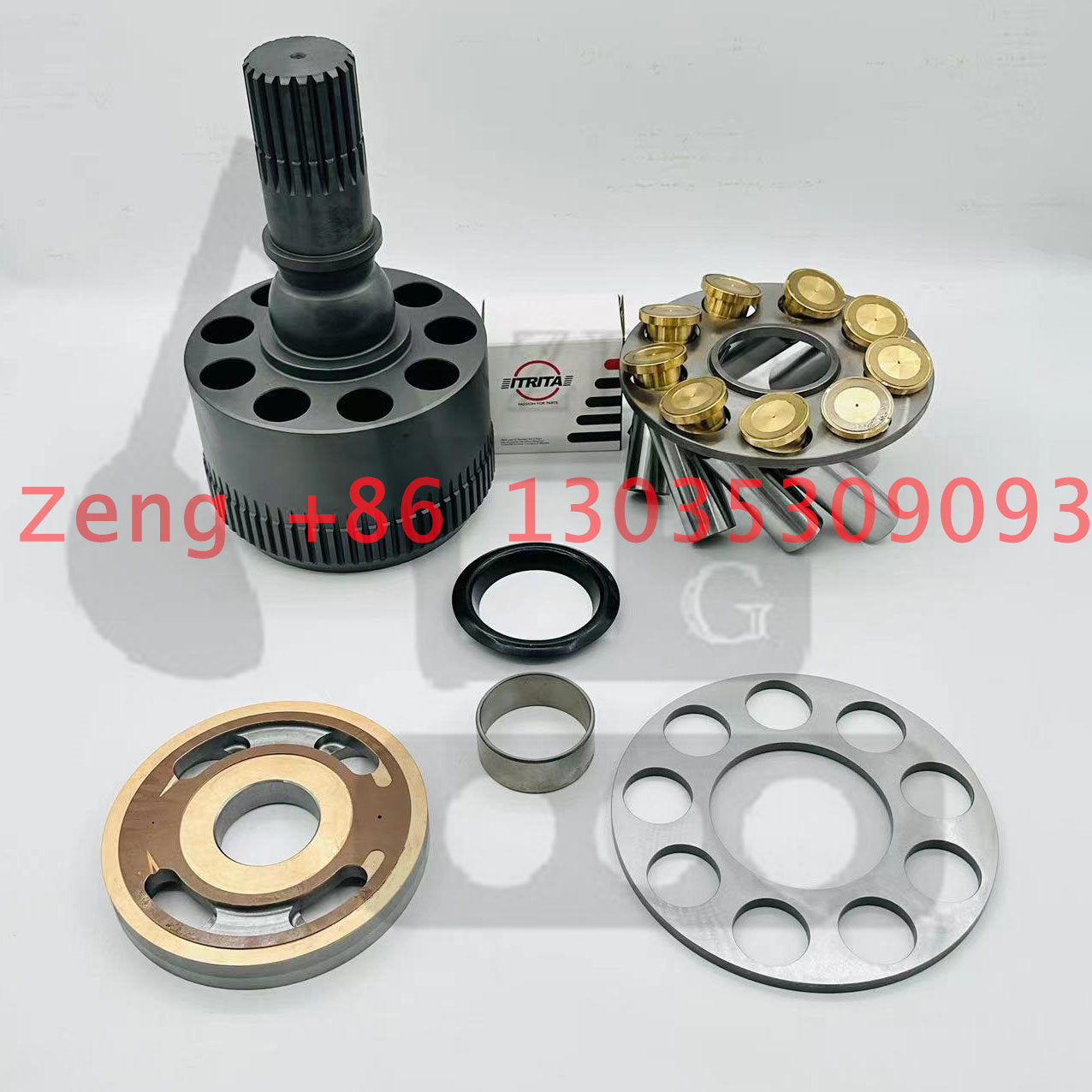

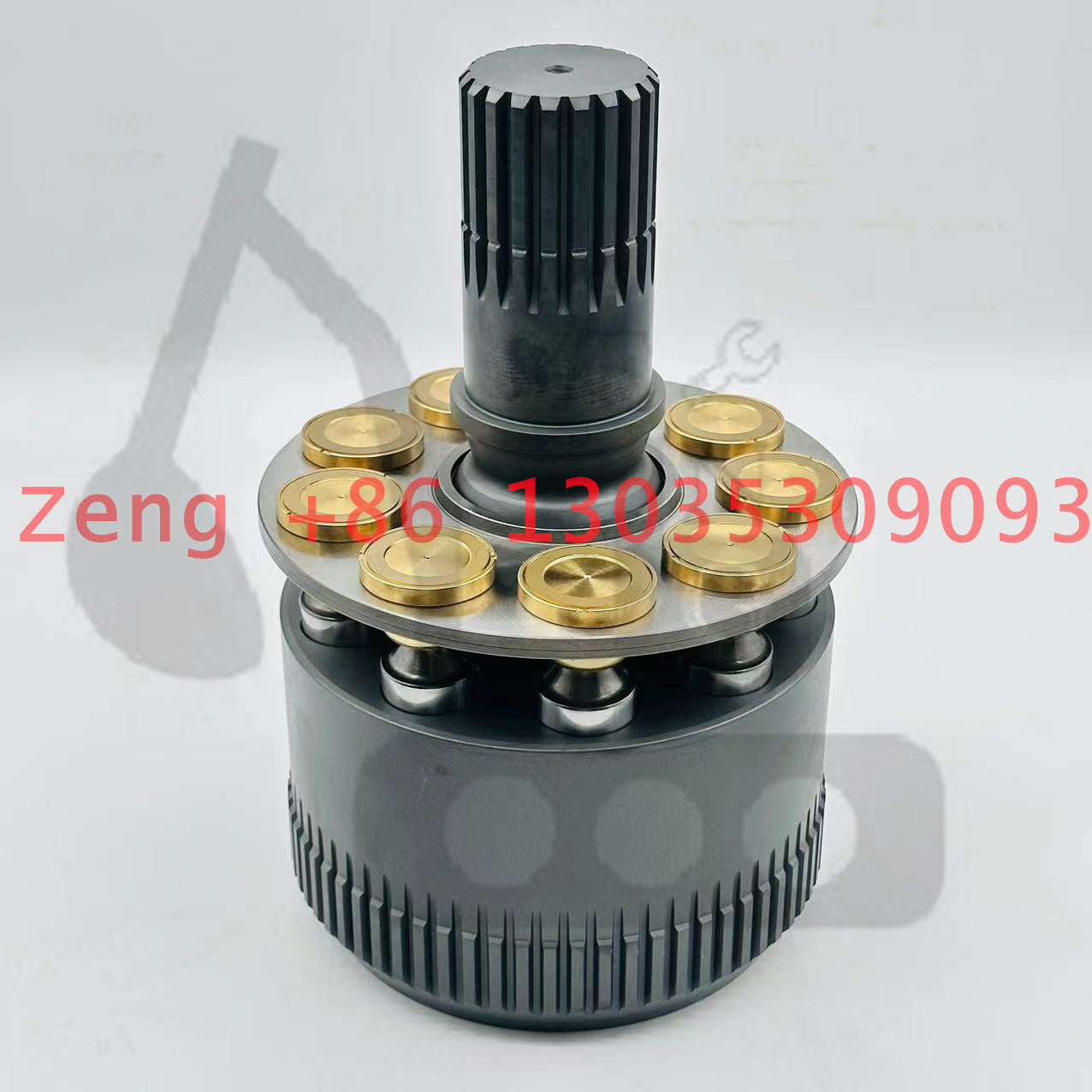

Toshiba SG20 swing motor piston shoe

Toshiba SG20 swing motor piston shoe

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
SG20 MFC250 R450LC-7 EC360
31NB-11130 XJDB-00356
Pos. Part No Qty Parts name Comments
N*. 31NB-11130 [1]   SWING MOTOR ASSY
N*-1. XJDB-00356 [1]   SWING MOTOR
1 XJDB-00002 [1]   RACE-INNER
2 XJDB-00003 [1]   SEAL-OIL
3 XJDB-00004 [1]   BEARING-ROLLER
4 XJDB-00225 [1]   GAUGE ASSY-LEVEL
5 XJDB-00005 [1]   SPRING-BACKING
6 XJDB-00006 [1]   PLATE-CAM
7 XJDB-00007 [1]   PLATE-RETURN
8 XJDB-00226 [9]   PISTON ASSY
9 XJDB-00009 [3]   PLATE-LINING
10 XJDB-00010 [3]   PLATE
11 XJDB-00011 [1]   O-RING
12 XJDB-00012 [1]   PISTON
13 XJDB-00013 [2]   O-RING
14 XJDB-00014 [11]   SPRING
15 XJDB-00015 [2]   PIN-PARALLEL
16 XJDB-00016 [2]   PISTON
17 XJDB-00018 [3]   O-RING
18 XJDB-00017 [3]   CAP
19 XJDB-00019 [4]   SCROWWAVE
20 XJDB-00020 [4]   RING-TEFLON
21 XJDB-00021 [4]   BUSHING
22 XJDB-00022 [1]   PLATE-BALANCE
23 XJDB-00023 [1]   BEARING-NEEDLE
24 XJDB-00024 [1]   RING-SNAP
25 XJDB-00025 [1]   CYLINDER ASSY
26 XJDB-00227 [1]   HOUSING
27 XJDB-00027 [1]   COLLAR
28 XJDB-00071 [2]   PLUG
29 XJDB-00029 [1]   RING-SNAP
30 XJDB-00030 [2]   BYPASS VALVE ASSY
31 XJDB-00031 [2]   RING-BACK UP
32 XJDB-00032 [2]   O-RING
33 XJDB-00033 [2]   O-RING
N34. XJDB-00034 [1]   COVER
35 XJDB-00038 [1]   VALVE-TIME DELAY
36 XJDB-00037 [3]   BOLT-SOCKET
37 XJDB-00039 [1]   O-RING
38 XJDB-00040 [2]   O-RING
39 XJDB-00035 [2]   RELIEF VALVE ASSY
40 XJDB-00036 [4]   O-RING
41 XJDB-00041 [4]   BOLT-SOCKET
42 XJDB-00042 [2]   VALVE-CHECK
43 XJDB-00043 [2]   SPRING
44 XJDB-00044 [2]   CAP
45 XJDB-00045 [2]   RING-BACK UP
N. @ [1]   NOT INDIVIDUALLY SUPPLIED
MFC250-014 31NA-10120 XJDB-00223 R360LC-7 R370LC-7
Pos. Part No Qty Parts name Comments
*. 31NA-10120 [1]   SWING UNIT      *-1,*-2 OPT
N*-1. XJDB-00223 [1]   SWING MOTOR UNIT
1 XJDB-00164 [1]   RING-SNAP
2 XJDB-00165 [1]   RING-INNER
3 XJDB-00167 [1]   SEAL-OIL
4 XJDB-00168 [1]   BEARING-T/ROLLER
N5. XJDB-00169 [1]   HOUSING
6 XJDB-00170 [1]   PLATE-CAM
7 XJDB-00171 [1]   PLATE-RETURN
8 XJDB-00172 [1]   SPRING-BACKING
9 XJDB-00173 [1]   CYLINDER
10 XJDB-00174 [9]   PISTON ASSY
11 XJDB-00175 [4]   PLATE-LINING
12 XJDB-00176 [4]   PLATE-FREE
13 XJDB-00177 [1]   PISTON
14 XJDB-00178 [1]   O-RING
15 XJDB-00179 [2]   O-RING
16 XJDB-00014 [19]   SPRING
17 XJDB-00180 [4]   RING-TEFLON
18 XJDB-00181 [4]   PLATE-DISK
19 XJDB-00182 [4]   BUSHING
20 XJDB-00017 [2]   CAP
21 XJDB-00018 [2]   O-RING
22 XJDB-00183 [1]   BOLT-SOCKET
N23. XJDB-00184 [2]   PISTON
24 XJDB-00222 [1]   COVER
25 XJDB-00015 [2]   PIN-PARALLEL
26 XJDB-00186 [1]   PIN-PARALLEL
27 XJDB-00187 [1]   PLATE-BALANCE
28 XJDB-00188 [1]   BEARING-NEEDLE
29 XJDB-00189 [1]   RING-SNAP
30 XJDB-00190 [1]   CAP
31 XJDB-00032 [3]   O-RING
32 XJDB-00096 [2]   O-RING
33 XJDB-00191 [2]   RELIEF VALVE ASSY
34 XJDB-00073 [7]   BOLT-SOCKET
35 XJDB-00044 [2]   CAP
36 XJDB-00043 [2]   SPRING
37 XJDB-00045 [2]   RING-BACK UP
38 XJDB-00036 [2]   O-RING
39 XJDB-00042 [2]   VALVE-CHECK
40 XJDB-00033 [2]   O-RING
41 XJDB-00031 [2]   RING-BACK UP
42 XJDB-00030 [2]   BYPASS VALVE ASSY
43 XJDB-00038 [1]   VALVE-TIME DELAY
44 XJDB-00037 [3]   BOLT-SOCKET
45 XJDB-00039 [1]   O-RING
46 XJDB-00040 [2]   O-RING
*-2. @ [1]   SWING REDUCTION GEAR      SEE 4110
N. @ [AR]
