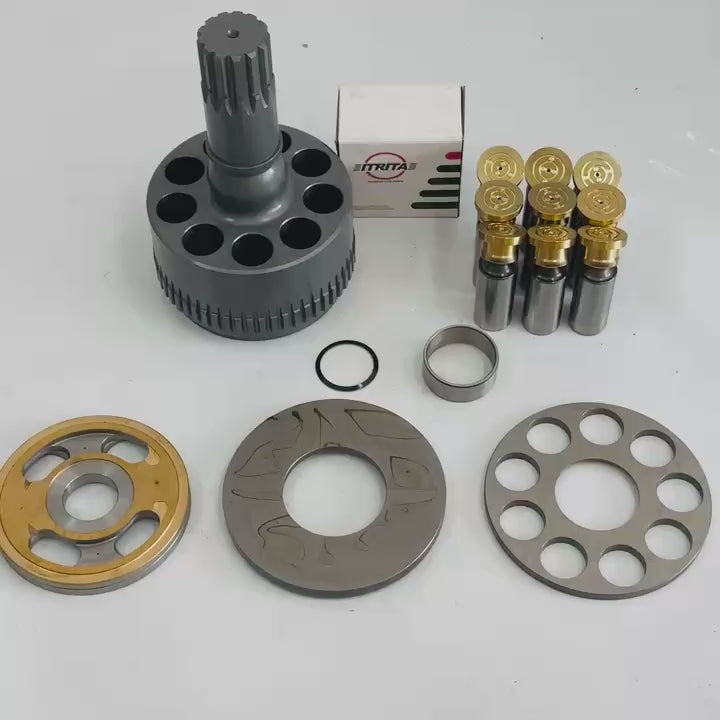

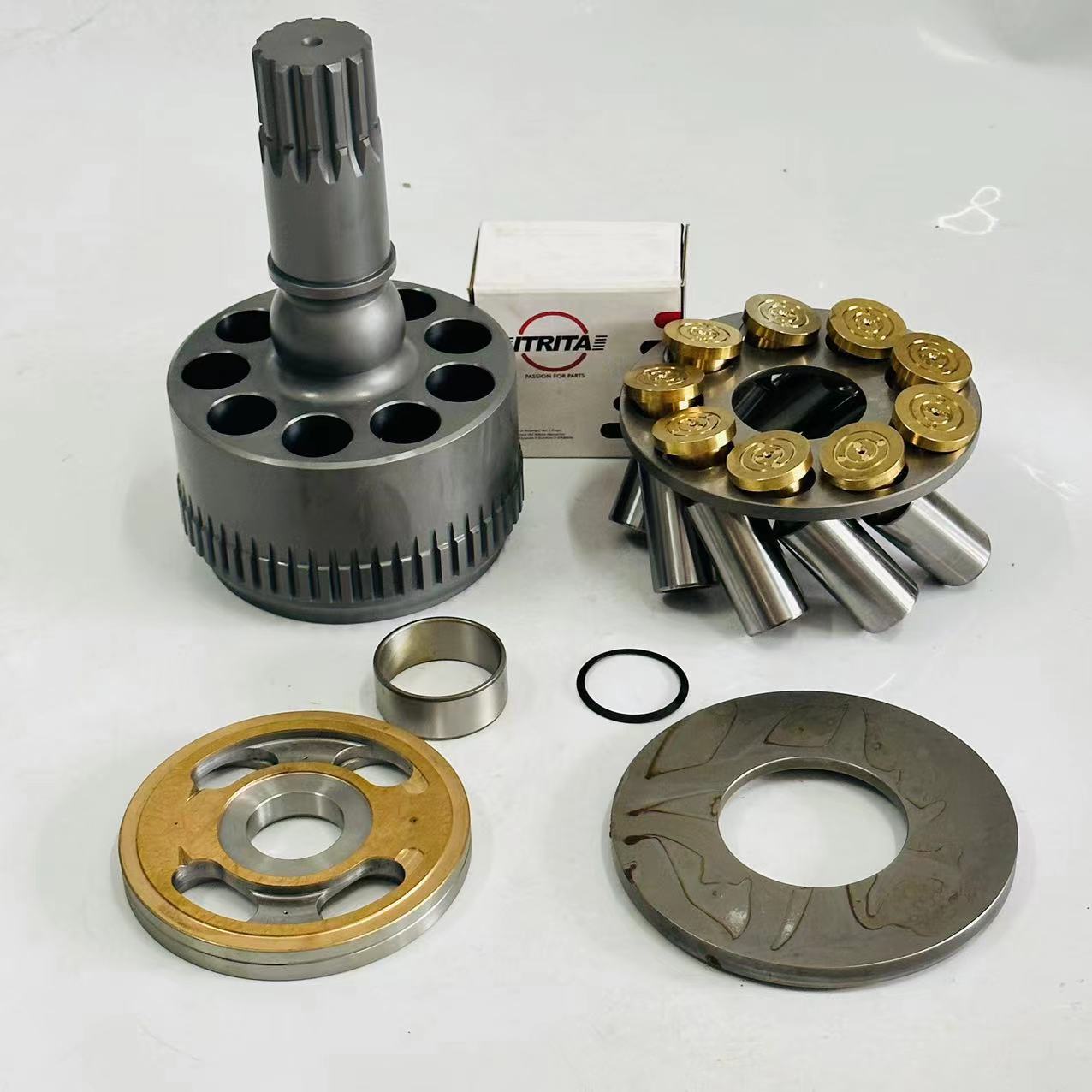

Toshiba SG08 hydraulic swing motor parts used for Sumitomo SH200 Kobelco SK230-6E SK250-8 Caterpillar E200B Kato HD700 HD800 HD820 Hyundai R200-5 R200LC R2000LC excavator

Toshiba SG08 hydraulic swing motor parts used for Sumitomo SH200 Kobelco SK230-6E SK250-8 Caterpillar E200B Kato HD700 HD800 HD820 Hyundai R200-5 R200LC R2000LC excavator

$1,000.00 USD
$1,000.00 USD
特價 售罄
結帳時計算運費。

Sumitomo SH200
Kobelco SK230-6E SK250-8
Caterpillar E200B
Kato HD700 HD800 HD820
Hyundai R200-5 R200LC R2000LC excavator

SG08=MFC160 MFB150/160
R200W-7 R210LC-7 R210NLC-7 31N6-10130 31N6-10140
Pos. Part No Qty Parts name Comments
N*. 31N6-10130 [1]   SWING MOTOR ASSY
N*-1. 31N6-10140 [1]   SWING MOTOR UNIT
1 XJDB-00002 [1]   RACE-INNER
2 XJDB-00003 [1]   SEAL-OIL
3 XJDB-00004 [1]   BEARING-ROLLER
4 XJDB-00005 [1]   SPRING-BACKING
5 XJDB-00006 [1]   PLATE-CAM
6 XJDB-00007 [1]   PLATE-RETURN
7 XJDB-00008 [9]   PISTON ASSY
8 XJDB-00009 [3]   PLATE-LINING
9 XJDB-00010 [3]   PLATE
10 XJDB-00011 [1]   O-RING
11 XJDB-00012 [1]   PISTON
12 XJDB-00013 [2]   O-RING
13 XJDB-00014 [15]   SPRING
14 XJDB-00015 [2]   PIN-PARALLEL
15 XJDB-00016 [2]   PISTON
16 XJDB-00017 [3]   CAP
17 XJDB-00018 [3]   O-RING
18 XJDB-00019 [4]   SCROWWAVE
19 XJDB-00020 [4]   RING-TEFLON
20 XJDB-00021 [4]   BUSHING
21 XJDB-00022 [1]   PLATE-BALANCE
22 XJDB-00023 [1]   BEARING-NEEDLE
23 XJDB-00024 [1]   RING-SNAP
24 XJDB-00025 [1]   CYLINDER ASSY
N25. XJDB-00026 [1]   HOUSING
26 XJDB-00027 [1]   COLLAR
27 XJDB-00028 [1]   PLUG
28 XJDB-00029 [1]   RING-SNAP
29 XJDB-00030 [2]   BYPASS VALVE ASSY
30 XJDB-00031 [2]   RING-BACK UP
31 XJDB-00032 [2]   O-RING
32 XJDB-00033 [2]   O-RING
N33. XJDB-00034 [1]   COVER
34 XJDB-00035 [2]   RELIEF VALVE ASSY
35 XJDB-00036 [4]   O-RING
36 XJDB-00037 [3]   BOLT-SOCKET
37 XJDB-00038 [1]   VALVE-TIME DELAY
38 XJDB-00039 [1]   O-RING
39 XJDB-00040 [2]   O-RING
40 XJDB-00041 [4]   BOLT-SOCKET
41 XJDB-00042 [2]   VALVE-CHECK
42 XJDB-00043 [2]   SPRING
43 XJDB-00044 [2]   CAP
44 XJDB-00045 [2]   RING-BACK UP
*-2. @ [1]   SWING REDUCTION GEAR      SEE 4110
N. @ [AR]   NOT INDIVIDUALLY SUPPLIED
