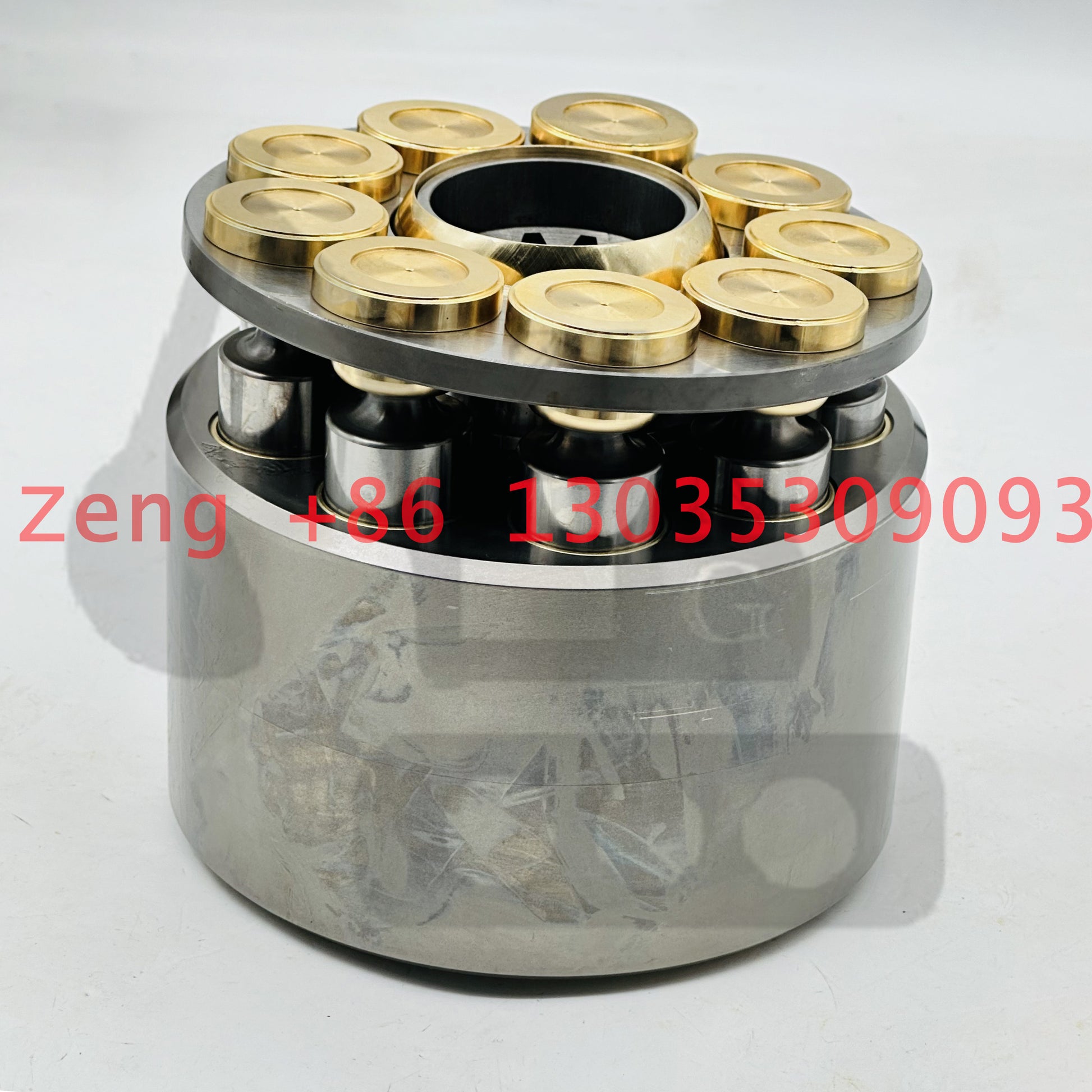

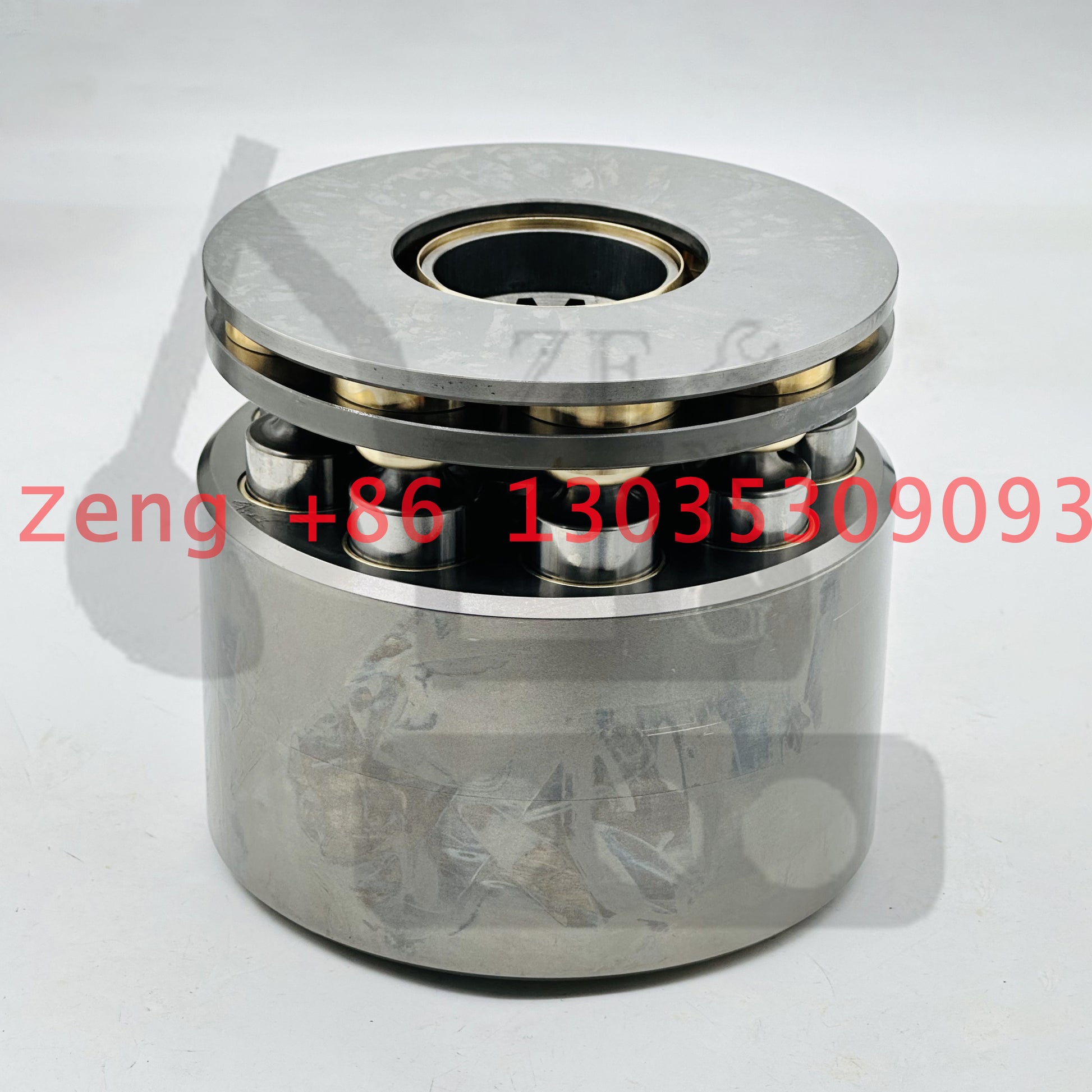

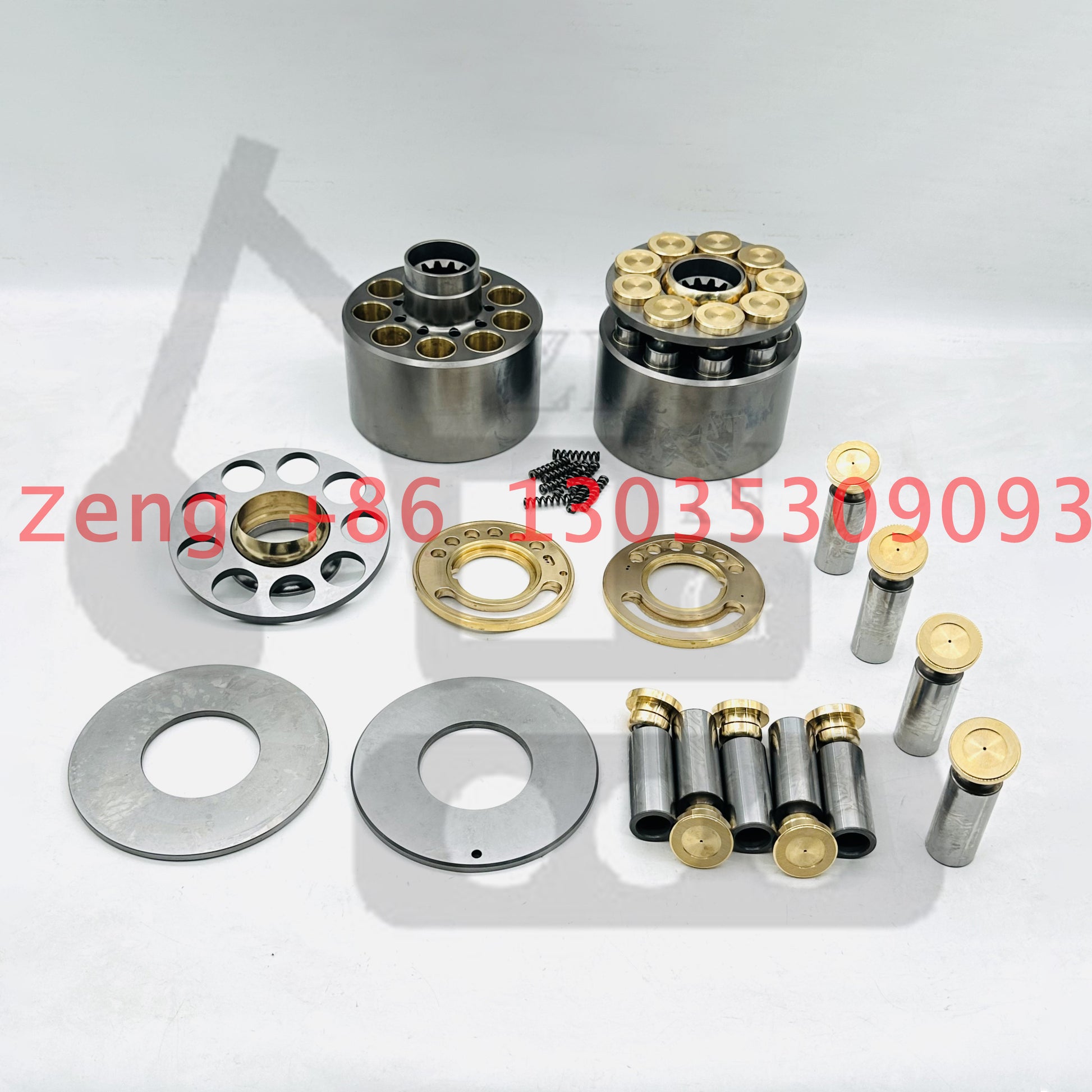

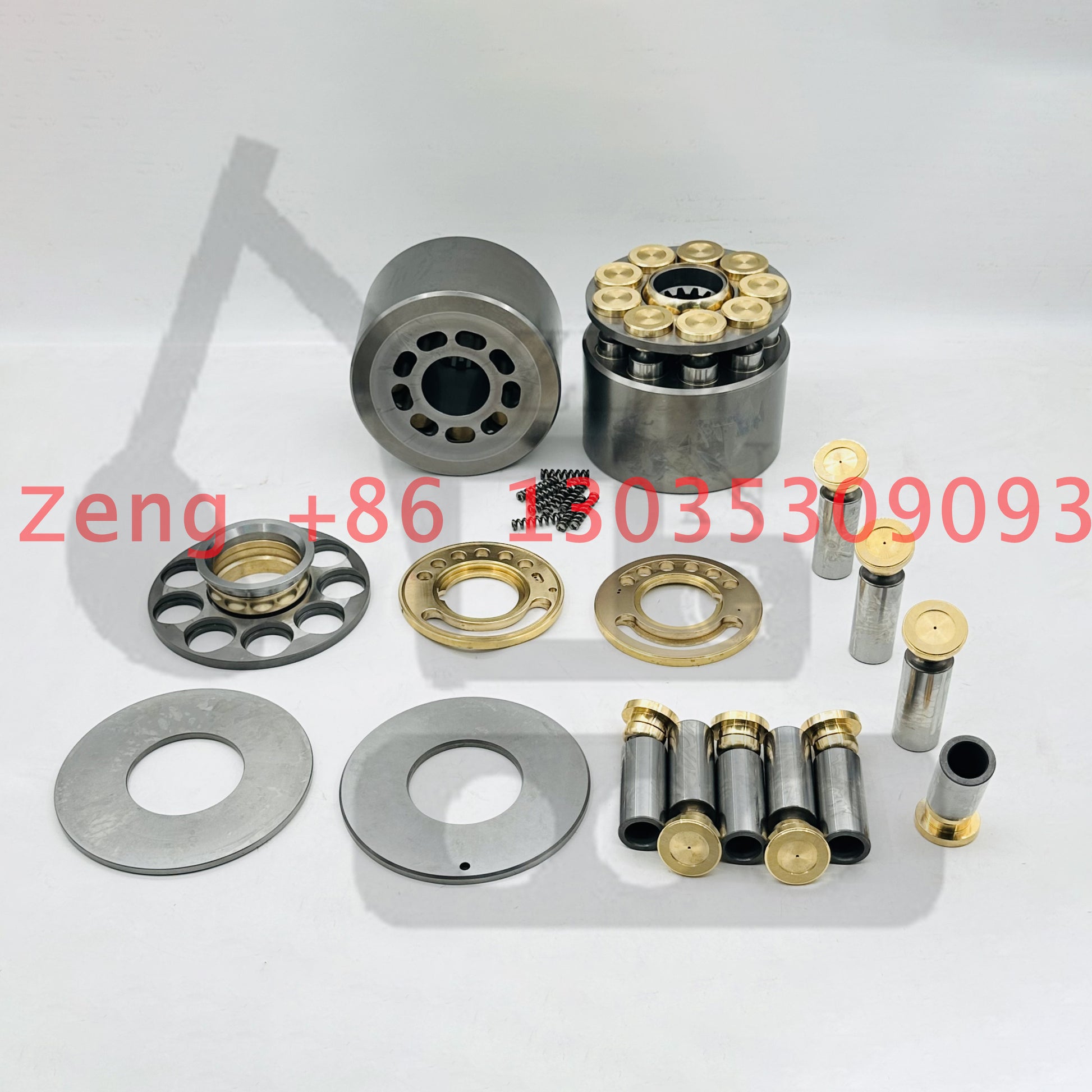

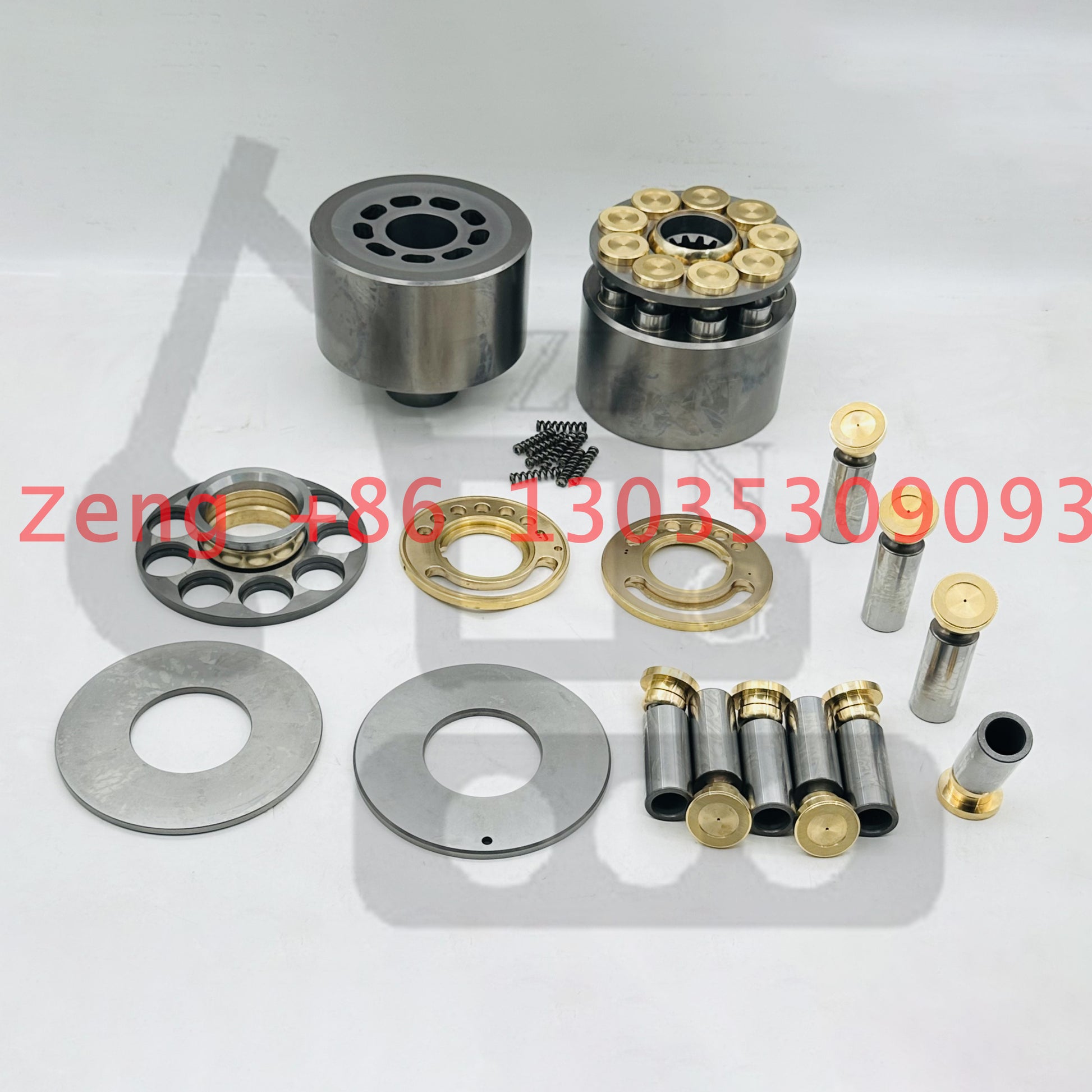

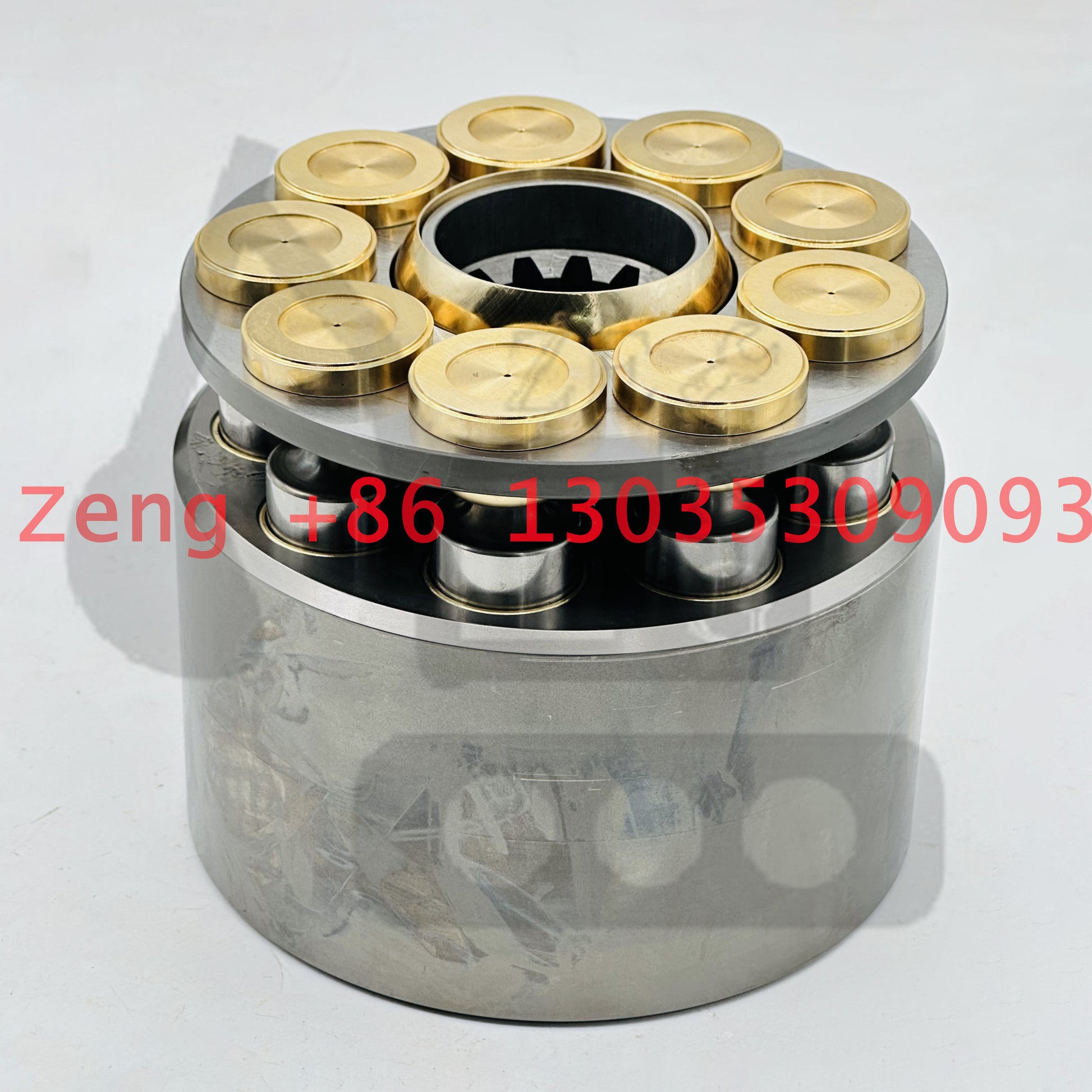

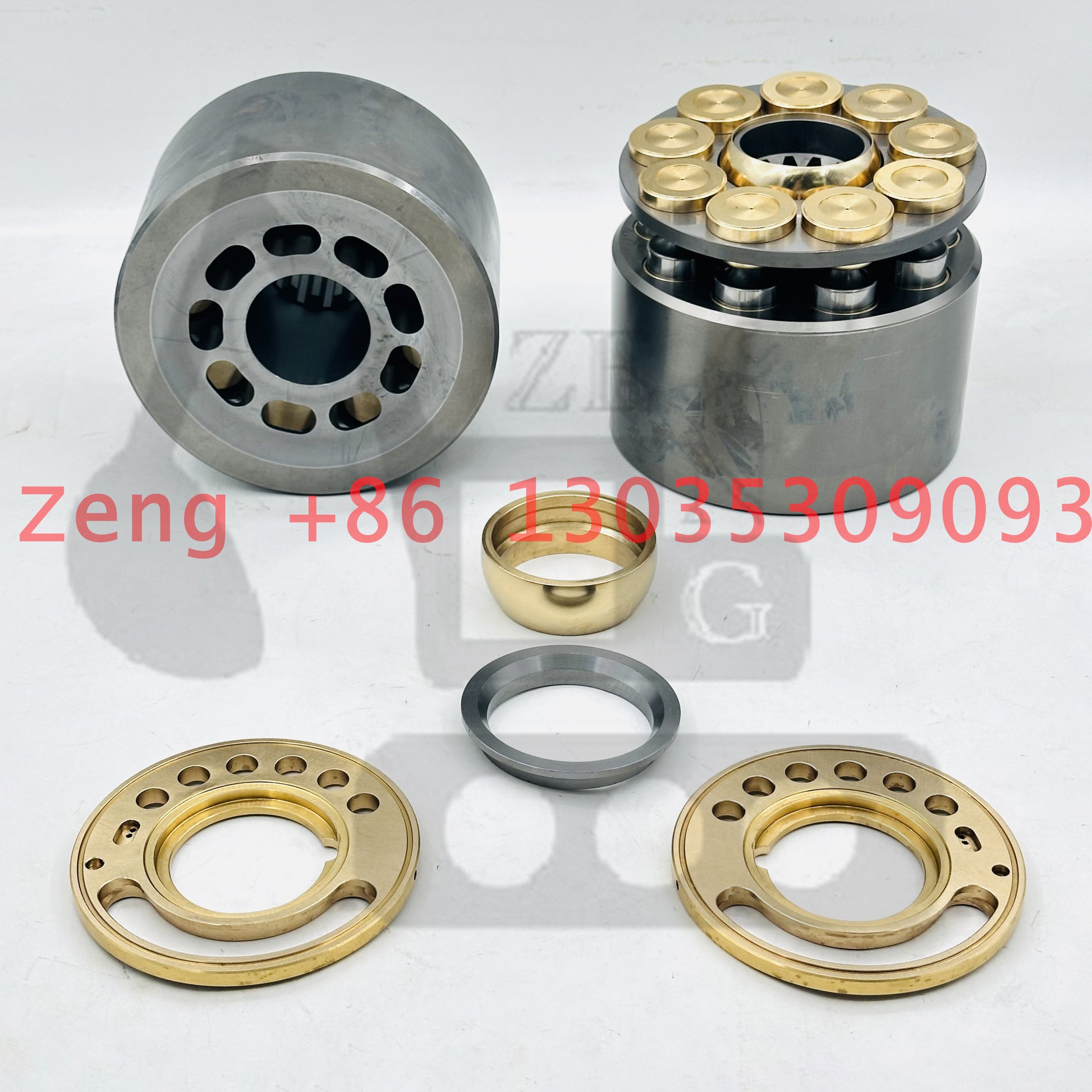

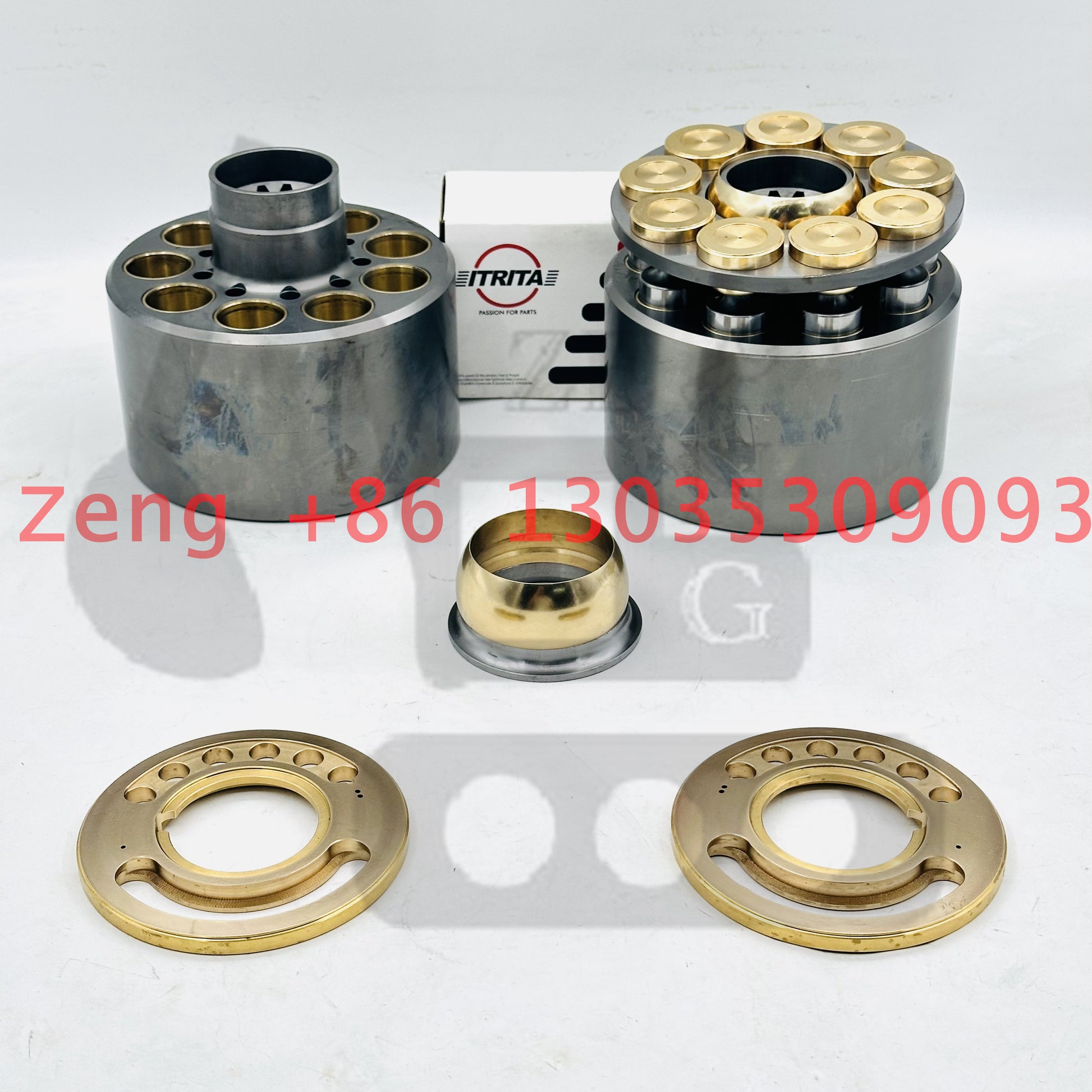

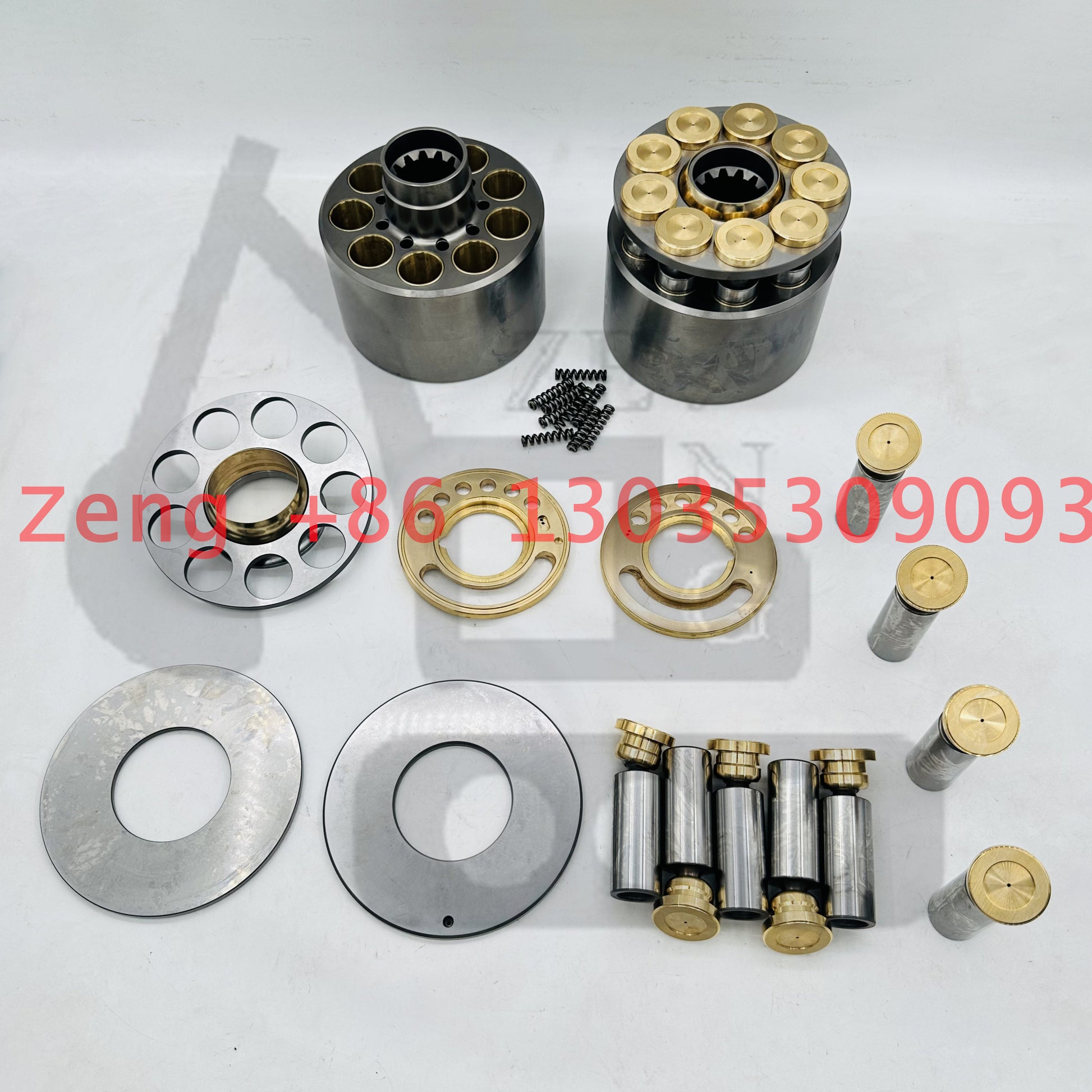

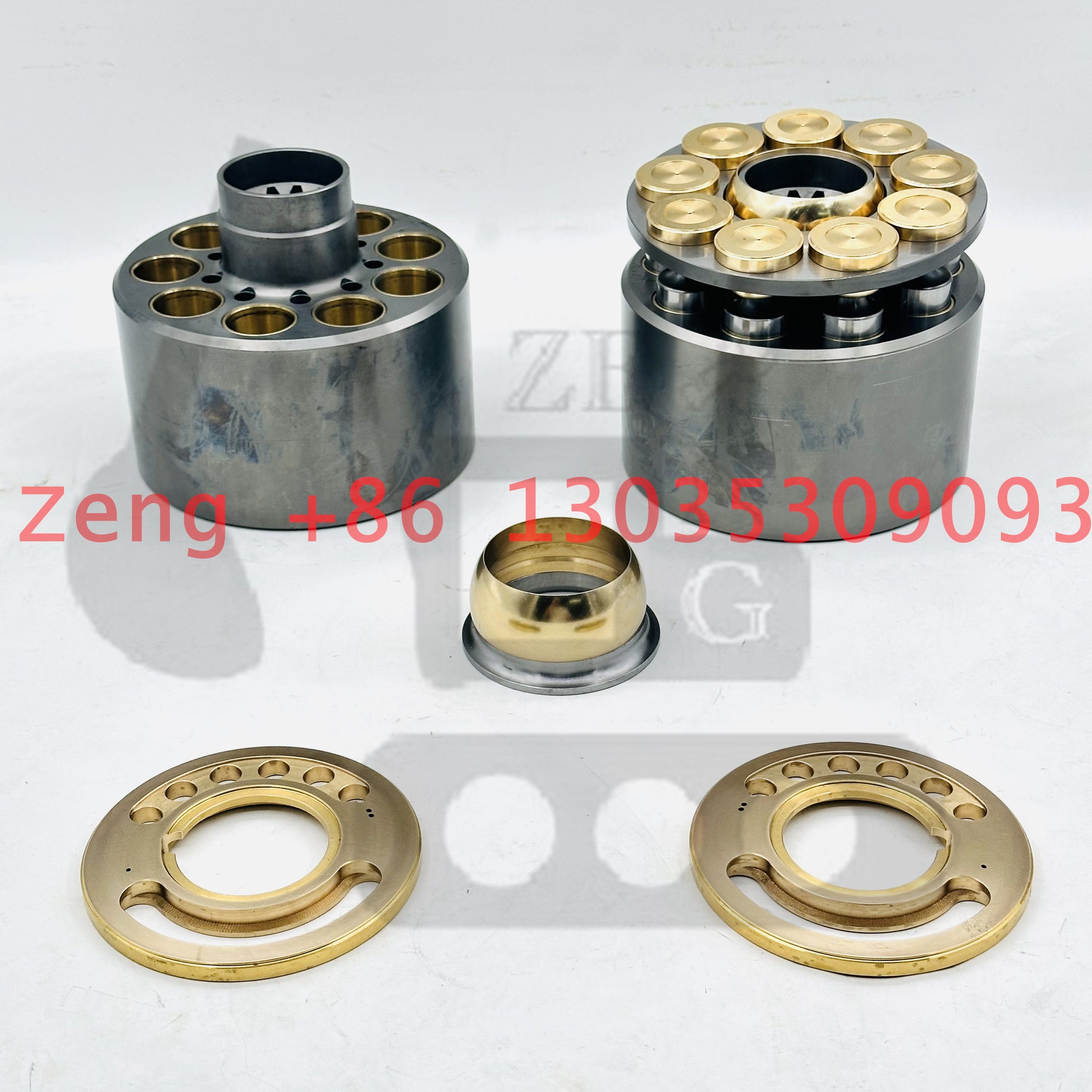

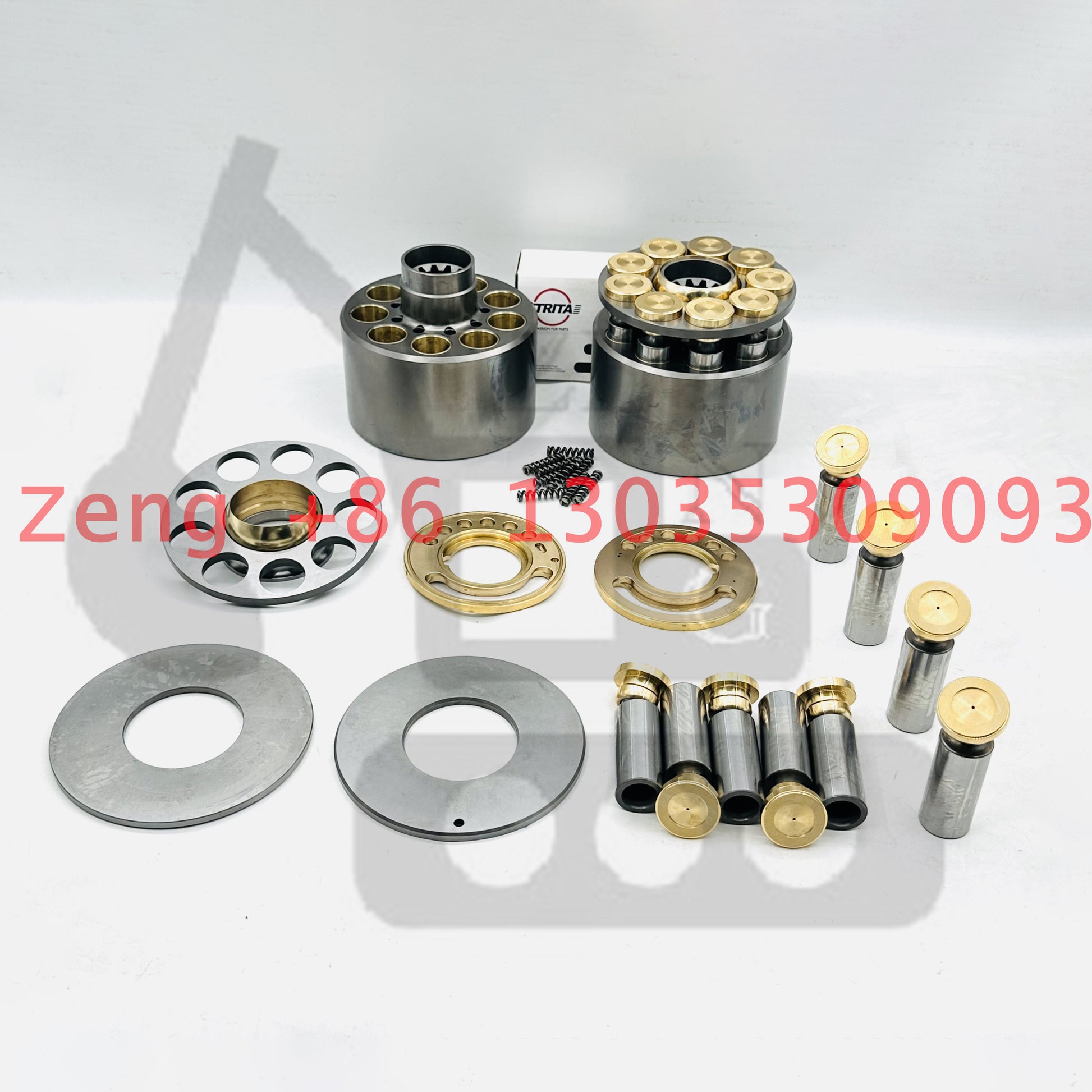

SBS140 hydraulic pump parts

SBS140 hydraulic pump parts

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。

CAT322C CAT324E CAT325C CAT329D

SBS140 AP-14 (E325C/D)
233-1115 272-6959   CAT325D CAT325DFM CAT325DFMLL CAT325DL CAT325DMH CAT328DLCR CAT329D CAT329DL CAT329DLN
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 4I-1022 [2] ORIFICE
2 7Y-4215 [2] SPACER
3 096-3983 [1] RING-RETAINING
4 096-4389 [18] SPRING
5 126-2016 [1] PUMP GP-GEAR (PILOT)
9T-0835 [1] RING-RETAINING
250-2503 [1] KIT-SEAL (PILOT GEAR PUMP)
  (INCLUDES GASKETS, SEALS & RETAINING-RING)
6 129-7854 [1] CASE
7 129-7855 [1] GASKET
8 129-7857 [1] GASKET
9 194-8325 [2] SET-BEARING
10 129-7863 [1] COVER
11 129-7921 [2] RING-RETAINING
12 341-2862 [1] SEAL-LIP TYPE
13 129-7927 [2] BEARING
14 129-7979 [4] DOWEL
15 150-5782 [2] COVER
16 225-4541 [1] SHAFT-DRIVE
17 173-3427 [2] GUIDE-BALL
18 129-7853 [2] PLATE
19 256-0081 [1] BARREL AS-DRIVE
20 256-0083 [1] BARREL AS-PUMP
21 177-2470 [1] COVER
22 177-2471 [1] COVER
23 273-8314 [1] SEAL-O-RING
24 179-9763 [1] FLANGE
25 188-4210 [2] PISTON AS
26 192-0573 [4] PIN-DOWEL
27 200-3333 [1] HEAD-PUMP
28 200-3334 [1] COVER
29 225-4542 [1] SHAFT-DRIVEN
30 256-0074 Y [1] ACTUATOR GP-PUMP (DRIVE)
31 256-0077 Y [1] ACTUATOR GP-PUMP (DRIVEN)
32 373-9516 [2] SWASHPLATE AS
  (EACH INCLUDES)
094-1875 [1] DOWEL
32A. 173-3428 [1] BUSHING
242-6803 [2] PIN-DOWEL
33 373-9518 [4] BEARING AS
  (INCLUDES INNER & OUTER BEARINGS)
34 9S-4185 [2] PLUG (3/4-16-THD)
35 247-8782 [1] BODY
36 247-8920 [2] ORIFICE
37 094-1875 [6] DOWEL
38 094-1882 [16] PLUG
39 095-0946 [2] RING-RETAINING
40 8T-4196 M [2] BOLT (M10X1.5X35-MM)
41 096-3944 [1] SEAL-O-RING
42 189-9763 [8] SEAL-O-RING
43 190-4896 [2] PLUG
44 193-1736 [4] SEAL-O-RING
45 3K-0360 [2] SEAL-O-RING
46 7M-8485 [2] SEAL-O-RING
47 7X-2557 M [1] BOLT (M16X2X140-MM)
48 8J-4645 [2] PLUG (STRAIGHT THREAD O-RING)
49 273-8315 [2] SEAL-O-RING
50 8T-4136 M [18] BOLT (M10X1.5X25-MM)
51 8T-4137 M [2] BOLT (M10X1.5X20-MM)
52 8T-4139 M [10] BOLT (M12X1.75X30-MM)
53 8T-4140 M [4] BOLT (M16X2X60-MM)
54 8T-4175 M [2] BOLT (M16X2X90-MM)
55 8T-4176 M [2] BOLT (M12X1.75X90-MM)
56 8T-4192 M [10] BOLT (M12X1.75X25-MM)
M   METRIC PART
Y   SEPARATE ILLUSTRATION
