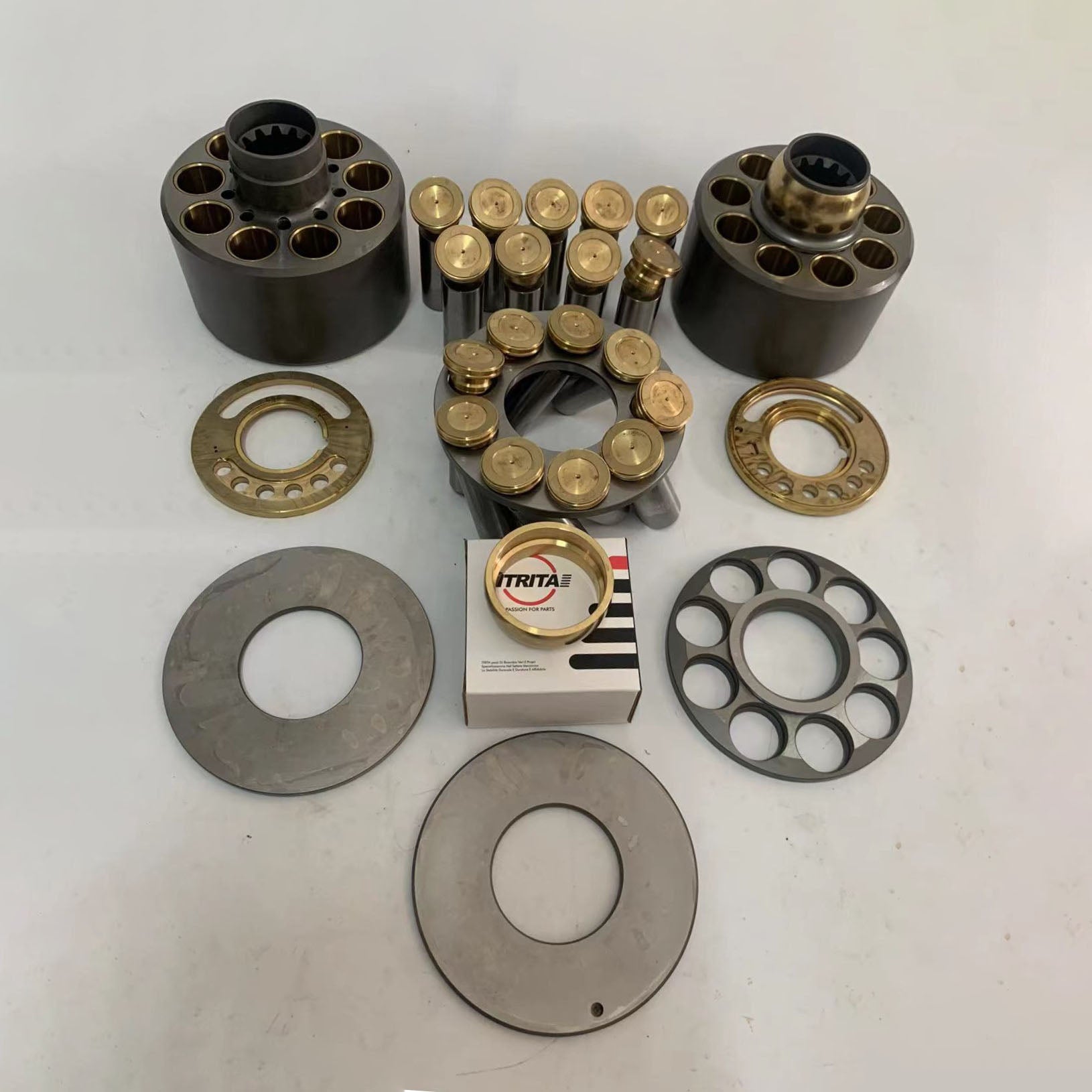

Caterpillar SBS140 hydraulic main pump rotary group and spare parts for Caterpillar CAT322 CAT324 CAT325C CAT329 excavator

Caterpillar SBS140 hydraulic main pump rotary group and spare parts for Caterpillar CAT322 CAT324 CAT325C CAT329 excavator

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。

Model：Caterpillar SBS140
Part number：
Application：E324E E322C  E325C E329E E329D
Brand：ITRITA
Material：Aluminum and Steel
Place of production：China
Delivey time：within 3 days
Payment：Western Union，T/T
Warranty（in China）：3 months

SBS140 AP-14 (E325C/D)
233-1115 272-6959   CAT325D CAT325DFM CAT325DFMLL CAT325DL CAT325DMH CAT328DLCR CAT329D CAT329DL CAT329DLN
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1 4I-1022 [2] ORIFICE
2 7Y-4215 [2] SPACER
3 096-3983 [1] RING-RETAINING
4 096-4389 [18] SPRING
5 126-2016 [1] PUMP GP-GEAR (PILOT)
9T-0835 [1] RING-RETAINING
250-2503 [1] KIT-SEAL (PILOT GEAR PUMP)
  (INCLUDES GASKETS, SEALS & RETAINING-RING)
6 129-7854 [1] CASE
7 129-7855 [1] GASKET
8 129-7857 [1] GASKET
9 194-8325 [2] SET-BEARING
10 129-7863 [1] COVER
11 129-7921 [2] RING-RETAINING
12 341-2862 [1] SEAL-LIP TYPE
13 129-7927 [2] BEARING
14 129-7979 [4] DOWEL
15 150-5782 [2] COVER
16 225-4541 [1] SHAFT-DRIVE
17 173-3427 [2] GUIDE-BALL
18 129-7853 [2] PLATE
19 256-0081 [1] BARREL AS-DRIVE
20 256-0083 [1] BARREL AS-PUMP
21 177-2470 [1] COVER
22 177-2471 [1] COVER
23 273-8314 [1] SEAL-O-RING
24 179-9763 [1] FLANGE
25 188-4210 [2] PISTON AS
26 192-0573 [4] PIN-DOWEL
27 200-3333 [1] HEAD-PUMP
28 200-3334 [1] COVER
29 225-4542 [1] SHAFT-DRIVEN
30 256-0074 Y [1] ACTUATOR GP-PUMP (DRIVE)
31 256-0077 Y [1] ACTUATOR GP-PUMP (DRIVEN)
32 373-9516 [2] SWASHPLATE AS
  (EACH INCLUDES)
094-1875 [1] DOWEL
32A. 173-3428 [1] BUSHING
242-6803 [2] PIN-DOWEL
33 373-9518 [4] BEARING AS
  (INCLUDES INNER & OUTER BEARINGS)
34 9S-4185 [2] PLUG (3/4-16-THD)
35 247-8782 [1] BODY
36 247-8920 [2] ORIFICE
37 094-1875 [6] DOWEL
38 094-1882 [16] PLUG
39 095-0946 [2] RING-RETAINING
40 8T-4196 M [2] BOLT (M10X1.5X35-MM)
41 096-3944 [1] SEAL-O-RING
42 189-9763 [8] SEAL-O-RING
43 190-4896 [2] PLUG
44 193-1736 [4] SEAL-O-RING
45 3K-0360 [2] SEAL-O-RING
46 7M-8485 [2] SEAL-O-RING
47 7X-2557 M [1] BOLT (M16X2X140-MM)
48 8J-4645 [2] PLUG (STRAIGHT THREAD O-RING)
49 273-8315 [2] SEAL-O-RING
50 8T-4136 M [18] BOLT (M10X1.5X25-MM)
51 8T-4137 M [2] BOLT (M10X1.5X20-MM)
52 8T-4139 M [10] BOLT (M12X1.75X30-MM)
53 8T-4140 M [4] BOLT (M16X2X60-MM)
54 8T-4175 M [2] BOLT (M16X2X90-MM)
55 8T-4176 M [2] BOLT (M12X1.75X90-MM)
56 8T-4192 M [10] BOLT (M12X1.75X25-MM)
M   METRIC PART
Y   SEPARATE ILLUSTRATION
