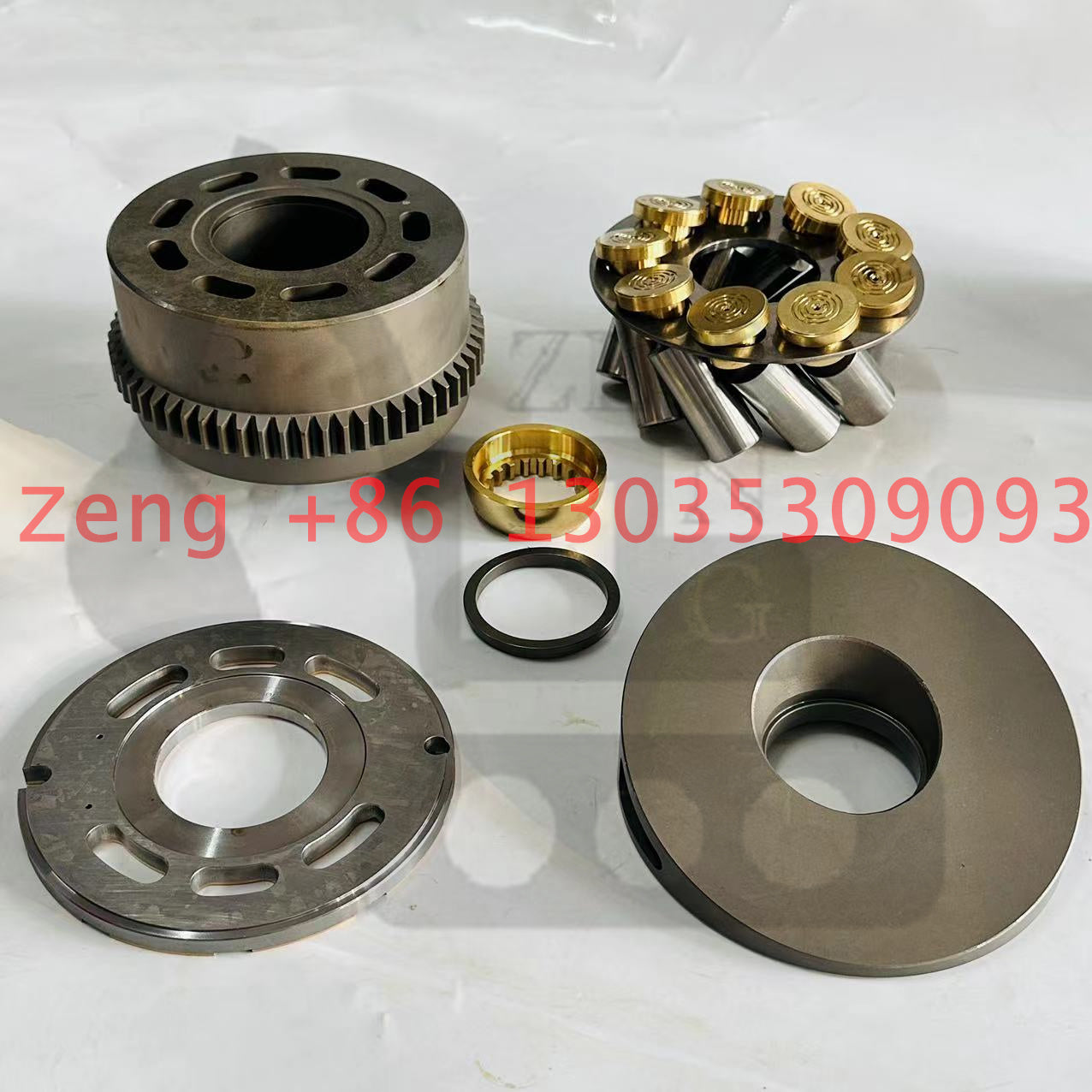

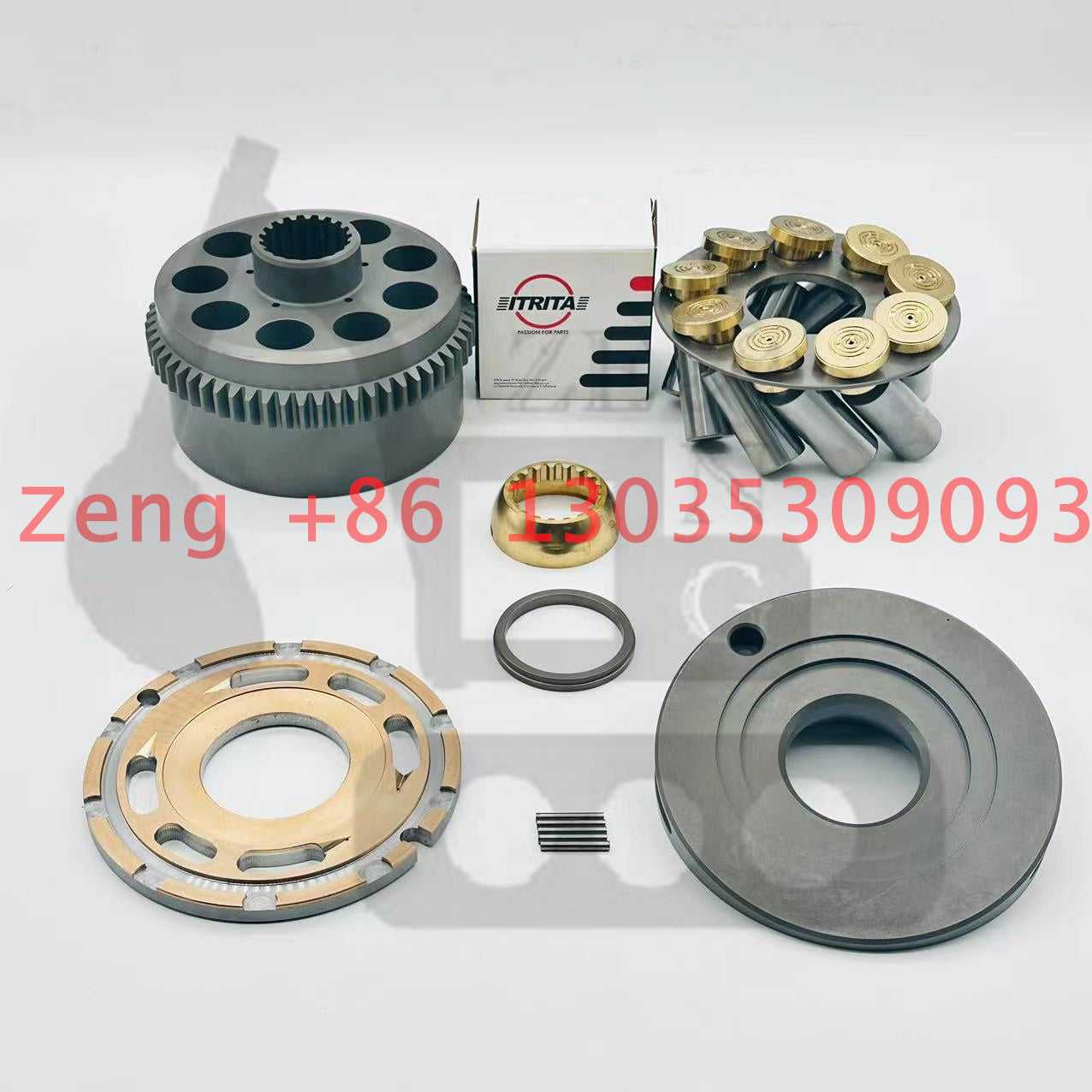

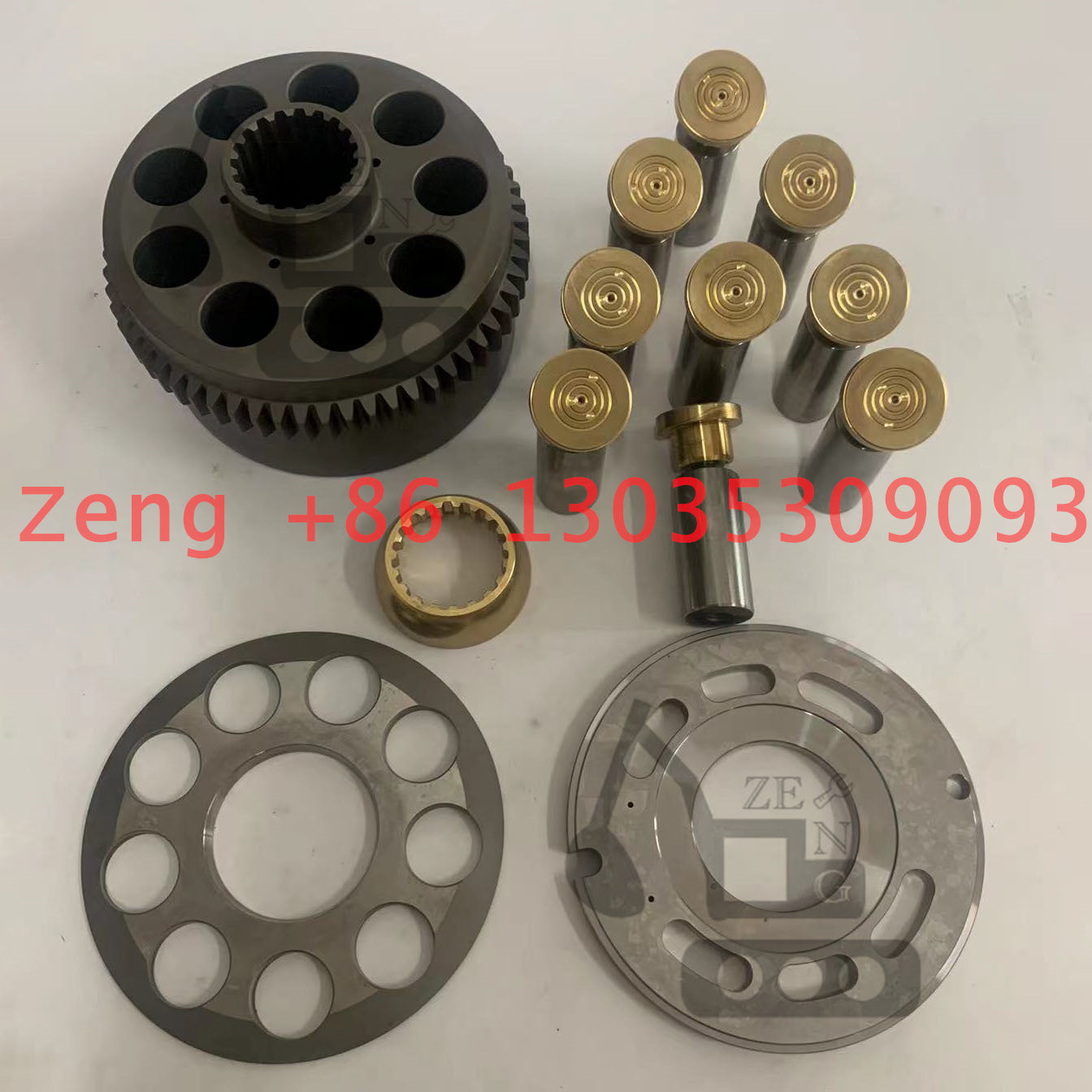

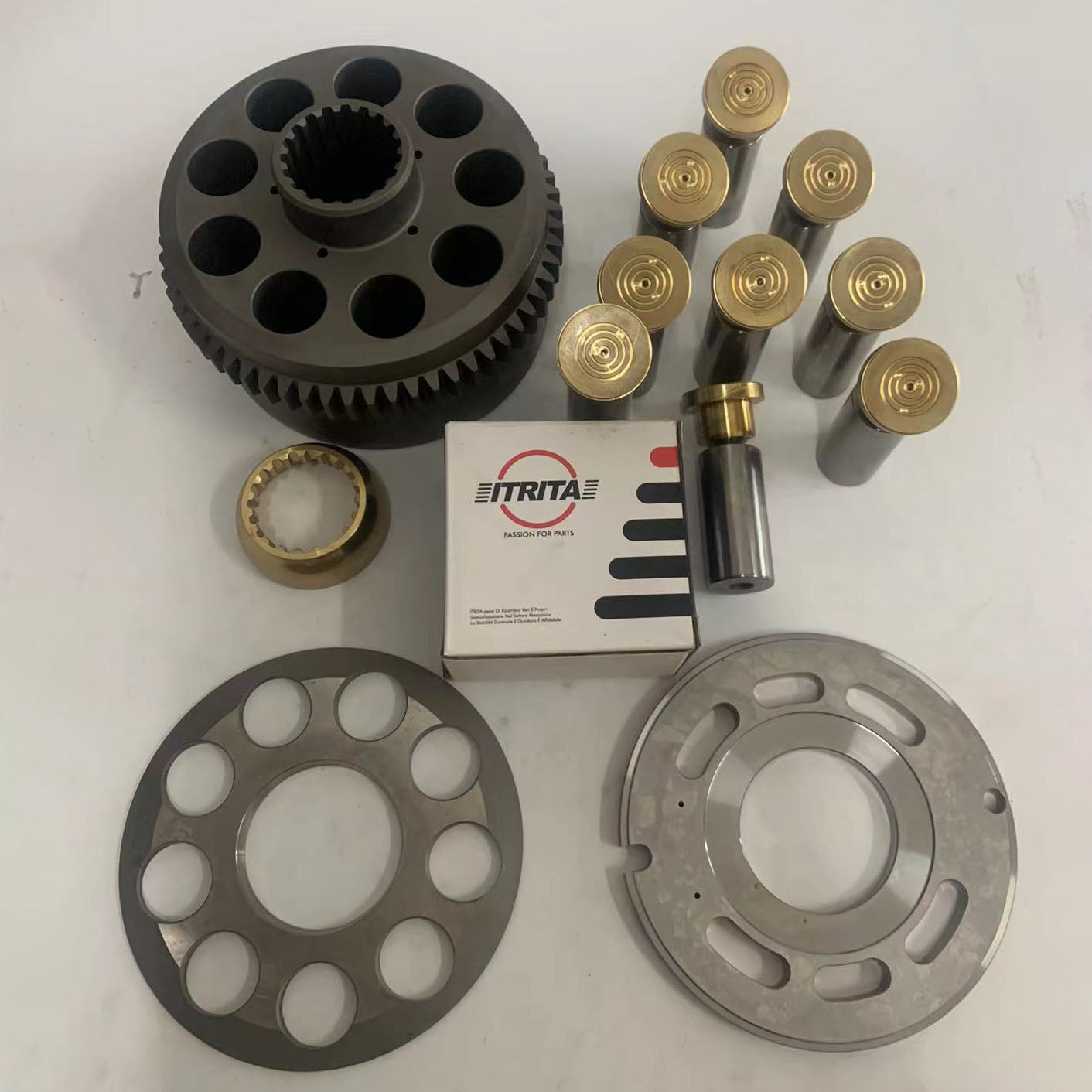

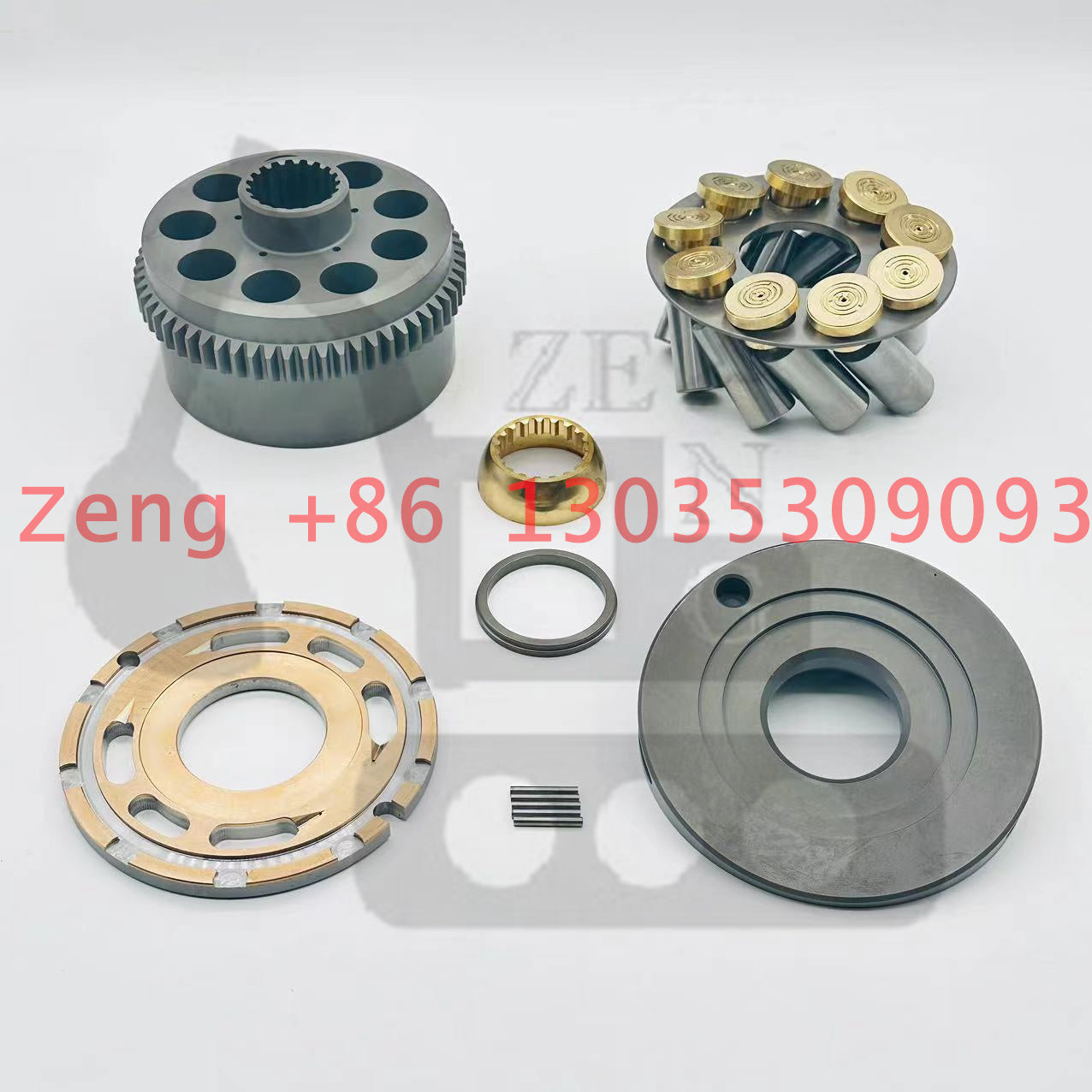

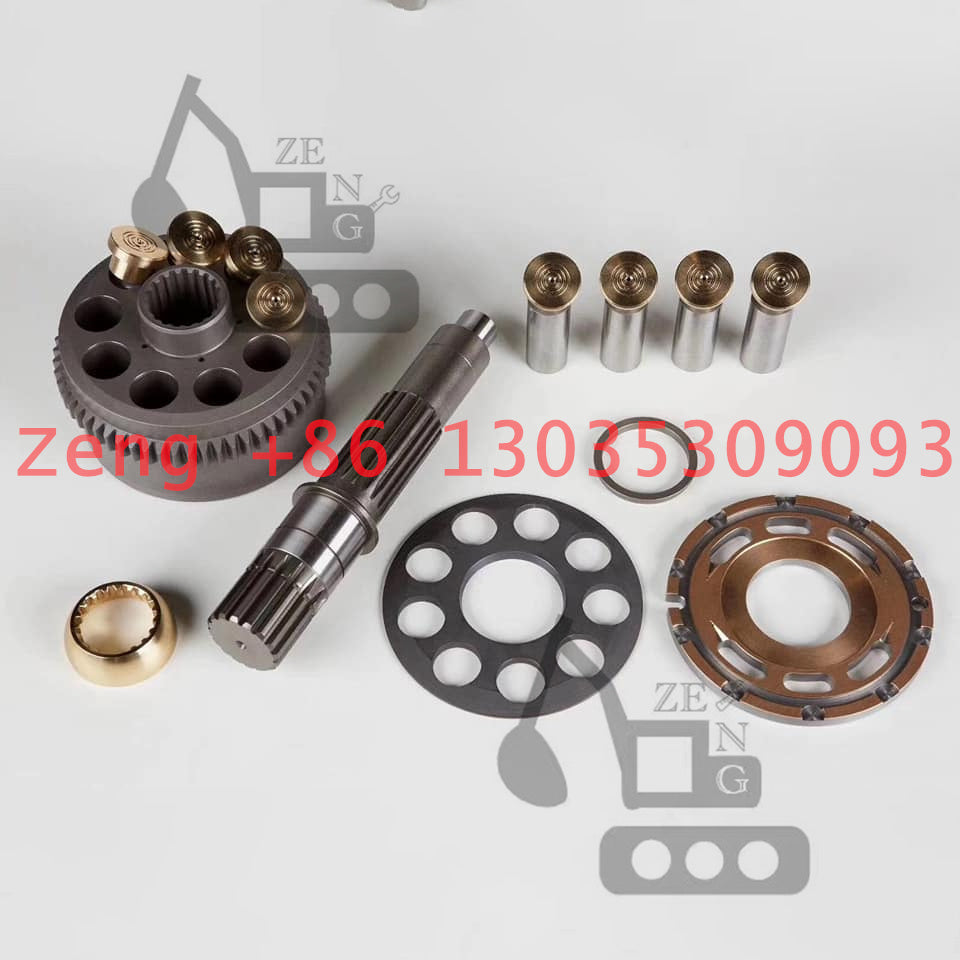

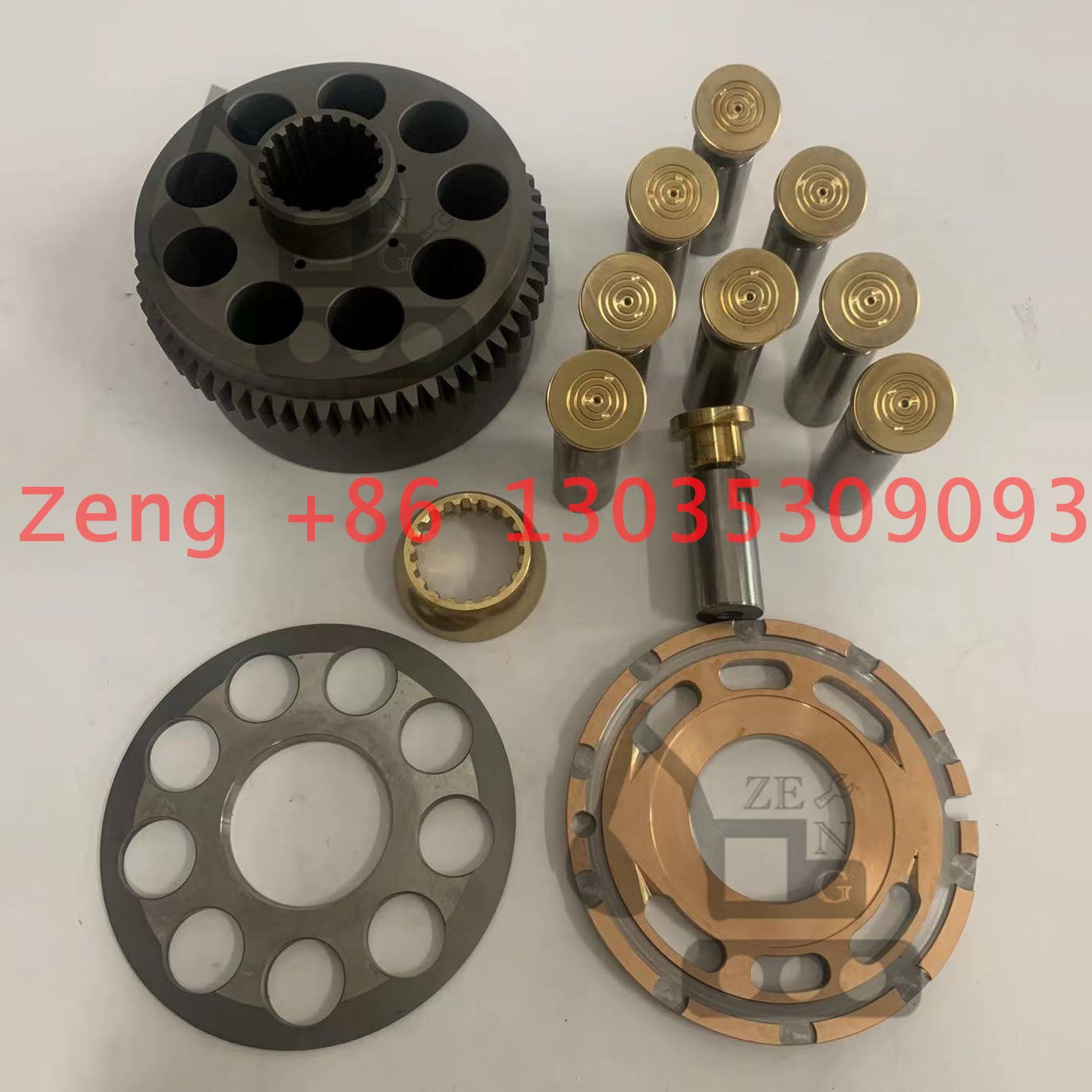

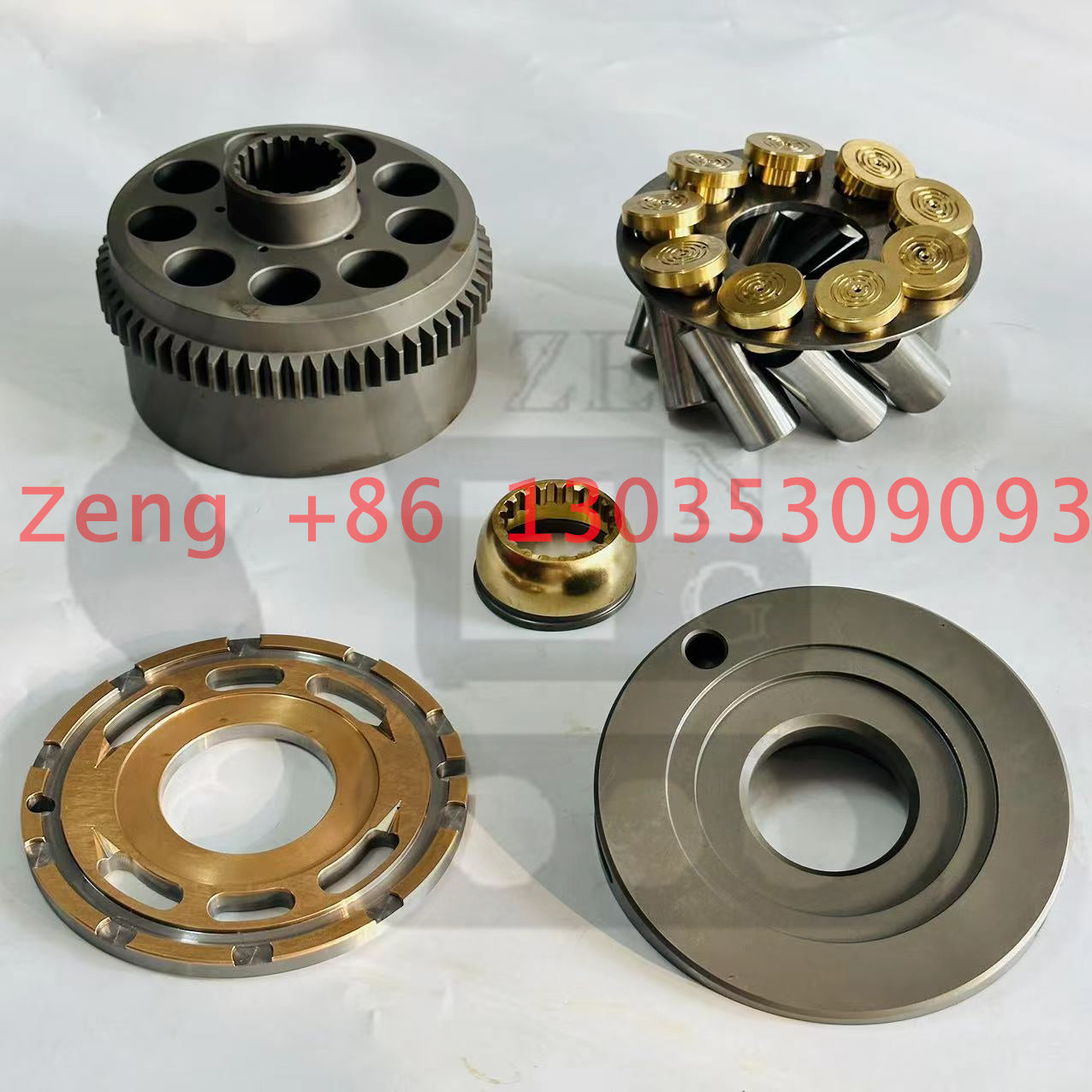

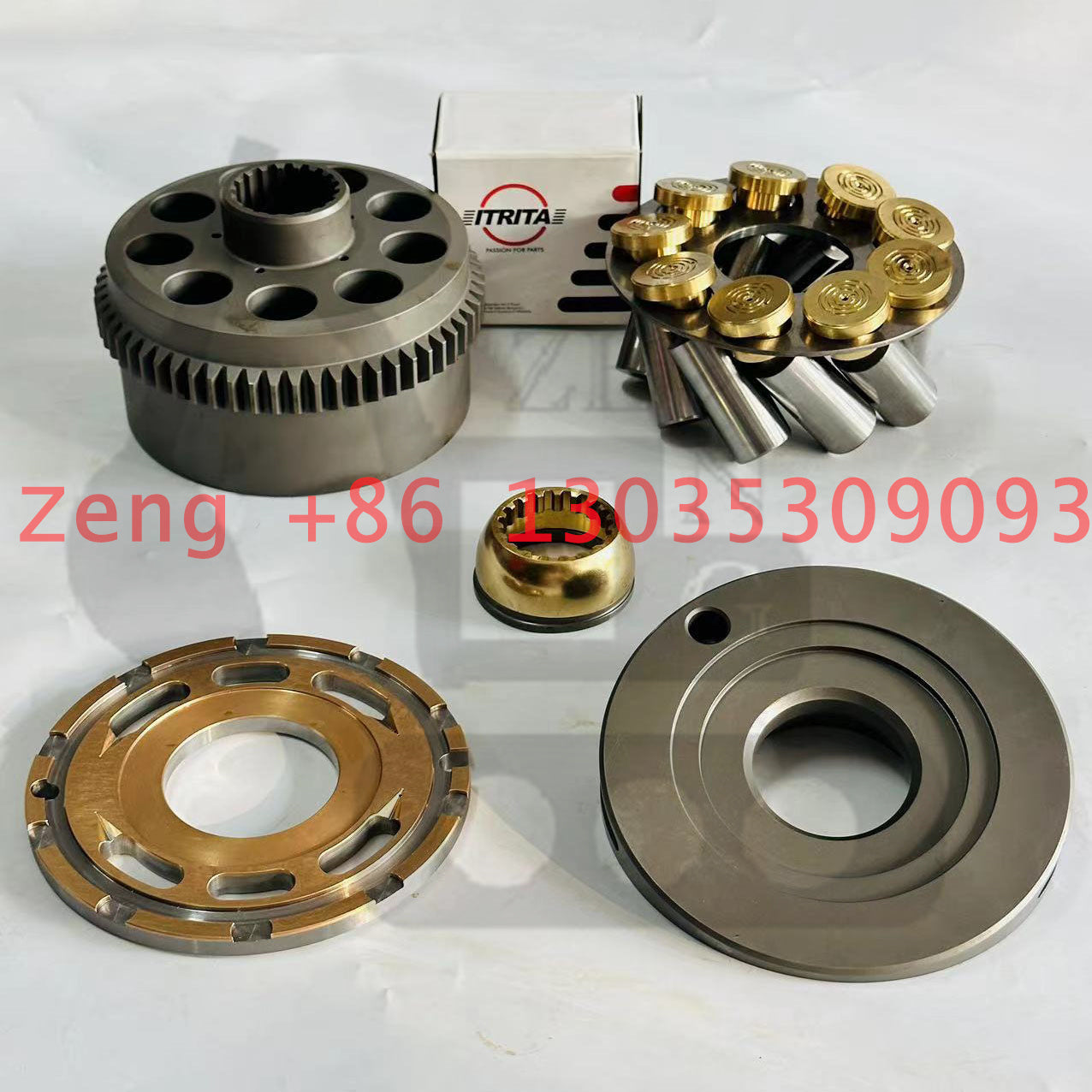

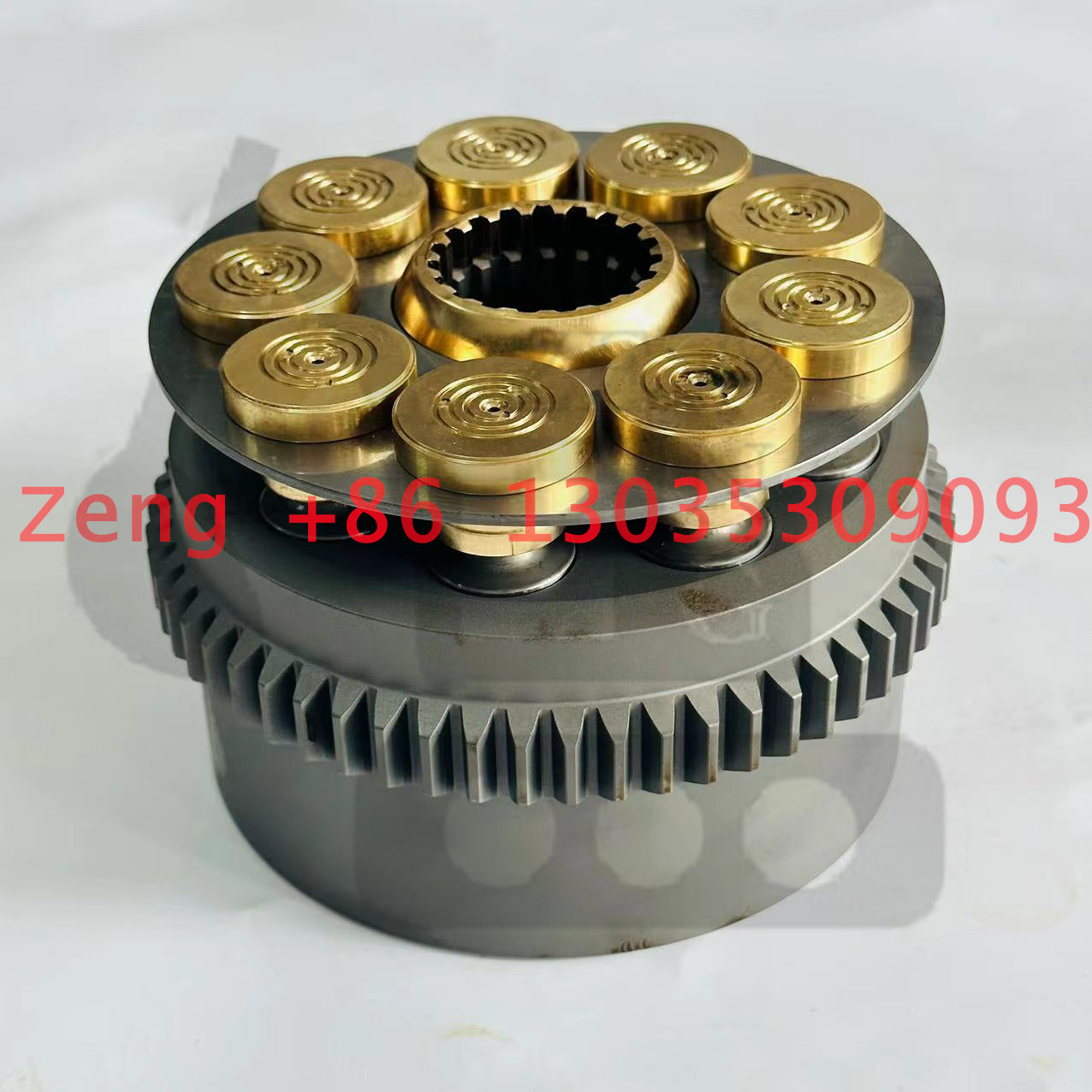

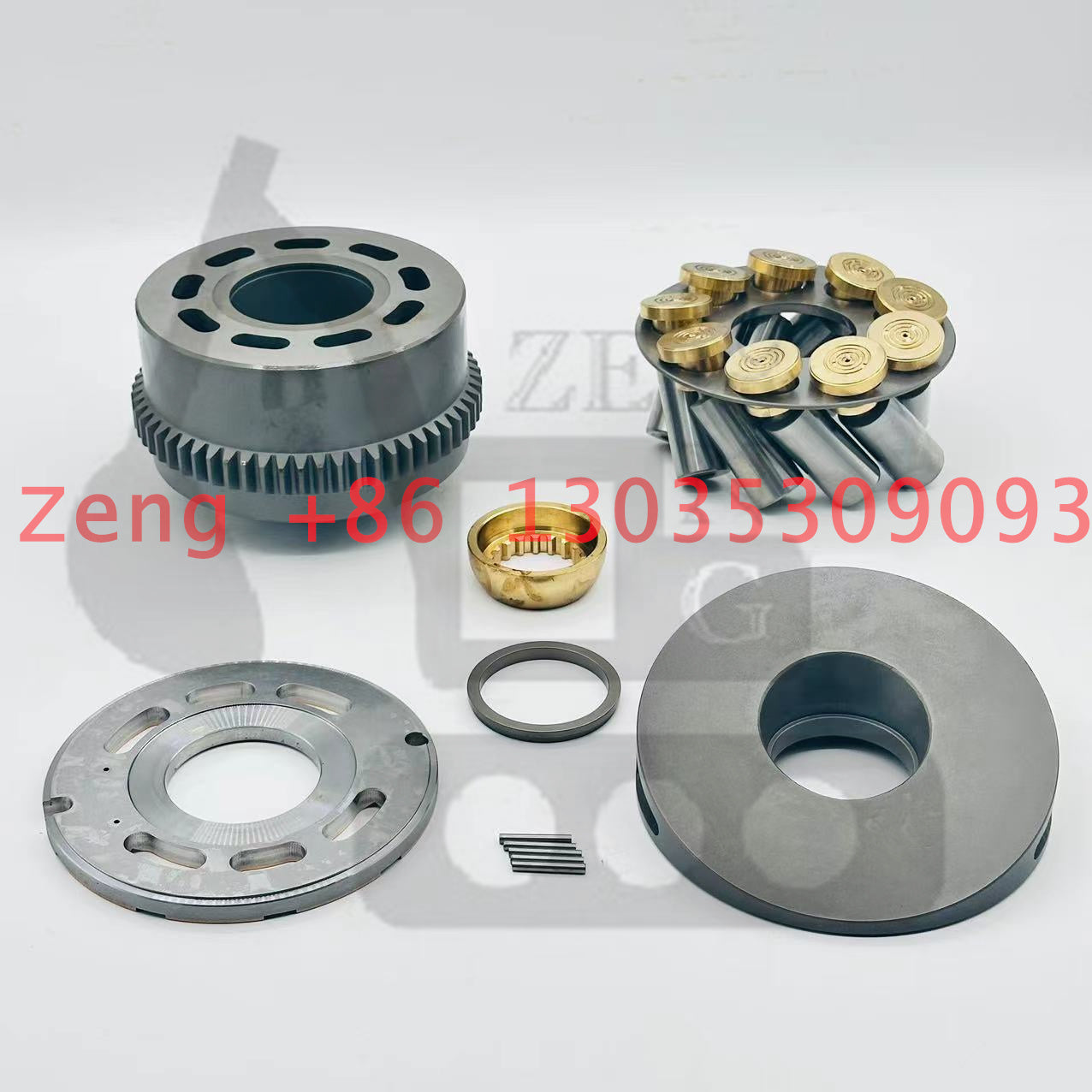

Kawasaki TSM140 hydraulic swing motor rotary group and spare parts for Doosan DX215-9 DX225-9，Daewoo DH215-9 DH225-9 excavator

Kawasaki TSM140 hydraulic swing motor rotary group and spare parts for Doosan DX215-9 DX225-9，Daewoo DH215-9 DH225-9 excavator

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
DX215-9HM
DX225-7/9HM DX500HM
TSM140 K1000697A K1000777A DX180LC DX190W DX210 DX210W DX225LC DX225LCA DX225LL DX225NLC DX230LC DX235LCR DX235NLC DX480LC DX520LC
Pos. Part No Qty Parts name Comments
*. K9001903 [1]   SEAL KIT;SWING MOTOR
-. K1000697A [1]   SWING MOTOR
101 *NA00351 [1]   CASING;VALVE
102 2.121-00009 [2]   PLUG
103 K9001840 [2]   SPRING
104 K9001841 [2]   PLUNGER
105 1.420-00016 [1]   VALVE;SWING REACTIONLESS
106 S8000341 [2]   O-RING
107 1.420-00111 [2]   VALVE;RELIEF
108 S6005050 [1]   BEARING;BALL
109 S2227561 [4]   BOLT;SOCKET
110 2181-1950D1 [2]   PLUG
111 S8000111 [2]   O-RING
112 K9001842 [1]   O-RING
113 S5741162 [2]   PIN;SPRING
201 K9001843 [1]   SHAFT;DRIVE
202 K9001844 [1]   PLATE;SWASH
203 K9001845 [1]   PISTON & SHOE ASS'Y
205 K9001846 [1]   BLOCK;CYLINDER
206 1.148-00015 [1]   BALL;THRUST
207 1.412-00092 [1]   PLATE;RETAINER
208 1.114-00009 [1]   COLLAR
209 1.109-00134 [5]   ROLLER
210 1.114-00286 [2]   WASHER
211 1.131-00048 [1]   SPRING
212 S6510620 [1]   RING;SNAP
213 K9001847 [1]   PLATE;TIMING
301 K9001848 [1]   CASING
302 180-00219 [1]   SEAL;OIL
303 S6005090 [1]   BEARING;BALL
304 1.123-00053 [1]   PIN,PARALLEL
305 352-00014 [3]   PLATE,SEPARATION
306 412-00013 [2]   PLATE,FRICTION
307 180-00220 [1]   O-RING
308 180-00221 [1]   O-RING
309 452-00020 [1]   PISTON;BRAKE
310 129-00062 [18]   SPRING;BRAKE
311 181-00346 [1]   PLUG
312 2181-1116D2 [1]   PLUG
313 2181-1950D1 [1]   PLUG
314 S8000111 [1]   O-RING
400 420-00110 [1]   VALVE;BRAKE

Model：Kawasaki TSM140
Part number：
Application：Doosan DX215-9 DX225-9，Daewoo DH215-9 DH225-9 excavator
Brand：ITRITA
Material：Aluminum and Steel
Place of production：China
Delivey time：within 3 days
Payment：Western Union，T/T
Warranty（in China）：3 months
