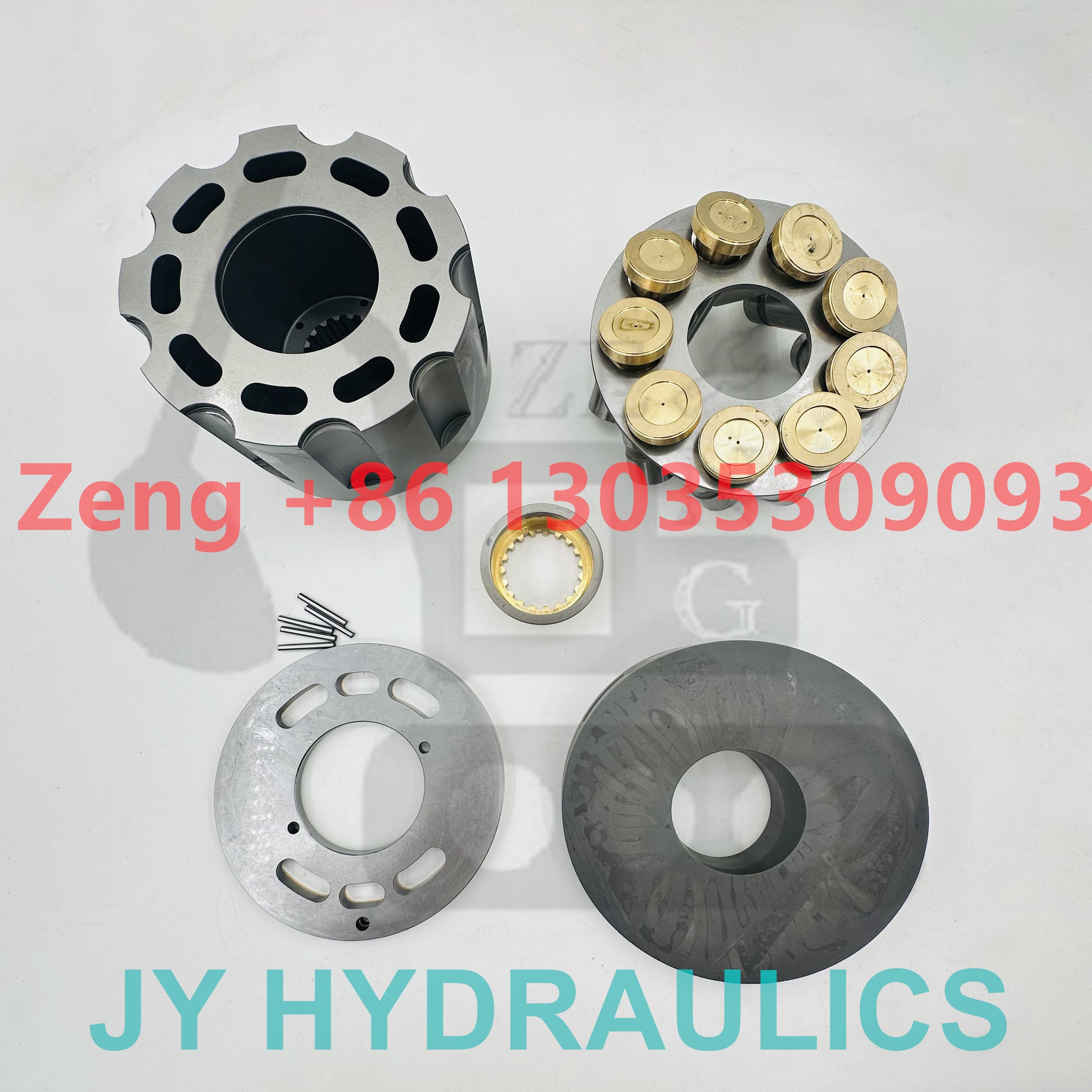

HYUNDAI R210LC-3 R210LC-3H R210LC-7 excavator 31N6-40010 travel motor rotary group and spare parts

HYUNDAI R210LC-3 R210LC-3H R210LC-7 excavator 31N6-40010 travel motor rotary group and spare parts

$2,000.00 USD
$2,000.00 USD
特價 售罄
結帳時計算運費。
31N6-40010 R210LC-3 R210LC-3H R210LC-7
Pos. Part No Qty Parts name Comments
*. @ [1]   TRAVEL  MOTOR
*-6. 716688 [1]   CYLINDER & PISTON KIT
K-61. 716689 [1]   PISTON ASSY
N105. 131147 [9]   PISTON
N106. 131148 [9]   SHOE
104 131149B [1]   BLOCK-CYLINDER
107 131150 [1]   PLATE-RETAINER
108 132323 [1]   BALL-THRUST
110 116976 [2]   WASHER
111 131356B [1]   COLLAR
114 131153 [1]   SPRING
151 131154 [5]   ROLLER
102 131155 [1]   SHAFT
103 135988 [1]   PLATE-SWASH
109 132324A [1]   PLATE-TIMING
112 131158 [1]   PISTON-PARKING
113 131159 [12]   SPRING
115 131160 [2]   PLATE-FRICTION
116 116979 [2]   PLATE-MATING
K132. 215823 [1]   SEAL-OIL
K135. 228569 [1]   O-RING
K139. 228570 [1]   O-RING
145 202579 [1]   RING-SNAP
149 229127 [1]   BEARING-BALL
150 229128 [1]   BEARING-BALL
167 131161 [2]   PIVOT
171 131146 [2]   PIN-PARALLEL
193 123744 [1]   SPRING
*-7. 716694 [1]   PISTON KIT
N161. 131184 [1]   PISTON
N162. 131185 [1]   SHOE
N . @ [AR]   NOT INDIVIDUALLY SUPPLIED
K. 674B9000-00 [1]   SEAL KIT
Pos. Part No Qty Parts name Comments
*. 31N6-40010 [1]   TRAVEL MOTOR
*-8. 716680 [2]   RELIEF VALVE ASSY
-81 716691 [2]   RELIEF VALVE KIT
