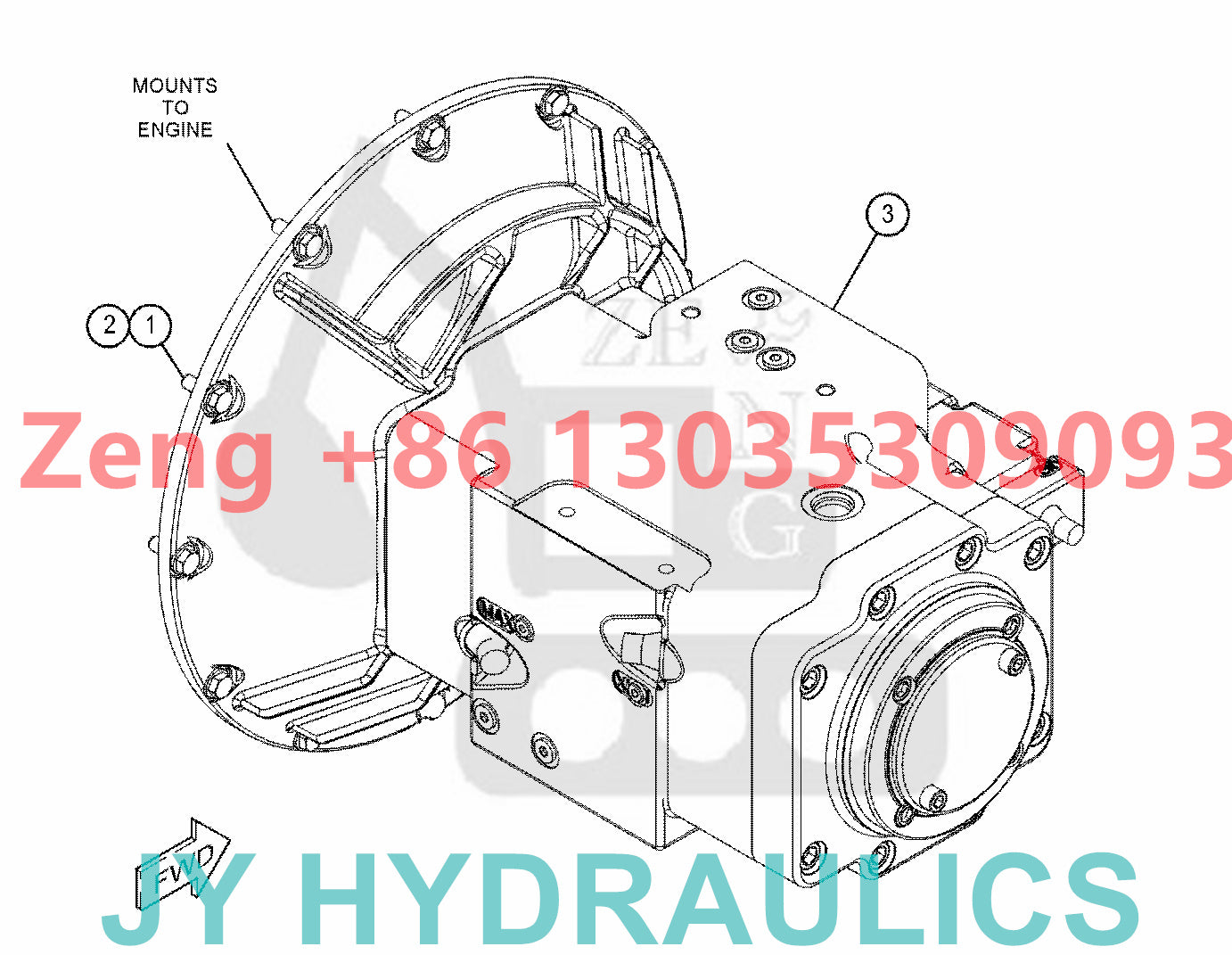

PUMP & MTG GP-MAIN HYDRAULIC
489-3484 PUMP & MTG GP-MAIN HYDRAULIC
S/N BR91-UP
PART OF 514-4877 HYDRAULIC AR |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
8T-4195 M |
[12] |
BOLT (M10X1.5X30-MM) |
|
| 2 |
8T-4121 |
[12] |
WASHER-HARD (11X21X2.5-MM THK) |
|
| 3 |
531-9886 |
[1] |
PUMP GP-MAIN HYDRAULIC |
|
|
M |
|
METRIC PART |
|
Y |
|
SEPARATE ILLUSTRATION |

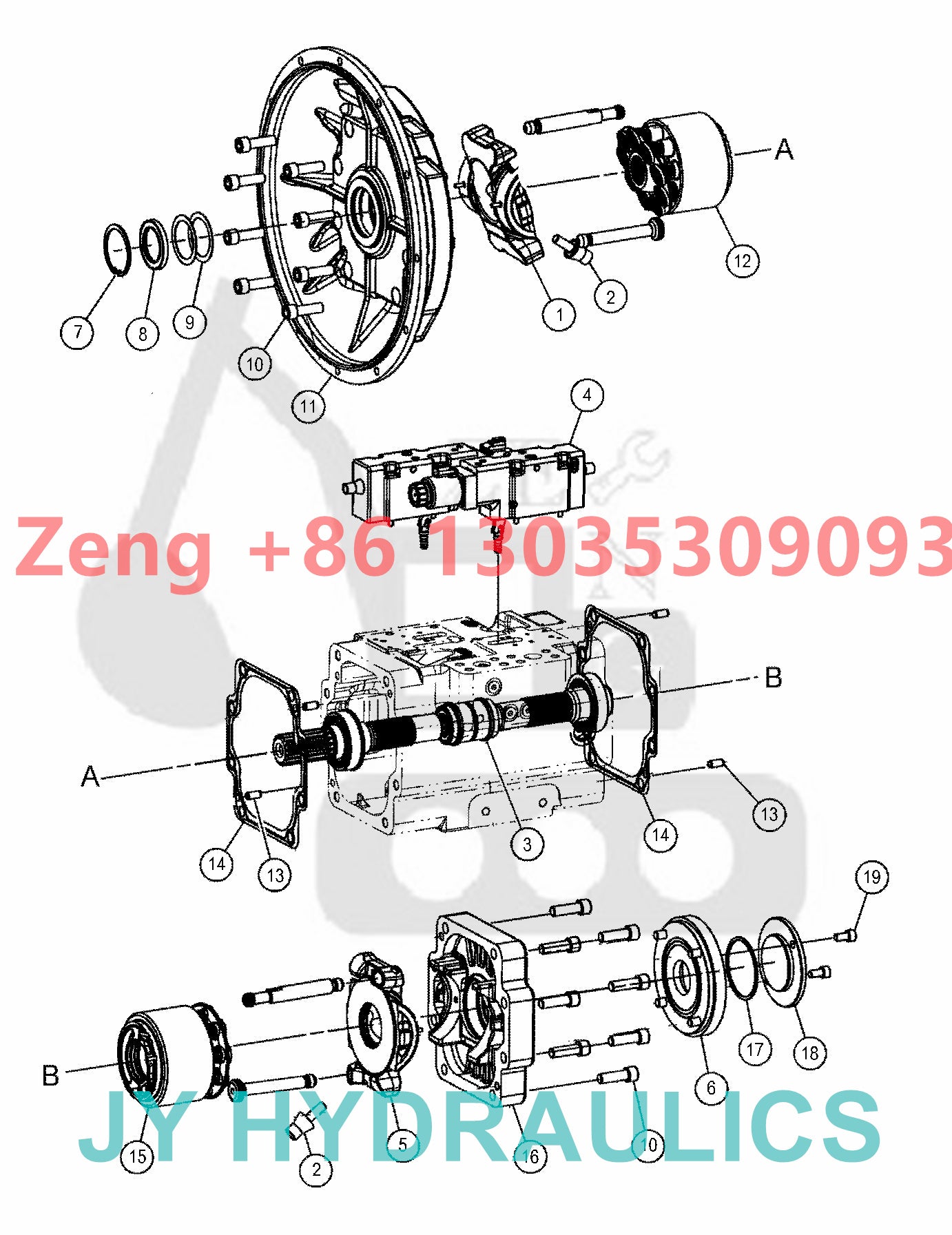

PUMP GP-MAIN HYDRAULIC
531-9886 CAT320 CAT323 PUMP GP-MAIN HYDRAULIC -DOUBLE PISTON
S/N BR91-UP
PART OF 489-3484 PUMP & MTG GP-MAIN HYDRAULIC |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
543-3690 |
[1] |
SWASHPLATE GP |
|
| 2 |
543-3692 |
[2] |
CONTROL AS-PISTON PUMP |
|
| 3 |
543-3689 |
[1] |
SHAFT & CPLG GP-PISTON PUMP (MAIN HYDRAULIC) |
|
| 4 |
543-3694 |
[2] |
VALVE GP-PUMP CONTROL (CONTROL) |
|
| 5 |
543-3691 |
[1] |
SWASHPLATE GP |
|
| 6 |
543-3693 Y |
[1] |
COVER GP-PUMP |
|
| 7 |
517-2780 |
[1] |
RING-RETAINING |
|
| 8 |
543-3698 |
[1] |
SEAL-LIP TYPE |
|
| 9 |
9T-3743 |
[2] |
SHIM (1-MM THK) |
|
| 10 |
095-0687 M |
[16] |
BOLT-SOCKET HEAD (M14X2X45-MM) |
|
| 11 |
543-3745 |
[1] |
FLANGE |
|
| 12 |
543-3687 |
[1] |
ROTATING GP-PUMP |
|
| 13 |
465-4551 |
[4] |
PIN-CYLINDER |
|
| 14 |
543-3697 |
[2] |
GASKET |
|
| 15 |
543-3688 |
[1] |
ROTATING GP-PUMP |
|
| 16 |
543-3696 |
[1] |
BLOCK |
|
| 17 |
469-3314 |
[1] |
SEAL-O-RING |
|
| 18 |
543-3699 |
[1] |
COVER |
|
| 19 |
6V-3938 M |
[2] |
BOLT (M10X1.5X20-MM) |
|
|
M |
|
METRIC PART |
|
Y |
|
SEPARATE ILLUSTRATION |

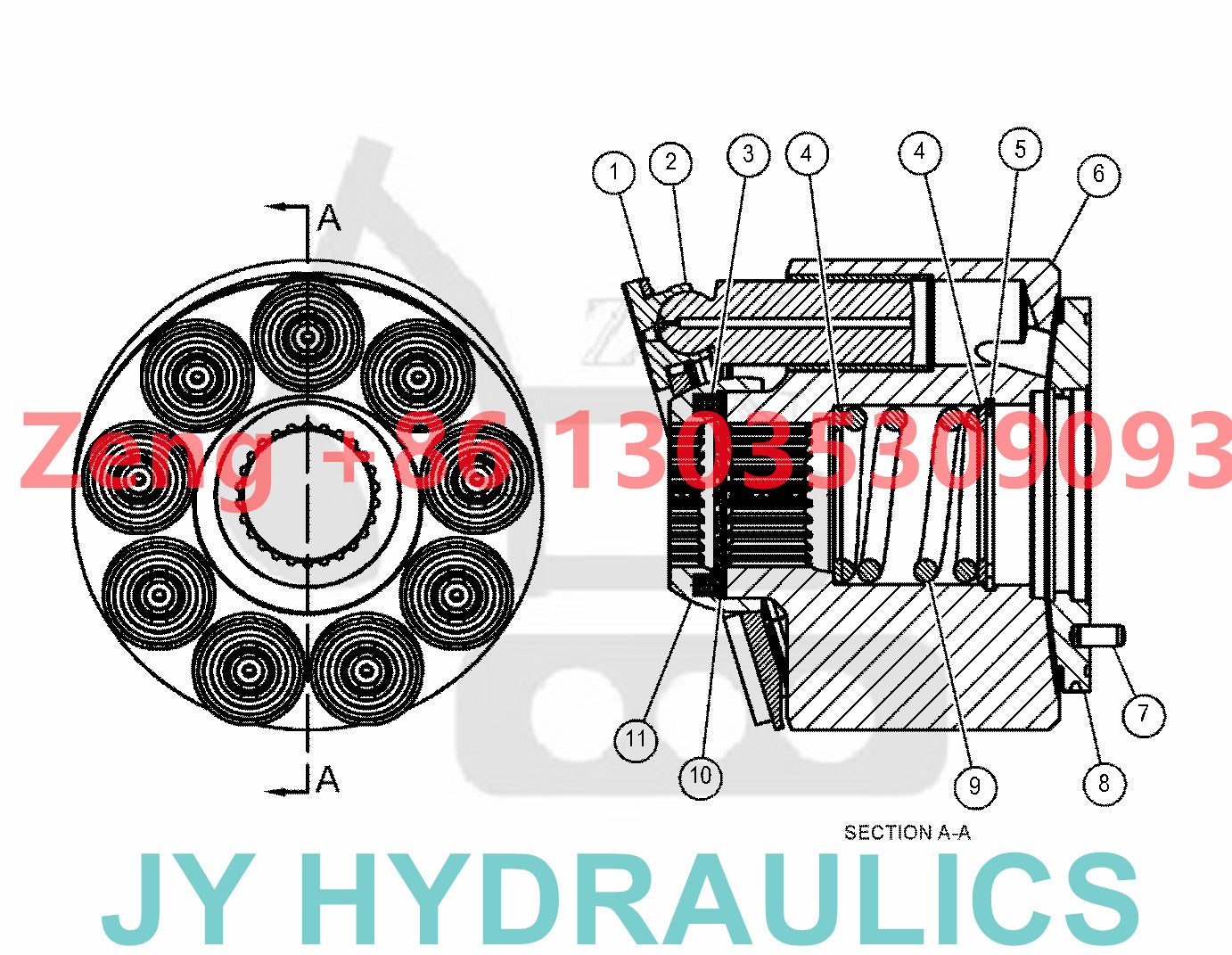

ROTATING GP-PUMP
543-3687 ROTATING GP-PUMP
S/N BR91-UP
PART OF 531-9886 PUMP GP-MAIN HYDRAULIC |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
543-3703 |
[1] |
PLATE-RETAINING |
|
| 2 |
543-3701 |
[9] |
PISTON AS |
|
| 3 |
179-6916 |
[20] |
SPRING |
|
| 4 |
543-3705 |
[2] |
PLATE |
|
| 5 |
543-3706 |
[1] |
RING-RETAINING |
|
| 6 |
543-3700 |
[1] |
BARREL |
|
| 7 |
202-6535 |
[1] |
PIN |
|
| 8 |
543-3704 |
[1] |
PLATE-CONTROL |
|
| 9 |
6E-4373 |
[1] |
SPRING |
|
| 10 |
543-3707 |
[1] |
PLATE |
|
| 11 |
543-3702 |
[1] |
GUIDE-BALL |
|
