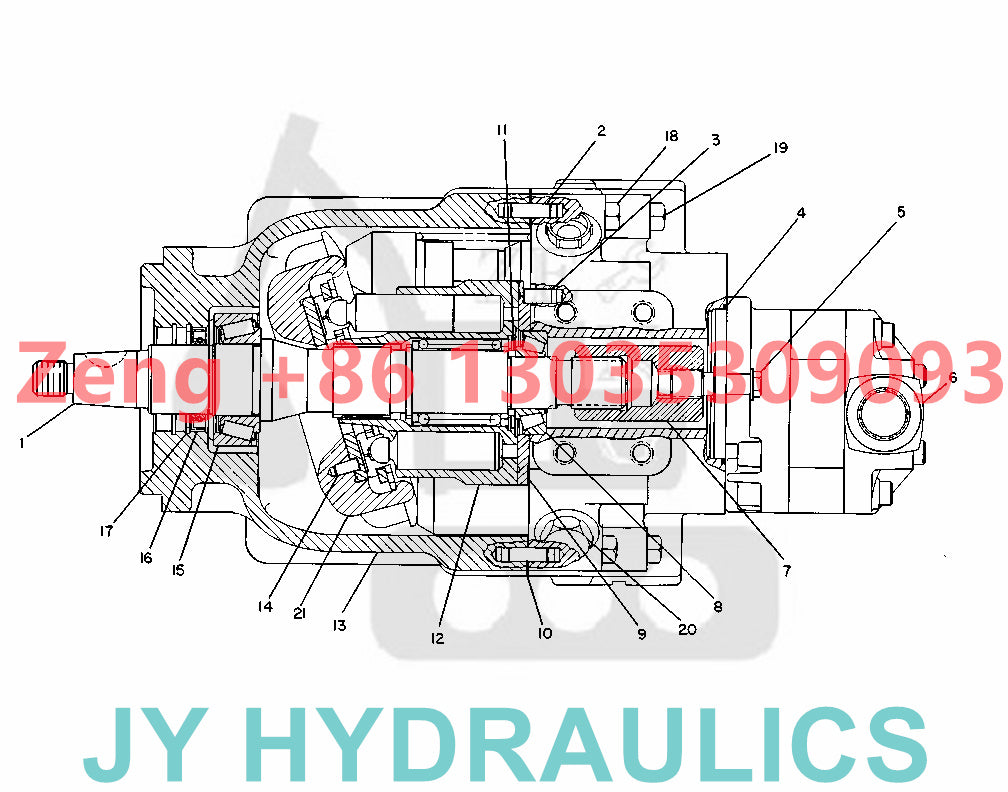

PUMP GP-PISTON & GEAR
9T-1416 CAT120G PUMP GP-SLIPPER PISTON & GEAR-PART 1 OF 2
S/N 11W1202-UP
9T1704-PAGE 164D
PART OF 8W2061 MOUNTING & PUMP |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
9T-1634 |
[1] |
SHAFT |
|
| 2 |
1T-0550 |
[2] |
PIN-SPRING |
|
| 3 |
9T-1652 |
[1] |
PIN |
|
| 4 |
5P-3863 |
[1] |
SEAL-O-RING |
|
| 5 |
0S-1594 |
[2] |
BOLT |
|
|
5M-2894 |
[2] |
WASHER |
|
| 6 |
9T-1802 |
[1] |
PUMP GP-GEAR |
|
| 7 |
9T-1635 |
[1] |
COUPLING |
|
| 8 |
1P-6872 |
[1] |
CUP-ROLLER BEARING |
|
|
004-9040 |
[1] |
CONE-ROLLER BEARING |
|
| 9 |
9T-1633 |
[1] |
PLATE |
|
| 10 |
9T-1630 |
[1] |
GASKET |
|
| 11 |
9T-2197 B |
[1] |
KIT-SHAFT SHIM |
|
| 12 |
9T-1704 |
[1] |
ROTATING GP-PUMP |
|
| 13 |
9T-1632 |
[1] |
HOUSING |
|
| 14 |
1A-2036 |
[1] |
DOWEL |
|
| 15 |
7T-8272 |
[1] |
CONE-ROLLER BEARING |
|
|
7T-8273 |
[1] |
CUP-ROLLER BEARING |
|
| 16 |
8T-4750 |
[1] |
SEAL-LIP TYPE |
|
| 17 |
006-8663 |
[1] |
RING |
|
| 18 |
1D-4703 |
[2] |
BOLT 63.5MM(2.5IN.)LG. |
|
|
4F-7226 |
[2] |
BOLT 101.6MM(4IN.)LG. |
|
| 19 |
7F-8698 |
[4] |
BOLT |
|
| 20 |
9S-4186 |
[1] |
PLUG-O-RING |
|
|
3K-0360 |
[1] |
SEAL-O-RING |
|
| 21 |
9T-7742 |
[1] |
SWASHPLATE GP |
|
|
9T-3033 C |
[2] |
STOP |
|
|
B |
|
USE AS REQUIRED |
|
C |
|
CHANGE FROM PREVIOUS TYPE |
|
Y |
|
SEPARATE ILLUSTRATION |

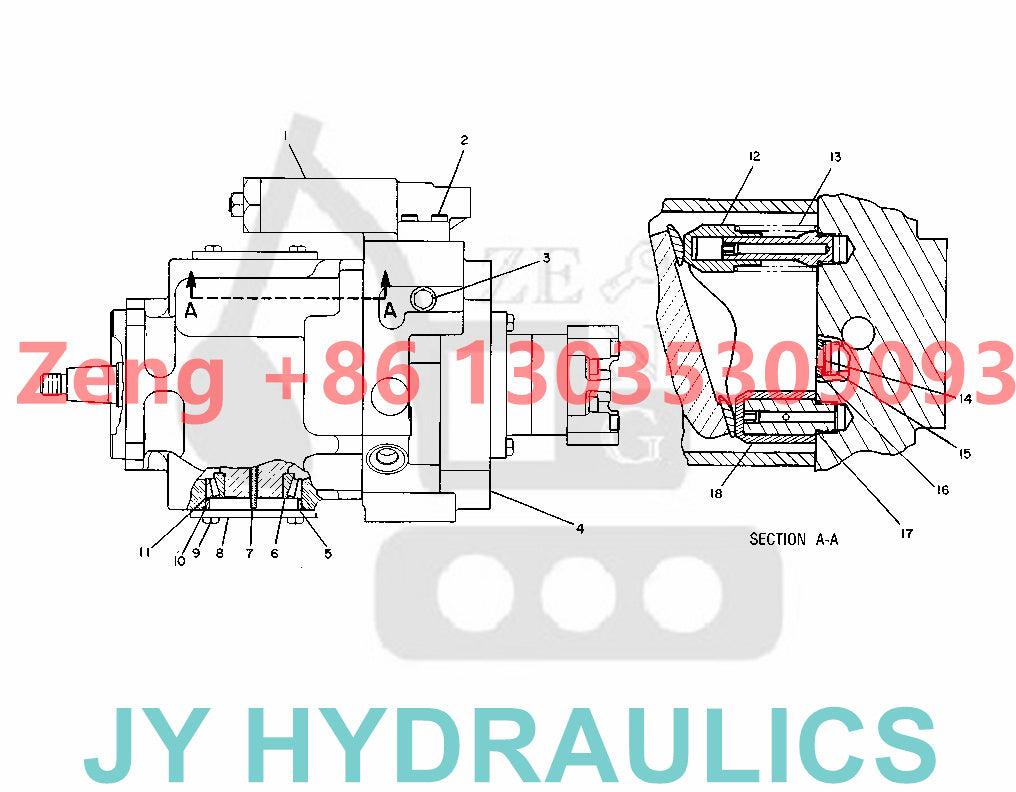

PUMP GP-PISTON & GEAR
9T-1416 PUMP GP-SLIPPER PISTON & GEAR-PART 2 OF 2
S/N 11W1202-UP
9T2198-PAGE 164D
PART OF 8W2061 MOUNTING & PUMP |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
9T-2198 |
[1] |
VALVE GP-COMPENSATOR |
|
| 2 |
5A-3604 C |
[4] |
BOLT-SOCKET HEAD |
|
| 3 |
9S-4182 |
[2] |
PLUG |
|
|
3J-7354 |
[2] |
SEAL-O-RING |
|
| 4 |
9T-1631 |
[1] |
HEAD |
|
| 5 |
9T-1711 |
[2] |
SPACER |
|
| 6 |
9S-3582 |
[2] |
CONE-ROLLER BEARING |
|
|
9S-3581 |
[2] |
CUP-ROLLER BEARING |
|
| 7 |
9T-1709 |
[1] |
KEY |
|
| 8 |
9T-1712 |
[2] |
COVER |
|
| 9 |
0S-1617 |
[8] |
BOLT |
|
| 10 |
5P-3863 |
[2] |
SEAL-O-RING |
|
| 11 |
9T-2216 B |
[2] |
KIT-PINTLE SHIM |
|
| 12 |
9T-1706 |
[1] |
PISTON AS-CONTROL |
|
| 13 |
9T-1698 |
[1] |
SPRING |
|
| 14 |
9T-1710 |
[1] |
POPPET |
|
| 15 |
9T-1699 |
[1] |
SPRING |
|
| 16 |
9T-1636 |
[1] |
SEAT |
|
| 17 |
2M-9780 |
[2] |
SEAL-O-RING |
|
| 18 |
9T-1705 |
[1] |
PISTON AS-CONTROL |
|
|
B |
|
USE AS REQUIRED |
|
C |
|
CHANGE FROM PREVIOUS TYPE |
|
Y |
|
SEPARATE ILLUSTRATION |

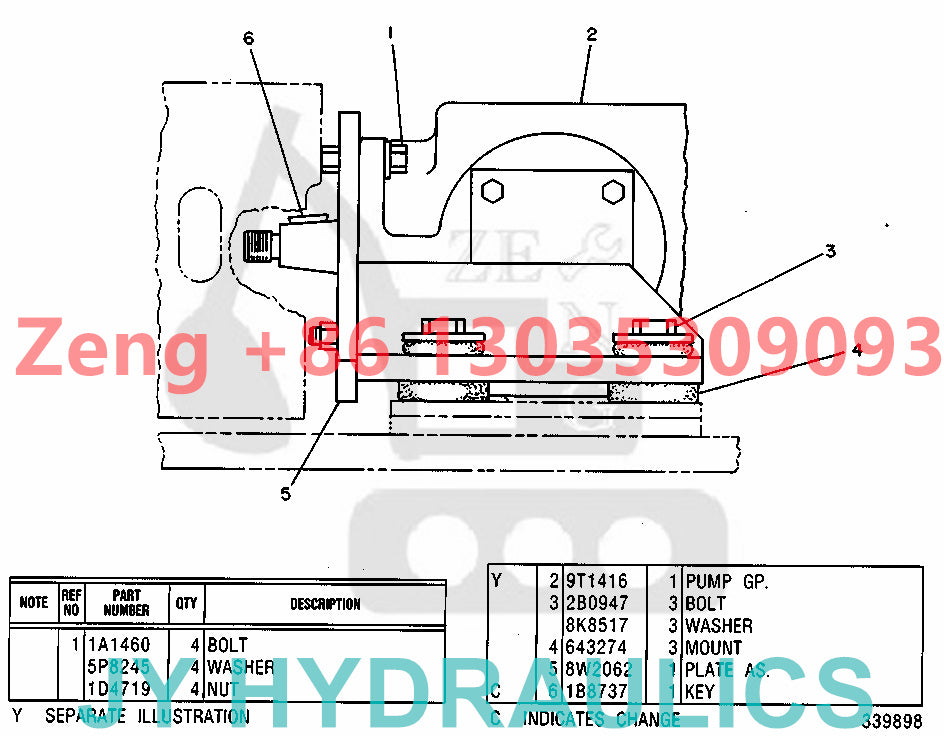

PUMP & MOUNTING GP
8W-2061 MOUNTING & PUMP GP
S/N 11W1202-UP
9T1416-PAGE 164B |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
1A-1460 |
[4] |
BOLT |
|
|
5P-8245 |
[4] |
WASHER |
|
|
1D-4719 |
[4] |
NUT |
|
| 2 |
9T-1416 Y |
[1] |
PUMP GP-PISTON & GEAR |
|
| 3 |
2B-0947 |
[3] |
BOLT |
|
|
8K-8517 |
[3] |
WASHER |
|
| 4 |
064-3274 |
[3] |
MOUNT |
|
| 5 |
8W-2062 |
[1] |
PLATE AS |
|
| 6 |
1B-8737 C |
[1] |
KEY-WOODRUFF |
|
|
C |
|
CHANGE FROM PREVIOUS TYPE |
|
Y |
|
SEPARATE ILLUSTRATION |

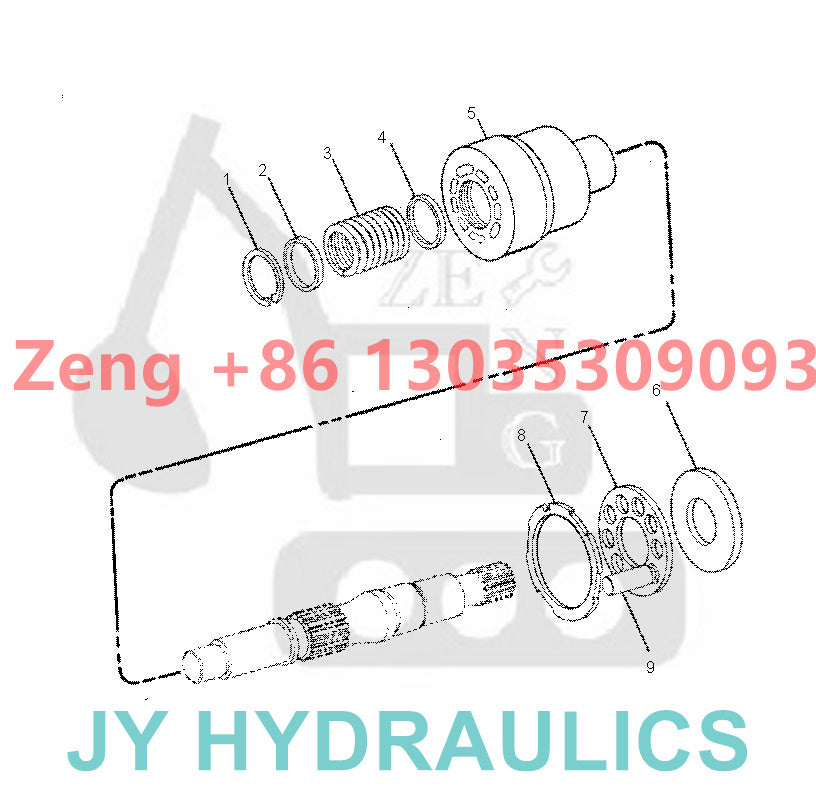

ROTATING GP-PUMP
9T-1704 ROTATING GP-PUMP
PART OF 9T1416 PUMP-PISTON & GEAR |
|
|
|
|
|
| CATERPILLAR SIS |
|
|
|
|
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
009-2069 |
[1] |
RING |
|
| 2 |
9T-7754 |
[1] |
GUIDE-OUTER |
|
| 3 |
9T-7755 |
[1] |
SPRING |
|
| 4 |
9T-7756 |
[1] |
GUIDE-INNER |
|
| 5 |
9T-7757 |
[1] |
BARREL |
|
| 6 |
9T-7758 |
[1] |
PLATE-WEAR |
|
| 7 |
9T-7759 |
[1] |
PLATE-RETAINING |
|
| 8 |
9T-7760 |
[1] |
SPACE-LIMITER |
|
| 9 |
9T-7761 |
[9] |
PISTON |
|
