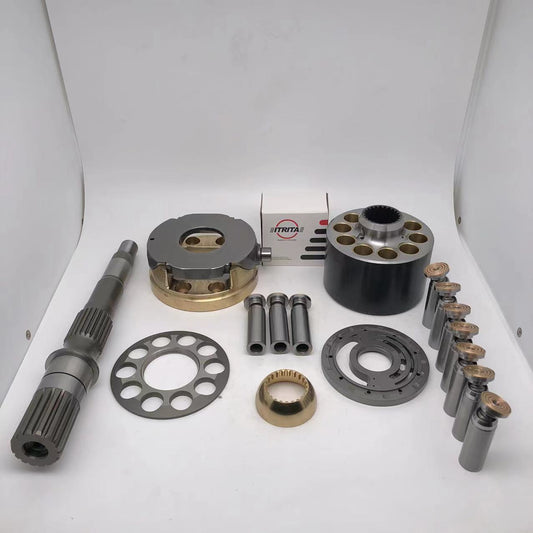

CAT320C MCB172 travel motor piston shoe

Name: CAT320C MCB172 travel motor piston shoe
Brand: +8613035309093
Price: 200.0 USD
Availability: InStock

CAT320C MCB172 travel motor piston shoe

$200.00 USD

特價售罄

結帳時計算運費。

產品子類

數量

MCB172 204-2674 204-2819 227-6115 267-6877 360-4598 CAT315DL CAT318C CAT319C CAT319D CAT319DL CAT319DLN CAT320C CAT320D CAT320DFM CAT320DGC CAT320DL CAT320DLN CAT320DLRR CAT320DRR CAT321DLCR CAT322C CAT322CFM CAT323DL CAT323DLN CAT323DSA CAT324D CAT324DL CAT324DLN CAT325C CAT325D CAT325DL CAT328DLCR CAT329D CAT329DL CAT329DLN CAT330C CAT330CFM CAT330CL CAT330CMH CAT330D CAT330DL CAT330DLN CAT330DMH CAT336D CAT336DL CAT336DLN CAT340DL
204-2674 204-2819 360-4598

CATERPILLAR SIS
Pos.	Part No	Qty	Parts name	Comments
1	5P-2568	[2]	SEAL-O-RING
2	204-2755 Y	[2]	VALVE GP-RELIEF
3	9S-8004	[2]	PLUG (9/16-18-THD)
4	3J-1907	[2]	SEAL-O-RING
5	096-1545	[2]	WASHER (28.5X37X2-MM THK)
6	209-5920	[2]	SPRING
7	334-9940	[2]	COVER
8	8T-7811 M	[8]	BOLT-SOCKET HEAD (M12X1.75X50-MM)
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

204-2674 215-9952

CATERPILLAR SIS
Pos.	Part No	Qty	Parts name	Comments
1	209-5894	[1]	SHAFT
2	087-4743	[2]	STOP
3	094-1399	[1]	RING-RETAINING
4	7Y-4212	[1]	BEARING
5	346-1340	[2]	PISTON
6	107-6969	[1]	BODY
7	122-5114	[1]	GUIDE-BALL
8	209-5909	[1]	PLATE-CAM
9	147-5860	[1]	PISTON AS
10	234-4629	[1]	BARREL AS
11	107-6954	[4]	PLATE-FRICTION
12	107-6955	[5]	PLATE-SEPARATOR
13	096-1523	[1]	GUIDE-PISTON
14	7Y-4213	[1]	PISTON-BRAKE
15	7Y-4202	[1]	HEAD
16	8T-4944 M	[10]	BOLT-SOCKET HEAD (M16X2X40-MM)
17	096-1521 B	[1]	SHIM (1-MM THK)
18	096-3785 B	[1]	SHIM (1.2-MM THK)
19	096-3786 B	[1]	SHIM (1.4-MM THK)
20	096-3787 B	[1]	SHIM (1.6-MM THK)
21	096-1522 B	[1]	SHIM (2-MM THK)
22	096-3788 B	[1]	SHIM (1.8-MM THK)
23	096-5916	[2]	SEAT
24	2D-6642	[2]	BALL
25	095-1572 J	[2]	SEAL-O-RING
26	096-5919 J	[2]	RING-BACKUP
27	096-5915	[2]	RETAINER
28	096-4003	[1]	SET-BEARING
	7Y-4234	[1]	RACE-NEEDLE ROLLER
29	095-1585 J	[1]	SEAL-O-RING
30	087-4742	[1]	VALVE
31	096-1519	[1]	SEAT
32	095-7380	[1]	SPRING
33	095-7382	[1]	RETAINER
34	094-1875	[1]	DOWEL
35	095-7378	[1]	WASHER SET
36	094-1882	[10]	PLUG
37	095-1575 J	[3]	SEAL-O-RING
38	096-4378 J	[1]	RING-BACKUP
39	096-4377 J	[2]	SEAL-O-RING
40	094-1882 H	[1]	PLUG
41	095-7384 J	[1]	SEAL-O-RING
42	095-7383 J	[1]	SEAL-O-RING
43	095-7386 J	[1]	RING-BACKUP
44	095-7387 J	[1]	RING
46	096-4389	[9]	SPRING
47	7Y-4215	[1]	SPACER
48	095-1586 J	[2]	SEAL-O-RING
49	7Y-4217 J	[2]	RING-BACKUP
50	096-4376 J	[1]	SEAL-LIP TYPE
51	123-2008	[2]	KEY
52	121-1558	[2]	PIN
53	087-4786	[1]	ADAPTER
54	3K-0360 J	[1]	SEAL-O-RING
55	9S-4185	[1]	PLUG (3/4-16-THD)
56	095-1700 J	[2]	SEAL-O-RING
57	7Y-4224	[2]	ORIFICE
58	096-3978	[1]	SPRING
59	7Y-4216	[1]	SPOOL
60	2M-9780 J	[1]	SEAL-O-RING

			AVAILABLE REPAIR KIT(S):
	7Y-4222 J	[1]	KIT-SEAL (TRAVEL MOTOR)
			(ALSO INCLUDES O-RING-SEAL)
	B		USE AS REQUIRED
	H		NOT REQUIRED FOR OPTIONAL BODY DESIGN
	J		KIT MARKED J SERVICES PART(S) MARKED J
	M		METRIC PART
204-2674 227-6115 267-6877

CATERPILLAR SIS
Pos.	Part No	Qty	Parts name	Comments
1	215-9952 Y	[1]	MOTOR GP-TRAVEL
2	204-2819 CY	[1]	VALVE GP-TRAVEL COUNTERBALANCE
3	095-0707 M	[3]	BOLT (M16X2X120-MM)
4	3E-6910 M	[6]	BOLT-SOCKET HEAD (M12X1.75X70-MM)
5	095-1685	[1]	SEAL-O-RING
	C		CHANGE FROM PREVIOUS TYPE
	M		METRIC PART
	R		REMANUFACTURED PART MAY BE AVAILABLE
	Y		SEPARATE ILLUSTRATION
